TEFCOLD IC552SC / UK Sliding Flat Glass Lid Chest Freezer

£698.00

+vat

Brand:

SKU: 71601

Energy Arrow

Product summary

  • Flat sliding glass lids with lock

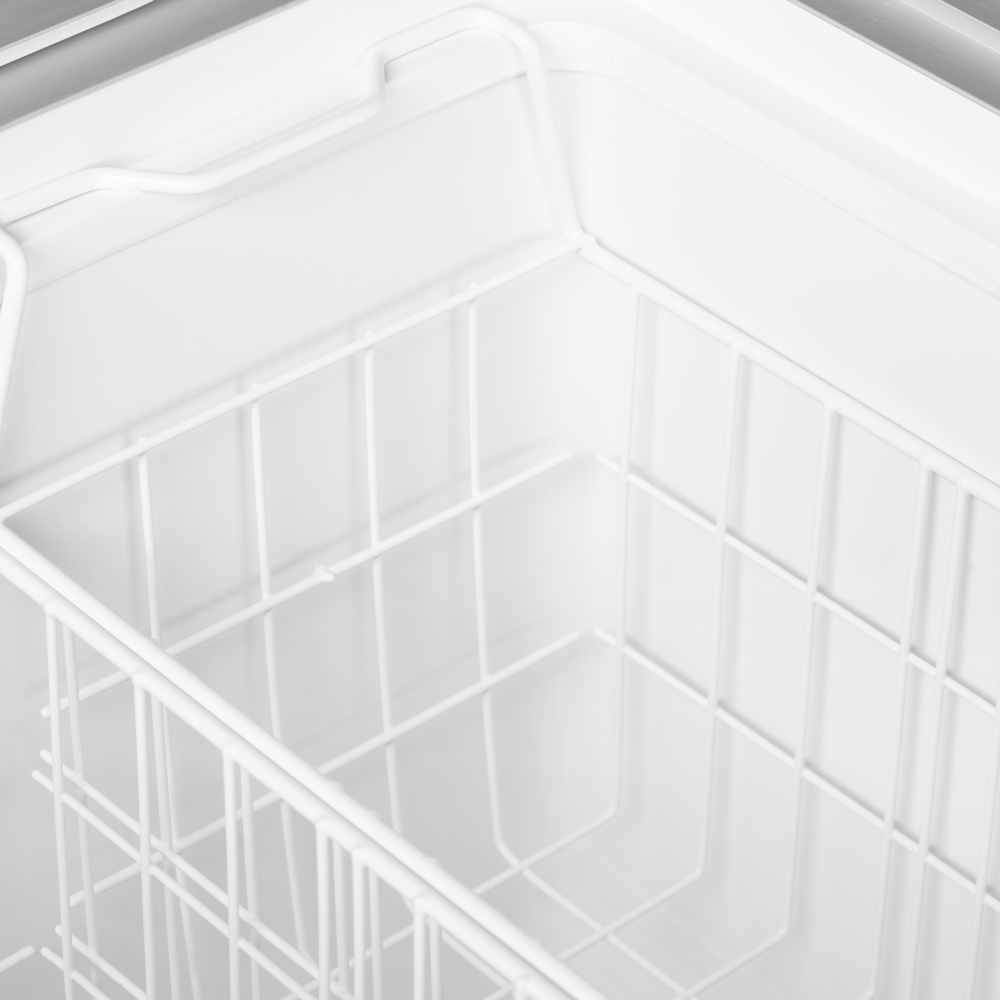

  • Includes full set of baskets
  • LED interior light
  • Great branding possibilities
  • Castors with brake
  • Digital thermometer
  • Climate class 5 for high performance in warm surroundings

Product description

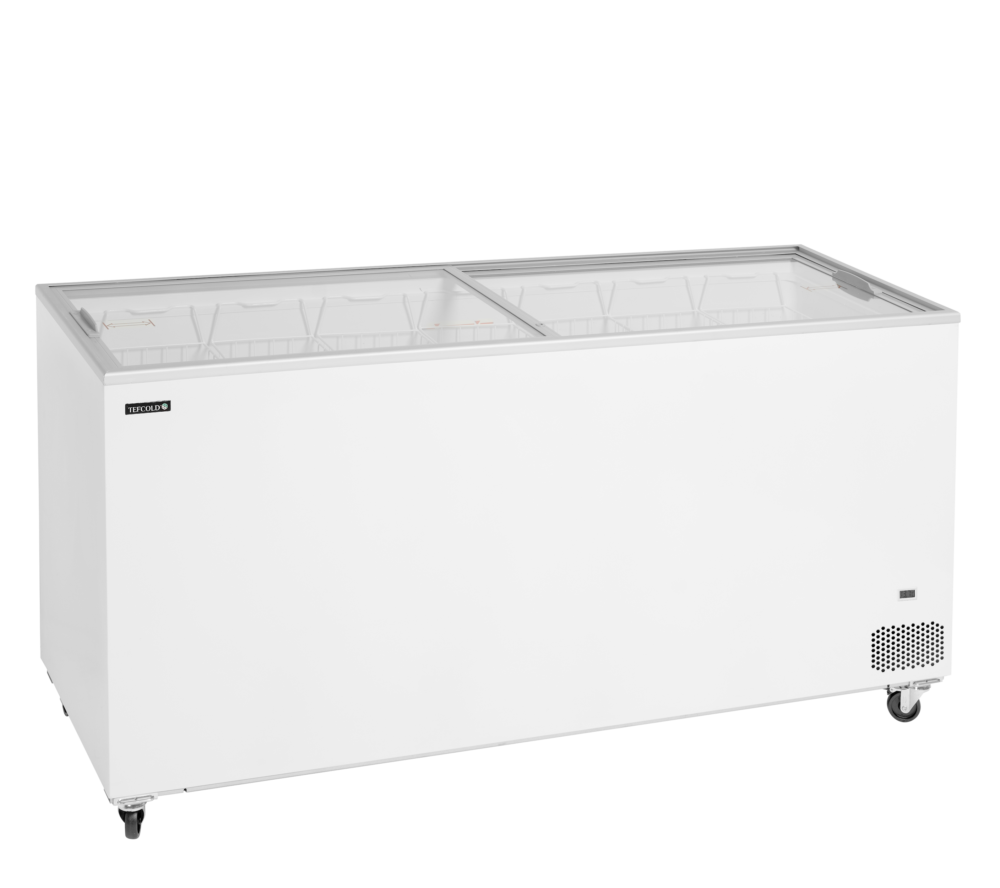

Chest freezer with flat sliding glass lids

The IC-SC range of sliding glass lid chest freezers is ideal for display of ice creams, lollies, or other frozen goods. The units come with a full set of baskets with ample storage underneath. Units come fitted with castors. There are 5 different sizes to suit a range of requirements. Ideal for convenience stores, cafés and small shops.

The Tefcold IC552SC/UK is a sliding flat-glass-lid chest freezer for ice cream display, static-cooled to a -24 to -14 °C band, holding a gross 555 litres and costing about £279 a year in energy at 25p/kWh.

SPECIFICATION 39 facts · tap for all External W × D × H1750 x 630 x 892 mmWidth1750 mmDepth630 mmGross / net weight114 / 96 kgGross weight114 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181761165site
Product code 71601site
Sub title Sliding Flat Glass Lid Chest Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 630 mmsite
External (W×D×H) 1750 × 630 × 892 mmcatalogue
External W × D × H 1750 x 630 x 892 mmsite
Gross / net weight 114 / 96 kgsite
Gross weight 114 kgcatalogue
Height 892 mmsite
Internal (W×D×H) 1630 × 510 × 655 mmcatalogue
Internal W × D × H 1630 x 510 x 655 mmsite
Packed (W×D×H) 1845 × 750 × 960 mmcatalogue
Packed W × D × H 1845 x 750 x 960 mmsite
Width 1750 mmsite

Capacity1

Gross volume 555 litrescatalogue

Performance8

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy5

Annual energy consumption 1155.59 kWh/yearsite
Energy consumption 3.166 kWh/24hsite
Input power 365 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The Tefcold IC552SC/UK is a chest freezer with sliding flat glass lids, built to display packaged and tubbed ice cream at the point of sale. The glass tops let customers see the range while the cabinet holds it frozen, which suits parlours, forecourts and shops merchandising impulse frozen lines. It is finished in white with a white painted-steel interior.

It is static-cooled and works to a -24 to -14 °C band, holding a gross 555 litres (486 litres net). Defrost is manual and the controls are mechanical. It runs at 45 dB on R290 refrigerant with a 120 g charge. On energy it carries class D at 1115.6 kWh a year — about £279 a year at 25p/kWh.

The cabinet draws 365 W and runs from a 220–240 V supply. It weighs 114 kg gross, so plan delivery and siting around that. As a chest-format cabinet it takes floor space rather than a wall run; the internal load area measures 1630 × 510 × 655 mm. Check the external dimensions in the spec table against your doorway and the route in before ordering.

BEFORE YOU BUY

Questions, answered straight

It is static-cooled to a -24 to -14 °C band for displaying frozen ice cream. Defrost is manual and the controller is mechanical.

Gross capacity is 555 litres, 486 litres net, across an internal load area of 1630 × 510 × 655 mm. Check the external dimensions in the spec table against your floor space.

It is rated energy class D at 1115.6 kWh a year, about £279 a year in electricity at 25p/kWh, and it runs at 45 dB.

It draws 365 W from a 220–240 V supply. Site it where the plug reaches and allow room around the chest for loading and cleaning.

It uses R290 with a 120 g charge. If it needs servicing or a repair, Craven Cooling can arrange it — call 01792 732702.

Yes. It has sliding flat glass lids, so customers can see the frozen range and staff can reach stock without lifting a hinged cover.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1630 x 510 x 655 mm
External Dimension (WxDxH): 1750 x 630 x 892 mm
Packed Dimension (WxDxH): 1845 x 750 x 960 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.166 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 1155.59 kWh/year m³
Input Power: 365 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 114 / 96 kg
Gross / Net Volume: 555 / 486 l

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Interior Light: LED

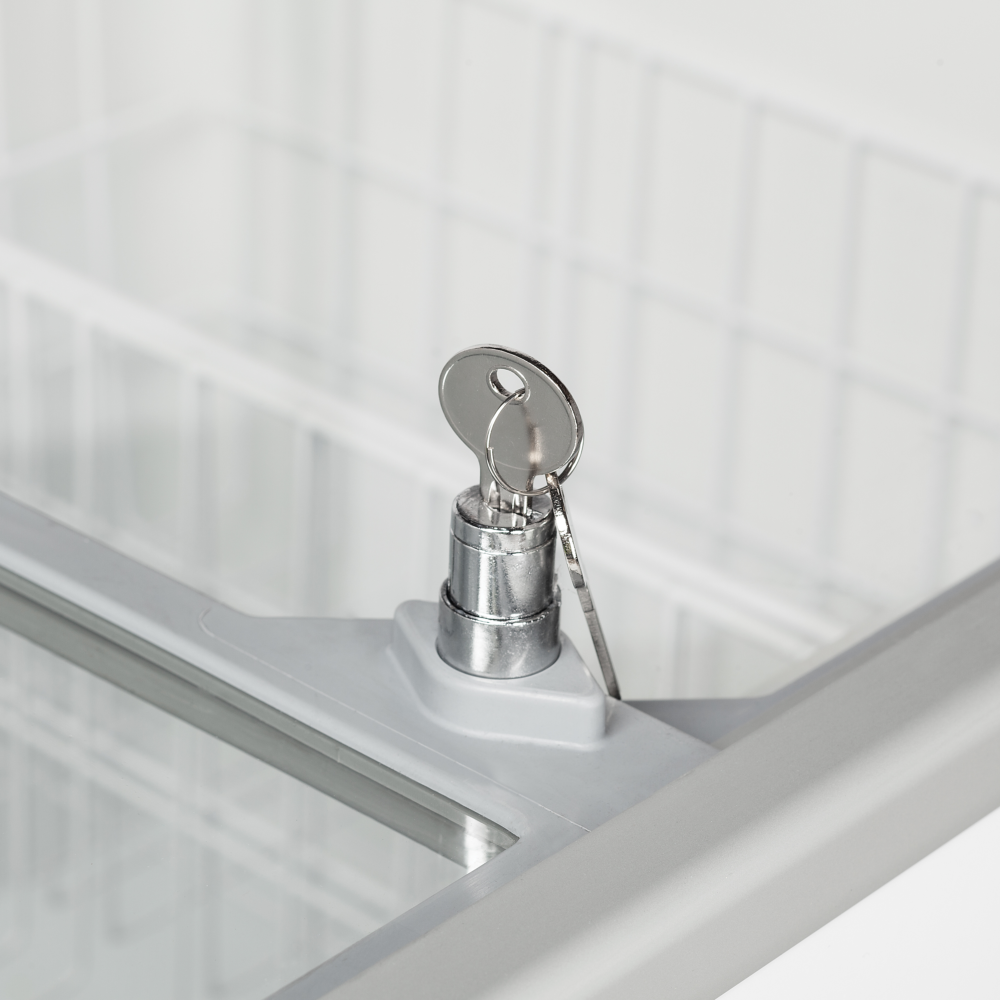

Lock: Yes
If you have any questions about the TEFCOLD IC552SC / UK Sliding Flat Glass Lid Chest Freezer then please get in touch.
