TEFCOLD IC502SCEB Sliding Curved Glass Lid Chest Freezer

£820.00

+vat

Brand:

SKU: 71478

Energy Arrow

Product summary

  • Sloping display for excellent presentation

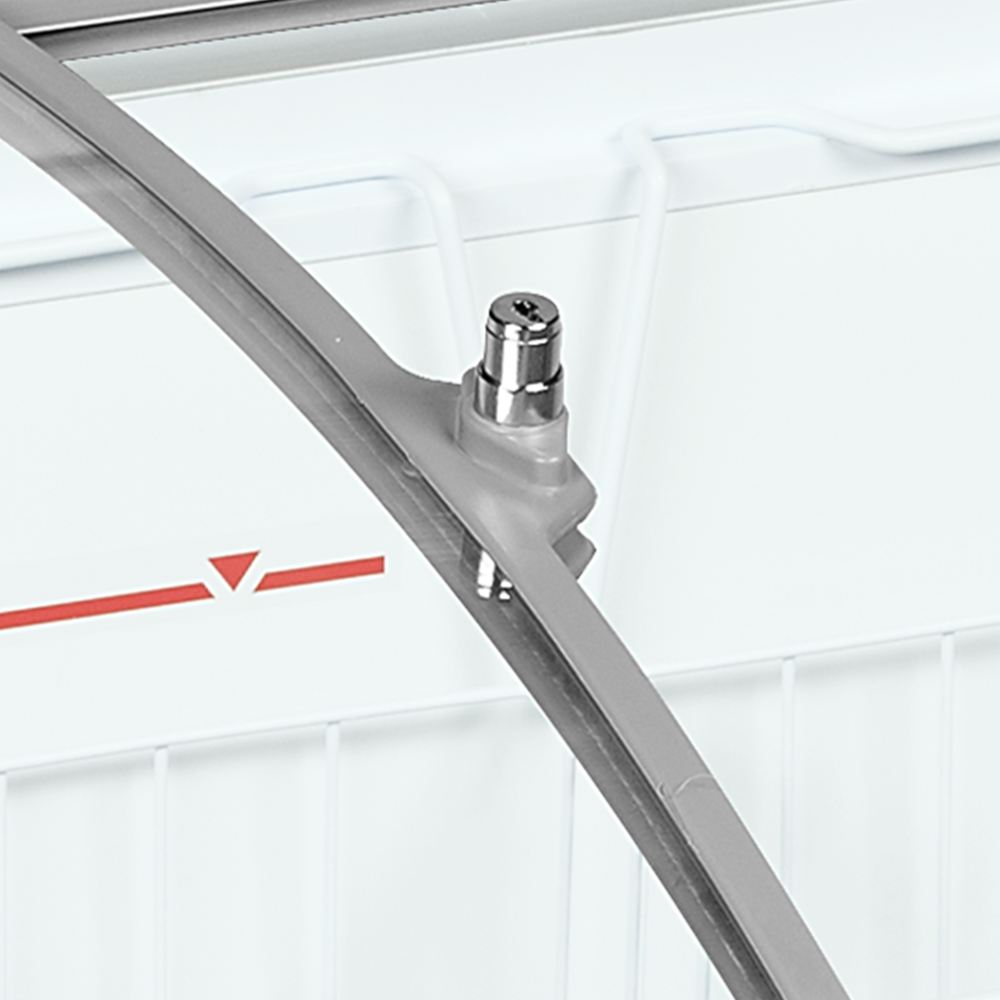

  • Curved sliding lids with lock
  • Includes full set of baskets
  • Ideal for branding
  • LED interior light
  • Digital thermometer
  • Castors with brake
  • Climate class 5 for high performance in warm surroundings

Product description

Sliding Curved Glass Lid Chest Freezer

An excellent choice of sliding glass lid chest freezers, similar to the IC-SC range but with a sloping top for a better visual display and curved lids which always look better. Ideal for display of frozen food including ice cream and lollies. Sturdy heavy duty castors are fitted to enable easy movement of the cabinet, two of the four castors are lockable. Excellent adjustment of the temperature means you can hold a temperature around -14°C ready to serve ice cream, or down to -24°C for other frozen food. The unit comes with a lock as standard and a defrost drain for easy cleaning. The unit also has a fan assisted condenser for efficient operation. A full set of baskets with dividers supplied as standard (except IC101SCEB which does not come with dividers). A firm favourite with many ice cream companies. (A glass canopy version for scooping ice cream is also available).

The TEFCOLD IC502SCEB is a white glass-lidded chest display freezer holding 398 litres net (427 litres gross) that runs from -24 to -14 °C on R290 refrigerant, carries energy class D at 957 kWh a year, and operates at 45 dB from a standard 13-amp supply.

SPECIFICATION 42 facts · tap for all External W × D × H1550 x 615 x 949 mmWidth1550 mmDepth615 mmGross / net weight85 / 72 kgGross weight85 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181760557site
Product code 71478site
Sub title Sliding Curved Glass Lid Chest Freezercatalogue
Type Sliding Lid Ice Cream Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 615 mmsite
External (W×D×H) 1550 × 615 × 949 mmcatalogue
External W × D × H 1550 x 615 x 949 mmsite
Gross / net weight 85 / 72 kgsite
Gross weight 85 kgcatalogue
Height 949 mmsite
Internal (W×D×H) 1420 × 495 × 710 mmcatalogue
Internal W × D × H 1420 x 495 x 710 mmsite
Packed (W×D×H) 1640 × 750 × 1040 mmcatalogue
Packed W × D × H 1640 x 750 x 1040 mmsite
Width 1550 mmsite

Capacity1

Gross volume 427 litrescatalogue

Performance10

Climate class 5site
Controller Mechanicalsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 40 °Ccatalogue
Maximum ambient +40°C, 40% RHsite
Refrigerant R290site
Refrigerant charge 110 gsite
Temperature range -24 to -14site
Thermometer Yessite

Power & energy6

Annual energy consumption 957.03 kWh/yearsite
Energy consumption 2.622 kWh/24hsite
Energy efficiency index 43.9 %site
Input power 265 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Exterior finish Whitesite
Interior light LEDsite

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this sliding lid ice cream freezer earns its place

The TEFCOLD IC502SCEB is a white glass-lidded chest display freezer built to hold and merchandise frozen lines where customers can see the stock. With 427 litres gross and 398 litres net, it suits ice cream tubs, frozen impulse lines and bulk frozen product on a shop floor rather than tucked away in a back store.

It holds a frozen band of -24 to -14 °C under a mechanical controller, with manual defrost, and runs quietly at 45 dB — low enough for a customer-facing space. It is rated energy class D and draws 957 kWh a year, which works out at about £239 a year at 25p/kWh, and its climate class 5 rating covers warm ambient conditions.

Cooling is by R290 hydrocarbon refrigerant with a 110 g charge, and the interior is white painted steel. The cabinet takes a standard 13-amp supply, so no special electrics are needed. It has an internal capacity envelope of 1420 × 495 × 710 mm (W×D×H) and a gross weight of 85 kg — check delivery access and the intended pitch before install; full external dimensions are on the spec table.

BEFORE YOU BUY

Questions, answered straight

It is rated energy class D and uses 957 kWh a year. At 25p/kWh that is about £239 a year, before any variation for your ambient conditions and how often the lid is opened.

It runs across a frozen band of -24 to -14 °C, set on a mechanical controller. Defrost is manual, so factor a defrost cycle into your routine.

It runs from a standard 13-amp supply, so a normal socket is enough — no three-phase or special wiring required.

The cabinet is 427 litres gross and 398 litres net, sized for ice cream tubs, frozen impulse lines and bulk frozen product.

Yes — it runs at 45 dB, which is low enough for a customer-facing space rather than a back store.

Yes. Craven Cooling services the refrigeration it supplies; call the team on 01792 732702 to arrange a service or discuss a breakdown.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1420 x 495 x 710 mm
External Dimension (WxDxH): 1550 x 615 x 949 mm
Packed Dimension (WxDxH): 1640 x 750 x 1040 mm

Cooling and Functions

Type of Controller: Mechanical
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R290
Refrigerant Charge: 110 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.622 kWh/24h
Temperature Range: -24 to -14 °C
Annual Energy Consumption: 957.03 kWh/year m³
EEI: 43.9 %
Input Power: 265 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -14 °C
Climate Class: 5
Gross / Net Weight: 85 / 72 kg
Gross / Net Volume: 427 / 398 l
Max Ambient: +40°C, 40% RH

Design and Material

Castors: 4 wheels, 2 with brake
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD IC502SCEB Sliding Curved Glass Lid Chest Freezer then please get in touch.
