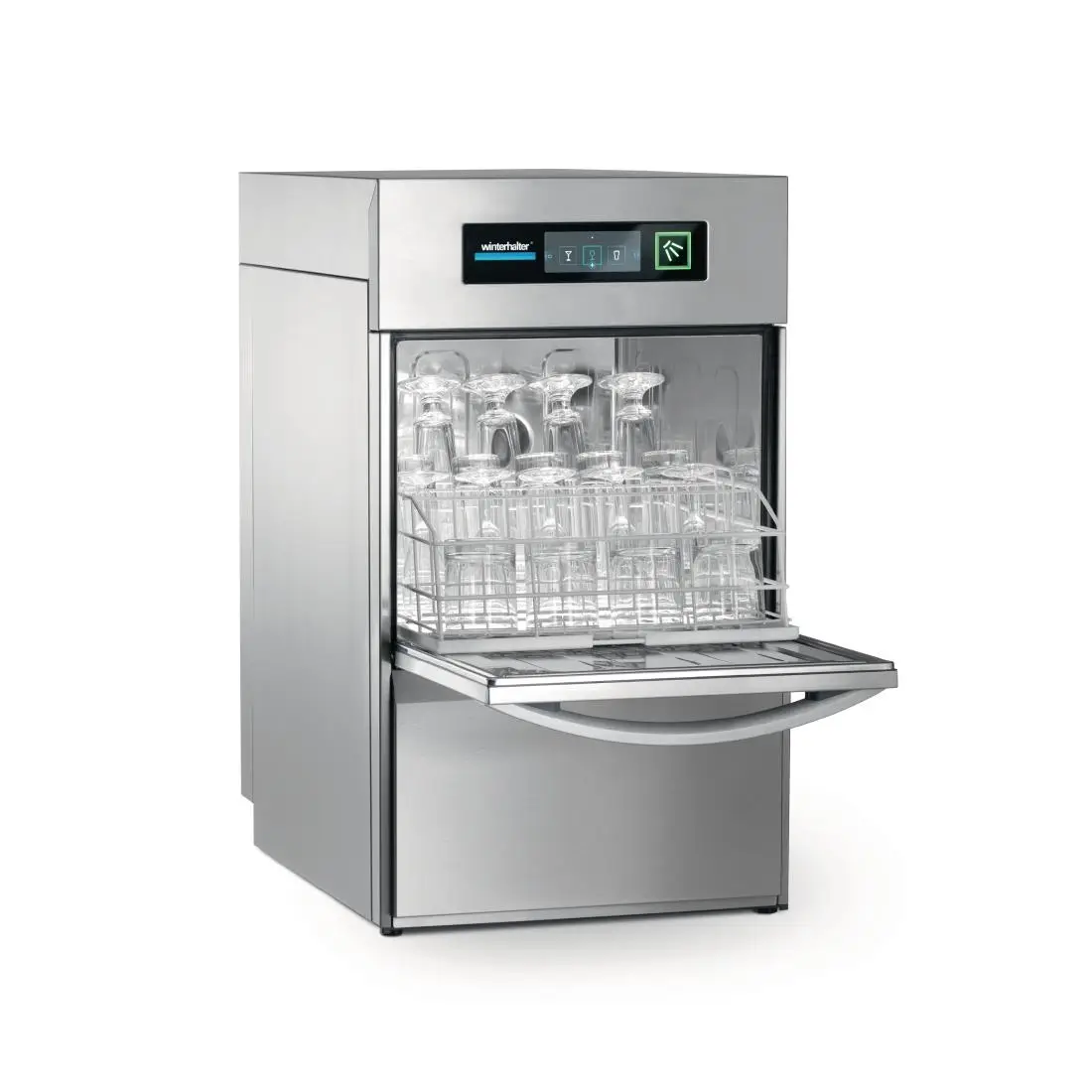

Winterhalter Undercounter Glasswasher UC-S-E Energy FC640

£6,912.66

+vat

Availability: 999 in stock

- +

Brand:

SKU: FC640

Product summary

Energy saving. With drain pump and water softener

Product description

Undercounter glass and dishwashing machines which are economical and easy to operate. Winterhalter UC machines come in four different sizes and are determined by the space onsite and the size of the items being washed (see spec). Wash arms removable for easy cleaning. Energy feature models have an integral air heat recovery system, which uses the steam produced in the washing process to heat up the incoming cold water supply, reducing running costs and improving room atmosphere. Supplied single phase as standard, three-phase available on request.

Useable wash chamber height: 309mm
Up to three programmable wash cycles
Self-cleaning programme ensures maximum hygiene
Highly efficient and designed to significantly reduce water and energy use. Innovative heat exchange saves around 100W per cycle
Precise detergent & rinse aid dosing optimises washes
VarioPower technology adjusts rinse pressure to maximise performance
Minimum requirement of 1.5 bar incoming water pressure
Made in Germany
Quiet mode reduces operating noise
Intuitive Smart Touch digital control panel and display
WRAS compliant air gap

Downloads

THE WORKING VIEW

Why this dishwasher earns its place

The Winterhalter UC-S-E Energy FC640 is the Energy version of Winterhalter's undercounter UC glass and dishwashing format. It is rated for 32 glass racks or 28 dish racks per hour, which the supplier also states as 512 glasses or 252 plates per hour, so it suits a bar or service point where glasswashing is the main job but occasional dish loads still need to be handled.

The Energy feature is the important step up here. Winterhalter describes an integral air heat recovery system that uses steam from the washing process to heat the incoming cold water supply, helping reduce running costs and improving the room atmosphere around the machine. For a front-bar or counter position, that matters because the benefit is not just throughput; it is also less heat and steam being pushed straight into the workspace.

At 460mm wide, 617mm deep and 800mm high, the FC640 is still an undercounter machine, but with enough height and depth to check carefully against the site before ordering. Gross weight is 67kg, the finish is silver, drainage is by drain pump and the listed temperature range is 40-66°C.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

460 × 617 × 800 mmstated W × D × H67 kg
THE CRITICAL ANSWERNarrowest straight opening460mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS800 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

THE WASH-UP LINE31 PRODUCTS
Match the machine to the service

Undercounter to pass-through — the whole wash-up range at live catalogue prices.

BEFORE YOU BUY

Questions, answered straight

Winterhalter's Energy feature is an integral air heat recovery system that uses steam from the washing process to heat the incoming cold water supply, reducing running costs and improving the room atmosphere.

32 glass racks or 28 dish racks per hour; the supplier also lists this as 512 glasses or 252 plates per hour.

40-66°C.

The listed size is 460mm wide, 617mm deep and 800mm high, with a 67kg gross weight.

Drainage is by drain pump.

It depends on service volume and room conditions. Call Craven Cooling on 01792 732702 to work through the choice for your site.

The numbers that decide it

Service pace

Output per hour 512 glasses/hr or 252 plates/hr
Basket size 400(W) x 400(D)mm

Water & tank

Drainage Drain Pump

Chamber & baskets

Capacity 32 glass racks/ 28 dish racks/hr

Power & supply

Voltage Variable
Fuel type Single or Three Phase

Format & size

External (W×D×H) 800 × 460 × 617 mm
Width 460 mm
Depth 617 mm
Height 800 mm
Gross weight 67 kg

Build

Colour Silver
Colour code Silver

Identifiers

GTIN / EAN FB763
Brand Winterhalter
Warranty 3 Years On-Site Parts & Labour
Type Glasswashers
Range / series Glasswashers
Extended warranty 3 Years On-Site Parts & Labour
Supplier ref FC640
Supplier name Uropa

Safety

Electrical safety notice Yes

In use

Suitable for Dishwashers

Performance

Temperature range +40 to +66 °C
KNOW YOUR KIT BEFORE YOU BUY

Tools that do the maths

Pick the machine, count the true cost, and plan the routine it joins.

3 TOOLS

See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Winterhalter Undercounter Glasswasher UC-S-E Energy FC640 Product Data

Brand Winterhalter
Type Glasswashers
Dimensions 800(H) x 460(W) x 617(D)mm
Capacity 32 glass racks/ 28 dish racks/hr
Colour / Finish Silver
Temperature Range Tank temperature 40°C to 66°C, rinse temperature 40°C to 85°C
Power 20A single phase as standard. Please inform us when ordering if you require 3 phase
Voltage Variable
Fuel / Supply Single or Three Phase
Suitable For Dishwashers
Warranty 3 Years On-Site Parts & Labour
Weight 67kg
Manufacturer Ref UC-S-E-ENERGY
If you have any questions about the Winterhalter Undercounter Glasswasher UC-S-E Energy FC640 then please get in touch.
