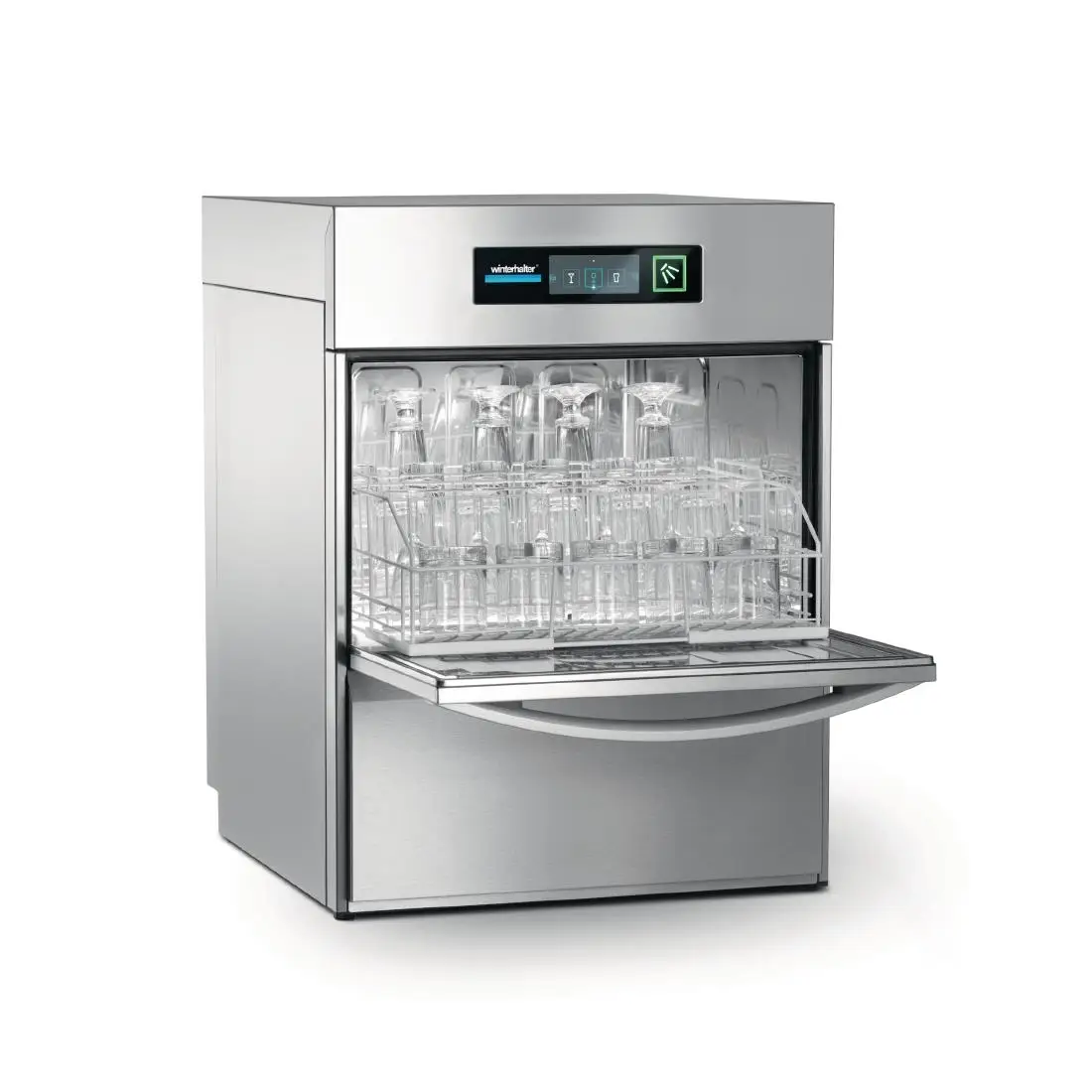

Winterhalter Undercounter Glasswasher UC-M-E Energy FC644

£6,965.96

+vat

Availability: 999 in stock

SKU: FC644

Product summary

Drain Pump. With water softener and heat recovery

Product description

Undercounter glass and dishwashing machines which are economical and easy to operate. Winterhalter UC machines come in four different sizes and are determined by the space onsite and the size of the items being washed (see spec). Wash arms removable for easy cleaning. Energy feature models have an integral air heat recovery system, which uses the steam produced in the washing process to heat up the incoming cold water supply, reducing running costs and improving room atmosphere. Supplied single phase as standard, three-phase available on request.

Washes up to 30 racks per hour – perfect for commercial glassware
Quiet mode reduces operating noise
Self-cleaning programme ensures maximum hygiene
Precise detergent & rinse aid dosing optimises washes
VarioPower technology adjusts rinse pressure to maximise performance
WRAS compliant air gap
Minimum requirement of 1.5 bar incoming water pressure
Made in Germany
Up to three programmable wash cycles for versatility
70 degree wash temperature for sanitation
Intuitive Smart Touch digital control panel and display for ease

Winterhalter Undercounter Glasswasher UC-M-E Energy FC644

Downloads

THE WORKING VIEW

Why this dishwasher earns its place

The Winterhalter UC-M-E Energy FC644 is the energy-feature version of the UC-M-E undercounter glasswasher/dishwasher. It measures 600mm wide, 617mm deep and 800mm high, with a 72kg gross weight, silver finish and drain pump.

The manufacturer states that Energy feature models use an integral air heat recovery system, using steam from the washing process to heat the incoming cold water supply. That is the practical difference for busy bars and restaurants: the heat created by washing is reused, helping reduce running costs and improve the room atmosphere around the machine.

Throughput is listed at 32 glass racks or 28 dish racks per hour, with output per hour stated as 800 glasses or 504 plates. The temperature range is 40-66°C, and Winterhalter notes that UC machines are economical, easy to operate and have removable wash arms for easier cleaning.

DELIVERY FITSTATED GEOMETRY

Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

600 × 617 × 800 mmstated W × D × H72 kg

THE CRITICAL ANSWERNarrowest straight opening600mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS800 mmCheck corners and landings

YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

Clear widthmmClear heightmm

This checks straight stated geometry only.

FINANCE

Finance from£46.36per month · at £2,000 order value

Weekly equivalent£10.70ex VAT

Initial payment£46.36then 59 monthly payments

Finance detailsView the full breakdown

Configured product total£1,873.00 ex VAT

Cost of finance£781.60

Total over 5 years£2,781.60

Cash kept after initial payment£1,953.64

Payments1 + 59

Payment profile 1+59Rate / £1,000 23.18

Confirm this finance →Finance illustration begins at the workbook’s £2,000 ex-VAT order minimum. Add a warranty or service to see the configured total update.

BUILT FORWhere this machine earns its place.

WHO BUYS IT

Wash-up and laundry rooms across commercial kitchens and sites.

Pubs & bars

heat recovery on a 32-glass-rack/hour undercounter machine

32 glass racks/ 28 dish racks/hr

Clubs & venues

up to 800 glasses/hour with steam heat reused for incoming water

variable

Restaurants

28 dish racks/hour where glass and dish loads share one unit

3 years on-site parts & labour

Hotels

single phase as standard, with three phase available on request

service-pace

Explore all 20 sectors ↗

THE WASH-UP LINE31 PRODUCTS

Match the machine to the service

Undercounter to pass-through — the whole wash-up range at live catalogue prices.

Combisteel DRAIN PUMP FOR GLASS WASHER A£—

SL GLASS WASHER 350 DP WITH DRAIN PUMP £—

Combisteel SL GLASS WASHER 350 DP DDE I£—

SL DISHWASHER FRONTLOADER 500-230 7280.0£—

Combisteel SL DISHWASHER FRONTLOADER 503£—

Combisteel SL PASS-THROUGH DISHWASHER 72£—

Combisteel DRAIN PUMP FOR PASS-THROUGH D£—

Combisteel PL PASS-THROUGH DISHWASHER 40£—

PL PASS-THROUGH DISHWASHER 30 PRSE 7280.£—

Combisteel PL PASS-THROUGH DISHWASHER 30£—

Combisteel PL RACK CONVEYOR DISHWASHER£—

PL RACK CONVEYOR DISHWASHER CD 7280.0090£—

Combisteel PL RACK CONVEYOR DISHWASHER A£—

PL RACK CONVEYOR DISHWASHER ASC CD 7280.£—

Combisteel 700 SINK UNIT SHELF DISHWASHE£—

700 SINK UNIT SHELF DISHWASHER FLAT PACK£—

Combisteel SL DISHWASHER FRONTLOADER 500£—

Combisteel SL PASS-THROUGH DISHWASHER 72£—

700 SINK UNIT SHELF DISHWASHER FLAT PACK£—

Combisteel 700 SINK UNIT SHELF DISHWASHE£—

Combisteel GLASS WASHER ENT 400-230£—

GLASS WASHER ENT 400-230 DDE WITH DETE£—

Combisteel GLASS WASHER ENT 400-230 DP D£—

DISHWASHER FRONTLOADER ENT 500-230 7082.£—

DISHWASHER FRONTLOADER ENT 500-230 DP £—

DISHWASHER FRONTLOADER ENT 500-230 DP DD£—

PASS-THROUGH DISHWASHER ENT 400 7082.007£—

Combisteel PASS-THROUGH DISHWASHER ENT 4£—YOU'RE HERE

Winterhalter Undercounter Glasswasher UC£—

BEFORE YOU BUY

Questions, answered straight

What makes the Energy model different?+

It has an integral air heat recovery system that uses steam from washing to heat the incoming cold water supply.

How does the heat recovery work?+

The manufacturer says steam produced in the washing process is used to warm incoming cold water, reducing running costs and improving the room atmosphere.

What's the rack throughput?+

32 glass racks or 28 dish racks per hour.

What output per hour is stated?+

800 glasses per hour or 504 plates per hour.

What's the temperature range?+

40-66°C.

What are the dimensions and weight?+

600mm wide, 617mm deep and 800mm high, with a 72kg gross weight.

The numbers that decide it

Service pace

Output per hour	800 glasses/hr or 504 plates/hr
Basket size	500(W) x 500(D)mm

Water & tank

Drainage

Drain Pump

Chamber & baskets

Capacity

32 glass racks/ 28 dish racks/hr

Power & supply

Voltage	Variable
Fuel type	Single or Three Phase

Format & size

External (W×D×H)	800 × 600 × 617 mm
Width	600 mm
Depth	617 mm
Height	800 mm
Gross weight	72 kg

Build

Colour	Silver
Colour code	Silver

Identifiers

GTIN / EAN	FB767
Brand	Winterhalter
Warranty	3 Years On-Site Parts & Labour
Type	Glasswashers
Range / series	Glasswashers
Extended warranty	3 Years On-Site Parts & Labour
Supplier ref	FC644
Supplier name	Uropa

Safety

Electrical safety notice

Yes

In use

Suitable for

Dishwashers

Performance

Temperature range

+40 to +66 °C

KNOW YOUR KIT BEFORE YOU BUY

Tools that do the maths

Pick the machine, count the true cost, and plan the routine it joins.

3 TOOLS

THIS PRODUCT'S QUESTIONDishwasher selectorLoad type and peak racks/hour in — the right machine out.Open the tool →

COUNT THE REAL COSTTrue-cost calculatorHand washing vs machine — labour, water and chemicals compared.Open the tool →

Cleaning schedule generator illustration

YOUR SCHEDULECleaning schedule generatorPrintable HACCP cleaning rotas for the whole kitchen.Open the tool →

See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

01792 732702 Browse the range

Winterhalter Undercounter Glasswasher UC-M-E Energy FC644 Product Data

Brand	Winterhalter
Type	Glasswashers
Dimensions	800(H) x 600(W) x 617(D)mm
Capacity	32 glass racks/ 28 dish racks/hr
Colour / Finish	Silver
Temperature Range	Tank temperature 40°C to 66°C, rinse temperature 40°C to 85°C
Power	20A single phase as standard. Please inform us when ordering if you require 3 phase
Voltage	Variable
Fuel / Supply	Single or Three Phase
Suitable For	Dishwashers
Warranty	3 Years On-Site Parts & Labour
Weight	72kg
Manufacturer Ref	UC-M-E-ENERGY

If you have any questions about the Winterhalter Undercounter Glasswasher UC-M-E Energy FC644 then please get in touch.
