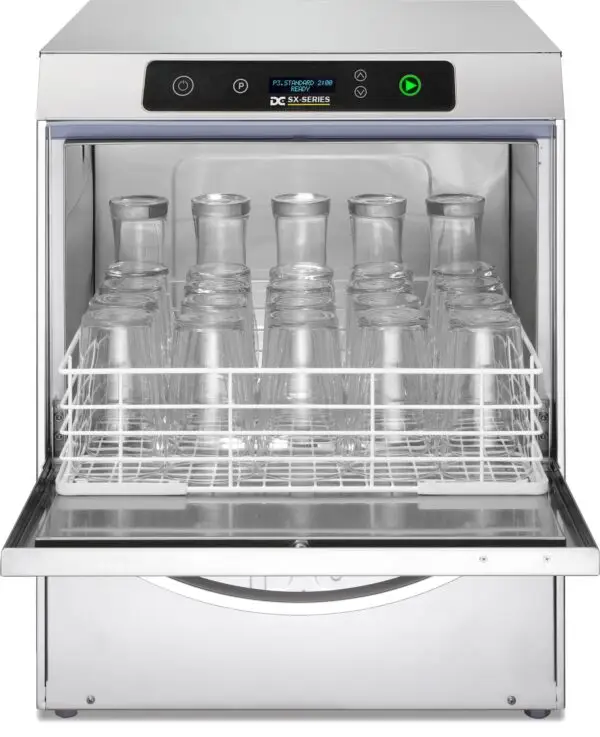

DC SXG45 IS D Standard Extra Glasswashers – frontloading 450×450

£1,710.50

+vat

Brand:

SKU: SXG45 IS D

Product summary

Product description

Integral water softener & drain pump – Two minute cycle, energy-saving wash pump, superior peristaltic auto-dosing units, moulded hydro-dynamic basket runners, insulated boiler, dual element configuration, double skinned, two glass baskets, engineer diagnostic mode. Programmable options: rinse thermolock, auto-start door, audio status indicator, integral softener (when fitted).

A front-loading glasswasher with built-in water softening and powered drain—the flexible solution for venues with hard water and no raised plumbing.

Downloads

SPECIFICATION 25 facts · tap for all External W × D × H525x545x690mmWidth525 mmDepth545 mmInput power20 ampProduct codeSXG45 IS DBrandDC

Identity3

Brand DCsite
Product code SXG45 IS Dsite
Type Commercial Glasswasherscatalogue

Size & weight5

Depth 545 mmsite
External (W×D×H) 525 × 545 × 690 mmcatalogue
External W × D × H 525x545x690mmsite
Height 690 mmsite
Width 525 mmsite

Capacity1

Wash height 310 mmcatalogue

Power & energy4

Input power 20 ampsite
Rinse element 2.8 kWcatalogue
Totaload 4.7 kWcatalogue
Wash element 1.6 kWcatalogue

Build & fittings3

Counter balanced door Nocatalogue
Double skinned Yescatalogue
Filterount 2catalogue

Other stated facts9

Basket size 450×450catalogue
Boilerapacity 2.8 Lcatalogue
Cycle times s 60 90 120 180 User Definedcatalogue
Drain outlet height 120 mmcatalogue
Placeapacity 30catalogue
Wash tank 18 Lcatalogue
Water flow min 10 l/mincatalogue
Water per cycle 2.4 L litrescatalogue
Water pressure min 2-4 bar (28-56 psi)catalogue
THE WORKING VIEW

Why this commercial glasswasher earns its place

The SXG45 IS D is the complete package: everything the integral softener version offers, plus a powered drain pump that lets you mount the machine flush to the floor without plumbing gymnastics.

The integral water softener handles hard water automatically—no separate tank, no guessing. Your glass rinses spotless from day one, your boiler stays scale-free, and your chemical costs drop because the softened water does the work. The powered drain pump removes the need to pitch the machine slightly uphill; you site it anywhere your floor space allows and the pump pushes water out cleanly. For venues with tight back-of-house layouts or floors that won't take another slope, that's freedom you don't often get in compact equipment.

Two-minute cycles and energy-saving wash pump mean you're not sitting idle waiting for glass to cycle. The dual-element boiler holds rinse temperature absolute, so every glass meets hygiene standards without variation. Hydro-dynamic basket runners keep everything stable through the wash, two dedicated baskets let you run continuously, and peristaltic auto-dosing measures chemical precisely. The insulated boiler structure keeps heating costs down—important on a machine that runs eighteen hours a day.

BEFORE YOU BUY

Questions, answered straight

Gravity drain needs the machine slightly raised—not always possible with tight floors or when you want the machine at a specific height. A drain pump handles water at any level, so you get installation flexibility. It's also more reliable if your floor drain is far away or at the same level.

The SXG45 IS uses gravity drain (requires slight pitch); this one (SXG45 IS D) has a powered drain pump. Both have the integral water softener. Choose the D if your space or plumbing doesn't allow raising the machine.

The pump uses very little power—it's a brief cycle at the end of wash. The actual energy consumption is negligible compared to heating a full boiler. Financially, the pump cost is recovered through installation flexibility; you often avoid rerouting plumbing or raising floor sections.

Soft water reaches your boiler immediately, so heating is more efficient, the element stays clean, and glass rinses spotlessly. An external system would sit outside the machine, takes up space, and needs separate maintenance. Integral softening keeps everything inside the footprint you're already using.

The SXG45 IS D is 450 mm wide and designed as a compact under-counter machine. Measure your space before ordering, but this is one of the smallest front-loaders available. Ring 01792 732702 with your layout and we'll confirm fit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

DC SXG45 IS D Standard Extra Glasswashers – frontloading 450×450 Product Data

Dimensions (W×D×H) 525 × 545 × 690 mm
Power supply 20 amp
Basket size 450×450
Capacity (dishes/glasses) 30
Cycle times 60 90 120 180 User Defined
Usable wash height 310 mm
Wash tank capacity 18 L
Boiler 2.8 L
Water consumption 2.4 L
Wash element 1.6 kW
Rinse element 2.8 kW
Total load 4.7 kW
Double skinned Yes
Counter-balanced door No
Filters 2
Supplied baskets/racks 2
Min. flow rate 10 l/min
Min. water pressure 2-4 bar (28-56 psi)
Drain outlet height 120 mm
If you have any questions about the DC SXG45 IS D Standard Extra Glasswashers – frontloading 450×450 then please get in touch.
