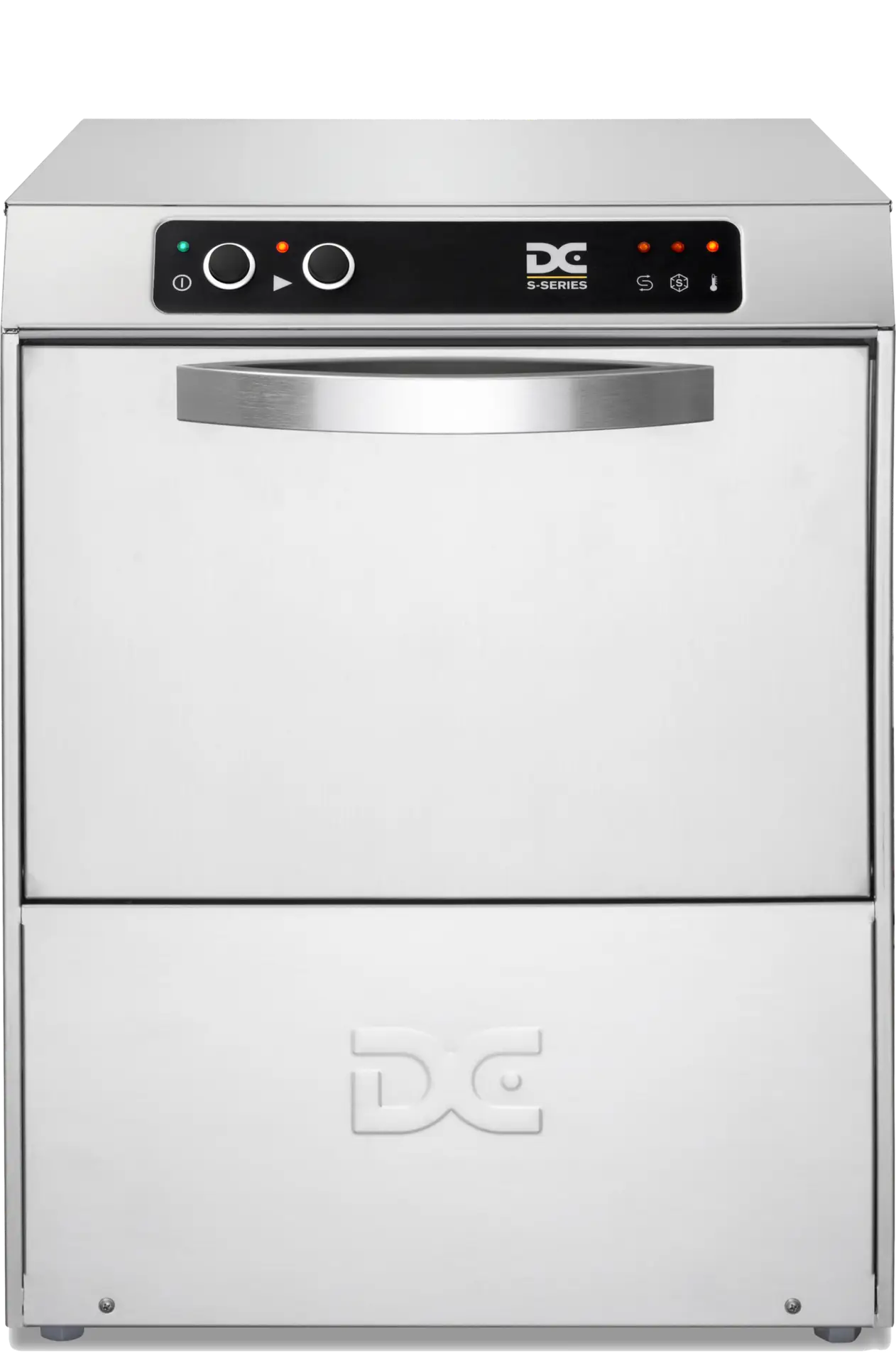

DC SG40 D Standard Glasswashers – frontloading 400×400

£1,188.00

+vat

- +

Brand:

SKU: SG40 D

Product summary

Product description

Drain pump – Two minute cycle, energy-saving wash pump, superior peristaltic auto-dosing units, moulded hydro-dynamic basket runners, double skinned, two glass baskets, engineer diagnostic mode. Programmable options: rinse thermolock, auto-start door, audio status indicator, integral softener (when fitted).

The SG40 D is a 400×400 frontloading glasswasher with integrated drain pump and two-minute cycle, engineered for busy venues where plumbing flexibility and fast throughput matter equally.

Downloads

SPECIFICATION 25 facts · tap for all External W × D × H475x515x690mmWidth475 mmDepth515 mmInput power13 ampProduct codeSG40 DBrandDC

Identity3

Brand DCsite
Product code SG40 Dsite
Type Commercial Glasswasherscatalogue

Size & weight5

Depth 515 mmsite
External (W×D×H) 475 × 515 × 690 mmcatalogue
External W × D × H 475x515x690mmsite
Height 690 mmsite
Width 475 mmsite

Capacity1

Wash height 300 mmcatalogue

Power & energy4

Input power 13 ampsite
Rinse element 2.8 kWcatalogue
Totaload 3 kWcatalogue
Wash element 1.6 kWcatalogue

Build & fittings3

Counter balanced door Nocatalogue
Double skinned Yescatalogue
Filterount 2catalogue

Other stated facts9

Basket size 400×400catalogue
Boilerapacity 2.8 Lcatalogue
Cycle times s 120 seccatalogue
Drain outlet height 120 mmcatalogue
Placeapacity 18catalogue
Wash tank 14 Lcatalogue
Water flow min 10 l/mincatalogue
Water per cycle 2.4 L litrescatalogue
Water pressure min 2-4 bar (28-56 psi)catalogue
THE WORKING VIEW

Why this commercial glasswasher earns its place

The SG40 D steps up to a 400 mm basket, giving you 25 per cent more capacity per load. That means more glasses per cycle, better economics on high-volume nights, and less standing around waiting for the wash to finish.

The integrated drain pump is the key differentiator. Most glasswashers need a standing drain pipe or P-trap nearby. The SG40 D pumps its waste water, so you've got flexibility on siting—behind a bar, in a corner, even slightly above the floor drain if needed. That's crucial when your venue's plumbing wasn't designed for kitchen equipment. No rework required; you just need power.

The two-minute cycle runs on an energy-saving wash pump that delivers full spray pressure on lower power. Double-skin construction keeps the cabinet quiet and retains heat, so the cycle is efficient and you're not heating the bar unnecessarily. Moulded hydro-dynamic basket runners guide each glass smoothly through the wash without rattle—glassware arrives spotless, not stressed.

BEFORE YOU BUY

Questions, answered straight

Most glasswashers need a standing drain connection—a P-trap or waste pipe at a specific height and distance. If your venue doesn't have one, you're looking at expensive plumbing. The integrated drain pump pushes waste water out actively, so you can locate the machine where it makes sense operationally, not where the plumbing dictates.

Two baskets per 2-minute cycle means roughly 60 glasses per hour. That's the working pace of a mid-to-busy restaurant or hotel bar. For very high-volume venues (nightclub-pace), you'd want two machines or a larger format.

Yes. It's a simple peristaltic pump—the same technology used in the chemical dosing units. Straightforward, few moving parts, and it's supported by our service team if anything needs attention.

Yes. The machine is supplied with a drain pump as standard, but you can add an integral water softener if hard water is an issue in your area. We can advise based on your water analysis.

The energy-saving pump and double-skin design keep electrical demand reasonable for a 400 mm machine, but confirm your available supply with us before ordering. Ring 01792 732702 and we'll spec it for your site.

The machine includes engineer diagnostic mode, so we can identify a pump fault quickly. Replacement is straightforward and we can usually turnaround a repair in a working day. Contact 01792 732702 to arrange.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

DC SG40 D Standard Glasswashers – frontloading 400×400 Product Data

Dimensions (W×D×H) 475 × 515 × 690 mm
Power supply 13 amp
Basket size 400×400
Capacity (dishes/glasses) 18
Cycle times 120 sec
Usable wash height 300 mm
Wash tank capacity 14 L
Boiler 2.8 L
Water consumption 2.4 L
Wash element 1.6 kW
Rinse element 2.8 kW
Total load 3 kW
Double skinned Yes
Counter-balanced door No
Filters 2
Supplied baskets/racks 2
Min. flow rate 10 l/min
Min. water pressure 2-4 bar (28-56 psi)
Drain outlet height 120 mm
If you have any questions about the DC SG40 D Standard Glasswashers – frontloading 400×400 then please get in touch.
