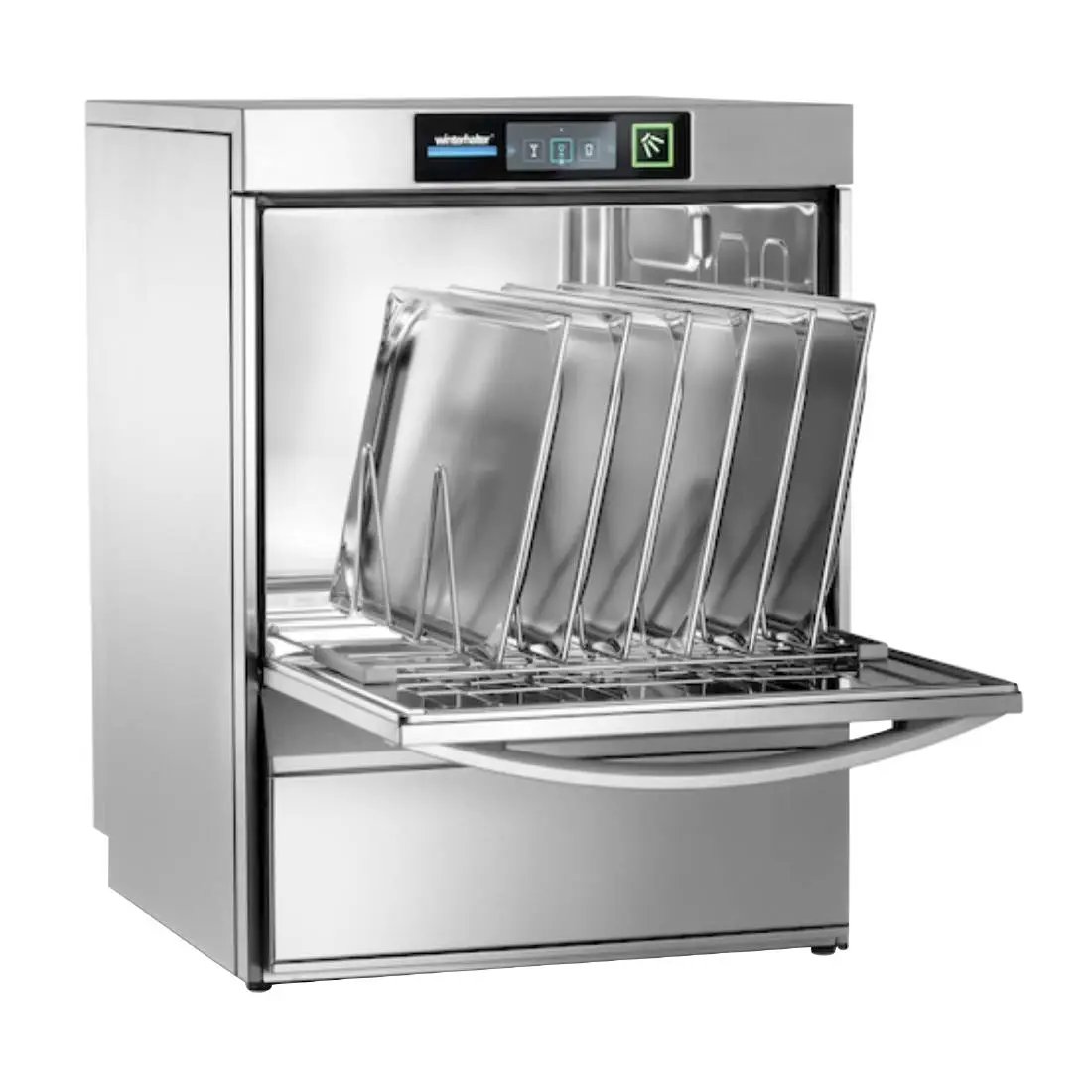

Winterhalter Undercounter Dishwasher UC-XL-E GF418

£7,599.23

+vat

Availability: 999 in stock

SKU: GF418

Product summary

Standard. With drain pump & water softener. Up to 500x530mm basket. Up to 40 racks/hr.

Product description

Undercounter ware washing machines which are economical and easy to operate. Touch screen operating system for simple use. Supplied with “Variopower”: Winterhalter’s system which can regulate washing power for appropriate pressure levels according to the product being washed. Eco mode reduces water pressure, detergent and rinse temperature while extending wash cycle by up to 30%.

Useable wash chamber height: 404mm
Up to three programmable wash cycles
Self-cleaning programme ensures maximum hygiene
Advanced design helps to reduce water and energy use
Precise detergent & rinse aid dosing optimises washes
VarioPower technology adjusts rinse pressure to maximise performance
Minimum requirement of 1.5 bar incoming water pressure
Made in Germany
Quiet mode reduces operating noise
Intuitive Smart Touch digital control panel and display
WRAS compliant air gap

Winterhalter Undercounter Dishwasher UC-XL-E GF418

Winterhalter Undercounter Dishwasher UC-XL-E GF418 - Image 2

Winterhalter Undercounter Dishwasher UC-XL-E GF418 - Image 3

Winterhalter Undercounter Dishwasher UC-XL-E GF418 - Image 4

Downloads

THE WORKING VIEW

Why this dishwasher earns its place

The UC-XL-E GF418 is the higher-capacity option in this Winterhalter undercounter group, measuring 600mm wide, 637mm deep and 850mm high. It has a silver finish, 69kg gross weight and drain pump, giving operators a compact installation format with a stronger stated hourly output than the smaller UC-S and UC-M variants in this batch.

Listed capacity is 32 glass racks or 28 dish racks an hour, with output stated as 860 glasses or 542 plates per hour. VarioPower regulates washing power to suit the items being washed, so pressure levels can be matched to the load rather than held at one setting.

Eco mode reduces water pressure, detergent and rinse temperature while extending the wash cycle by up to 30%, useful for lighter runs outside peak service. The manufacturer description also calls out a touchscreen operating system for simple use, which helps where different staff cover the wash-up area across a shift.

DELIVERY FITSTATED GEOMETRY

Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

600 × 637 × 850 mmstated W × D × H69 kg

THE CRITICAL ANSWERNarrowest straight opening600mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS850 mmCheck corners and landings

YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

Clear widthmmClear heightmm

This checks straight stated geometry only.

FINANCE

Finance from£46.36per month · at £2,000 order value

Weekly equivalent£10.70ex VAT

Initial payment£46.36then 59 monthly payments

Finance detailsView the full breakdown

Configured product total£1,873.00 ex VAT

Cost of finance£781.60

Total over 5 years£2,781.60

Cash kept after initial payment£1,953.64

Payments1 + 59

Payment profile 1+59Rate / £1,000 23.18

Confirm this finance →Finance illustration begins at the workbook’s £2,000 ex-VAT order minimum. Add a warranty or service to see the configured total update.

BUILT FORWhere this machine earns its place.

WHO BUYS IT

Wash-up and laundry rooms across commercial kitchens and sites.

Restaurants & gastro pubs

860 glasses or 542 plates per hour suits busier services without moving to a passthrough format.

32 glass racks/ 28 dish racks/hr

Cafés

Undercounter format keeps the machine below the counter while giving a higher stated output.

variable

Hotels & banqueting

32 glass racks or 28 dish racks per hour gives a clear planning figure for event clear-downs.

3 years on-site parts & labour

Schools & care kitchens

Eco mode gives a lower-intensity option for lighter daytime loads.

service-pace

Explore all 20 sectors ↗

THE WASH-UP LINE31 PRODUCTS

Match the machine to the service

Undercounter to pass-through — the whole wash-up range at live catalogue prices.

Combisteel DRAIN PUMP FOR GLASS WASHER A£—

SL GLASS WASHER 350 DP WITH DRAIN PUMP £—

Combisteel SL GLASS WASHER 350 DP DDE I£—

SL DISHWASHER FRONTLOADER 500-230 7280.0£—

Combisteel SL DISHWASHER FRONTLOADER 503£—

Combisteel SL PASS-THROUGH DISHWASHER 72£—

Combisteel DRAIN PUMP FOR PASS-THROUGH D£—

Combisteel PL PASS-THROUGH DISHWASHER 40£—

PL PASS-THROUGH DISHWASHER 30 PRSE 7280.£—

Combisteel PL PASS-THROUGH DISHWASHER 30£—

Combisteel PL RACK CONVEYOR DISHWASHER£—

PL RACK CONVEYOR DISHWASHER CD 7280.0090£—

Combisteel PL RACK CONVEYOR DISHWASHER A£—

PL RACK CONVEYOR DISHWASHER ASC CD 7280.£—

Combisteel 700 SINK UNIT SHELF DISHWASHE£—

700 SINK UNIT SHELF DISHWASHER FLAT PACK£—

Combisteel SL DISHWASHER FRONTLOADER 500£—

Combisteel SL PASS-THROUGH DISHWASHER 72£—

700 SINK UNIT SHELF DISHWASHER FLAT PACK£—

Combisteel 700 SINK UNIT SHELF DISHWASHE£—

Combisteel GLASS WASHER ENT 400-230£—

GLASS WASHER ENT 400-230 DDE WITH DETE£—

Combisteel GLASS WASHER ENT 400-230 DP D£—

DISHWASHER FRONTLOADER ENT 500-230 7082.£—

DISHWASHER FRONTLOADER ENT 500-230 DP £—

DISHWASHER FRONTLOADER ENT 500-230 DP DD£—

PASS-THROUGH DISHWASHER ENT 400 7082.007£—

Combisteel PASS-THROUGH DISHWASHER ENT 4£—YOU'RE HERE

Winterhalter Undercounter Dishwasher UC-£—

BEFORE YOU BUY

Questions, answered straight

How much can it wash per hour?+

The catalogue lists 32 glass racks or 28 dish racks an hour, equal to 860 glasses or 542 plates per hour.

What size is the machine?+

It is 600mm wide, 637mm deep and 850mm high, with a 69kg gross weight.

Does it have a drain pump?+

Yes, drainage is listed as drain pump.

What does VarioPower do?+

It regulates washing power so pressure levels can be matched to the items being washed.

What does Eco mode change?+

Eco mode reduces water pressure, detergent and rinse temperature while extending the wash cycle by up to 30%.

Can Craven Cooling check it fits our tallest items?+

Yes. Call 01792 732702 and we'll check the GF418's dimensions, drain-pump setup, hourly output and connection against your site.

The numbers that decide it

Service pace

Output per hour	860 glasses/hr or 542 plates/hr
Basket size	500(W) x 540(D)mm

Water & tank

Drainage

Drain Pump

Chamber & baskets

Capacity

32 glass racks/ 28 dish racks/hr

Power & supply

Voltage	Variable
Fuel type	Single or Three Phase

Format & size

External (W×D×H)	850 × 600 × 637 mm
Width	600 mm
Depth	637 mm
Height	850 mm
Gross weight	69 kg

Build

Colour	Silver
Colour code	Silver

Identifiers

GTIN / EAN	GF418
Brand	Winterhalter
Warranty	3 Years On-Site Parts & Labour
Type	Undercounter Dishwashers
Range / series	Undercounter Dishwashers
Extended warranty	3 Years On-Site Parts & Labour
Supplier ref	GF418
Supplier name	Uropa
Seo name	Winterhalter Undercounter Warewasher UCXL

Safety

Electrical safety notice

Yes

In use

Suitable for

Dishwashers

Performance

Temperature range

+40 to +66 °C

KNOW YOUR KIT BEFORE YOU BUY

Tools that do the maths

Pick the machine, count the true cost, and plan the routine it joins.

3 TOOLS

THIS PRODUCT'S QUESTIONDishwasher selectorLoad type and peak racks/hour in — the right machine out.Open the tool →

COUNT THE REAL COSTTrue-cost calculatorHand washing vs machine — labour, water and chemicals compared.Open the tool →

Cleaning schedule generator illustration

YOUR SCHEDULECleaning schedule generatorPrintable HACCP cleaning rotas for the whole kitchen.Open the tool →

See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

01792 732702 Browse the range

Winterhalter Undercounter Dishwasher UC-XL-E GF418 Product Data

Brand	Winterhalter
Type	Undercounter Dishwashers
Dimensions	850(H) x 600(W) x 637(D)mm
Capacity	32 glass racks/ 28 dish racks/hr
Colour / Finish	Silver
Temperature Range	Tank temperature 40°C to 66°C, rinse temperature 40°C to 85°C
Power	20A single phase as standard. Please inform us when ordering if you require 3 phase
Voltage	Variable
Fuel / Supply	Single or Three Phase
Suitable For	Dishwashers
Warranty	3 Years On-Site Parts & Labour
Weight	69kg
Manufacturer Ref	UC-XL-E

If you have any questions about the Winterhalter Undercounter Dishwasher UC-XL-E GF418 then please get in touch.
