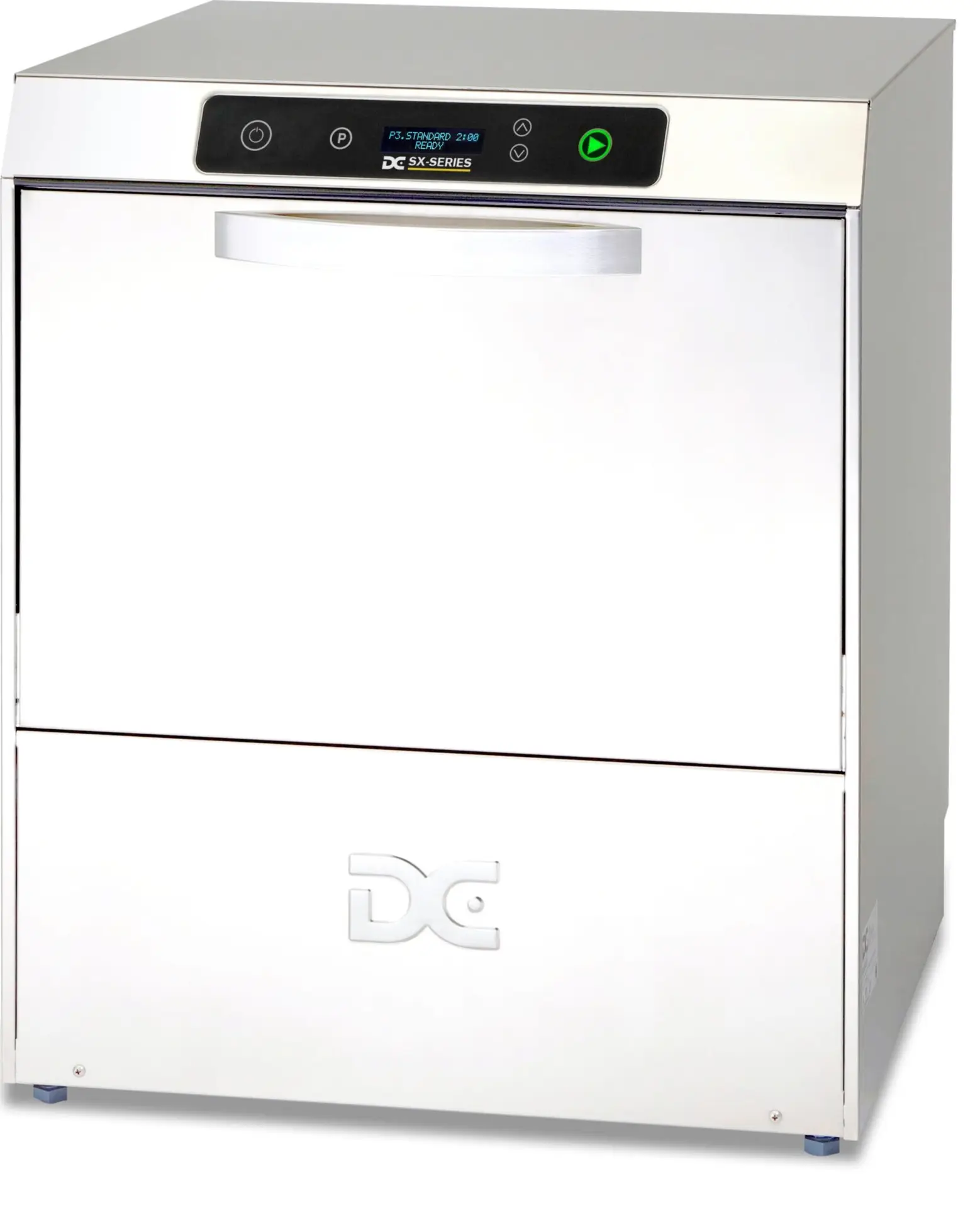

DC SXG50 Standard Extra Glasswashers – frontloading 500×500

£1,501.50

+vat

Brand:

SKU: SXG50

Product summary

Product description

Gravity drain – Two minute cycle, energy-saving wash pump, superior peristaltic auto-dosing units, moulded hydro-dynamic basket runners, insulated boiler, dual element configuration, double skinned, two glass baskets, engineer diagnostic mode. Programmable options: rinse thermolock, auto-start door, audio status indicator, integral softener (when fitted).

A 500×500mm frontloading glasswasher delivering spotless glassware in just two minutes per cycle, with energy-saving engineering and intelligent chemical dosing for consistent results.

Downloads

SPECIFICATION 25 facts · tap for all External W × D × H575x605x690mmWidth575 mmDepth605 mmInput power20 ampProduct codeSXG50BrandDC

Identity3

Brand DCsite
Product code SXG50site
Type Commercial Dishwasherscatalogue

Size & weight5

Depth 605 mmsite
External (W×D×H) 575 × 605 × 690 mmcatalogue
External W × D × H 575x605x690mmsite
Height 690 mmsite
Width 575 mmsite

Capacity1

Wash height 320 mmcatalogue

Power & energy4

Input power 20 ampsite
Rinse element 2.8 kWcatalogue
Totaload 4.7 kWcatalogue
Wash element 1.6 kWcatalogue

Build & fittings3

Counter balanced door Nocatalogue
Double skinned Yescatalogue
Filterount 2catalogue

Other stated facts9

Basket size 500×500catalogue
Boilerapacity 2.8 Lcatalogue
Cycle times s 60 90 120 180 User Definedcatalogue
Drain outlet height 120 mmcatalogue
Placeapacity 30catalogue
Wash tank 20 Lcatalogue
Water flow min 10 l/mincatalogue
Water per cycle 2.4 L litrescatalogue
Water pressure min 2-4 bar (28-56 psi)catalogue
THE WORKING VIEW

Why this commercial dishwasher earns its place

In a busy bar, pub, or restaurant, glasswashing is relentless. You need speed, reliability, and—most importantly—glassware that comes out bright, not dull or spotted. This frontloading SXG50 does exactly that, and does it fast.

Two minutes per cycle means you're washing glasses almost continuously during service. That speed comes from smart engineering: a dual-element boiler configuration keeps rinse temperatures high and stable, while the peristaltic auto-dosing system delivers exactly the right amount of chemical with every wash. No guesswork, no over-dispensing, no half-clean glasses going back into service.

The basket runners are moulded to guide glasses smoothly through the wash, minimising contact points that cause chipping. Two glass baskets come with the unit, so you can load one while the other runs—no dead time waiting between cycles. The double-skinned construction keeps heat contained, which means lower running costs and more stability during peak service.

BEFORE YOU BUY

Questions, answered straight

At two minutes per cycle, you'll complete about thirty washes per hour. Each basket typically carries 10–12 glasses depending on size and positioning. With two baskets in rotation, you're looking at continuous coverage during service. Load one while the other runs, and glasses stay ahead of the bar.

It requires a standard cold-water inlet and gravity drain—no pump required. The machine has its own heating and boiler, so incoming water temperature doesn't matter. Check your venue's water pressure (typical commercial supply is sufficient) and ensure the drain can handle continuous flow. Ring 01792 732702 to discuss your site setup.

The dual-element boiler maintains rinse temperatures above 80°C, which exceeds hygiene compliance requirements. The rinse thermolock setting ensures temperature consistency even as external pressure fluctuates. You can programme the exact temperature you prefer within the safe range.

The peristaltic auto-dosing system is calibrated to deliver precise amounts. Typical usage is minimal compared to manual washing, because every dose is exactly right—no waste, consistent sparkle. Refill the chemical reservoirs during quiet periods or end-of-service. The machine will alert you when levels run low.

The audio status indicator alerts you to any issue immediately. The engineer diagnostic mode shows fault codes that can be read on-site or reported to our support team on 01792 732702. Most issues are straightforward—water supply, chemical levels, or drain flow. We can troubleshoot remotely or dispatch an engineer quickly if needed.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

DC SXG50 Standard Extra Glasswashers – frontloading 500×500 Product Data

Dimensions (W×D×H) 575 × 605 × 690 mm
Power supply 20 amp
Basket size 500×500
Capacity (dishes/glasses) 30
Cycle times 60 90 120 180 User Defined
Usable wash height 320 mm
Wash tank capacity 20 L
Boiler 2.8 L
Water consumption 2.4 L
Wash element 1.6 kW
Rinse element 2.8 kW
Total load 4.7 kW
Double skinned Yes
Counter-balanced door No
Filters 2
Supplied baskets/racks 2
Min. flow rate 10 l/min
Min. water pressure 2-4 bar (28-56 psi)
Drain outlet height 120 mm
If you have any questions about the DC SXG50 Standard Extra Glasswashers – frontloading 500×500 then please get in touch.
