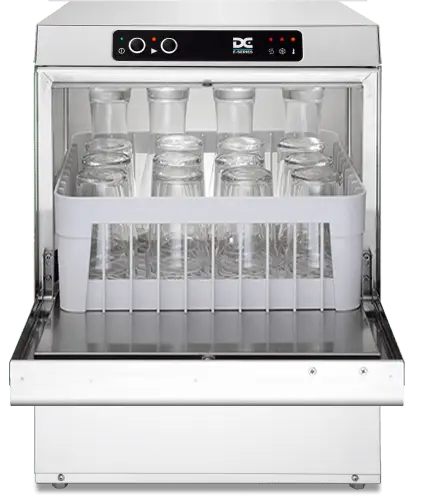

DC EG50 D Economy Glasswashers – frontloading 500×500

£1,457.50

+vat

Brand:

SKU: EG50 D

Product summary

Product description

Drain pump – Three minute cycle, superior peristaltic auto-dosing units, low-water usage, single skinned, two baskets, engineer diagnostic mode. Programmable options: rinse thermolock, auto-start door, audio status indicator, integral softener (when fitted).

A compact 500×500 mm undercounter glasswasher with a 3-minute cycle and peristaltic auto-dosing—dial in your rinse temperature and walk away.

Downloads

SPECIFICATION 25 facts · tap for all External W × D × H565x610x830mmWidth565 mmDepth610 mmInput power13/30 ampProduct codeEG50 DBrandDC

Identity3

Brand DCsite
Product code EG50 Dsite
Type Commercial Dishwasherscatalogue

Size & weight5

Depth 610 mmsite
External (W×D×H) 565 × 610 × 830 mmcatalogue
External W × D × H 565x610x830mmsite
Height 830 mmsite
Width 565 mmsite

Capacity2

Supplied baskets 2catalogue
Wash height 305 mmcatalogue

Power & energy4

Input power 13/30 ampsite
Rinse element 2.6 kWcatalogue
Totaload 6.4 kWcatalogue
Wash element 2 kWcatalogue

Build & fittings2

Double skinned Nocatalogue
Filterount 1catalogue

Other stated facts9

Basket size 500×500catalogue
Boilerapacity 2.8 Lcatalogue
Cycle times s 180 seccatalogue
Drain outlet height 150 mmcatalogue
Placeapacity 18catalogue
Wash tank 26 Lcatalogue
Water flow min 10 l/mincatalogue
Water per cycle 2.4 L litrescatalogue
Water pressure min 2-4 bar (28-56 psi)catalogue
THE WORKING VIEW

Why this commercial dishwasher earns its place

The EG50 D strips out the integral softener to keep cost down while keeping the essentials: a 3-minute cycle, peristaltic auto-dosing that means no chemical handling, and a drain pump that gets water out without fuss.

This is the choice for kitchens running water that's already soft enough, or where you're prepared to add softener salt occasionally. The drain pump still gives you siting flexibility—no gravity-drain requirement, so you can fit it almost anywhere behind the counter. Load, close the door, step away. The peristaltic units handle detergent and rinse aid on their own schedule.

Two baskets rotate through, so service doesn't stall while one cycle finishes. The 3-minute time is quick enough for steady service and efficient enough that you're not spending all day rinsing and towelling by hand. Single-skinned construction keeps the machine light and simple to install.

BEFORE YOU BUY

Questions, answered straight

Up to 20 cycles per hour with continuous loading—the 3-minute wash, rinse and drain means fast turnaround for high-volume service.

Hard water spotting and limescale are risks without softening. You can add an external softener to the incoming mains, or manage softener salt in a separate unit. The integral softener option (EG50 IS D) removes this complication.

Standard cold inlet and a waste line to sink or drain. The drain pump means you don't need a gravity-drain setup—flexibility in where you place the machine.

Peristaltic pumps dose detergent and rinse aid with precision, never overfilling or blocking. Once you've set the dose, it repeats reliably—staff just keep the chemical bottles topped up.

The only difference is the integral softener. The EG50 D relies on your water supply already being soft or an external softener. Everything else—the 3-minute cycle, peristaltic dosing, drain pump, and low-water design—is identical.

Yes. Engineer diagnostic mode lets our service team (01792 732702) quickly identify any fault. Annual maintenance keeps it reliable.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

DC EG50 D Economy Glasswashers – frontloading 500×500 Product Data

Dimensions (W×D×H) 565 × 610 × 830 mm
Power supply 13/30 amp
Basket size 500×500
Capacity (dishes/glasses) 18
Cycle times 180 sec
Usable wash height 305 mm
Wash tank capacity 26 L
Boiler 2.8 L
Water consumption 2.4 L
Wash element 2 kW
Rinse element 2.6 kW
Total load 6.4 kW
Double skinned No
Counter-balanced door No
Filters 1
Supplied baskets/racks 2
Min. flow rate 10 l/min
Min. water pressure 2-4 bar (28-56 psi)
Drain outlet height 150 mm
If you have any questions about the DC EG50 D Economy Glasswashers – frontloading 500×500 then please get in touch.
