CombiSteel SL Dishwasher Frontloader 500-400 DP with Drain Pump 7280.0026

£1,484.00

+vat

SKU: 7280.0026

Product summary

Size W/D/H (mm) x x

Product description

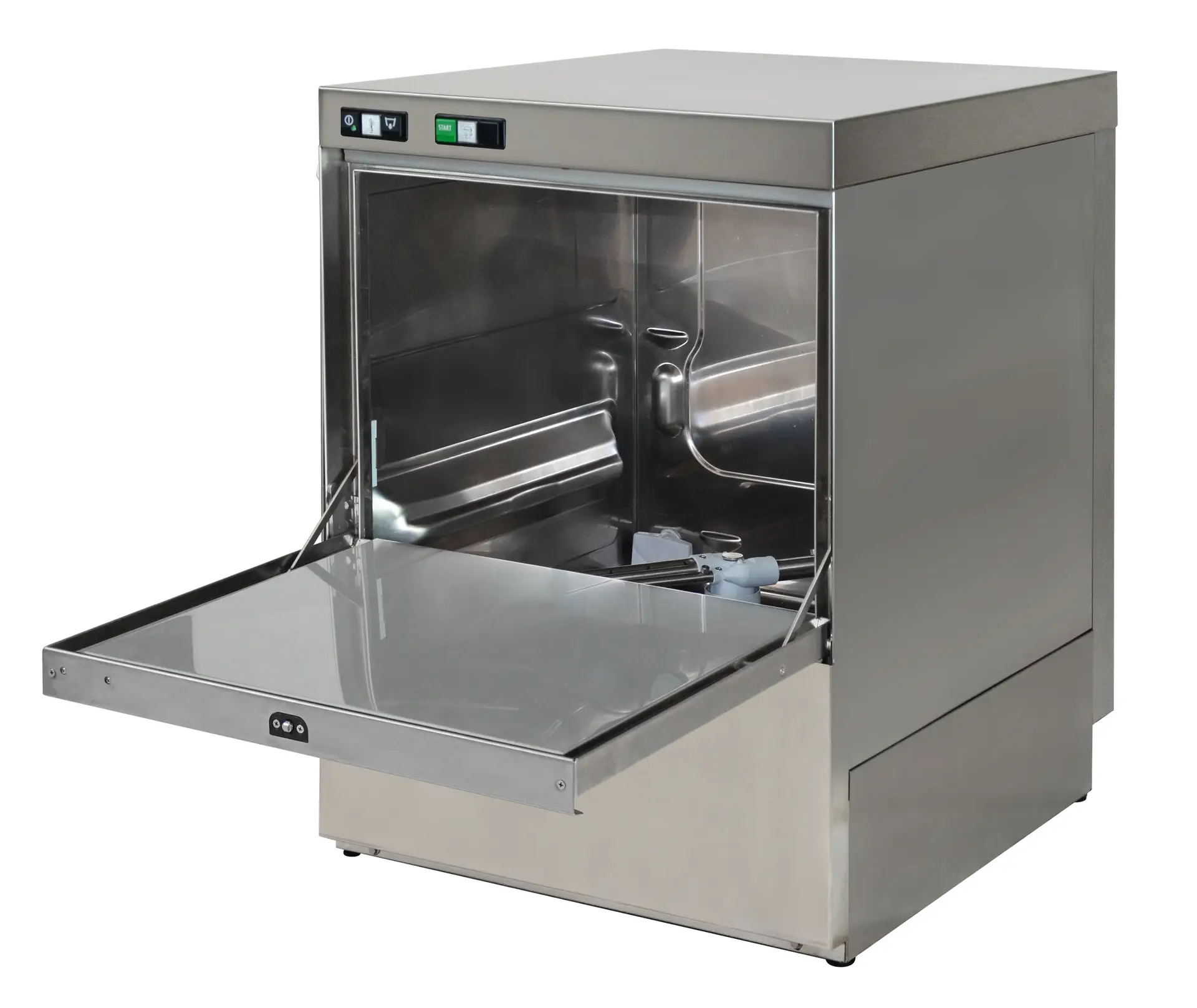

The Combisteel SL Dishwasher Frontloader 500-400 DP (7280.0026) is a stainless steel front-loading dishwasher with drain pump, manual controller, 572 × 630 × 814mm dimensions and a 5kW load on a 400V, 50Hz supply.

Downloads

SPECIFICATION 26 facts · tap for all Width572 mmDepth630 mmHeight814 mmGross / net weight61 kgVoltage / frequency40050Voltage400V / 50Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 7422242898895catalogue
Range / series Standard Linecatalogue
Type Commercial Dishwasherscatalogue

Size & weight5

Depth 630 mmsite
External (W×D×H) 572 × 630 × 814 mmcatalogue
Gross / net weight 61 kgsite
Height 814 mmsite
Width 572 mmsite

Capacity1

Loading height 350 mmcatalogue

Performance1

Controller Manualcatalogue

Power & energy7

Boiler output 4,5catalogue
Energy consumption 5site
Frequency 50 Hzcatalogue
Rated input 5000 Wcatalogue
Rated power 5 kWcatalogue
Voltage 400V / 50Hzcatalogue
Voltage / frequency 40050site

Build & fittings3

Accessories Drain pump, 1x cutlery basket, 1x glass basket, 1x plate basketcatalogue
Construction skin Single skincatalogue
Exterior finish Stainless steelsite

Other stated facts5

Basket size 500×500catalogue
Cycle times s 90-120catalogue
Output per hour 40-30catalogue
Wash tank 20catalogue
Water per cycle 2 litrescatalogue
THE WORKING VIEW

Why this commercial dishwasher earns its place

The 500-400 DP is Combisteel's drain-pump SL frontloader: a compact stainless steel commercial dishwasher for sites that need pumped waste handling in a front-loading format. It measures 572mm wide, 630mm deep and 814mm high, with a 61kg gross weight.

The pump matters when the dishwasher position and the drain point do not line up for simple gravity drainage. In a retrofit wash-up area, bar kitchen or upper-floor prep room, that can decide whether the machine can sit where the workflow needs it rather than where the old waste pipe happens to be.

The electrical specification is 400V, 50Hz and 5kW, so confirm the supply before treating it as a like-for-like dishwasher swap. The controller is manual, giving a straightforward operating setup for staff, and the stainless finish is the right material choice for a wet commercial wash-up space.

BEFORE YOU BUY

Questions, answered straight

Drain pump. It identifies this as the version with a pump for waste water discharge.

The supplied name only states a drain pump for this model. It does not state the detergent-injector feature found on the DP DDE product.

400V, 50Hz, with 5kW rated power.

The dishwasher itself is 572mm wide, 630mm deep and 814mm high, before allowing for hoses, access and operator space.

61kg.

That depends on where your drain point sits relative to the machine outlet. Craven Cooling can check the layout on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel SL Dishwasher Frontloader 500-400 DP with Drain Pump 7280.0026 Product Data

Brand CombiSteel
Type Standard Line
Dimensions (W×D×H) 572 × 630 × 814 mm
Material Stainless steel
Colour / Finish Stainless steel
Electrical Power 5 kW
Voltage 400V / 50Hz
Weight 61 kg
If you have any questions about the CombiSteel SL Dishwasher Frontloader 500-400 DP with Drain Pump 7280.0026 then please get in touch.
