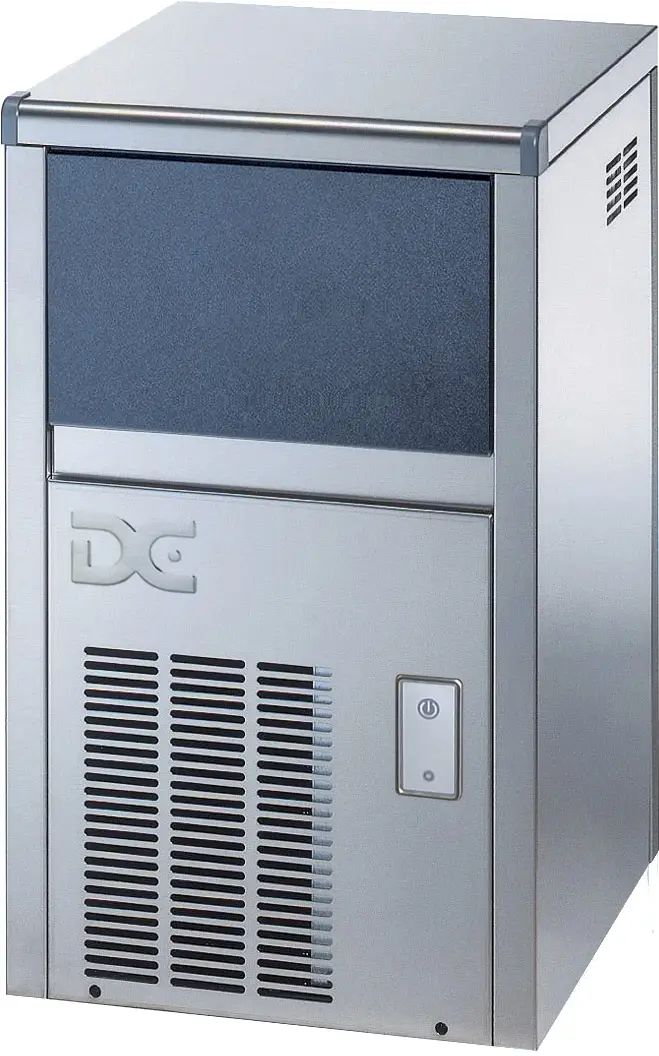

DC DCQ30-10A D Self-contained

£1,171.50

+vat

Brand:

SKU: DCQ30-10A D

Product summary

Product description

Self-contained icemakers incorporate an ice-production system and ice storage bin into one machine. The smallest machine of the range produces 30kg/24hrs and stores up to 10kg, while the largest produces up to 140kg/24hrs and stores up to 65kg.
Qube Ice – Ice cubes that maintain high quality and perfect transparency. Provides optimal control over dilution, melting during shaking, and stability. Suitable for: cocktails, nightclubs, restaurants and hotels. Drain pump

The DC DCQ30-10A D is the drain-pump version of the entry-level DC cube machine — 30 kg/day of Qube ice, 10 kg bin, with a built-in pump that lets you install it where a gravity drain fall isn’t possible.

Downloads

SPECIFICATION 8 facts · tap for all External W × D × H387x465x692mmWidth387 mmDepth465 mmProduct codeDCQ30-10A DTypeIce Cube MachinesExternal (W×D×H)387 × 465 × 692 mm

Identity3

Brand DCsite
Product code DCQ30-10A Dsite
Type Ice Cube Machinescatalogue

Size & weight5

Depth 465 mmsite
External (W×D×H) 387 × 465 × 692 mmcatalogue
External W × D × H 387x465x692mmsite
Height 692 mmsite
Width 387 mmsite
THE WORKING VIEW

Why this ice cube machine earns its place

Same machine as the DCQ30-10A in every way that matters for ice: 30 kg of Qube cubes per 24 hours, 10 kg of on-board storage, front-breathing air-cooled condenser, single-phase 230 V plug-top, and the same dense, slow-melting, individually formed cubes that bartenders prefer. The only difference is the factory-fitted peristaltic drain pump.

That pump lifts condensate and melt-water up to 1.5 m vertically or 5 m horizontally to a standpipe, sink waste, or gully. It runs only during the harvest/drain phase of each cycle — a few seconds every 15–20 minutes — drawing ~15 W peak and near-silent in a working bar. For basement bars, island units, pop-up sites, or any location where the floor waste sits above the machine's outlet, this is the variant that fits.

Footprint and service access are identical to the gravity-drain model: ~500 mm wide, front service panel, evaporator/pump/board all slide out, controls at eye level. Cleaning cadence unchanged — bin weekly, descale 3–6 monthly, annual pro service. The pump tube is a standard peristaltic spare; Craven Cooling stocks it and swaps take ~15 minutes with the fascia off.

BEFORE YOU BUY

Questions, answered straight

30 kg of Qube cubes per 24 hours at 21 °C air / 15 °C water. Summer kitchen (30 °C ambient) expect 24–26 kg/day.

10 kg storage. Ice-level probe halts production when full; restarts immediately as ice is scooped out.

Up to 1.5 m vertical lift or 5 m horizontal run (combined within that envelope). 8 mm ID hose supplied; ¾" BSP machine outlet.

No — only during the harvest/drain phase, a few seconds every 15–20 minutes. Negligible noise and power draw (~15 W peak).

Single-phase 230 V, 13 A plug-top. ~365 W running (ice + pump peak). Dedicated 16 A radial recommended if sharing a circuit.

Bin sanitise weekly. Evaporator descale every 3–6 months (water hardness dependent). Annual professional service — Craven Cooling 01792 732702 — keeps warranty valid, checks pump tube wear.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

DC DCQ30-10A D Self-contained Product Data

Dimensions (W×D×H) 387 × 465 × 692 mm
Ice production (24hr) 30 kg
Ice storage 10 kg
Water inlet connection 3/4
Water inlet pressure 1 bar (14psi) / 6 bar (84psi)
Water temperature 3 – 32ºC
Ambient operating temp Min: +10°C Max: +43°C
Ventilation Rear: 200 mm Sides and top: 50 mm
Waste connection 21 mm
If you have any questions about the DC DCQ30-10A D Self-contained then please get in touch.
