DC DCG150-40A Self-contained

£2,310.00

+vat

Brand:

SKU: DCG150-40A

Product summary

Product description

– Self-contained icemakers incorporate an ice-production system and ice storage bin into one machine. The smallest machine of the range produces 20kg/24hrs and stores up to 4kg, while the largest produces up to 155kg/24hrs and stores up to 65kg.
Granular Ice – Similar to crushed ice, it’s softer than cubes and chewable, while its mouldable properties suit displays or packaging applications. Suitable for: cocktails, cafeterias, healthcare industries, care homes, fast-food outlets, educational facilities, hotels, fishmongers, supermarkets, transport and packaging operations.

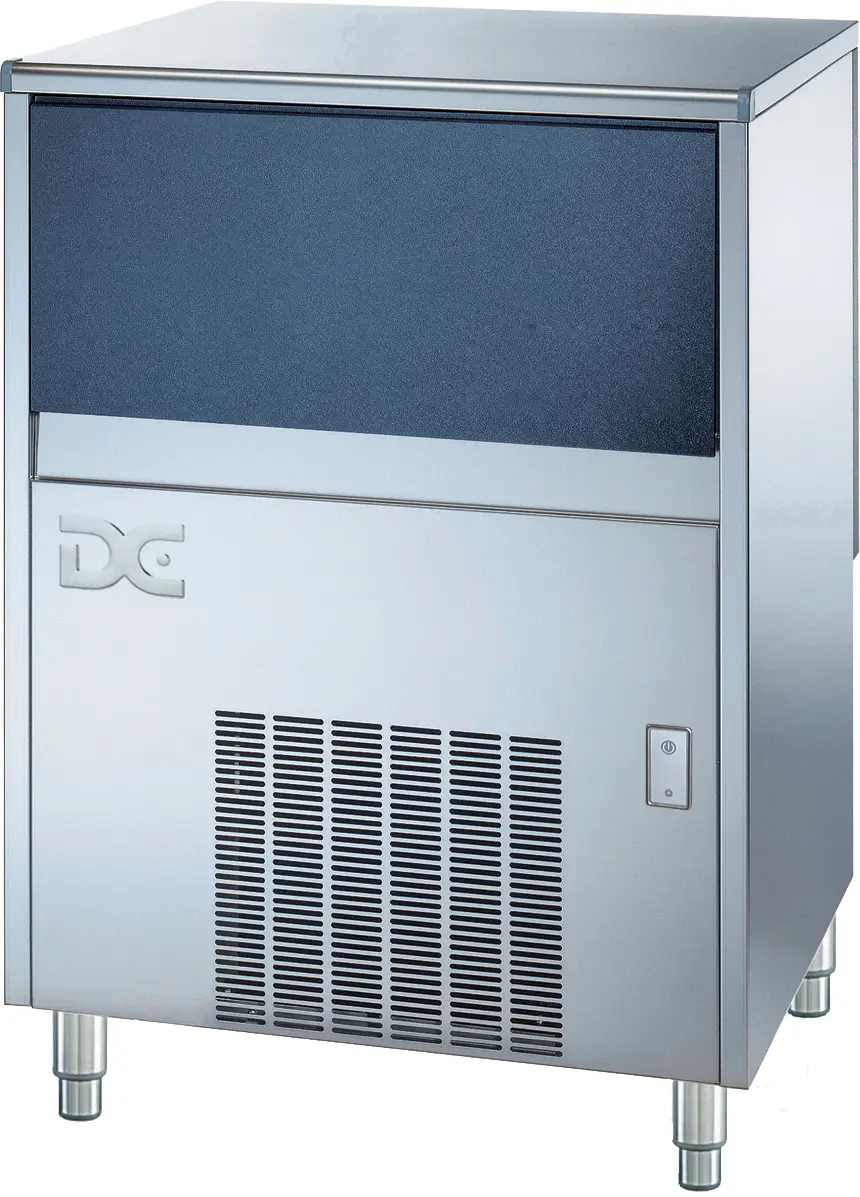

The DCG150-40A is a self-contained granular ice machine rated at 150kg/24h output with an integrated 40kg bin — one cabinet, one plug, one water in, one waste out, built for micro-bars, nurse stations and office pantries where chewable ice is needed but space and install complexity rule out a separate bin.

Downloads

SPECIFICATION 9 facts · tap for all External W × D × H741x678x1035mmWidth741 mmDepth678 mmInput power13 ampProduct codeDCG150-40ATypeCrushed & Flake Ice Machines

Identity3

Brand DCsite
Product code DCG150-40Asite
Type Crushed & Flake Ice Machinescatalogue

Size & weight5

Depth 678 mmsite
External (W×D×H) 741 × 678 × 1035 mmcatalogue
External W × D × H 741x678x1035mmsite
Height 1035 mmsite
Width 741 mmsite

Power & energy1

Input power 13 ampsite
THE WORKING VIEW

Why this crushed & flake ice machine earns its place

Granular ice is the format that does the job: soft enough to chew safely, mouldable enough to wrap a fish fillet or pack a cocktail tin, fast-dispensing from a soda gun. The DCG150-40A delivers it from a footprint barely wider than an undercounter glasswasher.

This is a self-contained machine — the ice maker and the 40kg storage bin share one cabinet. No separate bin to site, no bin-to-head plumbing, no second drain. One 13A / 230V plug, one ¾" BSP mains water connection, one gravity drain. Install it where a glasswasher fits.

Real-world output in a warm kitchen (28–30°C air) drops to roughly 120–130kg/24h. The 40kg bin turns about three times a day at max output — sized for steady, low-peak demand rather than a single crushing rush. If your peak hour needs more than 35kg, step up to a separate-head modular (DCG160A + 100kg bin or larger).

BEFORE YOU BUY

Questions, answered straight

It's self-contained — the ice maker and 40kg bin are built into one cabinet. The modular DCG160A, DCG250A and DCG500A are production heads only; you buy and install the bin separately (100–350kg depending on model).

For steady, low-peak demand — yes. A micro-bar serving 15–25 cocktails uses ~10–20kg of crushed ice in a session. A ward pantry issuing iced water to 20 patients uses ~15–20kg/shift. If your single peak hour needs more than 35kg, you need a separate-head modular with a larger bin.

Up to 150kg/24h at 21°C air / 15°C water. In a 28–30°C kitchen with cold mains, expect 120–135kg. The 40kg bin turns ~3× a day at max output — it's sized for constant low draw, not one big crush.

No — the bin is integral to the cabinet. If you outgrow 40kg storage, you replace the machine with a separate-head modular (DCG160A + 100–200kg bin, or DCG250A + 100–350kg bin).

13A / 230V single-phase plug, ¾" BSP mains water, gravity drain. Standard first-fix for any commercial kitchen fitter.

Descale and sanitise every 6 months (quarterly in hard water). One cabinet to clean — the integrated bin means no separate bin sanitation. A planned service visit is low-cost insurance for sites where ice failure stops patient hydration or bar service.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

DC DCG150-40A Self-contained Product Data

Dimensions (W×D×H) 741 × 678 × 1035 mm
Power supply 13 amp
Ice production (24hr) 150 kg
Ice storage 40 kg
Water inlet connection 3/4
Water inlet pressure 1 bar (14psi) / 6 bar (84psi)
Water temperature 3 – 32ºC
Ambient operating temp Min: +10°C Max: +43°C
Ventilation Rear: 200 mm Sides and top: 50 mm
Waste connection 21 mm
If you have any questions about the DC DCG150-40A Self-contained then please get in touch.

£2,618.00

738x690x962mm W/D/H
