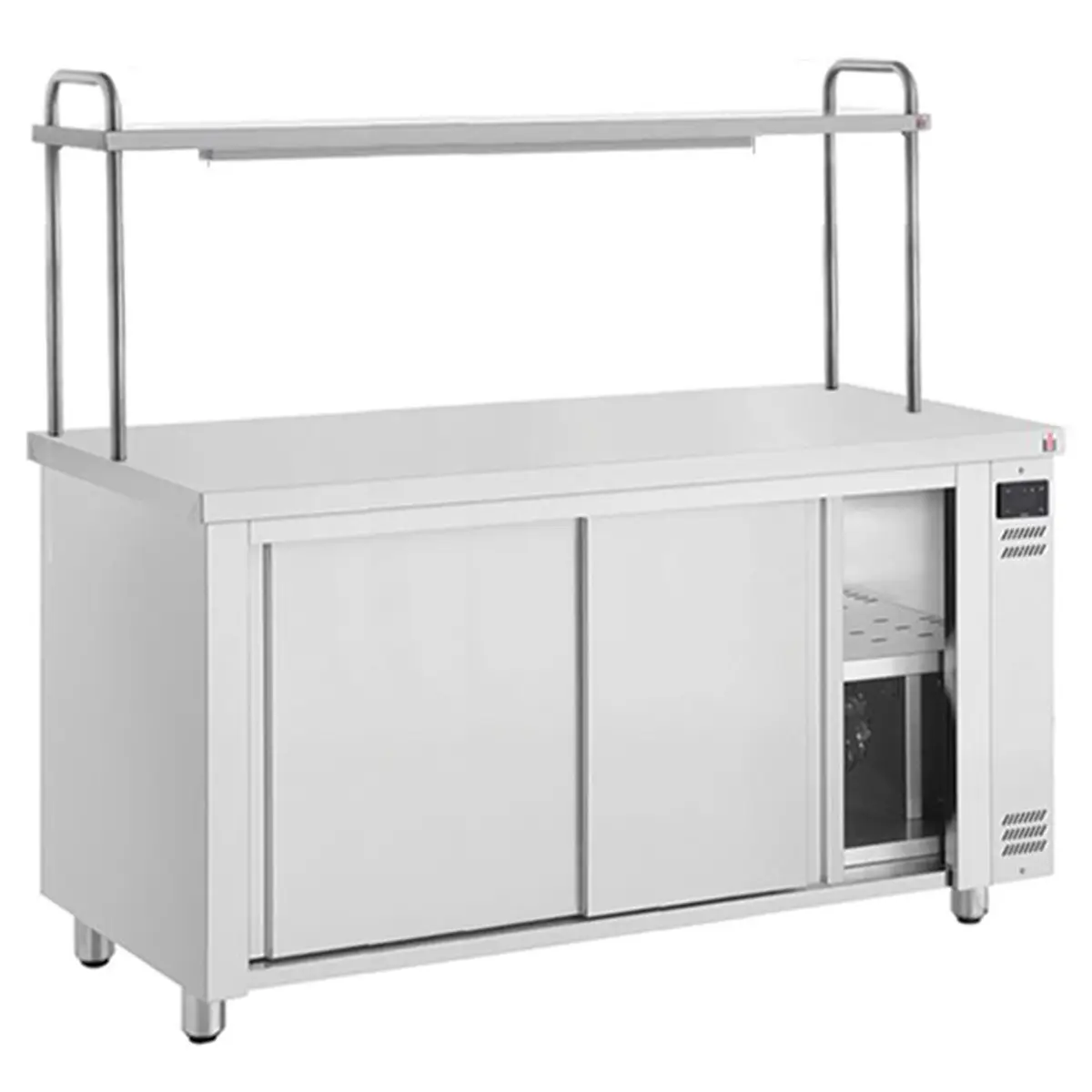

INOMAK 1900mm Hot Cupboard With Single Heated Gantry HCPW-SHG19

£2,162.76

+vat

- +

Brand:

SKU: HCPW-SHG19

Product summary

Size: 1890 x 700 x 1332

Product description

  • Single shelf gantry
  • 1 Halogen heated box – 6 lamps
  • High grade AISI 304 stainless steel exterior and interior
  • Double wall doors insulated with pressurized polyurethane foam
  • Fan assisted heating
  • Adjustable legs
  • 1 fixed perforated shelf
  • Operating temperature (max. 72¬∞C) is controlled by Thermostat
  • Robust construction

A 1900 mm wide hot cupboard with single heated gantry and six halogen lamps, designed for high-capacity plate warming and food display in busy service areas.

SPECIFICATION 19 facts · tap for all External W × D × H1890 x 700 x 1332Width1890 mmDepth700 mmHeight1332 mmVoltage / frequency1450WInput power13amp supply

Manufacturer documents2

Identity4

Brand INOMAKsite
GTIN / EAN 5212016700101site
Product code HCPW-SHG19site
Type Hot Cupboardscatalogue

Size & weight5

Depth 700 mmsite
External (W×D×H) 1890 × 700 × 1332 mmcatalogue
External W × D × H 1890 x 700 x 1332site
Height 1332 mmsite
Width 1890 mmsite

Capacity1

Gross volume 695 litrescatalogue

Performance2

Controller Digital controller with temperature displaysite
Temperature range +30C/+72Csite

Power & energy3

Input power 13amp supplysite
Rated input 1450 Wcatalogue
Voltage / frequency 1450Wsite

Build & fittings2

Exterior finish Stainless Steelsite
Shelves 1site
THE WORKING VIEW

Why this hot cupboard earns its place

The INOMAK HCPW-SHG19 is the widest in the single-gantry range: 1900 mm of heated storage across a 1332 mm profile. The cabinet is built from high-grade AISI 304 stainless steel, inside and out, with a single perforated shelf and double-wall doors insulated with pressurized polyurethane foam. It's designed for kitchens that need serious plate-holding capacity without going to a double-gantry model.

The single halogen gantry runs the full 1900 mm width with six lamps—the most in the single-gantry range. Fan-assisted heating cycles via thermostat to maintain up to 72°C. The six-lamp setup means you're getting genuine coverage across the wide span: no cold zones at the edges, just even warmth from end to end. The pressurized foam insulation keeps that heat inside, so the cabinet isn't fighting the room temperature.

This is the width for places where holding capacity matters more than footprint height. A busy pub carvery that plates fifty covers in thirty minutes and needs all of them kept hot. A hotel where the pass runs a long wall and you need a single wide warming station rather than multiple narrow units. A high-volume catering kitchen or event venue where the plating station is the bottleneck. The single gantry with six lamps handles wide plates and large quantities without the complexity of dual-gantry control.

BEFORE YOU BUY

Questions, answered straight

A dual-gantry unit has six lamps total (three per box). This unit has six lamps in one gantry. It's comparable heating power, but deployed across a wider surface—1900 mm vs 1400 mm typically. The six-lamp setup means no cold spots across the span; even warmth from end to end.

The thermostat cycles heating to maintain 72°C across the cabinet. If you load one side heavily and the other lightly, the loaded side will cool slightly faster when you pull plates, but the gantry is continuously warming. It's designed to handle the full width equally.

At 1890 mm wide and 1332 mm tall, measure your doorways, passages, and the kitchen entrance. Most commercial kitchens can accommodate it, but older buildings or narrow corridors might be tight. The adjustable legs sit flush to the footprint, so there's no extra width.

Six halogen lamps vs five on the 1600 mm model, and the fan-assisted heating runs continuously to maintain temperature. The exact consumption depends on how long it holds temperature without cycling on and off—that varies by room temperature and cabinet loading. A commercial installer can advise on electrics if you're on a tight supply.

The six lamps are part of the single gantry assembly. If one lamp fails, you'd still have warmth from the others, but repair or replacement would require opening the gantry. For servicing or lamp replacements, contact Craven Cooling on 01792 732702—they handle repairs.

The spec doesn't detail the electrical connection, so check the datasheet or manual before installation. Halogen gantries typically draw significant power. Your kitchen electrician or Craven Cooling (01792 732702) can confirm the supply needed before you order.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

External Dimension (WxDxH): 1890 x 700 x 1332

Cooling and Functions

Type of Controller: Digital controller with temperature display

Power and Consumption

Temperature Range: +30C/+72C °C
Input Power: 13amp supply
Voltage / Frequency: 1450W

Measures and Content

Temperature Range: +30C/+72C °C
Gross / Net Volume: 695 plates l

Design and Material

Shelves Number & Type: 1
Exterior Finish: Stainless Steel

INOMAK 1900mm Hot Cupboard With Single Heated Gantry HCPW-SHG19 Product Data

If you have any questions about the INOMAK 1900mm Hot Cupboard With Single Heated Gantry HCPW-SHG19 then please get in touch.
