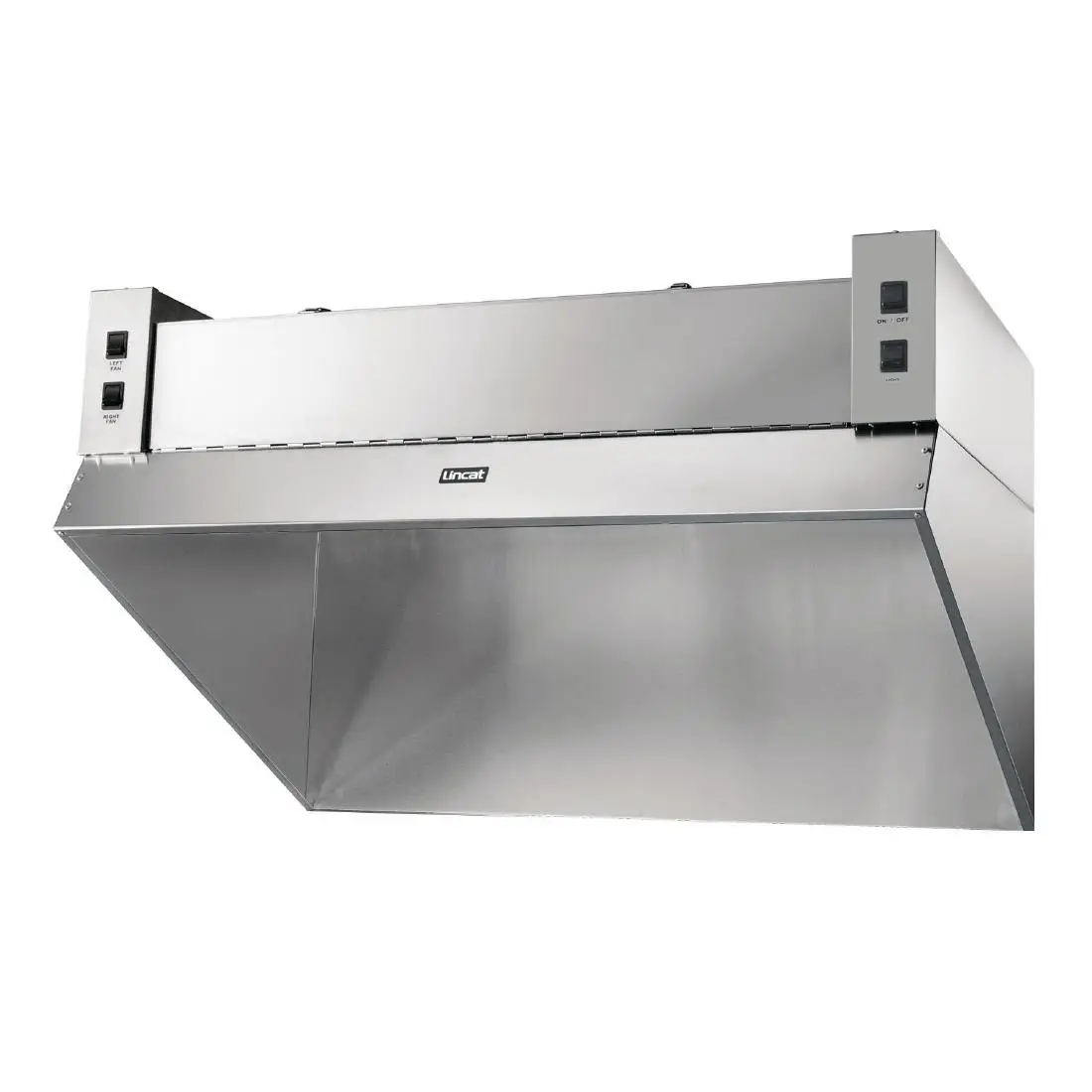

Lincat Lynx 400 Fume Filtration Unit L4 F118

£1,972.19

+vat

Availability: 999 in stock

Brand:

SKU: F118

Product summary

Size: 1304(W) x 620(D)mm | Unsuitable for gas appliances

Product description

Lincat Lynx 400 fume filtration units with powerful centrifugal fans to pull cooking fumes through a double bank filtration system.

Powerful centrifugal fan pulls cooking fumes through filtration system
For use with cooking equipment up to 9kW power consumption
Not suitable for use with gas appliances
Air re-circulation system is not designed to extract smoke
Due to the high cost of carriage and handling a restocking fee of up to 25% is applied to this product if returned
Effectively clears the air of contaminants for a cleaner and safer kitchen
Helps to remove odours and grease to keep kitchen fresh
Easy access for cleaning and filter maintenance via hinged top panel

Commercial-grade fume filtration unit with powerful centrifugal fans and a double-bank filter system for pulling cooking fumes away from prep and cooking stations.

Downloads

SPECIFICATION 12 facts · tap for all Depth620 mmGross weight42.6 kgMaterialStainless SteelProduct codeF118BrandLincatRange / seriesLynx

Identity5

Brand Lincatsite
Product code F118site
Range / series Lynxcatalogue
Type Kitchen Canopiescatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight3

Depth 620 mmcatalogue
External (W×D×H) 560 × 1304 × 620 mmcatalogue
Gross weight 42.6 kgcatalogue

Power & energy2

Fuel type Plugcatalogue
Rated input 450 Wcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this kitchen canopie earns its place

The Lincat Lynx 400 is built for kitchens where smoke, steam, and cooking odours need serious management. It draws fumes through a powerful centrifugal fan, then passes them through a double-bank filtration system that captures grease and particulates before exhausting to the outside or recirculating, depending on your installation. The dual-stage approach means you're getting both initial impact filtration and secondary catch, which extends filter life and improves air quality.

Built from stainless steel in a satin finish, the unit resists corrosion from the damp, greasy environment of a working kitchen. At 560 mm wide and 1,304 mm deep, it's sized for capturing fumes from a significant work zone — whether that's a prep counter, range line, or multiple cooking stations. The 620 mm height lets it sit comfortably above worktops without creating an obstruction, and the weight of 42.6 kg means it's substantial enough to feel solid without being unwieldy for install.

The filtration approach gives you flexibility. If you're venting externally, the double bank system keeps your external ductwork cleaner and reduces grease buildup in the exhaust stack. If you're recirculating (which some kitchens choose for energy efficiency), the filtration handles the heavy lifting of air cleaning. Either way, filter maintenance is part of the routine, and a clean filter keeps the centrifugal fan running at full power.

BEFORE YOU BUY

Questions, answered straight

The dual-stage system captures grease and particulates in two phases. The first bank takes the initial heavy load, and the second provides secondary filtration. This keeps the filters cleaner and extends their working life, and it also means fumes are more thoroughly cleaned before exhaust.

The Lynx can be configured for either external venting through ducting or recirculation, depending on your kitchen layout and regulations. The double-bank filter system works well for both approaches.

Filter life depends on cooking volume and what you're cooking. High-volume fryer kitchens will need more frequent changes than lighter prep stations. It's best to inspect monthly and change when they show visible grease loading. Lincat service on 01792 732702 can advise on your specific setup.

Yes. The satin stainless steel wipes down easily with warm soapy water or a degreaser. No special polish needed. The smooth finish resists fingerprints and keeps looking professional through a busy service period.

Professional installation is recommended. The unit needs to be securely mounted above your cooking or prep zone, and you'll need either external ducting or a recirculation duct fitted. Electrical connection is required. Call service on 01792 732702 for installation questions.

The Lynx 400 comes with 2 years' parts and labour warranty, covering the unit and its components. For any issues within warranty, contact Lincat service on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Lincat Lynx 400 Fume Filtration Unit L4 F118 Product Data

Brand Lincat
Type Kitchen Canopies
Range Lynx
Dimensions 560(H) x 1304(W) x 620(D)mm
Material Stainless Steel
Colour / Finish Silver
Power Electric
Fuel / Supply Plug
Warranty 2 Years Parts & Labour
Weight 42.6kg
Manufacturer Ref L4
If you have any questions about the Lincat Lynx 400 Fume Filtration Unit L4 F118 then please get in touch.
