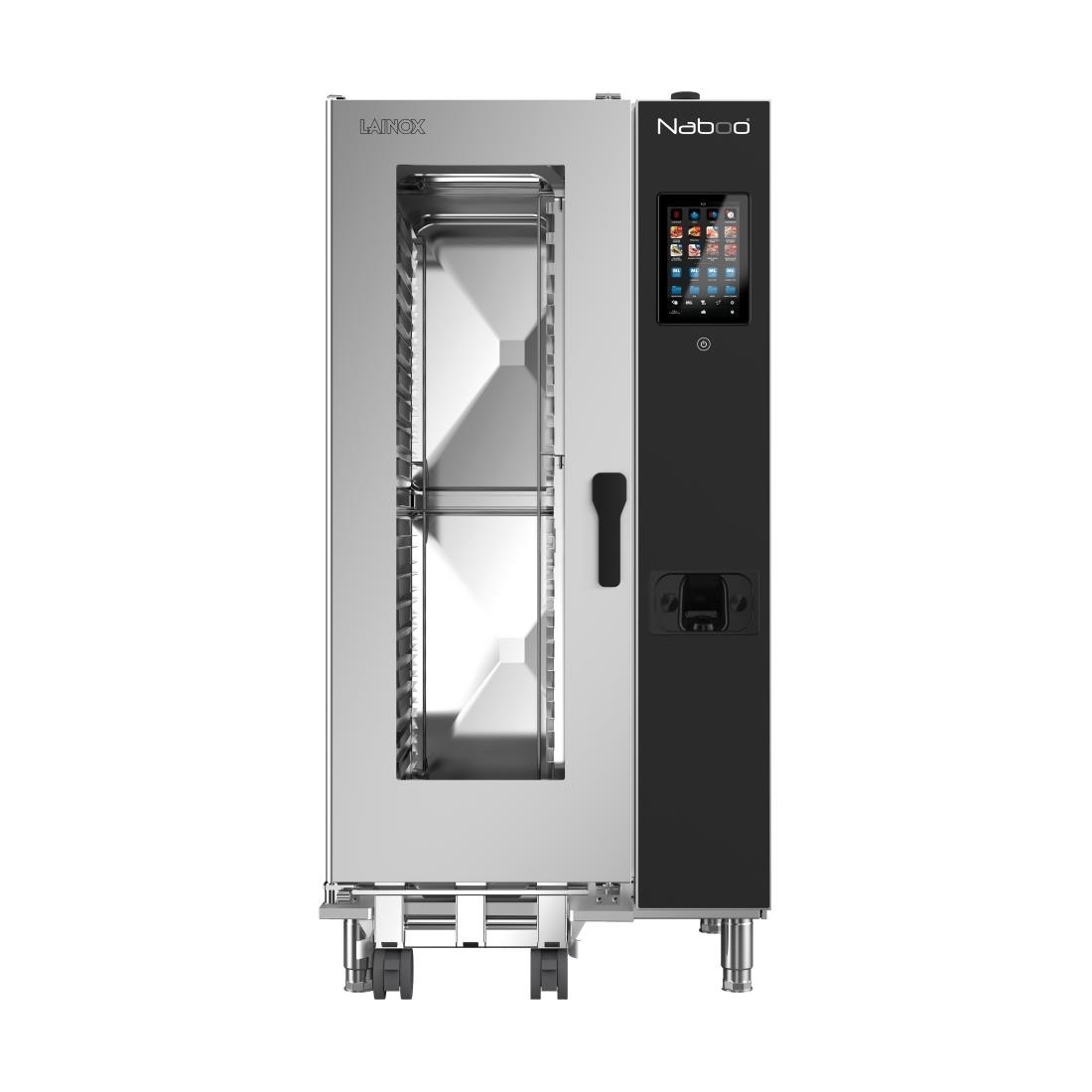

Lainox Naboo Boosted Electric Touch Screen Combi Oven 20x 1/1 GN NAE201BV HP557

£13,728.32

+vat

Availability: 999 in stock

- +

Brand:

SKU: HP557

Product summary

Boilerless

Product description

The NAE201BV electric direct steam combination oven has a 10″ full colour touch screen that is easy to use and can be configured to suit every kitchen’s requirements. Popular menu items can be placed onto the home screen so can be started with a single touch, while recipes can be organised in folders, making them easier to access for all users. The three cooking modes – convection, steam and combination – can be accessed directly from the home screen too, making it easy to start cooking quickly. Multilevel cooking enables menu items with different cooking times to be cooked at the same temperature, with the oven’s intelligence able to identify other saved recipes that can also be cooked under these parameters.

10″ HD colour touch screen is easy and intuitive to use and can be customised to suit the user’s requirements
Wifi connectivity as standard allows combi to be managed from anywhere – add / adapt recipes, check HACCP data etc
Comes with conversion kit co can be converted to LPG
Multilevel and Just-in-Time cooking modes allow cooking of multiple items at the same time, with oven alerting when each item is ready or when to put each item into the oven so everything is ready at the same time
Automatic washing system with 7 different programs makes it easy to keep the oven chamber clean
Pre-heat temperature of up to 320°C, reducing recovery time and ensures food cooked at a more consistent cooking temperature

Downloads

SPECIFICATION 18 facts · tap for all Width1100 mmDepth1110 mmHeight2040 mmGross weight290 kgVoltage400VMaterialStainless Steel

Identity4

Brand Lainoxsite
Product code HP557site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 1110 mmcatalogue
External (W×D×H) 2040 × 1100 × 1110 mmcatalogue
Gross weight 290 kgcatalogue
Height 2040 mmcatalogue
Width 1100 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 20catalogue

Performance1

Controller Programmablecatalogue

Power & energy2

Fuel type Three Phasecatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts2

Electrical safety notice Yescatalogue
Mobility Feetcatalogue
THE WORKING VIEW

Why this combination oven earns its place

This is a workhorse for high-output kitchens that live on consistency. The Naboo Boosted holds 20 trays of full-size gastronorm (1/1) capacity — enough for a full evening's prep, or multiple services running simultaneously. Direct steam injection (boosted capability) means the oven recovers temperature faster between loads and gives sharper humidity control, so roasts brown cleanly, bread proofs reliably, and vegetables finish tender without a second pass.

The 10-inch colour touch screen puts all three cooking modes — convection, steam, and combination — right there on the home screen. Your team doesn't scroll through menus to switch modes mid-service; they tap what they need and go. Recipes save once and organise into folders, with daily favourites pinned for single-touch access. Multilevel cooking intelligence means you can load a batch of roasts, baked goods and finishing vegetables all at the same time, and the oven flags recipes that will cook successfully under those shared parameters.

Stainless steel construction with a silver finish is purpose-built for visibility and durability in hard-working kitchens. At 2040 mm tall and 290 kg, this is a substantial machine that needs proper space and solid electrical installation. The oven runs on 400V three-phase power and comes with a 2-year parts and labour warranty covering all the precision engineering underneath.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

1100 × 1110 × 2040 mmstated W × D × H290 kg
THE CRITICAL ANSWERNarrowest straight opening1100mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS2040 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

20 full-size (1/1) gastronorm trays, which is roughly 400–500 portions depending on your plating. That's two columns of 10, giving you the flexibility to run multiple services from a single batch or prep a full day's mise en place in one load.

Boosted direct steam injection means faster temperature recovery when you load the oven, and better humidity control during the cook. This cuts proof times for bread, gives sharper colour on roasted vegetables, and means less downtime waiting for the chamber to re-stabilise between batches — crucial when service is tight.

Yes. Convection, steam and combination modes are all on the home screen, so your team can switch between them with a tap instead of navigating menus. This is essential when service requires you to roast one tray and bake another simultaneously, or when you need to switch from a bake cycle to a steam finish mid-service.

This is a 400V three-phase electric machine. You'll need to confirm your kitchen's three-phase capacity with your electrician before ordering. Installation time should be factored in if the three-phase connection isn't already in place. Contact Craven Cooling on 01792 732702 for electrical guidance.

Multilevel cooking means items with different cooking times can finish at the same temperature. Load roasted vegetables and baked bread together, and the oven's intelligence identifies recipes that work under the same parameters and flags them for batch cooking. It's invaluable when your menu demands precision from a high-capacity load.

Parts and labour on all the engineering inside the oven — the steam system, heating elements, controls and touch screen. This includes training and support for configuring recipes and customising the oven to your kitchen's workflow. For servicing or repairs, contact Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Lainox Naboo Boosted Electric Touch Screen Combi Oven 20x 1/1 GN NAE201BV HP557 Product Data

Brand Lainox
Type Combination Ovens
Dimensions 2040(H) x 1100(W) x 1110(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 20
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 290kg
Manufacturer Ref NAE201BV
If you have any questions about the Lainox Naboo Boosted Electric Touch Screen Combi Oven 20x 1/1 GN NAE201BV HP557 then please get in touch.
