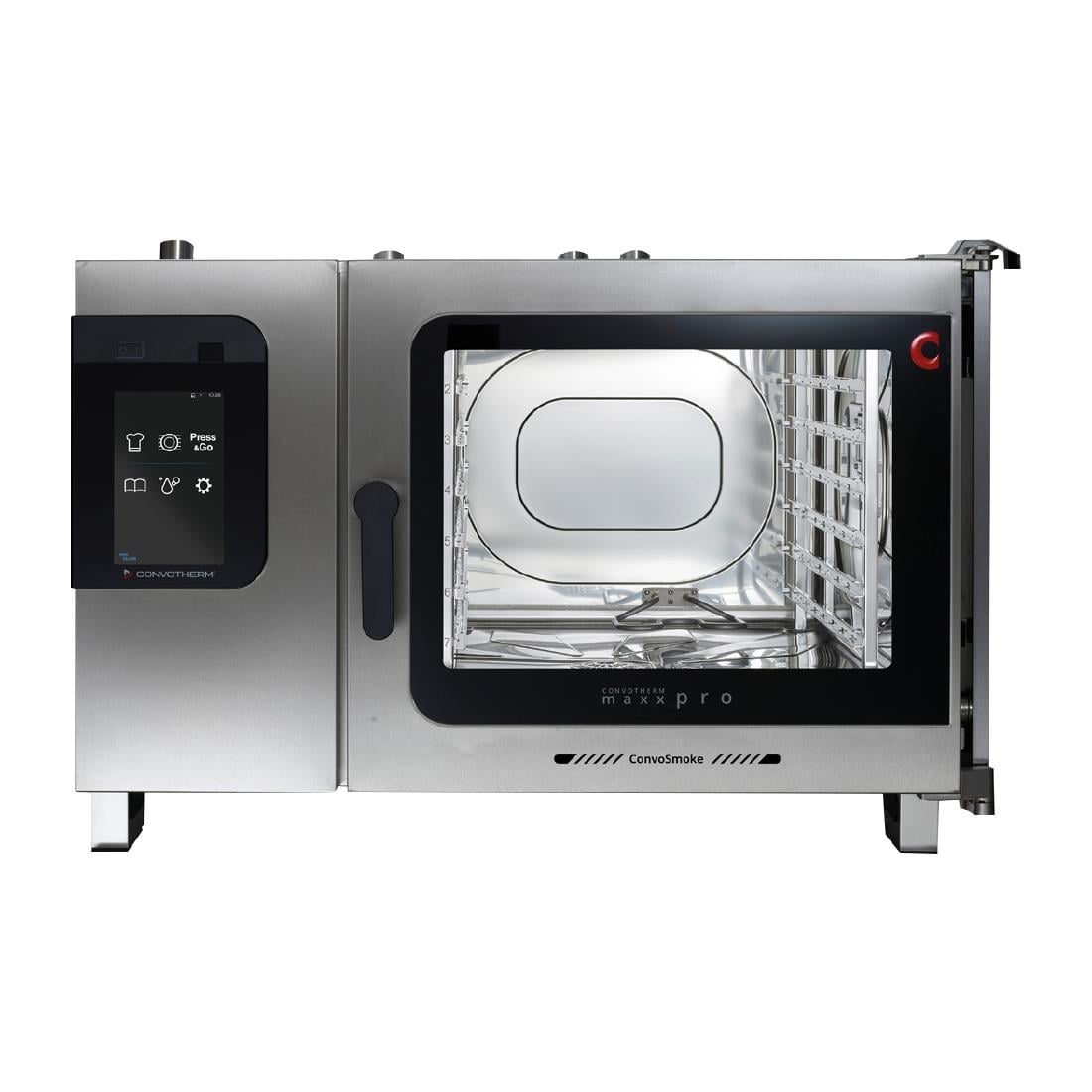

Convotherm Maxx Pro 6.20 GB easyTouch Disappearing Door Combi Oven with ConvoSmoke JB239

£11,504.39

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB239

Product summary

ConvoSmoke. 6kW single phase. Capacity: 12+2 x 1/1 GN

Product description

The Convotherm Maxx Pro 6.20 GB easyTouch combi oven is a superbly reliable 12+2 x 1/1GN capacity combi, designed to deliver exceptional cooking results every time. With three cooking modes and four function management systems, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyTouch combi oven is effortless too. The responsive symbol-based 10″ display is fast and intuitive, making it especially useful for reducing training times.

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks. This oven is equipped with the smoke option which is fully integrated into the cooking profiles for maximum smoke flexibility, allowing cold and hot smoking with the use of biscuits.

This model uses an electric injection system for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower
ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler
Automatic cooking with Press&Go – delivers process reliability with stored cooking profiles available at the touch of a button
Fully integrated ConvoSmoke smoker for hot & cold smoking

The Convotherm Maxx Pro 6.20 GB with ConvoSmoke adds cold and hot smoking capability to a proven 12+2 GN combi oven on single-phase supply.

Downloads

SPECIFICATION 17 facts · tap for all Width1211 mmDepth992 mmHeight786 mmGross weight182 kgVoltage230VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB239site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 992 mmcatalogue
External (W×D×H) 786 × 1211 × 992 mmcatalogue
Gross weight 182 kgcatalogue
Height 786 mmcatalogue
Width 1211 mmsite

Capacity2

Gastronorm size 2/1 GN doublecatalogue
Shelves 6catalogue

Power & energy3

Fuel type Single Phasecatalogue
Rated input 600 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Maxx Pro 6.20 GB with ConvoSmoke is a combi oven that does what it's supposed to—roast, bake, steam, braise—but also smokes. Not as a bolt-on afterthought: smoking profiles are fully integrated into the cooking system, so you can cold-smoke fish and cheese for five hours, then switch to hot-smoking poultry for service without reconfiguring anything. You use smoking biscuits (wood chips) loaded into the oven's smoke chamber, and the easyTouch display manages the rest: temperature, humidity, timing, smoke intensity.

With 12+2 GN capacity and three cooking modes, you get flexibility across a full menu. The easyTouch interface—a symbol-based 10" screen—handles mixed loads and batch cooking, so you can run a roti service on one set of pans while smoking salmon on another. Advanced automatic cooking profiles reduce training time and keep consistency tight when your team is under pressure. The disappearing door slides away sideways, giving staff room to work in compact kitchens; the fully automatic ConvoClean system handles cleaning without manual scrubbing.

This model runs on 230V single-phase supply at 600W, with electric injection for steam generation. It's stainless steel, compact at 786 × 1211 × 992 mm, and covers a broader range of flavour-forward cooking than a standard combi alone. Convotherm's 2-year parts and labour warranty is included.

BEFORE YOU BUY

Questions, answered straight

No—the oven is built for it. You load smoking biscuits (wood chips, typically apple or oak) into the oven's integrated smoke chamber, set the profile on the easyTouch display, and the system manages temperature, humidity and timing. The profiles are preset for cold-smoking and hot-smoking, so it's the same workflow as any other cooking mode.

Yes. You can cold-smoke salmon at 18°C for hours during prep, then switch to hot-smoking chicken at 70°C for service, all without moving the oven or changing settings. The profiles are independent, so one cook can be smoking while another is roasting.

This model adds ConvoSmoke—smoking is fully integrated into the cooking system, not a separate chamber. That means you're not buying a dedicated smoker; you're getting a combi oven that also smokes. On a single-phase supply, that's a practical advantage in kitchens where three-phase isn't available.

Depends on the wood type and your smoke intensity setting. You'll need to replace them during longer smokes or if you're running heavy smoke profiles. The easyTouch display prompts you if the smoke system needs attention.

The ConvoClean system handles the main oven chamber. The smoke chamber can be accessed easily, but talk to the Convotherm team on 01792 732702 about maintenance routines for the smoke system specifically.

The Maxx Pro 6.20 GB needs standard 230V single-phase supply. That means no three-phase upgrade needed—a big advantage in older kitchens or leasehold properties. At 600W input, it sits comfortably on a normal kitchen circuit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 6.20 GB easyTouch Disappearing Door Combi Oven with ConvoSmoke JB239 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 786(H) x 1211(W) x 992(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 6
Power Electric
Voltage 230V
Fuel / Supply Single Phase
Warranty 2 Years Parts & Labour
Weight 182kg
Manufacturer Ref MAXXPROET6.20 GB DD SMOKE
If you have any questions about the Convotherm Maxx Pro 6.20 GB easyTouch Disappearing Door Combi Oven with ConvoSmoke JB239 then please get in touch.
