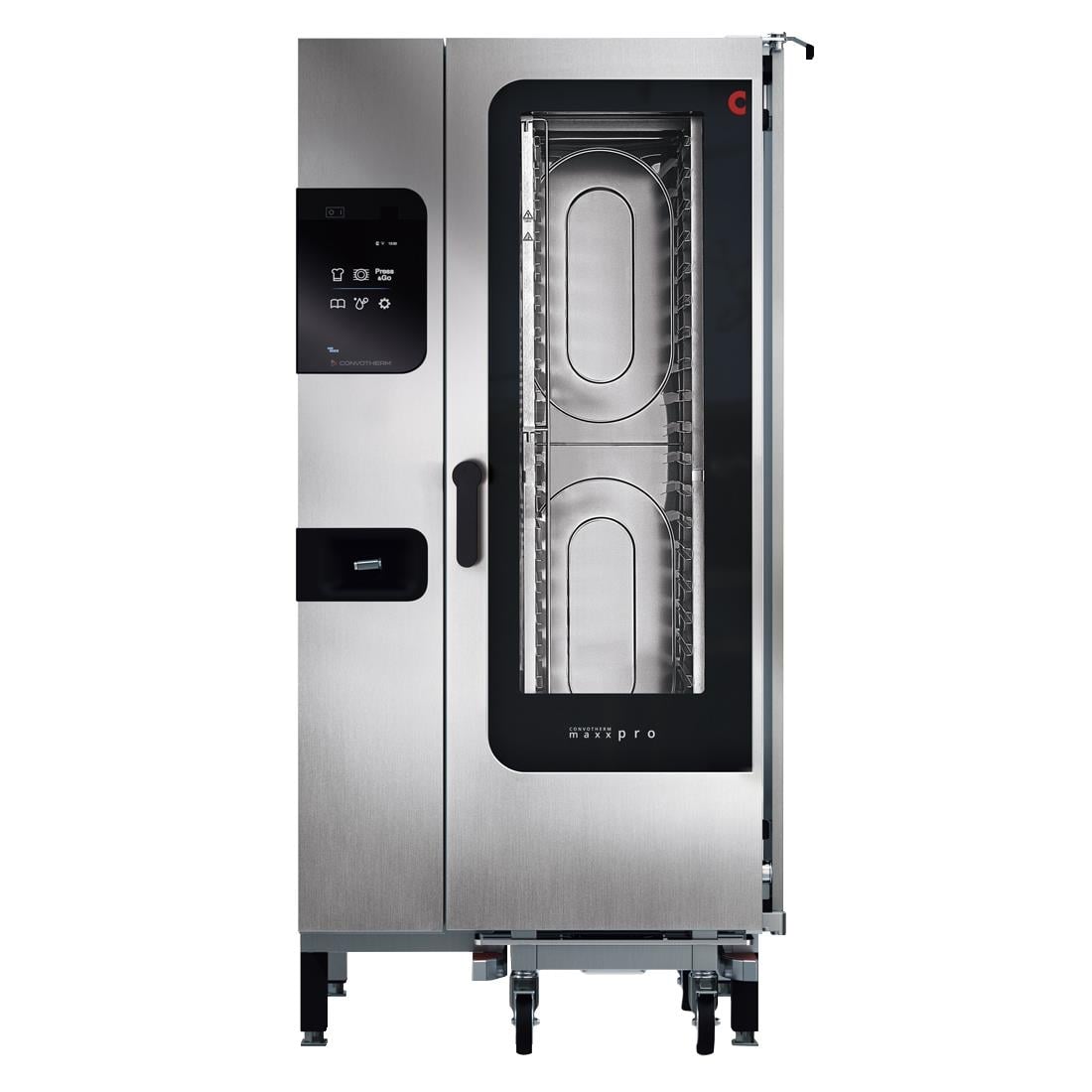

Convotherm Maxx Pro 20.10 EB easyDial Disappearing Door Combi Oven JB276

£12,559.84

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB276

Product summary

38.9kW 3 phase. Capacity: 20 x 1/1 GN. Electric boiler

Product description

The Convotherm Maxx Pro 20.10 EB easyDial combi oven is a superbly reliable 20 x 1/1GN capacity freestanding combi, designed to deliver exceptional cooking results for mixed and batch loading. With three cooking modes, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyDial combi oven is effortless too. The responsive system ensures all inputs and additional functions are set on a single level and are always visible, making it especially useful for reducing training times.

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks.

This model has a built-in electric boiler for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower
ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler

A 20 x 1/1 GN three-phase combi oven with a built-in electric boiler and three cooking modes—built for kitchens running three-phase power where reliable steam and thermal speed are priorities.

Downloads

SPECIFICATION 17 facts · tap for all Width1002 mmDepth820 mmHeight1942 mmGross weight285 kgVoltage400VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB276site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 820 mmcatalogue
External (W×D×H) 1942 × 1002 × 820 mmcatalogue
Gross weight 285 kgcatalogue
Height 1942 mmcatalogue
Width 1002 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 20catalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 38900 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Convotherm Maxx Pro 20.10 EB easyDial combines the power and speed of three-phase operation with a built-in electric boiler that generates steam reliably and continuously. At 38,900 W input on 400V three-phase, this model delivers fast thermal recovery—the oven bounces back to temperature quickly after opening the door or loading new batches, critical for high-volume services where every minute of oven time is revenue. The electric boiler approach provides steady, predictable steam generation across your menu.

The 20 x 1/1 GN capacity is right-sized for efficient batch cooking and mixed-load service without consuming excessive kitchen floor space. Three cooking modes and four function management systems give you flexibility across different menu demands, while quick-select keys let you save recipes for your most common batch combinations. The easyDial interface puts all controls on a single level and keeps everything visible, making quick adjustments during service and staff training straightforward.

The disappearing-door design frees crucial prep space by sliding to the side rather than swinging out into the kitchen—essential when counter space is contested. Fully automatic ConvoClean cleaning removes the manual labour from daily sanitation cycles, turning a time-consuming task into hands-free automation. Finished in robust stainless steel and backed by a 2-year parts and labour warranty, this oven is engineered for continuous commercial use.

BEFORE YOU BUY

Questions, answered straight

A built-in electric boiler heats water to generate steam continuously, providing steady, predictable humidity control across cooking cycles. Combined with 38,900 W three-phase power, you get both fast thermal recovery and reliable steam—a robust combination for high-volume kitchens.

Three-phase power is standard in commercial kitchens and most hospitality properties. Check your electrical panel or ask your utilities provider. An electrician can confirm your supply is adequate and handle installation.

Thermal recovery speed is the time it takes for the oven to bounce back to temperature after opening the door or loading a new batch. At 38,900 W, this model recovers faster, reducing downtime between covers and allowing you to push through peak service quicker. In high-volume kitchens, that translates directly to more covers per shift.

Yes—the three cooking modes and four function management systems allow different dishes, temperatures, and humidity levels simultaneously. Quick-select keys store your most common batch recipes, so setup is fast and consistent.

You're covered with 2-year parts and labour warranty. For preventative maintenance schedules and breakdown cost analysis specific to your operation, call 01792 732702—they'll walk you through a plan and show what unplanned downtime actually costs your kitchen.

The footprint is 1942 mm tall × 1002 mm wide × 820 mm deep. The disappearing door slides to the side, freeing about 1 metre of counter space compared to traditional swing-door designs. Measure your installation gap before ordering.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 20.10 EB easyDial Disappearing Door Combi Oven JB276 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 1942(H) x 1002(W) x 820(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 20
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 285kg
Manufacturer Ref MAXXPROED20.10 EB DD
If you have any questions about the Convotherm Maxx Pro 20.10 EB easyDial Disappearing Door Combi Oven JB276 then please get in touch.
