Convotherm Maxx Pro 10.20 GB easyDial Disappearing Door Combi Oven JB262

£11,609.94

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB262

Product summary

6kW single phase. Capacity: 20+2 x 1/1 GN. Gas boiler

Product description

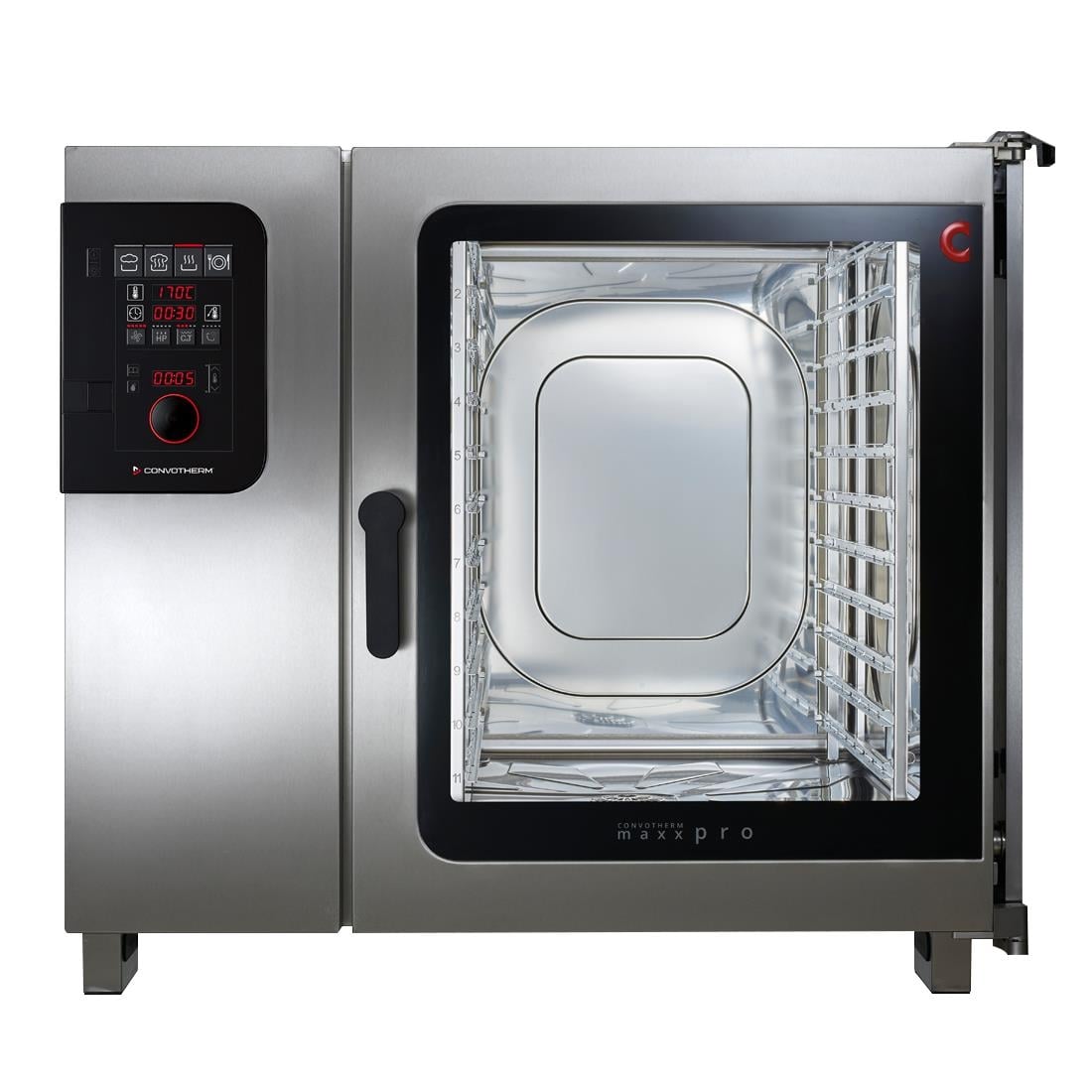

The Convotherm Maxx Pro 10.20 GB easyDial combi oven is a superbly reliable 20+2 x 1/1GN capacity combi, designed to deliver exceptional cooking results for mixed and batch loading. With three cooking modes, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyDial combi oven is effortless too. The responsive system ensures all inputs and additional functions are set on a single level and are always visible, making it especially useful for reducing training times.

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks.

This model has a built-in gas boiler for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower

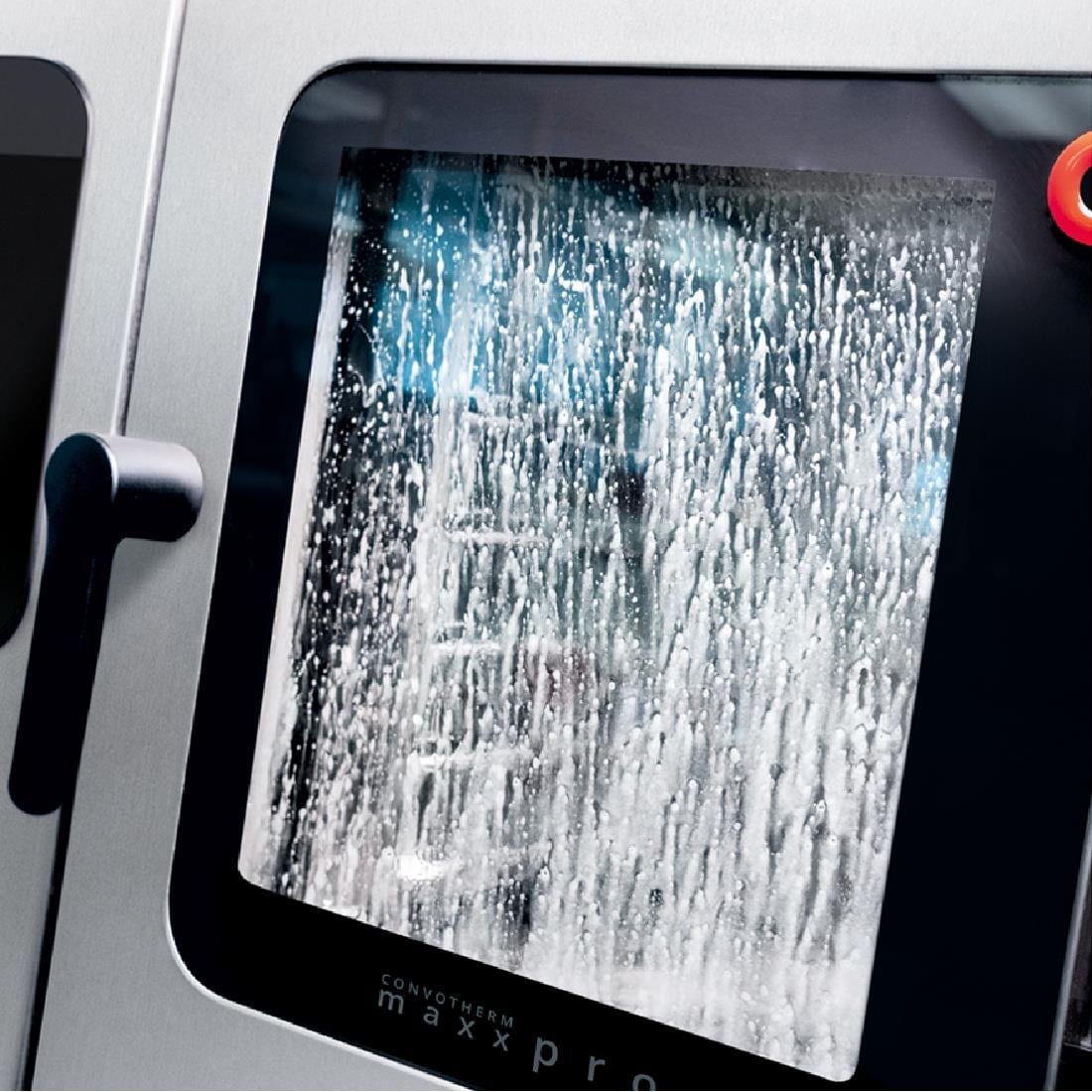

ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler

A 20+2 capacity combi oven with a built-in gas boiler for steam — single-phase power, compact size, and the reliability of a dedicated steam system that doesn’t depend on your kitchen’s gas line.

Downloads

SPECIFICATION 17 facts · tap for all Width1211 mmDepth992 mmHeight1058 mmGross weight210 kgVoltage230VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB262site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 992 mmcatalogue
External (W×D×H) 1058 × 1211 × 992 mmcatalogue
Gross weight 210 kgcatalogue
Height 1058 mmcatalogue
Width 1211 mmsite

Capacity2

Gastronorm size 2/1 GN doublecatalogue
Shelves 10catalogue

Power & energy3

Fuel type Single Phasecatalogue
Rated input 600 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Convotherm Maxx Pro 10.20 GB easyDial is the middle ground between the pure gas-injection model and the three-phase electric alternatives. It runs on 230V single-phase — one standard kitchen plug or a dedicated 16A supply — but generates steam independently via its own built-in gas boiler, so you're not tapping your kitchen gas line for both cooking and steam at once. That separation gives you better steam pressure consistency, especially during service peaks when every burner is running.

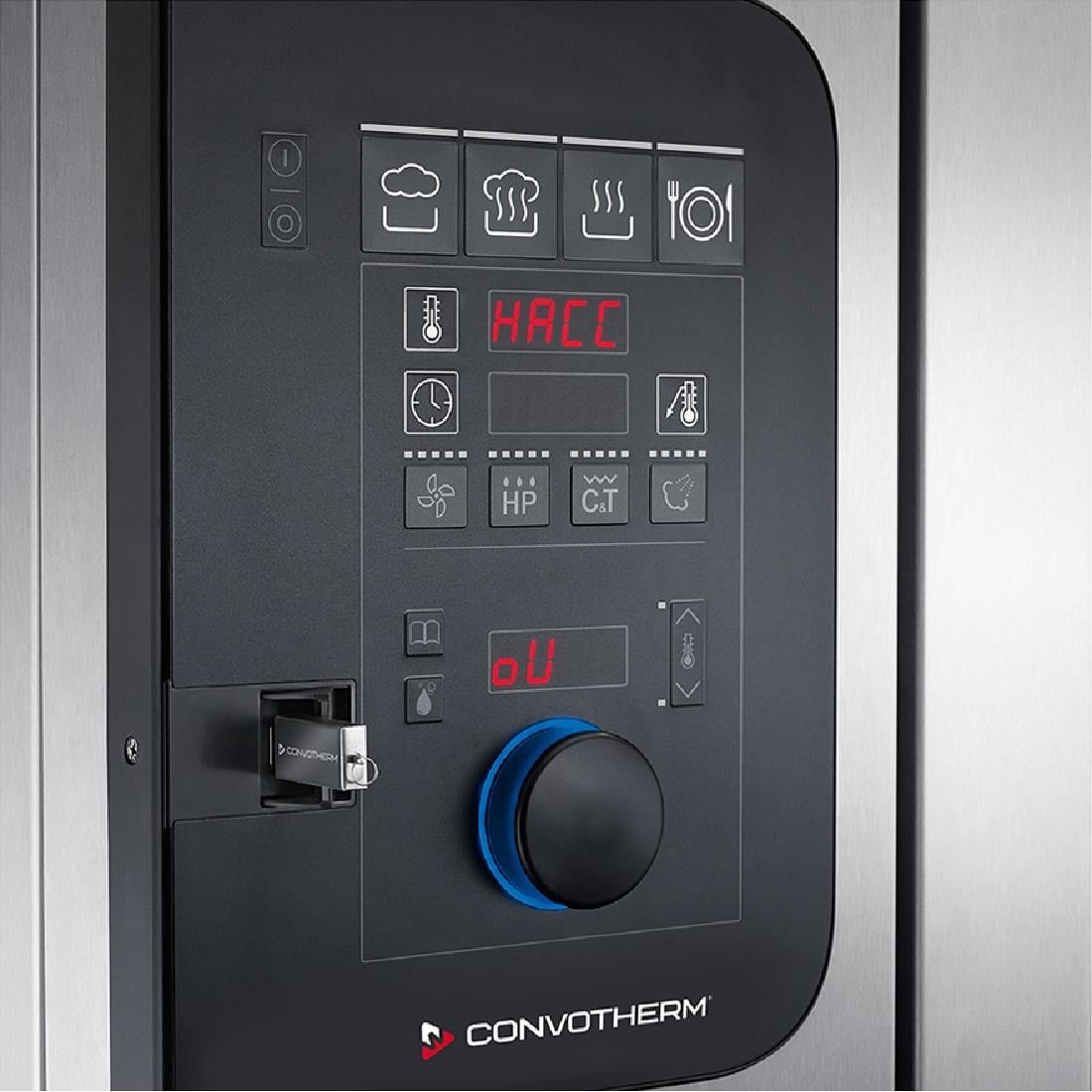

The easyDial interface strips away menu scrolling: all controls sit on one visible panel, so staff see what's happening without squinting at a screen. Training is fast, and even under Thursday-night pressure, casual staff won't hunt through second-tier menus trying to find the steam level. Three cooking modes (convection, steam, combi) handle your full repertoire — roasting, steaming prep, and combi-baking — all in one compact footprint. Quick-select keys for mixed and batch loads mean you're setting profiles once and letting the oven cycle through your service without hand-tuning time and temperature.

At 210 kg on a stainless steel frame, it fits where the big 20-cavity machines would break the kitchen layout. The disappearing door slides fully to the side, freeing up working space in tight galleys. ConvoClean automatic cleaning runs overnight so morning prep doesn't start with scrubbing.

BEFORE YOU BUY

Questions, answered straight

Gas injection pulls steam from your kitchen gas supply as needed; the built-in boiler generates it independently. The boiler gives you more consistent steam pressure across a service — less chance of dip when the range fires up alongside the oven. If your kitchen's gas line is already stretched, the boiler is the safer choice.

Yes. You'll reach temperature reliably and cycle through your service without issue. Recovery between full loads might be a couple of minutes longer than a three-phase machine, but for most plating-through operations, that's not a constraint.

Yes, the boiler runs on gas. If you're all-electric, the ES model (which uses electric steam injection) is your choice. Check your gas supply capacity with your landlord or installer before ordering.

1211 mm wide, 992 mm deep, 1058 mm high — roughly the footprint of a large domestic fridge, but heavier. It fits standard 1400–1500 mm deep counters with about 200 mm of air on either side for convection. Check your exact space before ordering.

New staff pick it up in under an hour. All controls are visible on one panel — no menu levels, no screen scrolling. Once they understand the dial and the three main buttons for cooking modes, they're productive.

Two years parts and labour warranty covers everything. Convotherm's UK service team responds within a day or two for breakdowns; call 01792 732702. Parts availability is good, and the oven is built for long service life, so major faults are rare.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 10.20 GB easyDial Disappearing Door Combi Oven JB262 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 1058(H) x 1211(W) x 992(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 10
Power Electric
Voltage 230V
Fuel / Supply Single Phase
Warranty 2 Years Parts & Labour
Weight 210kg
Manufacturer Ref MAXXPROED10.20 GB DD
If you have any questions about the Convotherm Maxx Pro 10.20 GB easyDial Disappearing Door Combi Oven JB262 then please get in touch.
