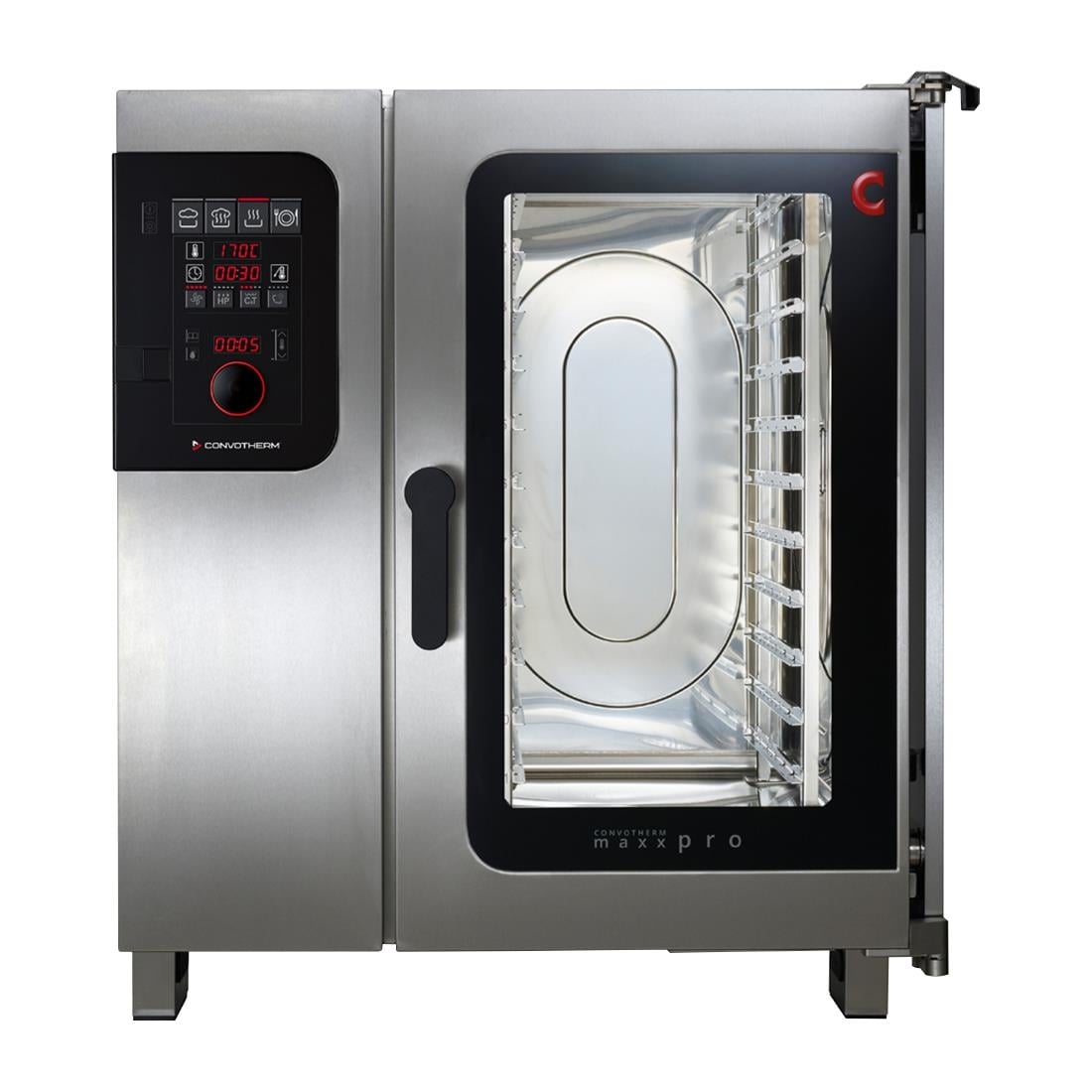

Convotherm Maxx Pro 10.10 ES easyDial Disappearing Door Combi Oven JB229

£6,543.78

+vat

Availability: 999 in stock

- +

Brand:

SKU: JB229

Product summary

19.5kW 3 phase. Capacity: 10+1 x 1/1 GN. Electric Injection

Product description

The Convotherm Maxx Pro 10.10 ES easyDial combi oven is a superbly reliable 10+1 x 1/1GN capacity countertop combi, designed to deliver exceptional cooking results for mixed and batch loading. With three cooking modes, the Maxx Pro impresses with its huge flexibility in performance, providing speed and high output in busy professional kitchens.

Fitted with a disappearing door, the oven is perfect for kitchens with limited space, neatly sliding away to the side when opened and allowing kitchen staff more room to move. As the name suggests, operation of the easyDial combi oven is effortless too. The responsive system ensures all inputs and additional functions are set on a single level and are always visible, making it especially useful for reducing training times.

The Convotherm Maxx Pro also features advanced automatic cooking and baking, with quick-select keys for mixed loads and batch cooking. It’s easy to clean, thanks to the fully automatic ConvoClean system which automates the most time-consuming cleaning tasks.

This model has an electric injection system for steam generation.

Disappearing door provides more efficient kitchen space and safety
Advanced Closed System provides a fully sealed cooking chamber
BakePro – specialist baking function with Crisp&Tasty: rapid dehumidification in 5 levels
Multipoint core temperature probe and integrated antibacterial recoil hand shower
ConvoClean – fully automatic cleaning with 4 cleaning settings and 3 cleaning modes, automatic dosage, certified for unattended cleaning and cleaning scheduler

Downloads

SPECIFICATION 17 facts · tap for all Width966 mmDepth792 mmHeight1058 mmGross weight124 kgVoltage400VMaterialStainless Steel

Identity5

Brand Convothermsite
Extended warranty 1 Year Parts Onlycatalogue
Product code JB229site
Type Combination Ovenscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 792 mmcatalogue
External (W×D×H) 1058 × 966 × 792 mmcatalogue
Gross weight 124 kgcatalogue
Height 1058 mmcatalogue
Width 966 mmsite

Capacity2

Gastronorm size 1/1 GN fullcatalogue
Shelves 10catalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 19500 Wcatalogue
Voltage 400Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue
THE WORKING VIEW

Why this combination oven earns its place

The Maxx Pro 10.10 ES is built for kitchens where the electrical infrastructure is already three-phase and you want the speed that only electric injection steam can deliver. At 1058 mm tall and 966 mm deep, it holds 10 full 1/1 GN pans plus one extra cavity—substantial capacity without the footprint of a full-size oven range. The disappearing door opens sideways and out of your way, reclaiming prep space and making it easier for staff to load, check and unload during service.

The electric injection system for steam generation gives you instant heat and humidity without waiting for a boiler to fire up—critical when you're juggling multiple covers in a tight service window. Three cooking modes work together with the easyDial control system: all your inputs and functions sit on one visible level, making training fast and operation intuitive. Quick-select keys let you programme complex profiles for mixed loads and batch cooking, then call them up and repeat them reliably, shift after shift.

Fully automatic ConvoClean handles the cleaning cycle so you're not scrubbing stainless steel by hand. Running on 400V three phase (19500W), the Maxx Pro suits kitchens with robust electrical supply and delivers the performance to match. Two years' parts and labour warranty covers your investment, and stainless-steel construction ensures this oven lasts.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

966 × 792 × 1058 mmstated W × D × H124 kg
THE CRITICAL ANSWERNarrowest straight opening792mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS1058 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

Electric injection gives you instant steam on demand with no boiler warm-up time—critical for rapid service turnaround. If you're three-phase supplied, this is your speed advantage. If you're gas-only, look at the GB or EB models instead.

Typically 40–60 portions per load depending on your dish and pan depth. For restaurants, that's one full station of proteins, vegetables and accompaniments. For banqueting, a complete batch of plated starters or sides.

Yes. Three cooking modes and quick-select keys let you combi-load—roast at one temperature while steaming or baking something else at different settings. Programme once, repeat it perfectly every time.

400V three phase, 19500W. If you've got industrial-grade electrical supply (most commercial kitchens do), this is ready to plug in and run. Our team can confirm your electrical setup before installation.

Fully automatic ConvoClean does the hard work. The stainless-steel interior resists damage and stays hygienic between service cycles. For anything beyond routine cleaning or if you spot an issue, ring 01792 732702 and we'll advise.

Two years' parts and labour warranty means faults are covered quickly. Call our support team on 01792 732702 and we'll prioritise getting you back in the game.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Convotherm Maxx Pro 10.10 ES easyDial Disappearing Door Combi Oven JB229 Product Data

Brand Convotherm
Type Combination Ovens
Dimensions 1058(H) x 966(W) x 792(D)mm
Material Stainless Steel
Colour / Finish Silver
Number of Shelves 10
Power Electric
Voltage 400V
Fuel / Supply Three Phase
Warranty 2 Years Parts & Labour
Weight 124kg
Manufacturer Ref MAXXPROED10.10 ES DD
If you have any questions about the Convotherm Maxx Pro 10.10 ES easyDial Disappearing Door Combi Oven JB229 then please get in touch.
