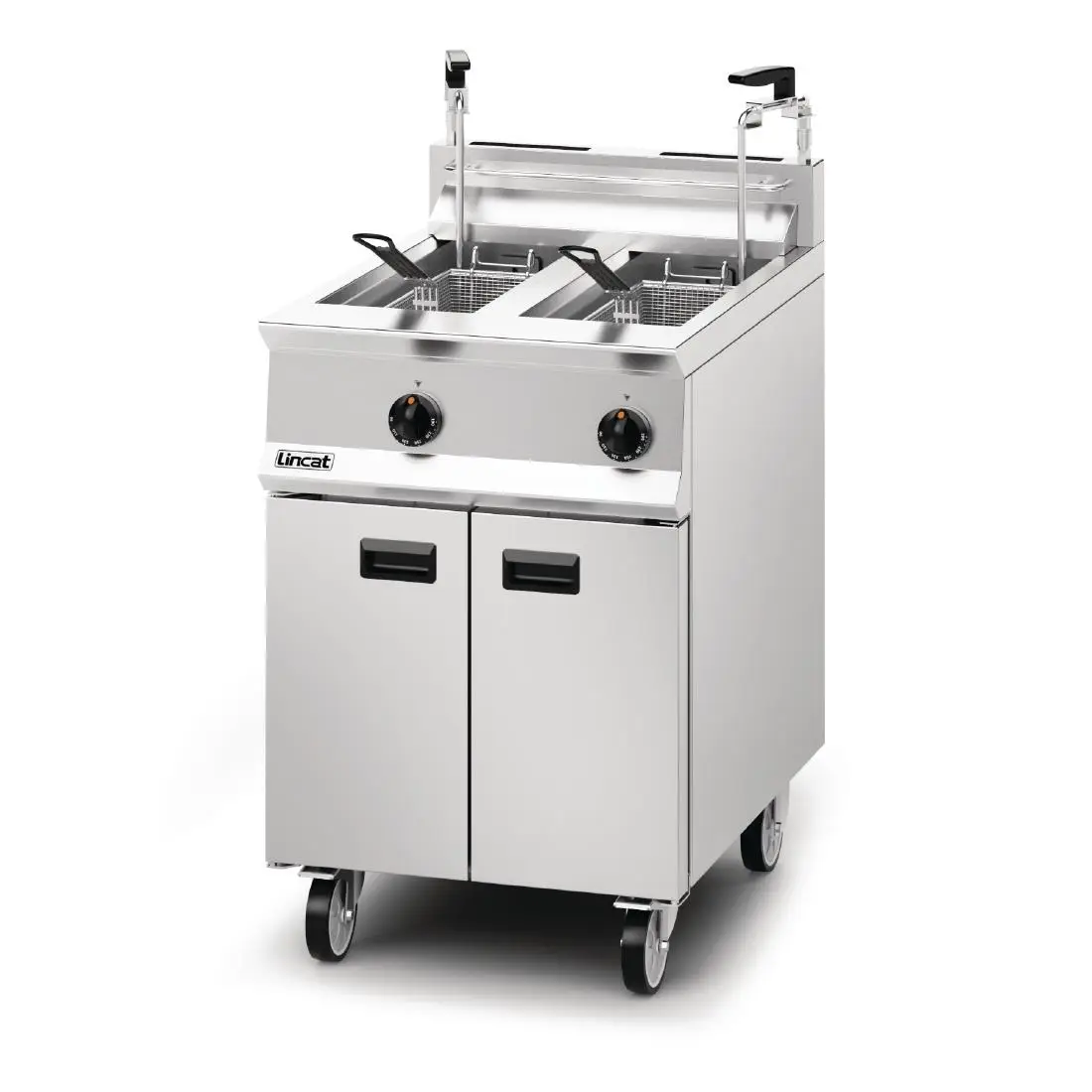

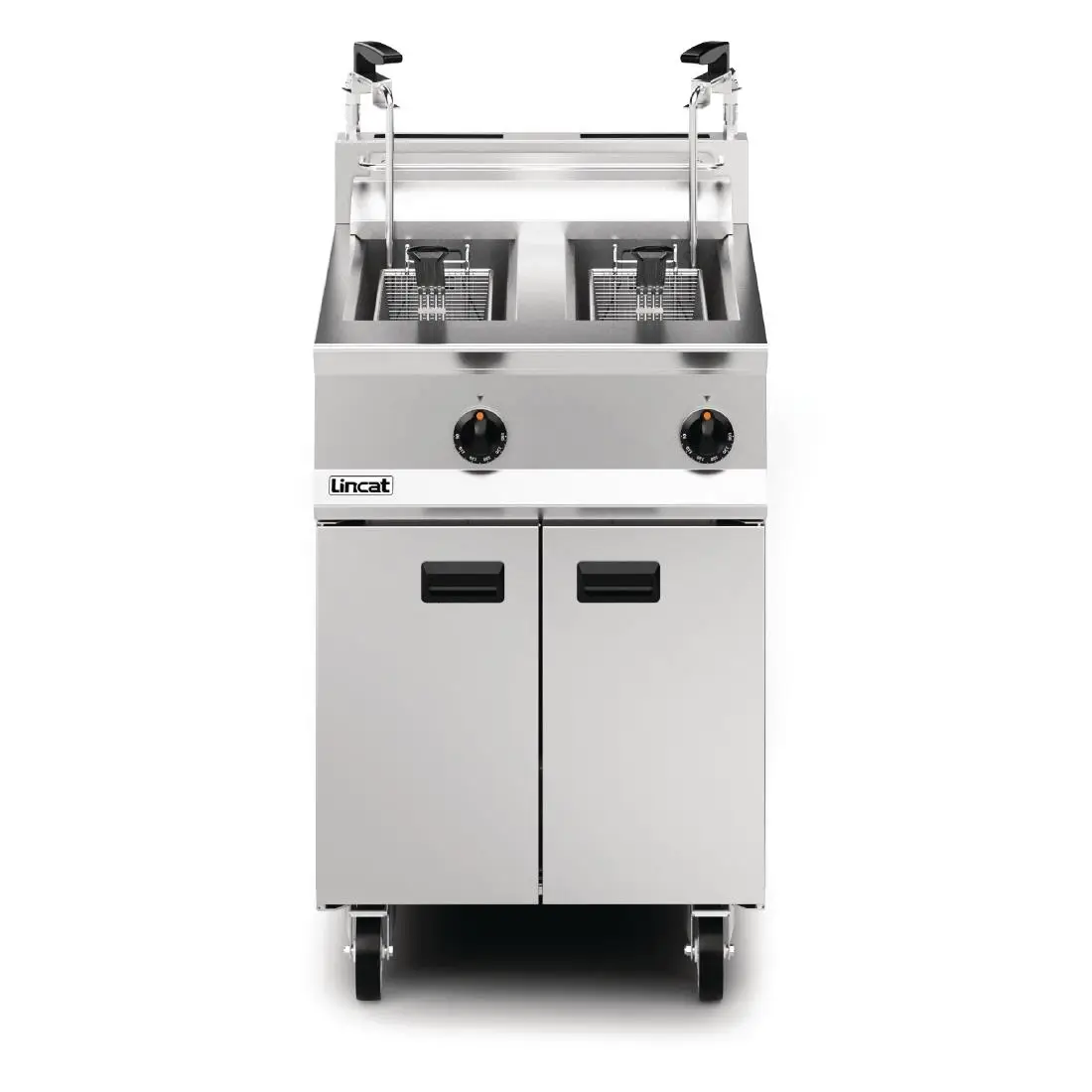

Lincat Opus 800 Free Standing Natural Gas Dual Filtration Fryer OG8111/OP2 DM540-N

£7,701.64

+vat

Availability: 999 in stock

- +

Brand:

SKU: DM540-N

Product summary

Natural gas

Product description

The heavy duty Lincat Opus 800 Natural Gas Fryer Single Tank 600mm is specifically designed to cope with the everyday rigours of a busy commercial kitchen. Pumped filtration means the oil can be filtered and the fryer ready to fry again in under 5 minutes, meaning oil can be filtered during or after service, even whilst hot, maximising oil life. Twin pumps keep the oil from each tank fully segregated to avoid cross contamination of oil.

Integral pumped filtration option, filter oil and be ready to fry again in under 5 minutes
Externally fired heating system gives unobstructed access to fryer tanks for ease of cleaning
Heat transfer technology delivers quicker response to temperature change and faster recovery
Fully welded mild steel pan, with dull finish for easy cleaning
Inclined base to tank and 28mm drain valve for quick and easy draining
Heavy-duty wire nickel plated basket/s
3kg max weight capacity per basket
Twin tank models features two independently controlled tanks to avoid cross contamination of oil
Inboard oil drainage for improved safety and negates requirement of attaching an external pipe
Close tolerance thermostat range from 130°C to 190°C for accurate temperature control

Downloads

SPECIFICATION 23 facts · tap for all Width600 mmDepth800 mmHeight1070 mmGross weight144.3 kgVoltage230VTemperature range+90 to +190 °C

Identity7

Brand Lincatsite
GTIN / EAN 5.05611E+12catalogue
Product code DM540-Nsite
Range / series Opuscatalogue
Seo name Lincat Opus 800 Fryercatalogue
Type Free Standing Fryerscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight5

Depth 800 mmcatalogue
External (W×D×H) 1070 × 600 × 800 mmcatalogue
Gross weight 144.3 kgcatalogue
Height 1070 mmcatalogue
Width 600 mmsite

Capacity2

Capacity 28Ltrcatalogue
Product capacity 28catalogue

Performance1

Temperature range +90 to +190 °Ccatalogue

Power & energy2

Fuel type Natural Gascatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts4

Baskets 2catalogue
Mobility Castorscatalogue
Output per hour 64kg/hrcatalogue
Undershelf Nocatalogue
THE WORKING VIEW

Why this free standing fryer earns its place

The Lincat Opus 800 Free Standing Natural Gas Dual Filtration Fryer OG8111/OP2 DM540-N is built for busy commercial kitchens that need a fryer with real output and a filtration system that keeps service moving. It is a natural gas model with a 230V supply, a 2000W rated input, two baskets and two tanks.

Its stainless-steel build and silver finish give it the hard-wearing feel you want in a working kitchen, and the unit is listed at 1070 x 600 x 800 mm with a gross weight of 144.3 kg. That makes it a substantial, free-standing fryer rather than a lightweight countertop unit.

The fryer has a 28L capacity and is rated at 64kg/hr, with a temperature range from +90 to +190 °C. Lincat says pumped filtration means the oil can be filtered and the fryer ready to fry again in under 5 minutes, even whilst hot, which helps maximise oil life.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

600 × 800 × 1070 mmstated W × D × H144 kg
THE CRITICAL ANSWERNarrowest straight opening600mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS1070 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

It is listed as a natural gas fryer, with a 230V supply and 2000W rated input.

The capacity is listed as 28L, with two baskets and two tanks.

The stated range is +90 to +190 °C.

Lincat says the oil can be filtered and the fryer ready to fry again in under 5 minutes, even whilst hot.

The external dimensions are 1070 x 600 x 800 mm and the gross weight is 144.3 kg.

Yes. For servicing and support, call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Lincat Opus 800 Free Standing Natural Gas Dual Filtration Fryer OG8111/OP2 DM540-N Product Data

Brand Lincat
Type Free Standing Fryers
Range Opus
Dimensions 1070(H) x 600(W) x 800(D)mm
Capacity 28Ltr
Material Stainless Steel
Colour / Finish Silver
Temperature Range 90°C to 190°C
Power Gas/Electric
Voltage 230V
Fuel / Supply Natural Gas
Warranty 2 Years Parts & Labour
Weight 144.3kg
Manufacturer Ref OG8111/OP2/N
If you have any questions about the Lincat Opus 800 Free Standing Natural Gas Dual Filtration Fryer OG8111/OP2 DM540-N then please get in touch.
