Giorik PEI910 100Ltr Electric Indirect Heat Boiling Pan JE431

£6,279.39

+vat

Availability: 999 in stock

- +

Brand:

SKU: JE431

Product summary

21kW. 3 Phase. Capacity: 100Ltr

Product description

The Giorik PEI910 electric indirect heat boiling pan revolutionises bulk cooking with its innovative water jacket technology, gently heating contents to prevent scorching and reduce food waste. Made from marine-grade 316 stainless steel, it effortlessly handles high-acid foods like tomatoes, citrus fruits and vinegars – making it ideal for sauces, soups, jams and desserts.

Designed for performance and efficiency, the PEI910’s auto-fill water jacket maintains consistent heat distribution, whilst the 2 drain value and swivelling hot/gold water tap streamlines operation. With intuitive controls, this powerhouse combines precision and practicality for catering kitchens, breweries, or volume food production areas where gentle heating and corrosion-resistant performance are non-negotiable.”

Large 100Ltr capacity
316 marine grade stainless steel construction – allows food to be cooked with high acidity content. Side walls: 304 stainless/steel
600mm diameter kettle
Auto-fill water jacket – prevents kettle switching off due to low water level
Note: water treatment system must be fitted to jacket water supply
Easy to use analogue controls
Thermostatically controlled 20-105ºC
2″ Chrome plated brass drain off valve
Fitted with hot & cold swivelling water fill tap

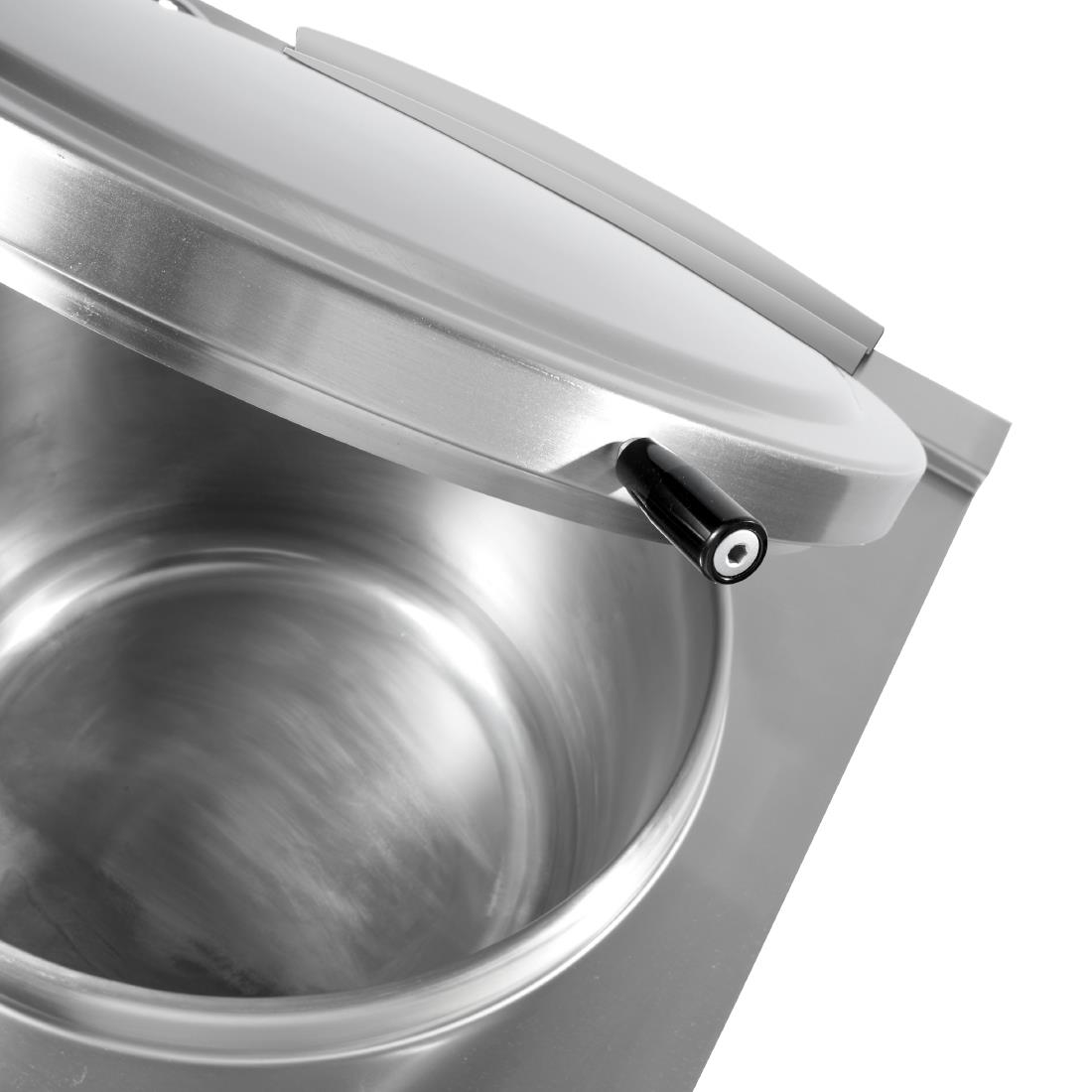

Spring loaded hinged lid
Ergonomically designed sloped front control panel allows easy viewing of controls

Downloads

SPECIFICATION 17 facts · tap for all Width800 mmDepth900 mmGross weight180 kgVoltage415VCapacity100 LtrMaterialStainless Steel

Identity5

Brand Gioriksite
Extended warranty 2 Years Parts Onlycatalogue
Product code JE431site
Type Boiling Panscatalogue
Warranty 2 Years Parts & 1 Year Labourcatalogue

Size & weight4

Depth 900 mmcatalogue
External (W×D×H) 900 × 800 × 900 mmcatalogue
Gross weight 180 kgcatalogue
Width 800 mmsite

Capacity1

Capacity 100 Ltrcatalogue

Power & energy3

Fuel type Three Phasecatalogue
Rated input 21000 Wcatalogue
Voltage 415Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steelcatalogue

Other stated facts2

Electrical safety notice Yescatalogue
Mobility Feetcatalogue
THE WORKING VIEW

Why this boiling pan earns its place

The PEI910 is the electric-powered answer to kitchens that run off three-phase supply and need reliable, repeatable bulk cooking without a gas line. At 100 litres, it's suited to medium-to-high-volume operation—big enough to handle a service's worth of soup or sauce in a single batch without the space footprint of the 150-litre model. The water jacket technology sits between the heating element and your ingredients, delivering gentle, even heat that prevents scorching and reduces waste on delicate preparations and high-acid foods.

Marine-grade 316 stainless steel is the real differentiator here. Unlike standard stainless (304), 316 resists pitting from acidic ingredients—tomatoes, citrus, vinegars, wine reductions all cook safely without corroding the vessel. The auto-fill water jacket tops itself up as needed, so you don't need to monitor it through service; once set to temperature, it stays stable. The 2" drain valve empties fast at the end of shift; the swivelling hot and cold water tap handles both filling and rinsing without moving the unit.

Rated at 21,000W on 415V three-phase supply, it heats decisively without overloading a dedicated circuit. Two years' parts warranty and one year's labour give you genuine backing. This is the right tool for kitchens where electric supply is the norm and consistency matters more than open-flame speed.

DELIVERY FITSTATED GEOMETRY
Will it reach the final position?

Check the narrowest clear opening, then every corner, landing, step and lift from the kerb to the room.

THE MACHINE

800 × 900 × 900 mmstated W × D × H180 kg
THE CRITICAL ANSWERNarrowest straight opening800mm

Stated machine geometry while kept upright. Allow handling room and confirm the complete route.

LONG SIDE AT TURNS900 mmCheck corners and landings
YOUR DOORWAYLIVE CHECK

Measure the clear opening

Enter the usable gap with the door fully open.

This checks straight stated geometry only.

BEFORE YOU BUY

Questions, answered straight

The PEI910's auto-fill system maintains its own water level, so you set it once and it handles itself. The manual-fill version requires you to top it up at the start of service. Auto-fill is less labour and more foolproof in busy kitchens.

Yes—the 316 stainless steel is specifically chosen for this. It won't pit or corrode from acidic cooking, so tomato sauce, vinegar reductions, and citrus bases stay safe and flavour stays true.

It requires 415V three-phase supply and draws 21,000W. The unit itself doesn't come with a mains cable—that's a site-specific install. Ensure your kitchen has a dedicated three-phase point or budget for an electrician to run one.

It's a sealed system that automatically maintains water level during operation. You fill it once at commissioning and it handles itself. It's more reliable than manual-fill if you're running multiple services back-to-back.

The 2" drain valve empties the cooking pan quickly—no need to tip 100 litres. Hook a hose to it and let gravity do the work. The whole pan drains in minutes.

Two years' parts and one year's labour cover manufacturing defects. The unit is designed for continuous kitchen use. For servicing questions and drain maintenance, call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Giorik PEI910 100Ltr Electric Indirect Heat Boiling Pan JE431 Product Data

Brand Giorik
Type Boiling Pans
Dimensions 900(H) x 800(W) x 900(D)mm
Capacity 100 Ltr
Material Stainless Steel
Colour / Finish Silver
Power Electric
Voltage 415V
Fuel / Supply Three Phase
Warranty 2 Years Parts & 1 Year Labour
Weight 180kg
Manufacturer Ref PEI910
If you have any questions about the Giorik PEI910 100Ltr Electric Indirect Heat Boiling Pan JE431 then please get in touch.
