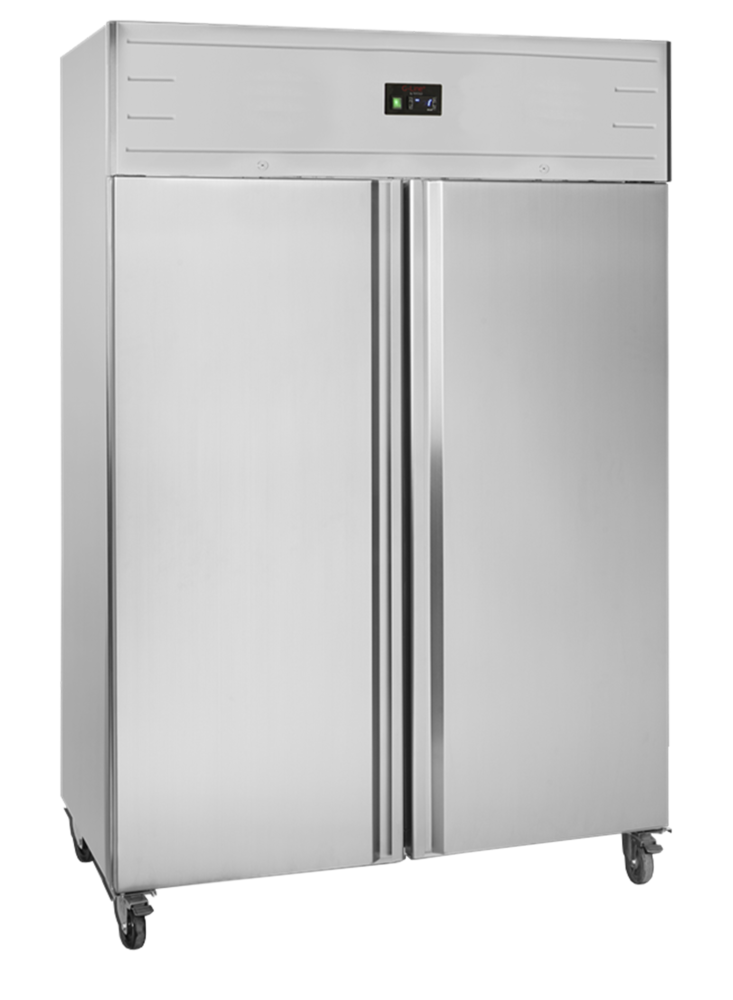

G-Line by TEFCOLD GUC140 Gastronorm Solid Door Refrigerator

£2,050.00 £1,152.00

+vat

- +

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Lock
  • Adjustable shelves (split level)
  • Castors
  • Digital controller and temperature display
  • Replaceable door gasket
  • Accepts 2/1 Gastronorm shelves/pans

Product description

The GUC Gastronorm Refrigerators are perfect for busy commercial kitchens. Offering adjustable shelves and accepting 2/1 Gastronorm shelves/pans. The stainless steel build, both inside and out, promotes easy cleaning, while standard castors provide mobility. Fan-assisted cooling offers quick pull-down times, and electric defrost feature enhances efficiency.

Sale!
SPECIFICATION 43 facts · tap for all External W × D × H1340 x 867 x 1995 mmWidth1340 mmDepth867 mmGross / net weight160 / 140 kgGross weight160 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181362041site
Product code 30808site
Sub title Gastronorm Solid Door Refrigeratorcatalogue
Type Double Door Upright Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 867 mmsite
External (W×D×H) 1340 × 867 × 1995 mmcatalogue
External W × D × H 1340 x 867 x 1995 mmsite
Gross / net weight 160 / 140 kgsite
Gross weight 160 kgcatalogue
Height 1995 mmsite
Internal (W×D×H) 1220 × 680 × 1384 mmcatalogue
Internal W × D × H 1220 x 680 x 1384 mmsite
Packed (W×D×H) 1400 × 880 × 2070 mmcatalogue
Packed W × D × H 1400 x 880 x 2070 mmsite
Width 1340 mmsite

Capacity2

Gross volume 1166 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 613 kWh/yearsite
Energy consumption 1.68 kWh/24hsite
Energy efficiency index 35.5 %site
Input power 320 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 wheels, 2 with brakesite
Exterior finish Stainless steelsite
Max load per shelf 110site

Other stated facts1

Energy class Ccatalogue
THE WORKING VIEW

Why this double door upright fridge earns its place

The GUC140 is a two-door upright refrigerator built for high-volume chilled storage in a commercial kitchen. It offers 1166 litres gross and 1056 litres net across three shelves per door, all in stainless steel inside and out. Gastronorm compatibility lets you rack pans of prepped stock straight from the line into cold storage.

It holds +2 to +8 °C on ventilated cooling, so air circulates evenly across a fully loaded cabinet, with automatic electric defrost and an electronic controller keeping the set point without manual work. It runs at 45 dB and carries a climate class 4 rating for warm kitchens. At energy class C and 613.2 kWh a year, running costs come to about £153 a year at 25p/kWh.

The cabinet measures 1340 × 845 × 2000 mm externally with a 1220 × 680 × 1384 mm interior, and ships packed at 1400 × 880 × 2070 mm — at over two metres tall and 140 kg net, plan the delivery route and lift carefully. It runs on a standard 13 A supply at 320 W and uses R290 refrigerant with a 150 g charge.

BEFORE YOU BUY

Questions, answered straight

1166 litres gross and 1056 litres net, arranged across three shelves per door. It is Gastronorm compatible, so pans of prepped stock rack straight in from the line.

+2 to +8 °C on ventilated cooling, which circulates air evenly across a full cabinet. An electronic controller and automatic electric defrost hold the set point without manual routines.

It ships packed at 1400 × 880 × 2070 mm and stands 2000 mm tall installed. At over two metres and 140 kg net, measure ceiling height, doorways and the lift route, and plan a multi-person move.

It is energy class C and uses 613.2 kWh a year, about £153 a year at 25p/kWh. Actual cost depends on your tariff, ambient temperature and door use.

R290 with a 150 g charge, running on ventilated cooling. It draws a standard 13 A supply at 320 W, so no special electrical work is needed for most kitchens.

Yes. With R290 refrigerant, ventilated cooling and an electronic controller, our team can support the GUC140 after installation. Call 01792 732702 to arrange maintenance or a callout.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1220 x 680 x 1384 mm
External Dimension (WxDxH): 1340 x 867 x 1995 mm
Packed Dimension (WxDxH): 1400 x 880 x 2070 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.68 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 613 kWh/year m³
EEI: 35.5 %
Input Power: 320 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: +2 to +8 °C
Climate Class: 4
Gross / Net Weight: 160 / 140 kg
Gross / Net Volume: 1166 / 1056 l
Max Ambient: +30°C, 55% RH

Design and Material

Max load on Shelves: 110 kg/m²
Castors: 4 wheels, 2 with brake
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
Lock: Yes
If you have any questions about the G-Line by TEFCOLD GUC140 Gastronorm Solid Door Refrigerator then please get in touch.
