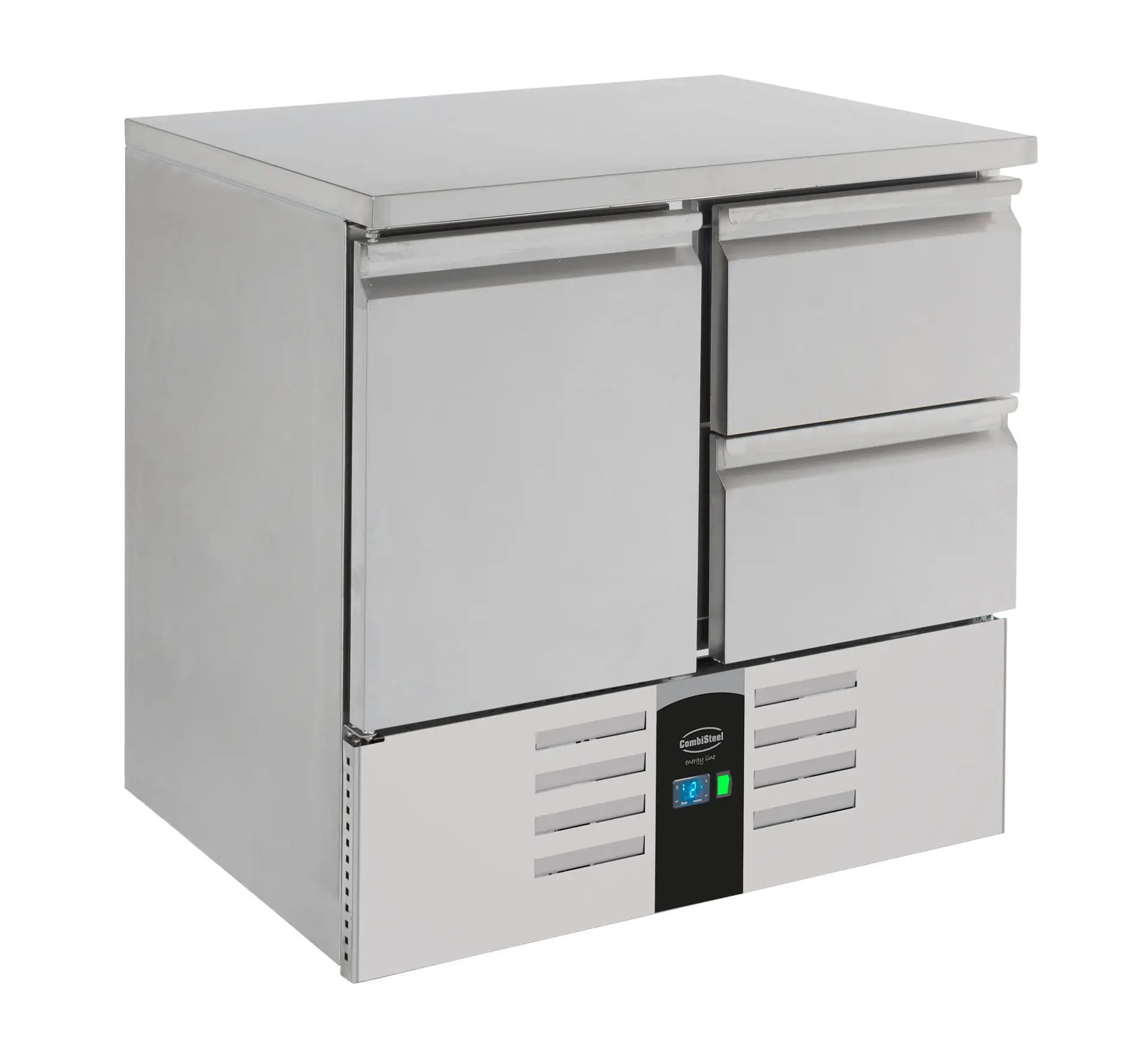

CombiSteel Refrigerated Counter Single Door and 2 Drawers Energy Line Equipped with Evaporator 7450.5105

£855.87

+vat

- +

SKU: 7450.5105

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 35 facts · tap for all Width903 mmDepth700 mmHeight870 mmGross / net weight93 kgGross weight82 kgVoltage / frequency23050

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6153302868817catalogue
Range / series Energy Linecatalogue
Type Drawer Fridgescatalogue

Size & weight8

Depth 700 mmsite
External (W×D×H) 903 × 700 × 870 mmcatalogue
Gross / net weight 93 kgsite
Gross weight 82 kgcatalogue
Height 870 mmsite
Internal (W×D×H) 810 × 585 × 456 mmcatalogue
Internal W × D × H 810x585x456site
Width 903 mmsite

Capacity3

Capacity 257 Ltrcatalogue
Gross volume 257 litrescatalogue
Shelves 1catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 600 Asite
Defrost type Automaticsite
Max ambient 3030 °Ccatalogue
Maximum ambient 3030site
Temperature range +2/+8site

Power & energy6

Energy consumption 0,155site
Frequency 50 Hzcatalogue
Rated input 155 Wcatalogue
Rated power 155 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings7

Colour Stainless steelcatalogue
Drawers 2site
Exterior finish Stainless steel Aisi 201site
Insulation 45 mmcatalogue
Interior finish Stainless steel 201site
Lock Nosite
Temperature display Yes, digitalcatalogue

Other stated facts1

Energy (24h) 102 kWh/24hcatalogue
THE WORKING VIEW

Why this drawer fridge earns its place

This is a refrigerated counter that pairs a single door with a two-drawer stack, built for the working line of a commercial kitchen. The drawers pull out to bring chilled pans straight to the cook without opening a full-height door, while the door side handles bulkier or backup stock. Together they hold 257 litres at +2 to +8 °C. The top stays clear for prep, so storage and work happen in one footprint.

Day to day, the drawers take the fast-moving prep the line reaches for repeatedly, which means less swinging of a full door and steadier temperature between grabs. The door side holds what you dip into less often. It arrives as a self-contained unit with a built-in evaporator, 45 mm insulation and automatic defrost, so it positions, connects and runs on a 230V 50Hz supply without a separate condensing unit to plumb in. It is part of the Energy Line range and weighs 93 kg when delivered.

For siting, this counter measures 903 mm wide and 700 mm deep. Plan it into your prep line with ventilation clearance around the refrigeration and connect it to a standard kitchen supply. Check the width and depth against your doorway and the gap on your line before delivery — the Craven Cooling team can confirm the fit if you need it.

BEFORE YOU BUY

Questions, answered straight

The full external dimensions, internal capacity and complete specification are listed on the spec table for this unit. Check the width and depth against your service line and doorway before ordering, and call the team if you need the fit confirmed.

It has one door and two drawers. The drawers pull out for fast access to chilled pans, while the door side gives you a full cabinet section for bulkier or backup stock.

Drawers bring the prep you use most straight to the cook without opening a full door, which keeps handling quick and temperature steadier between grabs. The door side still gives you cabinet space for the rest.

Yes. It is supplied as a self-contained counter with a built-in evaporator, so it arrives ready to position, connect and switch on. Allow ventilation clearance around the unit so the refrigeration can breathe.

It is part of Combisteel's Energy Line range of refrigerated counters. For the model's full energy and technical detail, see the spec table on this page.

Yes. Craven Cooling supports the equipment we supply and can arrange servicing and breakdown cover across the UK. Call the team on 01792 732702 to set it up.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Refrigerated Counter Single Door and 2 Drawers Energy Line Equipped with Evaporator 7450.5105 Product Data

Brand CombiSteel
Type Energy Line
Dimensions (W×D×H) 903 × 700 × 870 mm
Interior Dimensions 810x585x456
Capacity 257 Ltr
Material Stainless steel Aisi 201
Interior Material Stainless steel 201
Colour / Finish Stainless steel
Temperature Range +2/+8
Max. Ambient Temp. 30
Refrigerant R 600 A
Cooling Ventilated
Defrost Automatic
Number of Doors 1
Number of Grids/Shelves 1x 335×530 / 1x 570×323
Electrical Power 0.155 kW
Energy Use 1.02 kWh/24h
Voltage 230V / 50Hz
Mobile No
Lockable No
Insulation 45 mm
Weight 82 kg
If you have any questions about the CombiSteel Refrigerated Counter Single Door and 2 Drawers Energy Line Equipped with Evaporator 7450.5105 then please get in touch.
