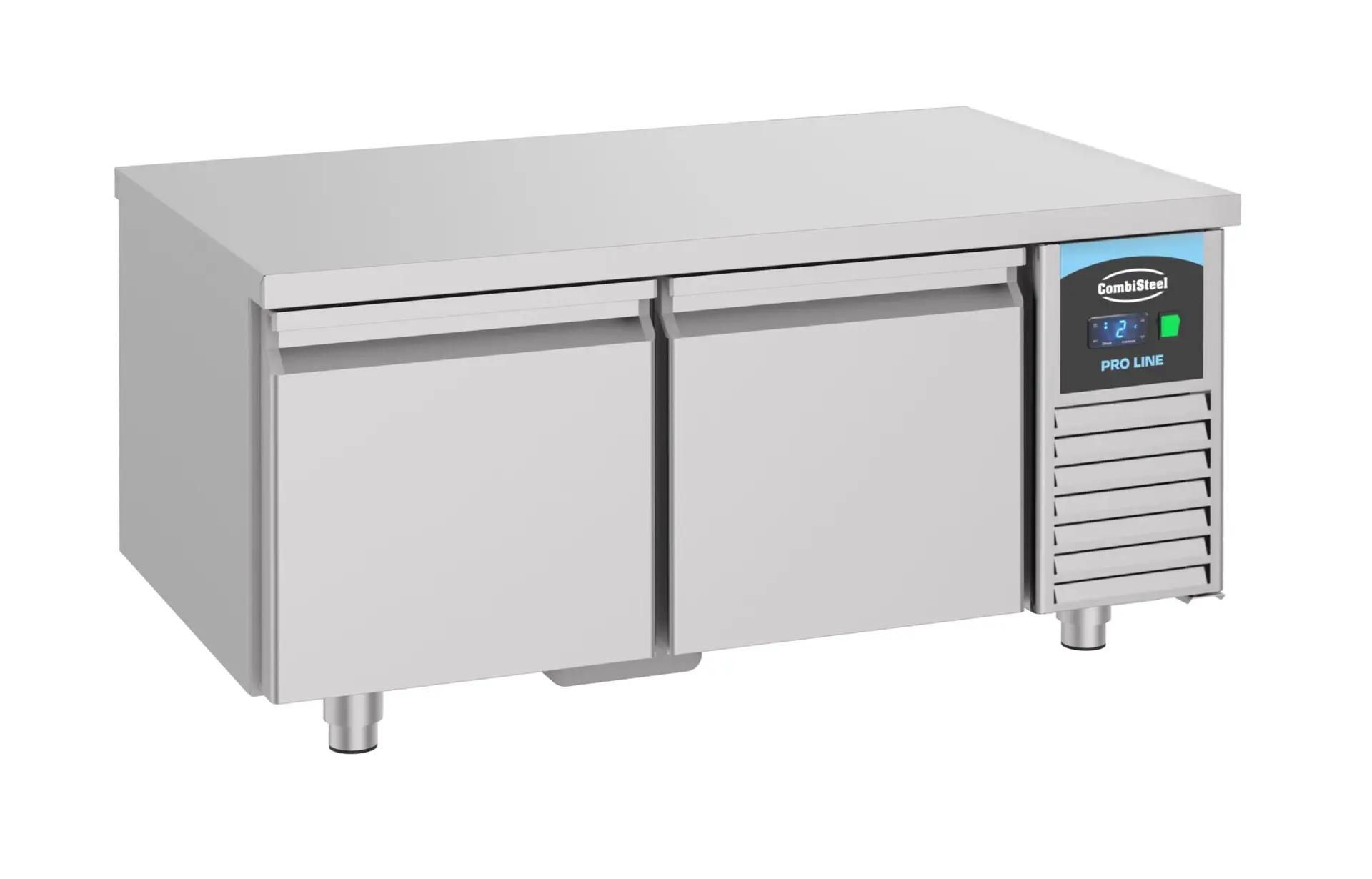

CombiSteel Refrigerated Counter 600mm Height 2 Drawers 7489.5475

£1,697.88

+vat

- +

SKU: 7489.5475

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 31 facts · tap for all Width1200 mmDepth700 mmHeight600 mmGross / net weight112 kgVoltage / frequency23050Voltage230V / 50Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6153304054041catalogue
Range / series Pro Linecatalogue
Type Drawer Fridgescatalogue

Size & weight5

Depth 700 mmsite
External (W×D×H) 1200 × 700 × 600 mmcatalogue
Gross / net weight 112 kgsite
Height 600 mmsite
Width 1200 mmsite

Capacity3

Capacity 180 Ltrcatalogue
Gastronorm size 1/1catalogue
Gross volume 180 litrescatalogue

Performance6

Controller Digitalcatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy7

Energy consumption 0,17site
Frequency 50 Hzcatalogue
Noise level 4040site
Rated input 170 Wcatalogue
Rated power 17 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings6

Colour Stainless steelcatalogue
Drawers 2site
Exterior finish Stainless steel Aisi 304site
Insulation 50 mmcatalogue
Lock Nosite
Temperature display Yes, digitalcatalogue
THE WORKING VIEW

Why this drawer fridge earns its place

This Combisteel refrigerated counter brings chilled drawer storage to the working line in a compact two-drawer format. At 1200 mm wide, 700 mm deep and 600 mm high, it is a good fit where a station needs point-of-use refrigeration but does not have room for a longer three- or four-drawer counter.

The two drawers give 180 litres of gross chilled volume for the ingredients a chef reaches for most often. Ventilated cooling, automatic defrost and a digital controller support the supplier-stated -2 to +8 °C operating range, with R290 refrigerant and a 40 dB(A) noise level.

The cabinet is stainless steel AISI 304 with 50 mm insulation, and it is rated for a 43 °C maximum ambient, which matters in hot prep rooms and takeaway lines. At 112 kg gross weight it still needs proper access planning, plus front clearance so both drawers can open fully.

BEFORE YOU BUY

Questions, answered straight

It holds the prepped ingredients you reach for constantly through service, cold and at the line, in two drawers. The gross chilled volume is 180 litres.

The supplier specification does not state exact GN pan compatibility. Check the drawer layout against the pan depths you use, or ask our team to confirm it before ordering.

The stated temperature band is -2 to +8 °C, supported by ventilated cooling and a digital controller. It is for chilled prep holding, not frozen storage.

Two drawers suit a single station or a short line where you need a defined set of ingredients to hand. Step up the drawer count if you prep across more sections or need more than 180 litres of gross volume.

Running cost depends on your tariff, ambient temperature and door-opening pattern. Use our energy label decoder with the available data, and ask us to check the supplier electrical rating before final supply planning.

Clean the drawers and stainless steel AISI 304 surfaces between services, keep the condenser clear and include the automatic-defrost system in planned maintenance. Craven Cooling provides servicing on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Refrigerated Counter 600mm Height 2 Drawers 7489.5475 Product Data

Brand CombiSteel
Type Pro Line
Dimensions (W×D×H) 1200 × 700 × 600 mm
Capacity 180 Ltr
GN Capacity 1/1
Material Stainless steel Aisi 304
Colour / Finish Stainless steel
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Electrical Power 0.17 kW
Voltage 230V / 50Hz
Mobile No
Lockable No
Noise Level 40 dB
Insulation 50 mm
Weight 112 kg
If you have any questions about the CombiSteel Refrigerated Counter 600mm Height 2 Drawers 7489.5475 then please get in touch.
