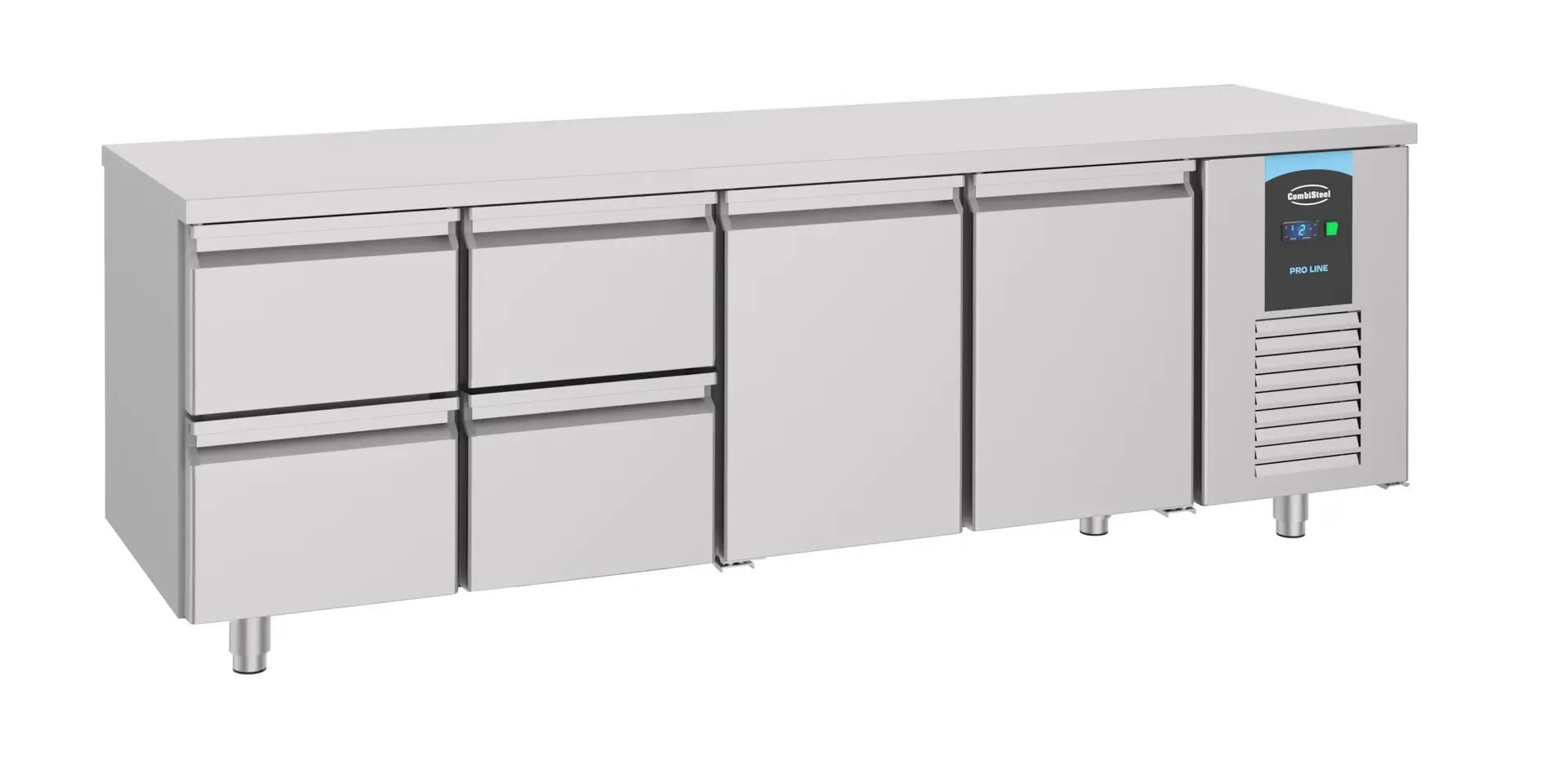

CombiSteel 700 Series Refrigerated Counter Double Door 4 Drawers Energy Line 7489.5535

£2,414.83

+vat

- +

Brand:

SKU: 7489.5535

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 28 facts · tap for all Width2330 mmDepth700 mmHeight850 mmGross / net weight205 kgVoltage / frequency23050Voltage230V / 50Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 7422242936917catalogue
Range / series Energy Linecatalogue
Type Four Door Counter Fridgescatalogue

Size & weight5

Depth 700 mmsite
External (W×D×H) 2330 × 700 × 850 mmcatalogue
Gross / net weight 205 kgsite
Height 850 mmsite
Width 2330 mmsite

Capacity4

Capacity 632 Ltrcatalogue
Gastronorm size 1/1catalogue
Gross volume 632 litrescatalogue
Shelves 2catalogue

Performance5

Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy7

Energy consumption 0,308site
Frequency 50 Hzcatalogue
Noise level 4040site
Rated input 308 Wcatalogue
Rated power 308 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings3

Drawers 4site
Exterior finish Stainless steel 430site
Insulation 50 mmcatalogue
THE WORKING VIEW

Why this four door counter fridge earns its place

The Energy Line refrigerated counter pairs two door sections with a four-drawer bank beneath a continuous worktop, storing 632 litres of chilled, mixed stock. The doors take trays and bulk stock, while the drawers hold portioned or frequently reached ingredients — chilled storage and prep surface sit in a single footprint.

Through service the mix of doors and drawers lets a line keep mise en place cold and sorted: drawers for the ingredients turned over fastest, doors for longer holding between shifts. Everything is held at -2 to +8 °C in one refrigerated cavity, and the ventilated R290 cooling runs quietly at 40 dB. Several cooks can work the counter at once without disturbing one another.

At 2.33 metres wide and 700 mm deep, it forms a long prep run; at 205 kg and 850 mm high it works as part of a standard line. Built as a free-standing counter for matching-depth equipment, the worktop doubles as prep space along its length. Plan the delivery route and final position before install — measure your doorway and kitchen run carefully given its length — and add the unit to your servicing schedule with the rest of the line. Craven Cooling can advise on siting and aftercare.

BEFORE YOU BUY

Questions, answered straight

The two hinged door sections take trays and bulk stock, while the four-drawer bank holds portioned or frequently reached ingredients. Dividing storage this way keeps mise en place sorted through service.

Yes. It is a working counter, so the full-length top doubles as a prep surface with chilled stock directly underneath, keeping ingredients and worktop in one footprint.

It is a long multi-section counter, so check the external dimensions on the spec table against your kitchen run and delivery access before ordering. Our team can help confirm the fit.

Pan and drawer configuration depends on the model, so check the spec for the sizes it is built around. If you are matching existing GN pans, our team can confirm before you order.

Running cost depends on the unit's energy use and your electricity tariff. Our energy label decoder converts the rated figures into pounds per year for your kitchen.

Wipe the worktop, drawers and interior down as part of your daily HACCP routine and keep the condenser clear. Book routine servicing to protect the cooling system — Craven Cooling's service team is on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel 700 Series Refrigerated Counter Double Door 4 Drawers Energy Line 7489.5535 Product Data

Brand CombiSteel
Type Energy Line
Dimensions (W×D×H) 2330 × 700 × 850 mm
Capacity 632 Ltr
GN Capacity 1/1
Material Stainless steel 430
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 2
Number of Grids/Shelves 2
Electrical Power 0.308 kW
Voltage 230V / 50Hz
Noise Level 40 dB
Insulation 50 mm
Weight 205 kg
If you have any questions about the CombiSteel 700 Series Refrigerated Counter Double Door 4 Drawers Energy Line 7489.5535 then please get in touch.
