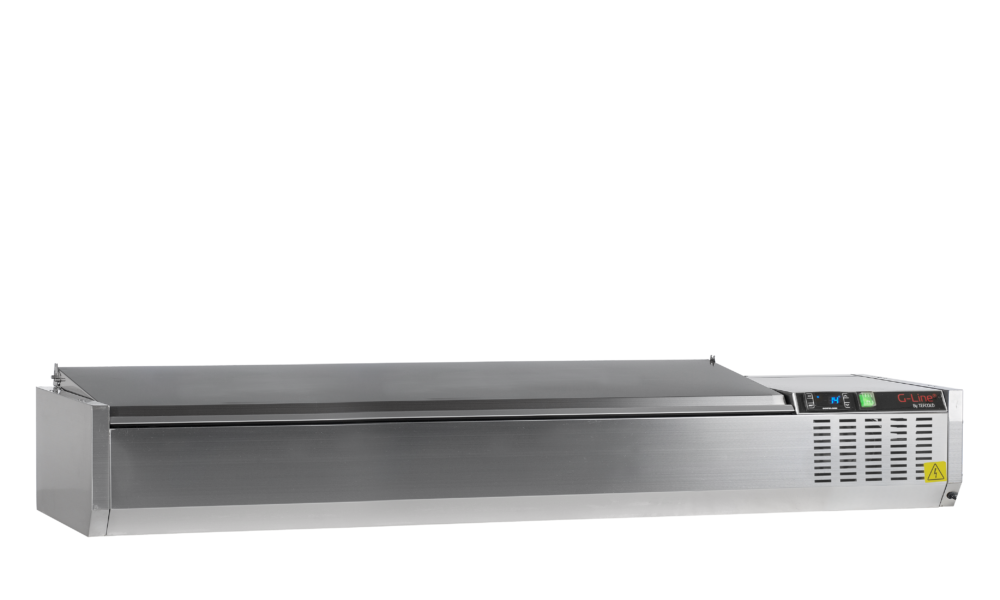

G-Line by TEFCOLD GVC33-180 S/S Gastronorm Topping Shelf With Lid

£404.00

+vat

SKU: 30824

Product summary

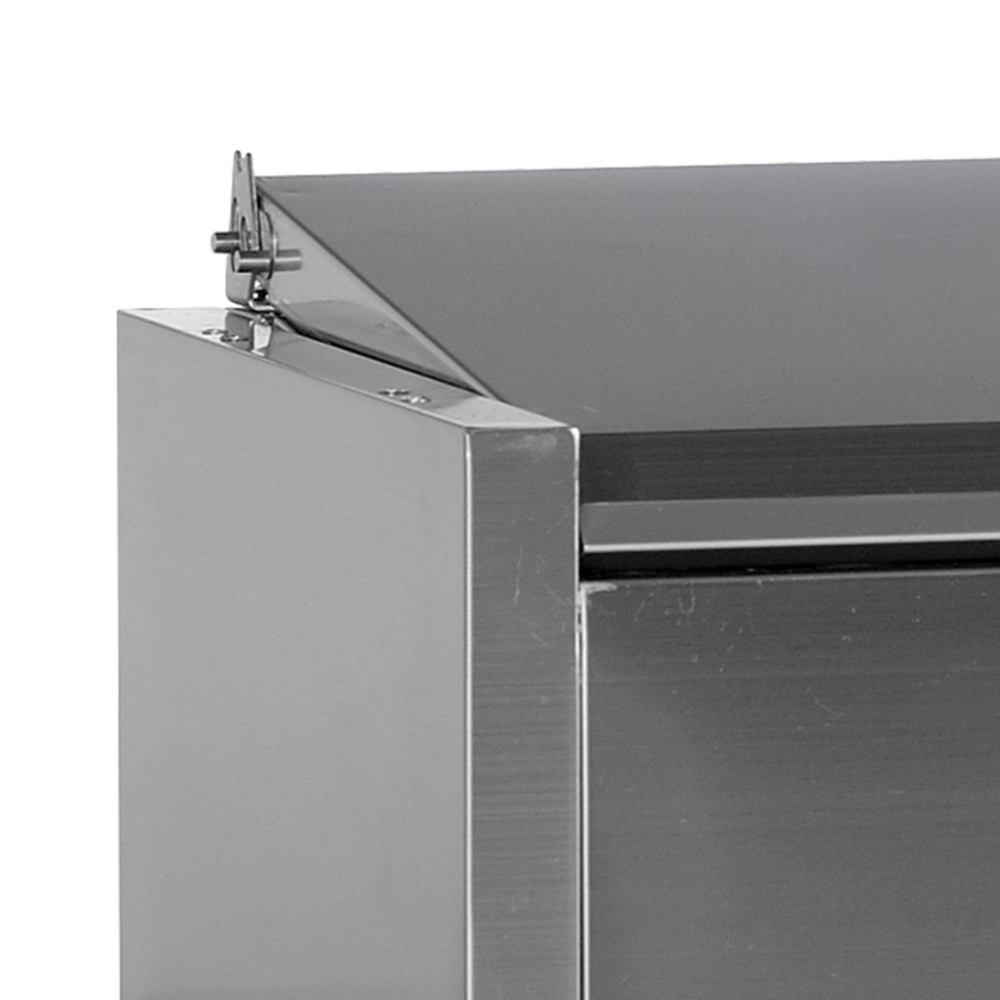

  • Stainless steel lid
  • Stainless steel
  • Accepts GN1/4 pan(s) (not supplied)
  • Digital controller and temperature display
  • Static cooling
  • Adjustable feet
  • Height with lid open 533mm

Product description

Refrigerated Topping Shelf for Gastronorm Pans

Boost your catering business with the GVC Topping Shelfs. Perfectly crafted for food service, these boast advanced features to streamline your operations. Easily organise and display toppings at ideal temperatures for quick prep. Fully automatic, it offers a static cooling system, maintaining 2°C to 8°C to keep ingredients fresh. The manual defrost feature prevents ice build-up. Adjust temperatures with the digital controller.

The G-Line by TEFCOLD GVC33-180 is a stainless steel refrigerated gastronorm topping shelf with a lid, holding +2 to +8 °C with manual defrost, an electronic controller and R600a refrigerant on a 13A supply, running about £267 a year at 25p/kWh.

SPECIFICATION 38 facts · tap for all External W × D × H1800 x 335 x 288.5 mmWidth1800 mmDepth335 mmGross / net weight37 / 32 kgGross weight37 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181365394site
Product code 30824site
Sub title Gastronorm Topping Shelf With Lidcatalogue
Type Stainless Lid Topping Unitscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 335 mmsite
External (W×D×H) 1800 × 335 × 288 mmcatalogue
External W × D × H 1800 x 335 x 288.5 mmsite
Gross / net weight 37 / 32 kgsite
Gross weight 37 kgcatalogue
Height 288.5 mmsite
Internal (W×D×H) 1450 × 245 × 150 mmcatalogue
Internal W × D × H 1450 x 245 x 150 mmsite
Packed (W×D×H) 1900 × 375 × 330 mmcatalogue
Packed W × D × H 1900 x 375 x 330 mmsite
Width 1800 mmsite

Capacity3

Capacity item specification 8 x GN1/4 pcscatalogue
GN pan capacity 8 x GN1/4site
Gross volume 53.2 litrescatalogue

Performance9

Controller Electronicsite
Cooling type Staticsite
Defrost type Manualsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R600asite
Refrigerant charge 45 gsite
Temperature range +2 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 1069 kWh/yearsite
Energy consumption 2.93 kWh/24hsite
Input power 122 Wsite
Noise level 40 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings2

Exterior finish SS201site
Feet / legs Adjustable Feetsite
THE WORKING VIEW

Why this stainless lid topping unit earns its place

The G-Line by TEFCOLD GVC33-180 S/S is a refrigerated topping shelf with a stainless steel lid, built to sit on top of a prep counter and keep garnishes and toppings chilled and within arm's reach. Its SS201 stainless construction inside and out wipes down easily and holds up to constant handling on a busy line, and the gastronorm layout keeps prep pans standardised.

Day to day it holds +2 to +8 °C under an electronic controller, with a manual defrost routine to run down when the shift allows. At 40 dB it stays quiet enough to sit at the pass without adding to the noise of service. Rated at 1069.5 kWh a year, it costs about £267 a year at 25p/kWh.

The chilled well measures 1450 × 245 × 150 mm (W×D×H), giving a long, shallow run of toppings along the counter. It runs on a standard 13A supply and uses R600a refrigerant, so it plugs in where you need it without special provision.

BEFORE YOU BUY

Questions, answered straight

It holds +2 to +8 °C under an electronic controller, keeping toppings within a safe chilled band during service.

Defrost is manual, so you run the cycle down when the shift allows rather than relying on an automatic routine. The electronic controller manages the setpoint the rest of the time.

It is rated at 1069.5 kWh a year, which is about £267 a year at 25p/kWh.

The refrigerated well measures 1450 × 245 × 150 mm (W×D×H), a long, shallow run for lining up gastronorm toppings along the counter.

It uses R600a refrigerant and runs on a standard 13A supply, so it plugs into a normal socket without special provision.

Yes. Our service team looks after commercial refrigeration across the region — call 01792 732702 to arrange a visit.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1450 x 245 x 150 mm
External Dimension (WxDxH): 1800 x 335 x 288.5 mm
Packed Dimension (WxDxH): 1900 x 375 x 330 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Static
Type of Defrost: Manual
Refrigerant: R600a
Refrigerant Charge: 45 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 2.93 kWh/24h
Temperature Range: +2 to +8 °C
Annual Energy Consumption: 1069 kWh/year m³
Input Power: 122 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 40 dB(A)

Measures and Content

Capacity GN Pans: 8 x GN1/4 pcs
Temperature Range: +2 to +8 °C
Gross / Net Weight: 37 / 32 kg
Gross / Net Volume: 53.2 / 41.6 l
Max Ambient: +30°C, 55% RH

Design and Material

Feet / Legs: Adjustable Feet
Exterior Finish: SS201
Interior Finish: SS201
If you have any questions about the G-Line by TEFCOLD GVC33-180 S/S Gastronorm Topping Shelf With Lid then please get in touch.
