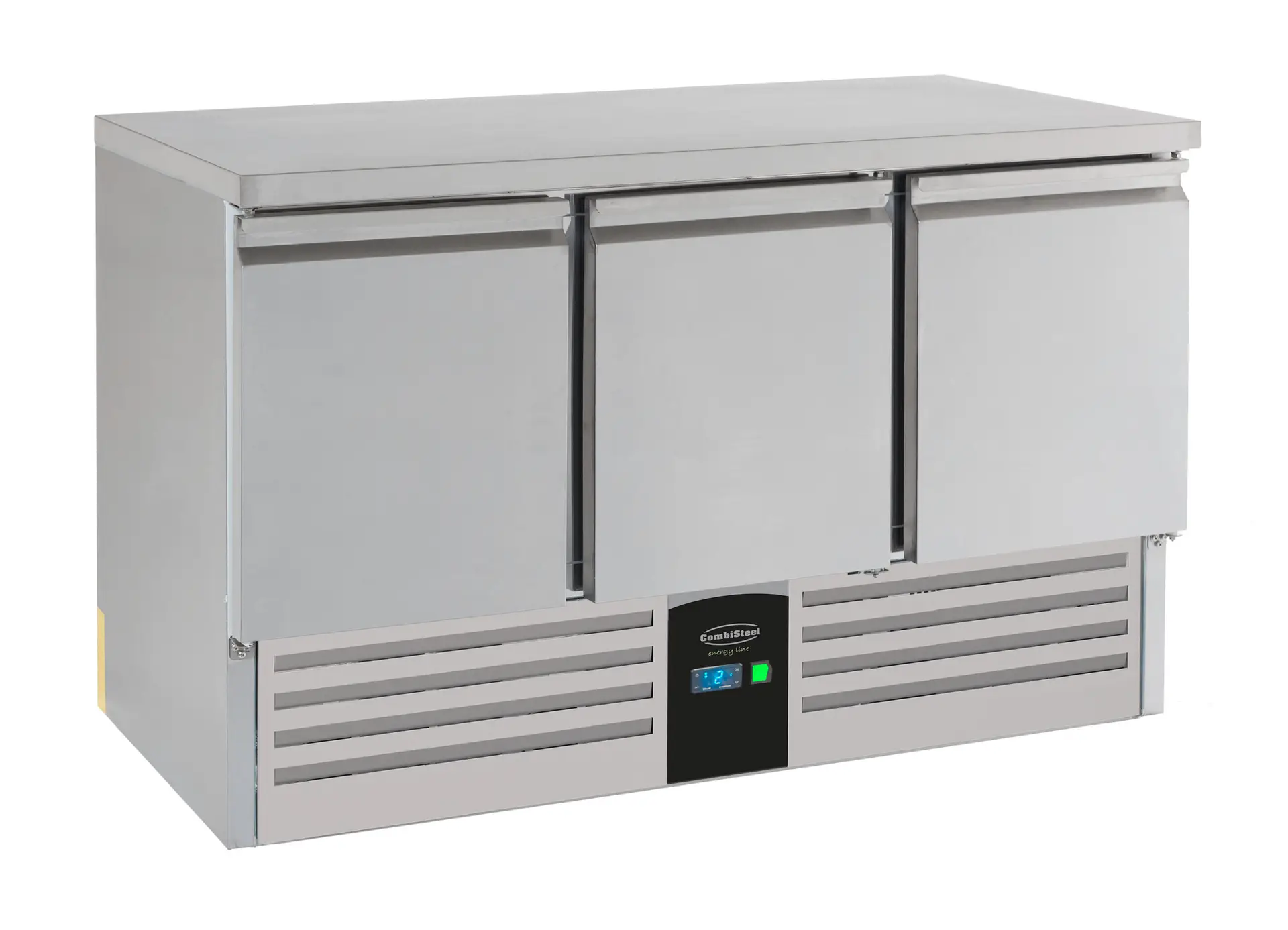

CombiSteel Refrigerated Counter Triple Door Energy Line Equipped with Evaporator 7450.5115

£827.53

+vat

- +

Brand:

SKU: 7450.5115

Product summary

Size W/D/H (mm) x x

Product description

Downloads

SPECIFICATION 34 facts · tap for all Width1368 mmDepth700 mmHeight870 mmGross / net weight130 kgGross weight110 kgVoltage / frequency23050

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6153302884824catalogue
Range / series Energy Linecatalogue
Type Triple Door Counter Fridgescatalogue

Size & weight8

Depth 700 mmsite
External (W×D×H) 1368 × 700 × 870 mmcatalogue
Gross / net weight 130 kgsite
Gross weight 110 kgcatalogue
Height 870 mmsite
Internal (W×D×H) 1275 × 585 × 456 mmcatalogue
Internal W × D × H 1275x585x456site
Width 1368 mmsite

Capacity3

Capacity 400 Ltrcatalogue
Gross volume 400 litrescatalogue
Shelves 3catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 600 Asite
Defrost type Automaticsite
Max ambient 3030 °Ccatalogue
Maximum ambient 3030site
Temperature range +2/+8site

Power & energy6

Energy consumption 0,235site
Frequency 50 Hzcatalogue
Rated input 235 Wcatalogue
Rated power 235 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 23050site

Build & fittings6

Colour Stainless steelcatalogue
Exterior finish Stainless steel Aisi 201site
Insulation 45 mmcatalogue
Interior finish Stainless steel 201site
Lock Nosite
Temperature display Yes, digitalcatalogue

Other stated facts1

Energy (24h) 114 kWh/24hcatalogue
THE WORKING VIEW

Why this triple door counter fridge earns its place

This is a three-door refrigerated counter built for the working line of a commercial kitchen. It puts chilled storage directly beneath the work surface, keeping a section's 400 litres of stock within reach through service instead of sending staff back to a walk-in or upright. The three doors split the cabinet into separate sections, so a longer line can organise stock by station and only open the part it needs. The counter holds +2 to +8 °C, standard for chilled prep and service work.

Day to day, each door swings back for a quick grab and closes again to hold temperature, while the full-length worktop runs the length of the unit for prep boards, pans and service work. It arrives as a self-contained counter with a built-in evaporator, so there is no separate condensing unit to plumb in — it positions, connects and runs on a 230V 50Hz supply. It is part of the Energy Line range, with 45 mm insulation and automatic defrost designed for the repeated door cycles of the service line.

For siting, this unit measures 1368 mm wide and 700 mm deep, weighing 130 kg. Plan it into your prep line with ventilation clearance around the refrigeration and connect it to a standard kitchen supply. Check the full external dimensions in the spec table against your doorway and the run of your line before delivery — the Craven Cooling team can confirm the fit if you need it.

BEFORE YOU BUY

Questions, answered straight

The full external dimensions, internal capacity and complete specification are listed on the spec table for this unit. Because it is a longer three-door counter, check the width against your service line and doorway before ordering, and call the team if you need the fit confirmed.

It is a three-door refrigerated counter. The three doors split the cabinet into separate sections, so you can organise stock by station along the line and only open the part you need.

Yes. It is supplied as a self-contained counter with a built-in evaporator, so it arrives ready to position, connect and switch on. Allow ventilation clearance around the unit so the refrigeration can breathe.

Yes. It is a counter, so the full-length top is built to take prep boards, pans and service work while chilled stock sits in the cabinet below.

It is part of Combisteel's Energy Line range of refrigerated counters. For the model's full energy and technical detail, see the spec table on this page.

Yes. Craven Cooling supports the equipment we supply and can arrange servicing and breakdown cover across the UK. Call the team on 01792 732702 to set it up.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel Refrigerated Counter Triple Door Energy Line Equipped with Evaporator 7450.5115 Product Data

Brand CombiSteel
Type Energy Line
Dimensions (W×D×H) 1368 × 700 × 870 mm
Interior Dimensions 1275x585x456
Capacity 400 Ltr
Material Stainless steel Aisi 201
Interior Material Stainless steel 201
Colour / Finish Stainless steel
Temperature Range +2/+8
Max. Ambient Temp. 30
Refrigerant R 600 A
Cooling Ventilated
Defrost Automatic
Number of Doors 3
Number of Grids/Shelves 3x 335×530
Electrical Power 0.235 kW
Energy Use 1.14 kWh/24h
Voltage 230V / 50Hz
Mobile No
Lockable No
Insulation 45 mm
Weight 110 kg
If you have any questions about the CombiSteel Refrigerated Counter Triple Door Energy Line Equipped with Evaporator 7450.5115 then please get in touch.
