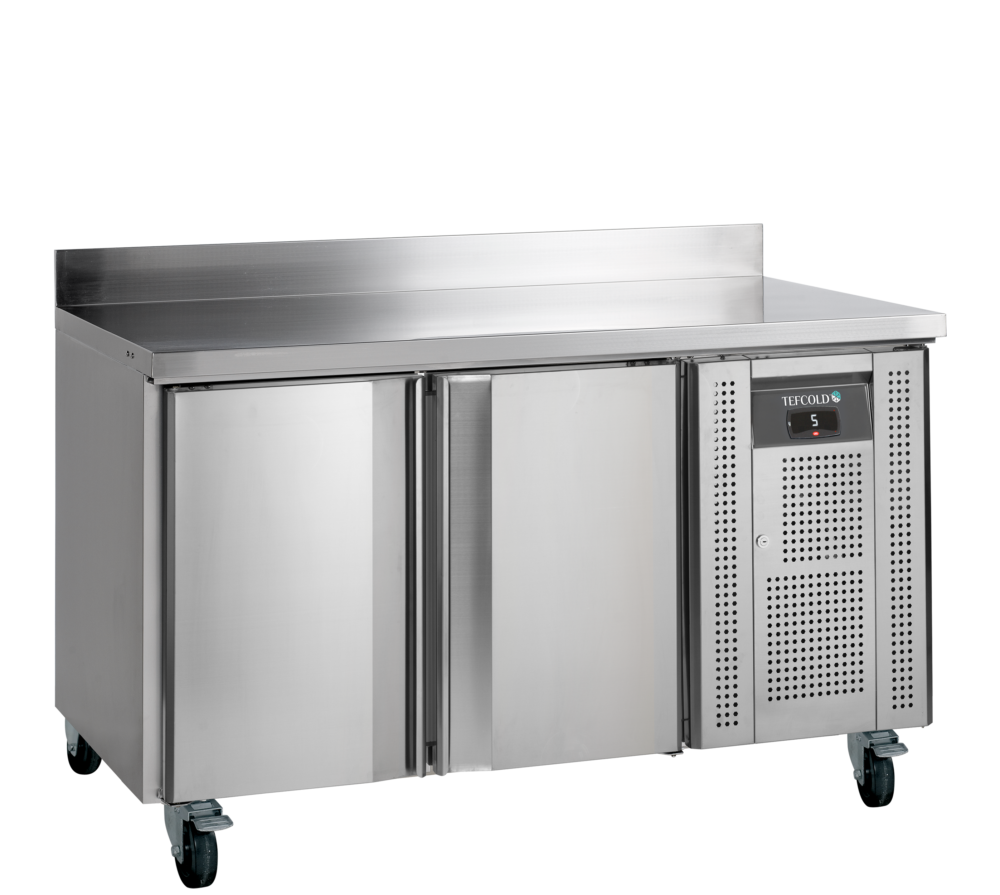

TEFCOLD CK7210X1SP Gastronorm Counter

£964.00

+vat

Brand:

SKU: 54306

Energy Arrow

Product summary

  • Fully automatic
  • Controller with Bluetooth and NFC connectivity
  • HACCP compliant data export
  • Adjustable shelves
  • Self-closing doors
  • High quality catering grade 304 stainless steel
  • Accepts Gastronorm pans (not supplied)
  • Splashback
  • 1/1 Gastronorm cupboards
  • Castors, 2 lockable
  • Replaceable door gasket

Product description

Stainless steel counter chiller with GN1/1 shelves

The CK range of counter coolers in SS304 stainless steel is made for professional kitchens and therefore has GN1/1 dimensions. The counters are available in several sizes and you can choose between solid doors or drawers. You furthermore have the choice between models with a tabletop with or without a splashback. They all have ventilated cooling to ensure an even and steady temperature. The controller has Bluetooth for easy monitoring via app.

The TEFCOLD CK7210X1SP is a two-door stainless-steel Gastronorm counter fridge holding -2 to +8 °C across 190 litres net, rated energy class A, with a 1360 × 700 × 960 mm footprint, self-closing doors, R600a refrigerant and a standard 13-amp supply.

SPECIFICATION 42 facts · tap for all External W × D × H1360 x 700 x 960 mmWidth1360 mmDepth700 mmGross / net weight122 / 112 kgGross weight122 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181739379site
Product code 54306site
Sub title Gastronorm Countercatalogue
Type Double Door Counter Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 1360 × 700 × 960 mmcatalogue
External W × D × H 1360 x 700 x 960 mmsite
Gross / net weight 122 / 112 kgsite
Gross weight 122 kgcatalogue
Height 960 mmsite
Internal (W×D×H) 799 × 580 × 564 mmcatalogue
Internal W × D × H 799 x 580 x 564 mmsite
Packed (W×D×H) 1390 × 730 × 1010 mmcatalogue
Packed W × D × H 1390 x 730 x 1010 mmsite
Width 1360 mmsite

Capacity2

Gross volume 238 litrescatalogue
Shelves 2catalogue

Performance8

Climate class 5site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Refrigerant R600asite
Refrigerant charge 95 gsite
Temperature range -2 to +8site
Thermometer Yessite

Power & energy6

Annual energy consumption 376 kWh/yearsite
Energy consumption 1.03 kWh/24hsite
Energy efficiency index 16.5 %site
Input power 300 Wsite
Noise level 38 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish SS304site
Feet / legs 4 adjustable legssite
Max load per shelf 13site
Reversible doors Nosite

Other stated facts1

Energy class Acatalogue
THE WORKING VIEW

Why this double door counter fridge earns its place

The CK7210X1SP is a two-door refrigerated Gastronorm counter that puts chilled storage directly under the prep line. At 1360 × 700 × 960 mm (W×D×H) it sits at working counter height, with a stainless-steel top above and 190 litres of usable chilled storage (238 litres gross) below, behind two self-closing hinged doors. It comes with two grey wire shelves for organising stock.

It holds a -2 to +8 °C band suited to chilled prep ingredients and pre-portioned stock, with ventilated cooling for an even temperature across the cabinet and automatic defrost. At 38 dB it runs quietly enough for prep areas near front-of-house. Rated energy class A at 375.9 kWh a year, with an energy efficiency index of 16.5, it costs about £94 a year at 25p/kWh to run.

The cabinet is SS304 stainless steel inside and out. It measures 700 mm deep and 960 mm high, and packs to 1390 × 730 × 1010 mm for delivery, weighing 112 kg net (122 kg gross). It plugs into a standard 13-amp 220-240V 50Hz socket and uses R600a refrigerant with a 95 g charge, drawing 300 W — so no dedicated hard-wired supply is needed.

BEFORE YOU BUY

Questions, answered straight

It holds a -2 to +8 °C band under electronic control, suited to chilled prep ingredients and pre-portioned stock. Ventilated cooling keeps the temperature even across the cabinet.

It is rated energy class A at 375.9 kWh a year, roughly £94 a year at 25p/kWh, helped by an energy efficiency index of 16.5. Actual cost varies with tariff, ambient and door use.

It measures 1360 × 700 × 960 mm (W×D×H) at working counter height and plugs into a standard 13-amp 220-240V socket, so no hard-wired supply is required. It packs to 1390 × 730 × 1010 mm for delivery.

It uses R600a, a low-GWP hydrocarbon refrigerant, with a 95 g charge, and draws 300 W. Defrost is automatic.

Usable capacity is 190 litres (238 litres gross), and it ships with two grey wire shelves behind two self-closing doors. The interior is SS304 stainless steel for easy cleaning.

Craven Cooling handles servicing and support — call the team on 01792 732702 to arrange a visit or discuss a maintenance plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 799 x 580 x 564 mm
External Dimension (WxDxH): 1360 x 700 x 960 mm
Packed Dimension (WxDxH): 1390 x 730 x 1010 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R600a
Refrigerant Charge: 95 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 1.03 kWh/24h
Temperature Range: -2 to +8 °C
Annual Energy Consumption: 376 kWh/year m³
EEI: 16.5 %
Input Power: 300 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 38 dB(A)

Measures and Content

Temperature Range: -2 to +8 °C
Climate Class: 5
Gross / Net Weight: 122 / 112 kg
Gross / Net Volume: 238 / 190 l

Design and Material

Door Reversible: No
Shelf Color: Grey
Max load on Shelves: 13 kg/m²
Feet / Legs: 4 adjustable legs
Exterior Finish: SS304
Interior Finish: SS304
Lock: No
If you have any questions about the TEFCOLD CK7210X1SP Gastronorm Counter then please get in touch.
