CombiSteel 700 Series Refrigerated Counter Upstand Double Door Monoblock Energy Line 7489.5400

£1,529.00

+vat

Brand:

SKU: 7489.54

Product summary

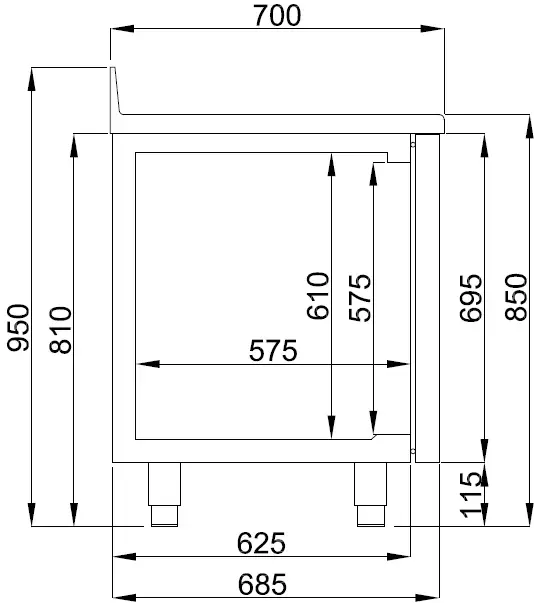

Size W/D/H (mm) 1300 x 700 x 860

Product description

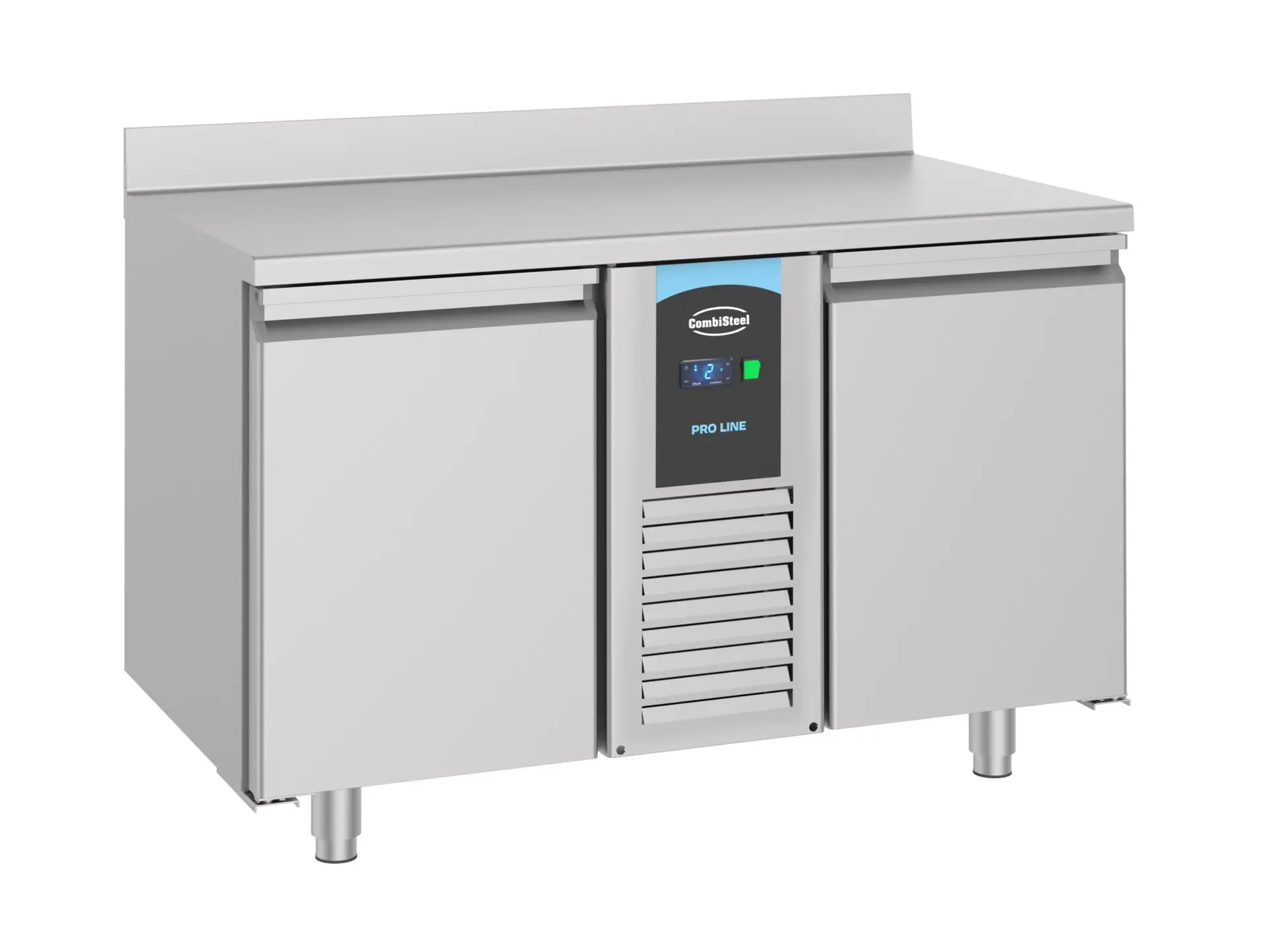

The Refrigerated Counter Upstand 2 Doors Monoblock Energy Line (7489.5400) holds 281 litres of chilled stock behind two doors with a rear upstand and a self-contained Monoblock refrigeration system, giving a commercial kitchen a compact prep counter with splash-protected worktop in one unit.

Downloads

SPECIFICATION 29 facts · tap for all Width1300 mmDepth700 mmHeight860 mmGross / net weight136 kgVoltage / frequency23050/60Voltage230V / 50/60Hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6017431110172catalogue
Range / series Pro Linecatalogue
Type Double Door Counter Fridgescatalogue

Size & weight5

Depth 700 mmsite
External (W×D×H) 1300 × 700 × 860 mmcatalogue
Gross / net weight 136 kgsite
Height 860 mmsite
Width 1300 mmsite

Capacity4

Capacity 281 Ltrcatalogue
Gastronorm size 1/1catalogue
Gross volume 281 litrescatalogue
Shelves 2catalogue

Performance6

Controller Digitalcatalogue
Cooling type R 290site
Defrost type Automaticsite
Max ambient 4343 °Ccatalogue
Maximum ambient 4343site
Temperature range -2/+8site

Power & energy7

Energy consumption 0,213site
Frequency 50 Hzcatalogue
Noise level 4040site
Rated input 213 Wcatalogue
Rated power 213 kWcatalogue
Voltage 230V / 50/60Hzcatalogue
Voltage / frequency 23050/60site

Build & fittings2

Exterior finish Stainless steel 430site
Insulation 60 mmcatalogue

Other stated facts1

Mobility Nocatalogue
THE WORKING VIEW

Why this double door counter fridge earns its place

The Refrigerated Counter Upstand 2 Doors Monoblock Energy Line is a two-door refrigerated prep counter with a raised upstand along the back edge of the worktop. At 1300 mm wide and 281 litres capacity, it gives a kitchen chilled under-counter storage and a splash-protected work surface in one back-of-house unit.

The upstand stops spills and debris dropping behind the counter where it meets the wall, which helps with hygiene and cleaning. Built in stainless steel 430 with 60 mm insulation, the Monoblock refrigeration system is a single self-contained module that runs at -2 to +8 °C, so the refrigeration can be serviced as one unit. It's a refrigerated counter for chilled storage, not a freezer.

Plan the prep run and doorway access before install, and confirm external dimensions, weight (136 kg) and electrical supply on the live spec sheet. Craven Cooling handles installation and servicing.

BEFORE YOU BUY

Questions, answered straight

The worktop and cabinet are built for commercial prep use, but exact GN pan fit depends on the shelving fitted inside each section. Confirm the current internal spec before ordering and we can check it against your pans.

This is a back-of-house counter for a prep run, measuring 1300 mm wide × 700 mm deep × 860 mm high, not an under-worktop unit. Measure your run and every doorway on the delivery route, and check the external dimensions and weight (136 kg) on the live spec sheet before you commit.

It's a refrigerated counter for chilled storage, not a freezer. For the exact temperature band and thermostat range, see the current spec sheet — we can confirm it against the stock you plan to hold.

Running cost depends on the unit's energy rating and your electricity tariff. Use our energy label decoder to turn the energy class and annual kWh from the current label into a pounds-per-year figure.

Wipe the worktop, upstand and cabinet down daily and keep the door seals clear so they hold temperature. For planned servicing or a breakdown, call Craven Cooling on 01792 732702 — we cover installation and ongoing maintenance.

The raised upstand runs along the back edge of the worktop and stops spills and debris dropping behind the counter where it meets the wall, which helps with cleaning and hygiene. The Monoblock refrigeration system is a single self-contained module.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel 700 Series Refrigerated Counter Upstand Double Door Monoblock Energy Line 7489.5400 Product Data

Brand CombiSteel
Type Pro Line
Dimensions (W×D×H) 1300 × 700 × 860 mm
Capacity 281 Ltr
GN Capacity 1/1
Material Stainless steel 430
Temperature Range -2/+8
Max. Ambient Temp. 43
Refrigerant R 290
Cooling Ventilated
Defrost Automatic
Number of Doors 2
Number of Grids/Shelves 2
Electrical Power 0.213 kW
Voltage 230V / 50/60Hz
Mobile No
Lockable No
Noise Level 40 dB
Insulation 60 mm
Weight 136 kg
If you have any questions about the CombiSteel 700 Series Refrigerated Counter Upstand Double Door Monoblock Energy Line 7489.5400 then please get in touch.
