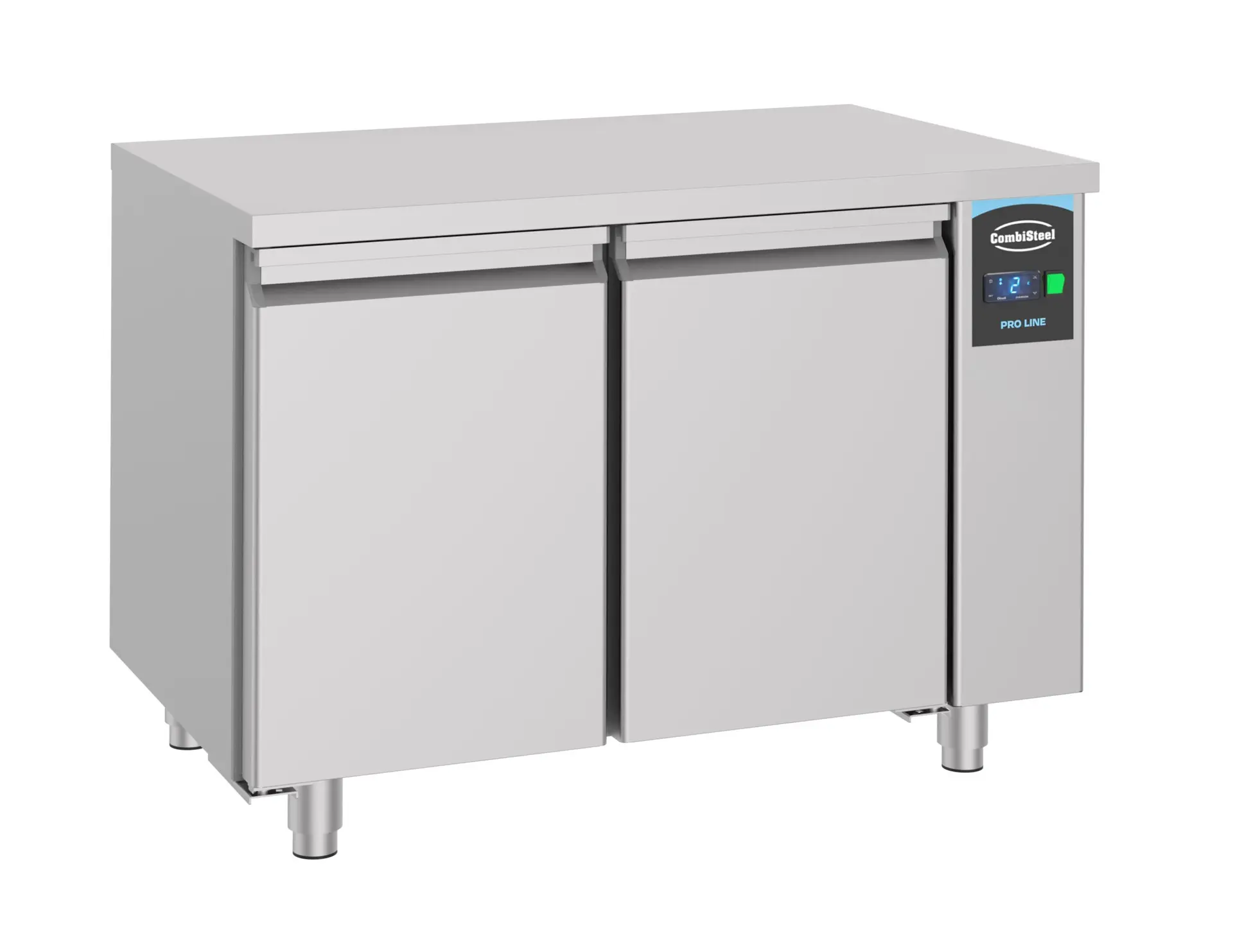

CombiSteel 700 Series Refrigerated Counter Double Door excl. Motor 7489.5085

£1,462.66

+vat

Brand:

SKU: 7489.5085

Product summary

Size W/D/H (mm) x x

Product description

The Combisteel Refrigerated Counter 2 Doors is a two-door under-counter prep fridge holding 281 litres, supplied without its motor, designed to run from a separately specified remote refrigeration pack rather than an on-board condensing unit.

Downloads

SPECIFICATION 29 facts · tap for all Width1125 mmDepth700 mmHeight850 mmGross / net weight85 kgNet weight75 kgVoltage / frequency23050/60

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6017430047080catalogue
Range / series Pro Linecatalogue
Type Double Door Counter Fridgescatalogue

Size & weight6

Depth 700 mmsite
External (W×D×H) 1125 × 700 × 850 mmcatalogue
Gross / net weight 85 kgsite
Height 850 mmsite
Net weight 75 kgcatalogue
Width 1125 mmsite

Capacity4

Capacity 281 Ltrcatalogue
Gastronorm size 1/1catalogue
Gross volume 281 litrescatalogue
Shelves 2catalogue

Performance5

Cooling Ventilatedcatalogue
Defrost type Automaticsite
Max ambient 3232 °Ccatalogue
Maximum ambient 3232site
Temperature range -2/+8site

Power & energy7

Energy consumption 0,13site
Frequency 50 Hzcatalogue
Noise level 4040site
Rated input 130 Wcatalogue
Rated power 13 kWcatalogue
Voltage 230V / 50/60Hzcatalogue
Voltage / frequency 23050/60site

Build & fittings2

Exterior finish Stainless steel Aisi 304site
Insulation 50 mmcatalogue

Other stated facts1

Mobility Nocatalogue
THE WORKING VIEW

Why this double door counter fridge earns its place

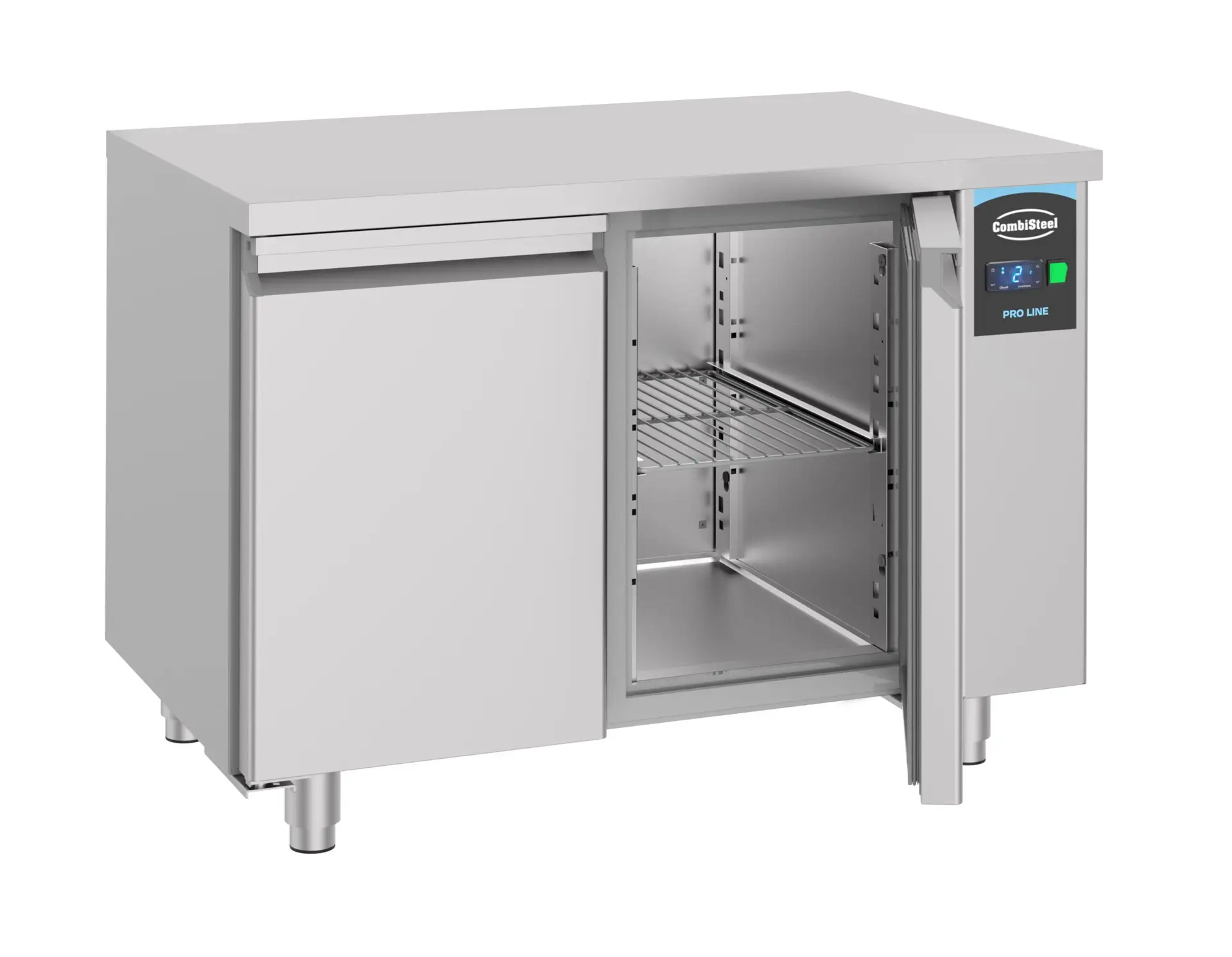

This is a two-door refrigerated prep counter from Combisteel's range, supplied excluding the motor. It is 1125 mm wide, 700 mm deep, and 850 mm tall, holding 281 litres. It gives a kitchen chilled under-counter storage and a stainless steel AISI 304 working top with 50 mm insulation, with the refrigeration provided by a remote or separately specified pack rather than built into the body.

In service the two hinged door sections hold prepped trays and stock at -2 to +8 °C while the top takes the prep. Running the condensing unit remotely moves its heat and noise away from the working section—the cabinet itself runs at just 40 dB(A)—which suits a busy line or a tight kitchen setting up a central refrigeration system. The unit weighs 85 kg, making it more manageable than larger models.

Because it ships without a motor, factor the remote pack, pipework and installation into your plan — this is a specified install, not a plug-in unit. It draws 13 kW on a standard 230 V, 50 Hz supply. Line it up with other counters from the same range for a continuous run, and talk the refrigeration spec through with our team before ordering.

BEFORE YOU BUY

Questions, answered straight

This model is built to run from a remote or separately specified refrigeration pack rather than a built-in condensing unit. That moves the compressor's heat and noise away from the prep line and suits kitchens setting up a central refrigeration system.

You will need a suitable remote condensing unit plus the pipework and installation to connect it. The cabinet draws 13 kW on 230 V, 50 Hz, so factor that into your spec. Because the specification depends on your kitchen and system, talk it through with our team so the pack is matched correctly.

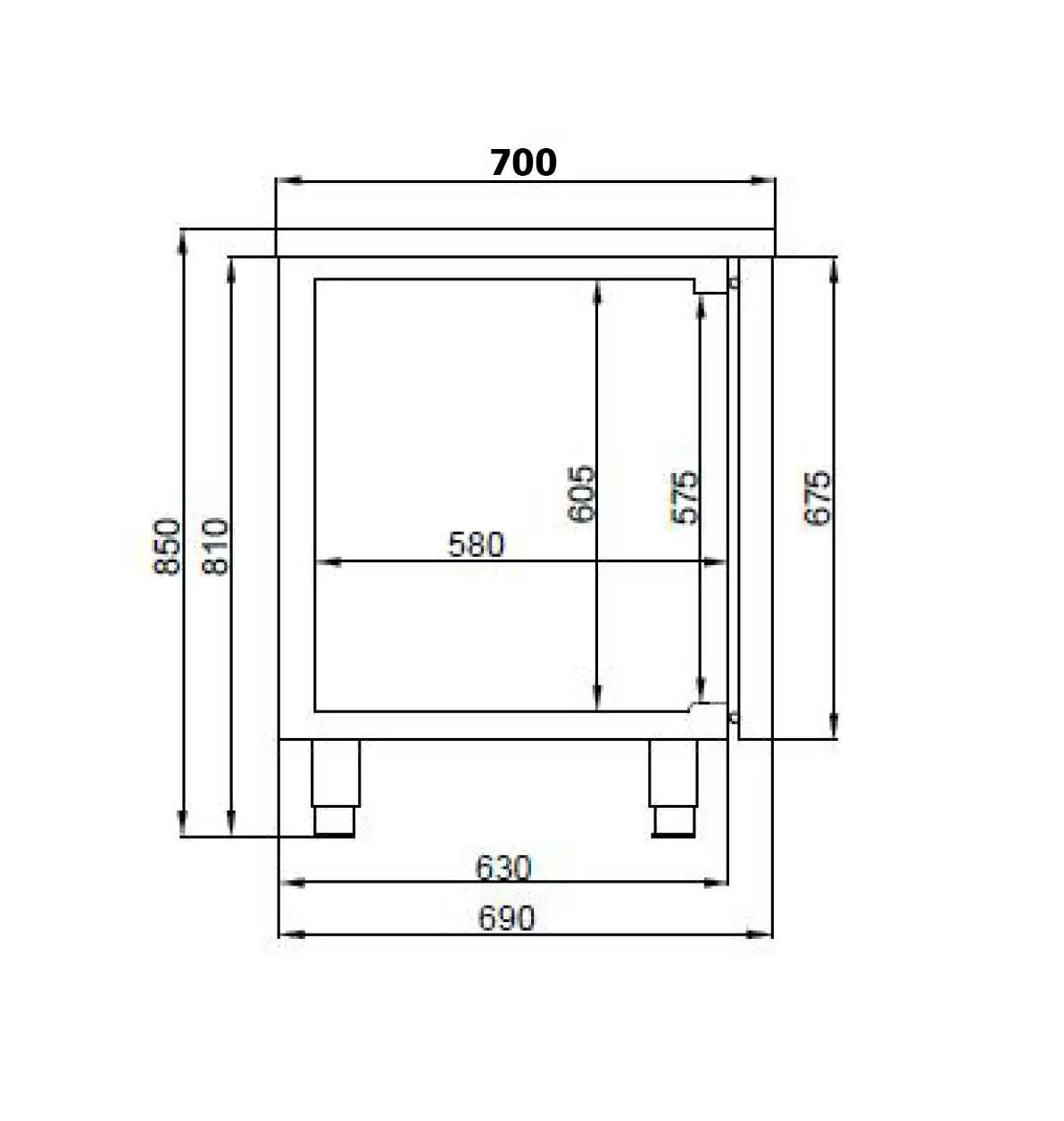

It is 1125 mm wide, 700 mm deep, and 850 mm tall, sitting at working height and lining up with other counters in the same range. Check these dimensions against your space and gangway before ordering.

It maintains -2 to +8 °C, holding chilled ingredients at fridge temperature during service. The digital controller and automatic defrost keep it steady through service.

Counters in this range are designed for Gastronorm sizing and the 281 litre capacity. Confirm the exact pan fit for this model against your menu and the 1125 mm width.

Because it needs a remote pack and pipework, this is an installed unit rather than plug-in. Our team can advise on installation and servicing — call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

CombiSteel 700 Series Refrigerated Counter Double Door excl. Motor 7489.5085 Product Data

Brand CombiSteel
Type Pro Line
Dimensions (W×D×H) 1125 × 700 × 850 mm
Capacity 281 Ltr
GN Capacity 1/1
Material Stainless steel Aisi 304
Temperature Range -2/+8
Max. Ambient Temp. 32
Refrigerant N/A
Cooling Ventilated
Defrost Automatic
Number of Doors 2
Number of Grids/Shelves 2
Electrical Power 0.13 kW
Voltage 230V / 50/60Hz
Mobile No
Lockable No
Noise Level 40 dB
Insulation 50 mm
Weight 85 kg
If you have any questions about the CombiSteel 700 Series Refrigerated Counter Double Door excl. Motor 7489.5085 then please get in touch.
