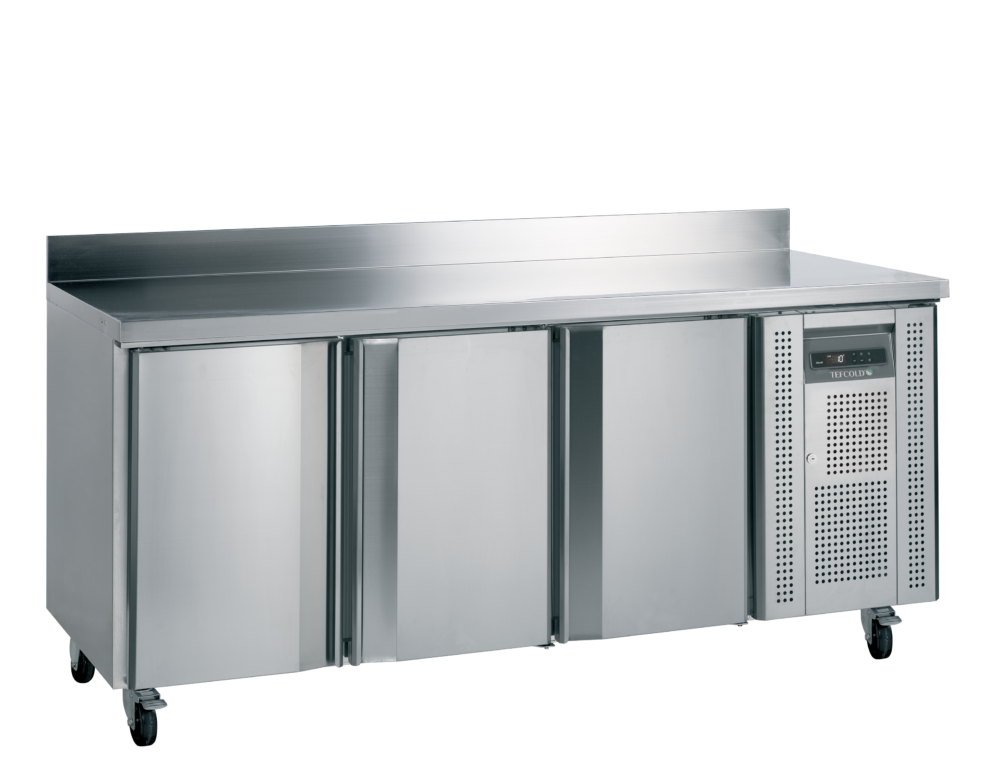

TEFCOLD CF7310 Gastronorm Counter Freezer

£1,873.00 £1,191.00

+vat

Brand:

SKU: 20057

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling

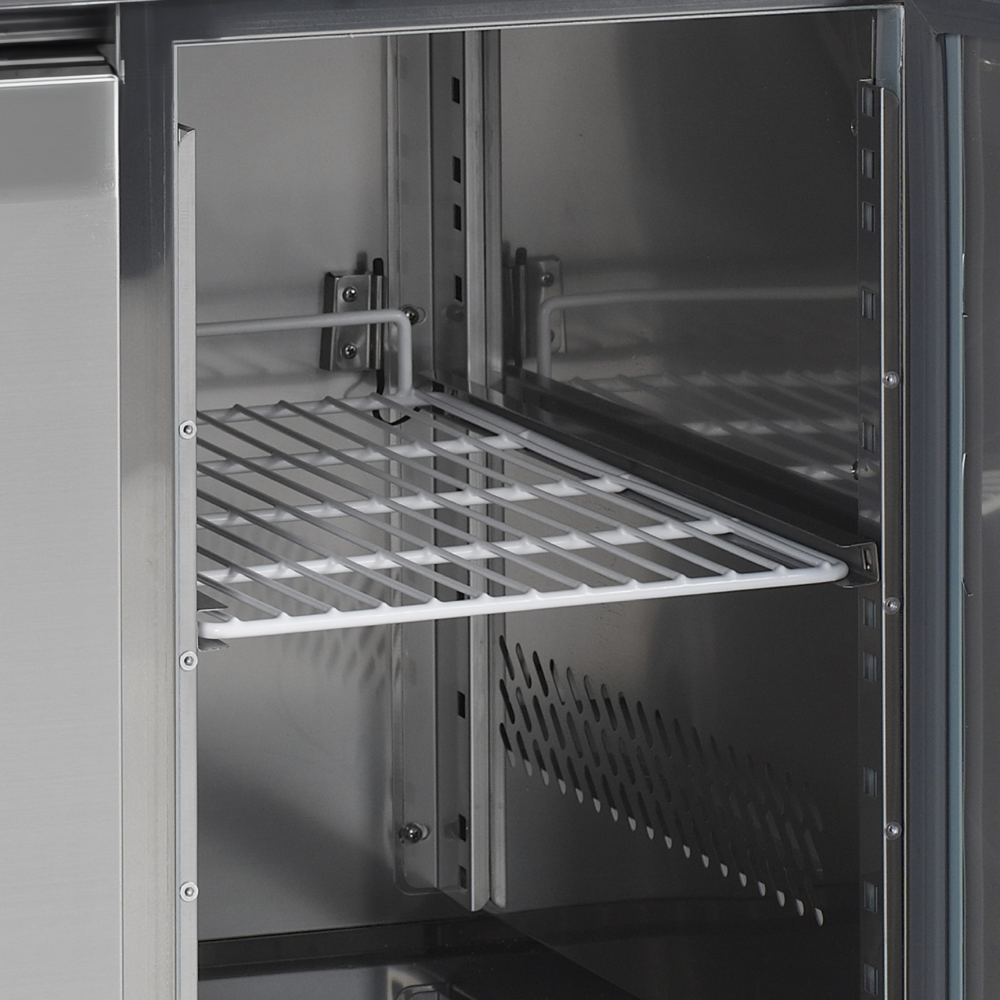

  • Adjustable shelves
  • Digital controller and temperature display
  • Self-closing doors
  • High quality catering grade 304 stainless steel
  • Replaceable door gasket
  • Accepts Gastronorm pans (not supplied)
  • 1/1 Gastronorm cupboards
  • Splashback
  • Castors, 2 lockable

Product description

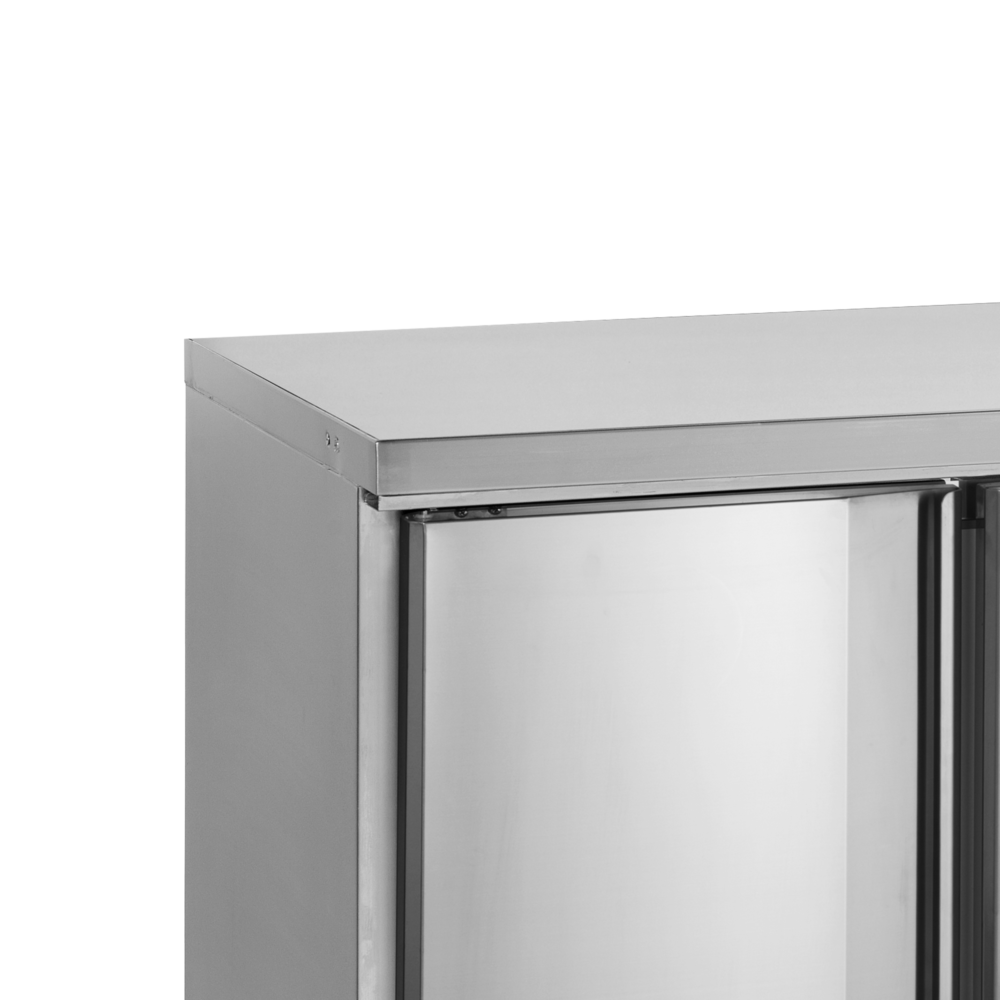

The CF Counter Freezers provide your kitchen with ample storage and also offers great space for food preparation. Supplied with adjustable shelves, these prep counters are Gastronorm compatible, allowing easy transfer of prepared food between appliances. Made of 304-grade stainless steel inside and out, these are easy to clean and maintain. Additionally, these come on castors, enabling you to position and maneuver it with ease.

The Tefcold CF7310 is a stainless steel triple-door Gastronorm counter freezer holding 402 litres net at -20 to -10 °C, with ventilated cooling, automatic electric defrost and R290 refrigerant, in a 1795 mm-wide cabinet.

Sale!
SPECIFICATION 44 facts · tap for all External W × D × H1795 x 700 x 980 mmWidth1795 mmDepth700 mmGross / net weight162 / 152 kgGross weight162 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181361181site
Product code 20057site
Sub title Gastronorm Counter Freezercatalogue
Type Triple Door Counter Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 1795 × 700 × 980 mmcatalogue
External W × D × H 1795 x 700 x 980 mmsite
Gross / net weight 162 / 152 kgsite
Gross weight 162 kgcatalogue
Height 980 mmsite
Internal (W×D×H) 1337 × 530 × 589 mmcatalogue
Internal W × D × H 1337 x 530 x 589 mmsite
Packed (W×D×H) 1830 × 750 × 1010 mmcatalogue
Packed W × D × H 1830 x 750 x 1010 mmsite
Width 1795 mmsite

Capacity2

Gross volume 417 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 90 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy6

Annual energy consumption 3197 kWh/yearsite
Energy consumption 8.76 kWh/24hsite
Energy efficiency index 71.5 %site
Input power 570 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Stainless steelsite
Feet / legs 4 adjustable legssite
Reversible doors Nosite
Shelf dimensions GN1/1site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this triple door counter freezer earns its place

The CF7310 is a triple-door counter freezer that puts frozen storage and a work surface in one under-counter run, keeping frozen stock to hand at the prep line. Gross volume is 417 litres and net usable volume is 402 litres across three wire shelves, reached through three hinged, self-closing doors.

It holds a frozen band of -20 to -10 °C using ventilated cooling for an even temperature, with automatic electric defrost and an electronic controller managing the cycle. Running noise is 42 dB and it carries a climate class 4 rating for warm commercial kitchens. As a counter freezer it draws more power than a chiller: rated energy use is 3197.4 kWh a year, energy class D — about £799 a year at 25p/kWh.

The cabinet measures 1795 × 700 × 980 mm externally with 1337 × 530 × 589 mm inside, so check doorways and the route to position before it arrives. Construction is stainless steel inside and out. It runs from a standard 13 A, 220–240 V supply drawing 570 W, using R290 refrigerant with a 90 g charge, and weighs 162 kg gross.

BEFORE YOU BUY

Questions, answered straight

It runs a frozen band of -20 to -10 °C using ventilated cooling for an even temperature, with automatic electric defrost and electronic control. That suits frozen stock held at the prep line.

Gross volume is 417 litres and net usable volume is 402 litres, across three wire shelves reached through three self-closing doors.

As a counter freezer it is energy class D, rated at 3197.4 kWh a year — about £799 a year at 25p/kWh. Freezing to -20 °C uses considerably more energy than chilling, which the figure reflects.

The cabinet is 1795 mm wide, 700 mm deep and 980 mm high, and weighs 162 kg gross. Measure doorways and the route to its final position before delivery.

It uses R290 refrigerant with a 90 g charge and runs from a standard 13 A, 220–240 V single-phase supply drawing 570 W. No special installation is needed beyond a suitable socket.

Craven Cooling can arrange servicing and support on 01792 732702. The freezer uses standard serviceable components — ventilated cooling, automatic electric defrost and an electronic controller.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1337 x 530 x 589 mm
External Dimension (WxDxH): 1795 x 700 x 980 mm
Packed Dimension (WxDxH): 1830 x 750 x 1010 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 90 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 8.76 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 3197 kWh/year m³
EEI: 71.5 %
Input Power: 570 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: -20 to -10 °C
Climate Class: 4
Gross / Net Weight: 162 / 152 kg
Gross / Net Volume: 417 / 402 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: GN1/1
Feet / Legs: 4 adjustable legs
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD CF7310 Gastronorm Counter Freezer then please get in touch.
