G-Line by TEFCOLD GF73 Gastronorm Counter Freezer

£1,669.00 £1,008.00

+vat

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves

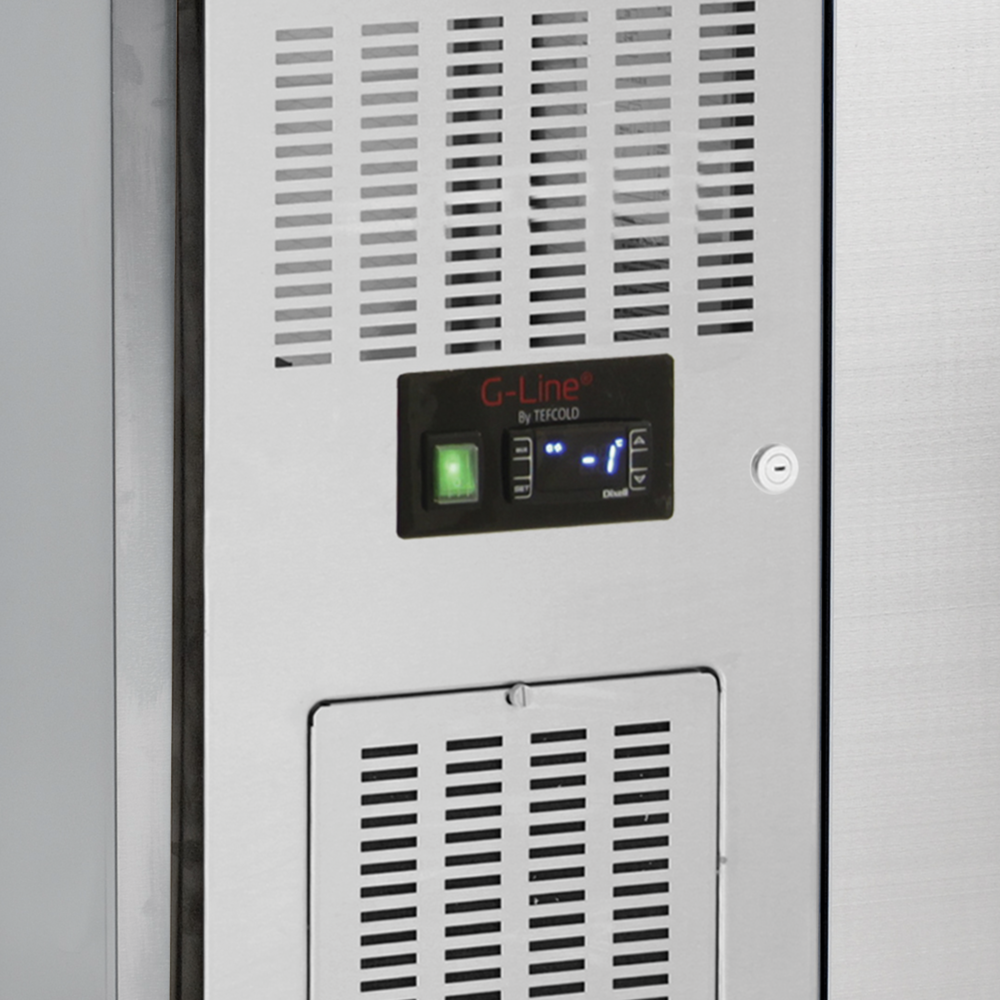

  • Digital controller and temperature display
  • Self-closing doors
  • Replaceable door gasket
  • Accepts Gastronorm pans (not supplied)
  • 1/1 Gastronorm cupboards
  • Splashback
  • Castors, 2 lockable

Product description

The GF Gastronorm Prep Counter Freezers provide efficient storage for perishable food products, ensuring quality and hygiene. These feature a freezer section and an easy-to-clean worktop, allowing you to manage everything in one space. Their durable construction simplifies maintenance and cleaning, enabling you to focus on customer service. This system maintains optimal freezing temperatures and operates best in ambient environments. The defrost system prevents ice build-up, ensuring consistent efficiency and ample storage.

The G-Line by TEFCOLD GF73 is a three-door gastronorm counter freezer holding a -20 to -10 °C band across 358 litres of net storage, with a stainless prep surface, three self-closing doors, ventilated cooling, automatic defrost and R290 refrigerant on a 13 A supply.

Sale!
SPECIFICATION 43 facts · tap for all External W × D × H1795 x 700 x 960 mmWidth1795 mmDepth700 mmGross / net weight162 / 152 kgGross weight162 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181364891site
Product code 30812site
Sub title Gastronorm Counter Freezercatalogue
Type Triple Door Counter Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 1795 × 700 × 960 mmcatalogue
External W × D × H 1795 x 700 x 960 mmsite
Gross / net weight 162 / 152 kgsite
Gross weight 162 kgcatalogue
Height 960 mmsite
Internal (W×D×H) 1337 × 530 × 589 mmcatalogue
Internal W × D × H 1337 x 530 x 589 mmsite
Packed (W×D×H) 1830 × 750 × 1010 mmcatalogue
Packed W × D × H 1830 x 750 x 1010 mmsite
Width 1795 mmsite

Capacity2

Gross volume 417 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 90 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy6

Annual energy consumption 3197 kWh/yearsite
Energy consumption 8.76 kWh/24hsite
Energy efficiency index 71.5 %site
Input power 570 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings3

Castors 4 castorssite
Exterior finish Stainless steelsite
Shelf dimensions GN1/1site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this triple door counter freezer earns its place

The GF73 is a three-door counter freezer that puts frozen storage and a stainless prep surface in one low unit along a kitchen line. Staff work on top while a shift's frozen stock sits directly beneath, so there is no trip to a walk-in mid-service. With 358 litres of net storage behind three self-closing doors, it holds a working volume of gastronorm-compatible frozen product at bench height.

It holds a -20 to -10 °C freezer band under an electronic controller, using ventilated cooling for even temperature across the cabinet and automatic electric defrost so the unit clears itself. Three white wire shelves organise the load. It carries an energy class of D with a 71.5 EEI, and as climate class 4 it is built for demanding kitchen ambient conditions. At 45 dB and 570 W it runs steadily; on its verified figure of 3197.4 kWh a year, that is about £799 a year at 25p/kWh.

The counter measures 1795 × 700 × 850 mm externally with a 1337 × 530 × 589 mm interior, and ships packed at 1830 × 750 × 1010 mm — check that against doorway and access-route widths before delivery. It weighs 152 kg net and 162 kg boxed. Both the exterior and interior are stainless steel, it runs on a standard 13 A supply at 220–240 V, and cooling uses R290 refrigerant with a 90 g charge.

BEFORE YOU BUY

Questions, answered straight

It holds a -20 to -10 °C freezer band under an electronic controller, with ventilated cooling for even temperature across the cabinet. That suits frozen storage of gastronorm-compatible product.

Net capacity is 358 litres (417 litres gross) behind three self-closing doors, with three white wire shelves. That holds a working shift's frozen stock at counter height.

No. It runs automatic electric defrost, so the cabinet clears itself during normal operation. Ventilated cooling keeps temperature even across the load.

The counter is 1795 × 700 × 850 mm and ships packed at 1830 × 750 × 1010 mm. Measure doorways and the access route against the packed width before delivery day.

It is energy class D and, on its verified figure of 3197.4 kWh a year, costs about £799 a year at 25p/kWh. It draws 570 W at 45 dB; actual cost tracks your tariff and workload.

It cools with R290 refrigerant (90 g charge) on a 13 A supply, and as climate class 4 it is built to hold temperature in demanding kitchen ambients. Craven Cooling services the units it supplies — call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1337 x 530 x 589 mm
External Dimension (WxDxH): 1795 x 700 x 960 mm
Packed Dimension (WxDxH): 1830 x 750 x 1010 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 90 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 8.76 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 3197 kWh/year m³
EEI: 71.5 %
Input Power: 570 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -20 to -10 °C
Climate Class: 4
Gross / Net Weight: 162 / 152 kg
Gross / Net Volume: 417 / 358 l
Max Ambient: +30°C, 55% RH

Design and Material

Shelf Color: White
Shelf Dimensions: GN1/1
Castors: 4 castors
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the G-Line by TEFCOLD GF73 Gastronorm Counter Freezer then please get in touch.
