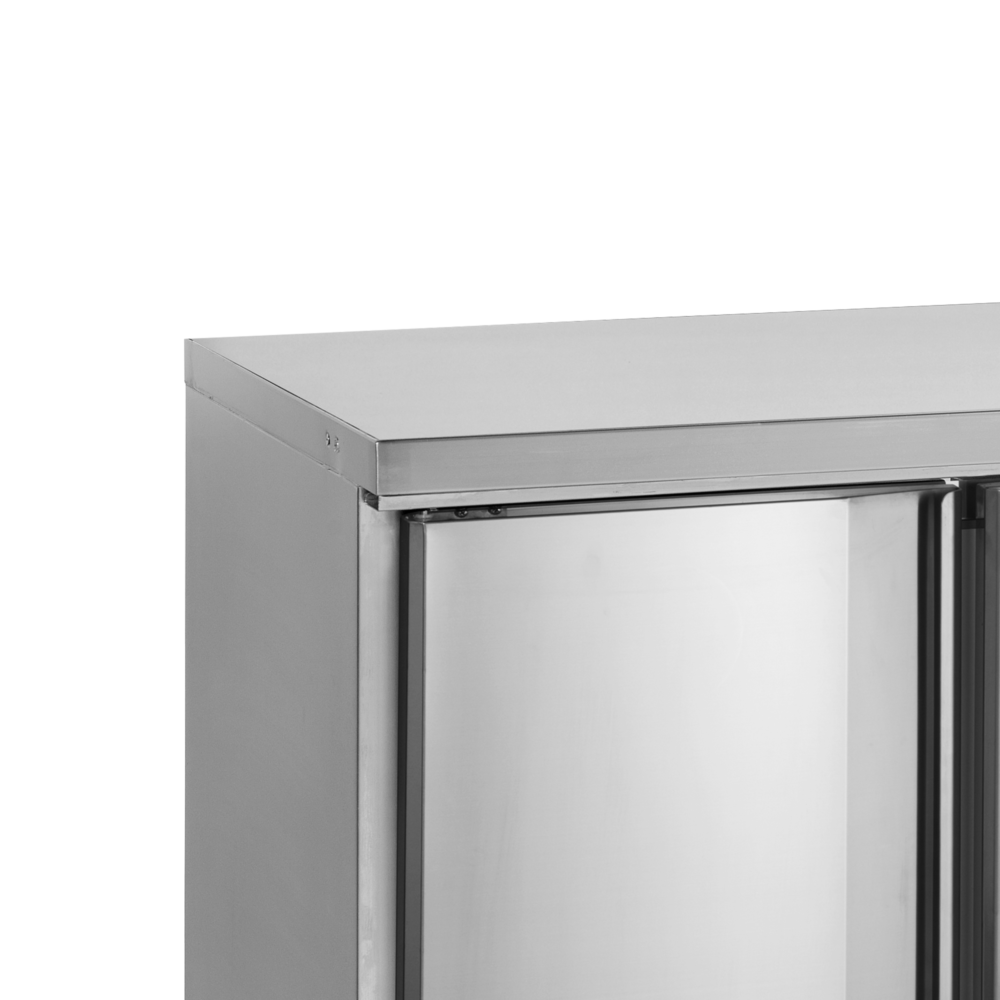

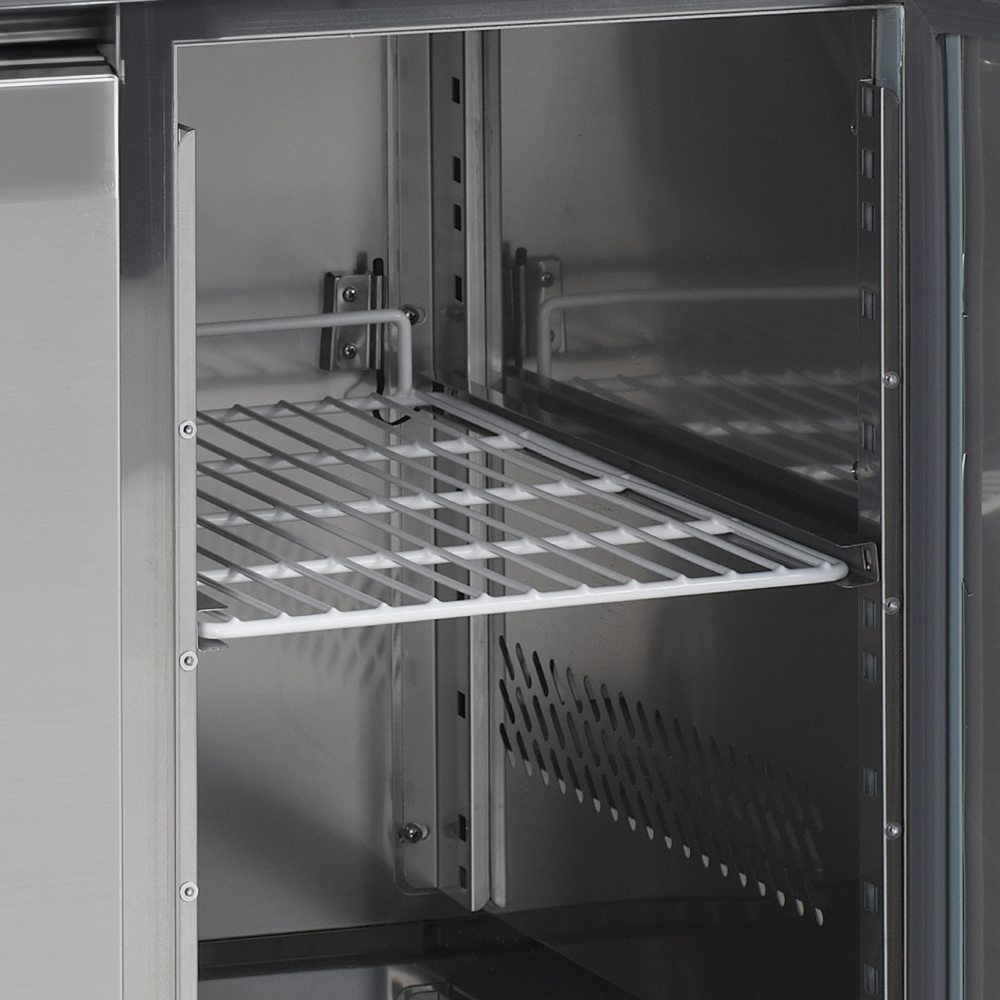

TEFCOLD CF7410 Gastronorm Counter Freezer

£2,189.00 £1,392.00

+vat

- +

Brand:

SKU: 20059

Energy Arrow

Product summary

  • Fully automatic
  • Fan assisted cooling
  • Adjustable shelves
  • Digital controller and temperature display
  • Self-closing doors
  • High quality catering grade 304 stainless steel
  • Replaceable door gasket
  • Accepts Gastronorm pans (not supplied)
  • 1/1 Gastronorm cupboards
  • Splashback
  • Castors, 2 lockable

Product description

The CF Counter Freezers provide your kitchen with ample storage and also offers great space for food preparation. Supplied with adjustable shelves, these prep counters are Gastronorm compatible, allowing easy transfer of prepared food between appliances. Made of 304-grade stainless steel inside and out, these are easy to clean and maintain. Additionally, these come on castors, enabling you to position and maneuver it with ease.

The TEFCOLD CF7410 is a four-door stainless steel counter freezer holding -20 to -10 °C on ventilated cooling with automatic defrost, giving 533 litres net across a 2230 mm counter-height run at energy class D.

Sale!
SPECIFICATION 43 facts · tap for all External W × D × H2230 x 700 x 980 mmWidth2230 mmDepth700 mmGross / net weight199 / 189 kgGross weight199 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181363161site
Product code 20059site
Sub title Gastronorm Counter Freezercatalogue
Type Four Door Counter Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 700 mmsite
External (W×D×H) 2230 × 700 × 980 mmcatalogue
External W × D × H 2230 x 700 x 980 mmsite
Gross / net weight 199 / 189 kgsite
Gross weight 199 kgcatalogue
Height 980 mmsite
Internal (W×D×H) 1772 × 530 × 589 mmcatalogue
Internal W × D × H 1772 x 530 x 589 mmsite
Packed (W×D×H) 2260 × 750 × 1010 mmcatalogue
Packed W × D × H 2260 x 750 x 1010 mmsite
Width 2230 mmsite

Capacity1

Gross volume 553 litrescatalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automatic, electricsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 230 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy6

Annual energy consumption 3745 kWh/yearsite
Energy consumption 10.26 kWh/24hsite
Energy efficiency index 72.6 %site
Input power 660 Wsite
Noise level 42 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Stainless steelsite
Feet / legs 6 adjustable legssite
Reversible doors Nosite
Shelf dimensions GN1/1site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this four door counter freezer earns its place

The TEFCOLD CF7410 is a four-door counter freezer that puts frozen storage under the worktop where the line needs it. A stainless steel body and top give 553 litres gross and 533 litres net behind four self-closing hinged doors, with four white wire shelves inside, so frozen prep stock stays within reach of the pass rather than in a remote freezer.

It holds -20 to -10 °C using ventilated fan-assisted cooling for even temperature across the wide cabinet, with an electronic controller and automatic electric defrost that clears frost without shutting the unit down. Running noise is 42 dB. Energy class is D and it draws 3744.9 kWh a year — about £936 a year at 25p/kWh — reflecting a frozen counter working under kitchen ambient. Climate class 4 suits warm kitchens.

External dimensions are 2230 × 700 × 980 mm at counter height, so plan the run and check access before delivery — at 199 kg it is a multi-person position. It runs from a standard 13 A supply at 220–240 V, drawing 660 W, and cools with R290 hydrocarbon refrigerant on a 230 g charge. Usable internal space measures 1772 × 530 × 589 mm.

BEFORE YOU BUY

Questions, answered straight

Gross volume is 553 litres and net usable volume is 533 litres across four doors, with four white wire shelves and internal dimensions of 1772 × 530 × 589 mm.

It holds -20 to -10 °C using ventilated fan-assisted cooling with an electronic controller, giving even frozen temperatures across the full width.

Yes, defrost is automatic and electric, clearing frost without shutting the cabinet down. The electronic controller manages the cycle.

It uses 3744.9 kWh a year at energy class D, about £936 a year at 25p/kWh. A frozen counter under kitchen ambient works harder than an upright, so actual cost depends on ambient, door use and how full it is.

External size is 2230 × 700 × 980 mm at counter height with a stainless top usable as a prep surface. At 199 kg, check floor access and clearances before delivery.

It runs from a standard 13 A supply at 220–240 V, drawing 660 W, with R290 refrigerant on a 230 g charge. For servicing or spares call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1772 x 530 x 589 mm
External Dimension (WxDxH): 2230 x 700 x 980 mm
Packed Dimension (WxDxH): 2260 x 750 x 1010 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic, electric
Refrigerant: R290
Refrigerant Charge: 90 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 10.26 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 3745 kWh/year m³
EEI: 72.6 %
Input Power: 660 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 42 dB(A)

Measures and Content

Temperature Range: -20 to -10 °C
Climate Class: 4
Gross / Net Weight: 199 / 189 kg
Gross / Net Volume: 553 / 533 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: No
Shelf Color: White
Shelf Dimensions: GN1/1
Feet / Legs: 6 adjustable legs
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
If you have any questions about the TEFCOLD CF7410 Gastronorm Counter Freezer then please get in touch.
