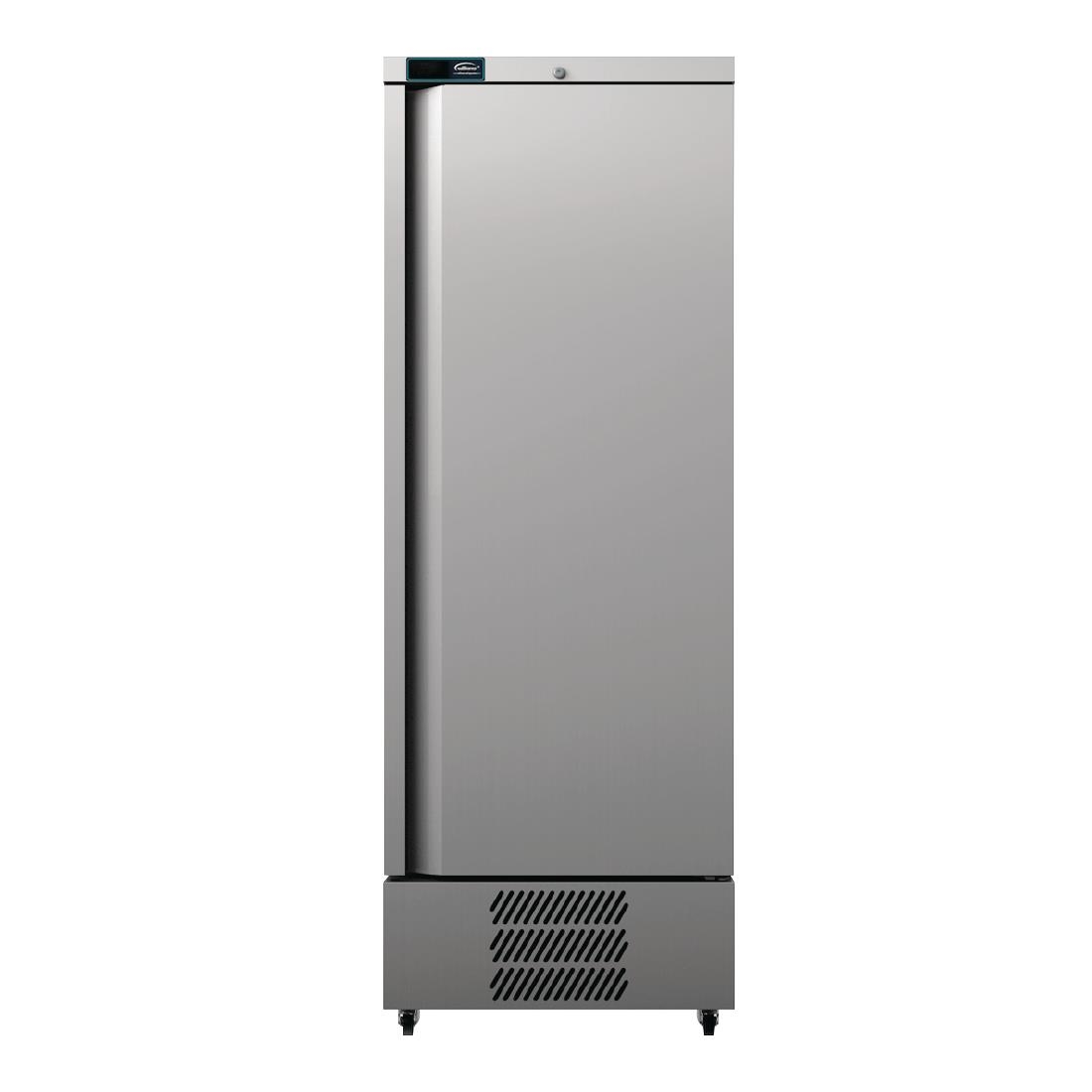

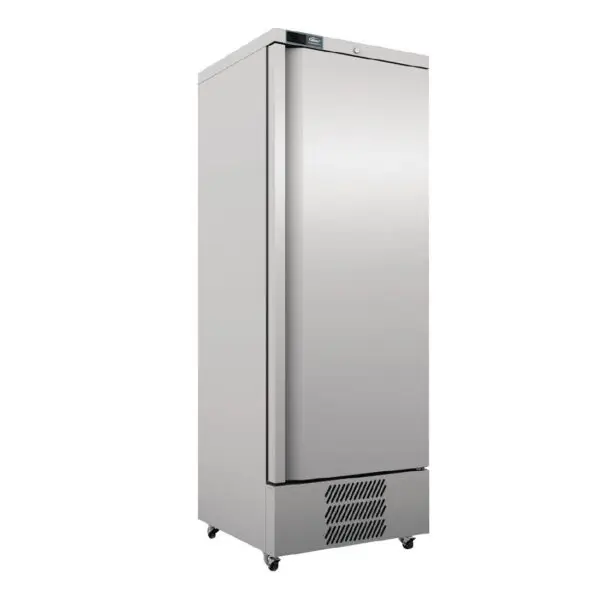

Williams Jade Undermount Freezer 410Ltr LJ400U-SA FD353

£2,842.39

+vat

Availability: 999 in stock

- +

Brand:

SKU: FD353

Product summary

Stainless Steel Exterior & Aluminium Interior. 1 Door

Product description

Complementing the exisitng Williams Jade range of cabinets, this new ultra slim model offers storage in a compact footprint.

Foodsafe, easy-clean stainless steel exterior and aluminium interior
Full length integral easy-grab door handle
Radiused, easy clean, interior based corners
Precision injected, high density 80mm polyurethane insulation with low GWP and zero ODP
Heavy duty, non-marking swivel castors with brakes
CoolSmart Controller with electro-mechanical buttons. IP55 rated display.
Designed and engineered to operate efficiently up to 43°C ambient
Self closing, barrel locked door with magnetic ballon door gasket with 100% tight seal
Anti-tilt trayslides with removable racking system
Air cooled condensing unit
Defrost water is vaporised using recycled heat from compressor
High performance helium leak testing

Downloads

SPECIFICATION 35 facts · tap for all Width695 mmDepth684 mmHeight1956 mmGross weight94 kgVoltage230VTemperature range-22 to -18 °C

Identity7

Brand Williamssite
Model ref LJ400U HC R3catalogue
Product code FD353site
Range / series Jadecatalogue
Seo name Williams Jade Freezercatalogue
Type Upright Freezerscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight6

Depth 684 mmcatalogue
External (W×D×H) 1956 × 695 × 684 mmcatalogue
Gross weight 94 kgcatalogue
Height 1956 mmcatalogue
Internal (W×D×H) 1470 × 545 × 507 mmcatalogue
Width 695 mmsite

Capacity6

Capacity 410Ltrcatalogue
Doors 1catalogue
Gastronorm size 1/1 GN fullcatalogue
Net volume 304 litrescatalogue
Product capacity 410catalogue
Shelves 6catalogue

Performance4

Climate class 5catalogue
Cooling Aircatalogue
Refrigerant R290 / GWP 3catalogue
Temperature range -22 to -18 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 210 Wcatalogue
Voltage 230Vcatalogue

Build & fittings2

Colour Silvercatalogue
Material Stainless Steel & Aluminiumcatalogue

Other stated facts7

EEI 64.02 %catalogue
Energy (24h) 5.21 kWh/24hcatalogue
Energy class Bcatalogue
Energy consumption 1902 kWh/yearcatalogue
Indoor / outdoor Cabinetcatalogue
Mobility Castorscatalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this upright freezer earns its place

The Williams Jade LJ400U-SA is an undermount freezer from the Williams Jade range, designed to sit beneath a worktop or counter. It holds 410 litres of frozen stock across six shelves at a slim 684 mm height—built for point-of-use frozen storage so that chefs can pull stock without leaving their section and crossing the kitchen to a remote freezer.

In service it runs as a low-line storage cabinet under the bench, locked at -18 to -22°C, holding stock frozen and to hand through prep and service. It runs on 230V at 210 watts and uses R290 refrigerant in climate class 5. The six shelves and 410-litre net capacity are sized for a 1/1 GN footprint; match them to the frozen items you keep at the section.

As an undermount unit it is built to fit under a counter run at 1.956 metres from floor to top. Check the external dimensions—height, width and depth—and the electrical requirement against your worktop access and doorways before installation. It carries a 2-year parts-and-labour warranty. At energy class D, it runs at around 5.21 kWh every 24 hours, making it a heavier draw than chill units but standard for freezer duty.

BEFORE YOU BUY

Questions, answered straight

It is an undermount unit built to sit beneath a worktop, so build height is the number to check. Measure your counter clearance and doorways against the external dimensions on the spec panel before ordering.

An undermount keeps frozen stock in the section where it is used, so the line pulls from its own station instead of crossing the kitchen. That saves steps through service and keeps floor space clear. This unit holds 410 litres across six shelves.

It holds 410 litres on six shelves at a 1/1 GN footprint. Work from the frozen items you keep on the section so you can match a working supply to the space.

It operates from -18 to -22°C, which is standard frozen-storage temperature. Match that to the frozen stock you hold at the bench and how often it is topped up.

Warranty terms are listed on the spec panel. Craven Cooling services the equipment it supplies; for a service visit or parts, call the team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Williams Jade Undermount Freezer 410Ltr LJ400U-SA FD353 Product Data

Brand Williams
Type Upright Freezers
Range Jade
Dimensions 1956(H) x 695(W) x 684(D)mm
Capacity 410Ltr
Material Stainless Steel & Aluminium
Colour / Finish Silver
Temperature Range -18°C to -22°C
Refrigerant R290 / GWP 3
Cooling Air
Number of Doors 1
Number of Shelves 6
Energy Rating B
Annual Energy Use 1902kWh/annum
Power 210W
Voltage 230V
Fuel / Supply Plug
Warranty 2 Years Parts & Labour
Weight 94kg
Manufacturer Ref LJ400U-SA
If you have any questions about the Williams Jade Undermount Freezer 410Ltr LJ400U-SA FD353 then please get in touch.
