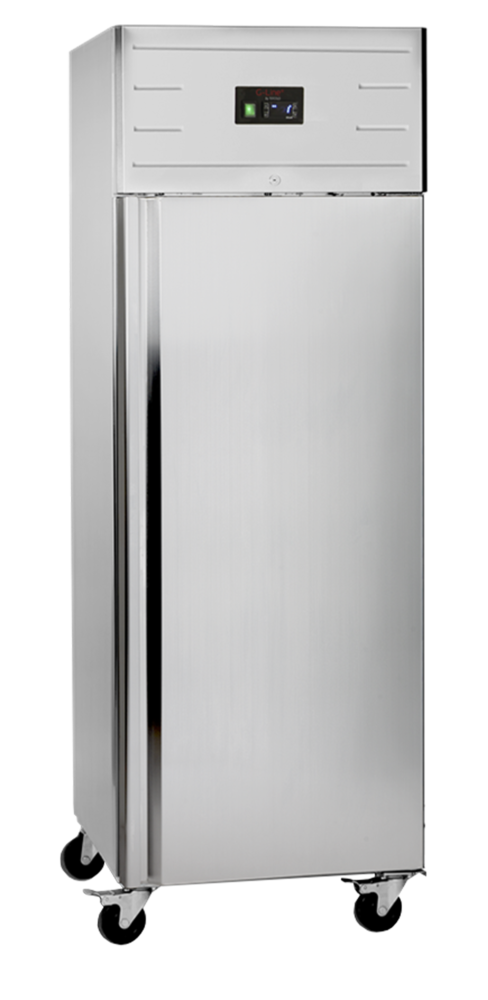

G-Line by TEFCOLD GUF70 Gastronorm Upright Freezer

£1,617.00 £839.00

+vat

Product summary

  • Reversible solid door
  • Self closing doors with stay open feature for ease of loading
  • Stainless steel cabinet
  • Ventilated cooling
  • Adjustable shelves GN2/1
  • Digital controller and temperature display
  • Strong wheels
  • Lock

Product description

The G-line upright freezer is designed for busy kitchen environments. It has strong wheels for flexibility and a stainless steel exterior for high durability. It has adjustable shelving and accepts GN2/1 gastronorm pans. A great value-for-money product.

The G-Line by TEFCOLD GUF70 is a single-door stainless steel gastronorm upright freezer holding 528 litres net at -24 to -18 °C, with ventilated cooling, electronic control and R290 refrigerant, running from a standard 13 A supply.

Sale!
SPECIFICATION 46 facts · tap for all External W × D × H680 x 867 x 1995 mmWidth680 mmDepth867 mmGross / net weight145 / 120 kgGross weight145 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand G-Line by TEFCOLDsite
GTIN / EAN 5708181362027site
Product code 10697site
Sub title Gastronorm Upright Freezercatalogue
Type Single Door Commercial Upright Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 867 mmsite
External (W×D×H) 680 × 867 × 1995 mmcatalogue
External W × D × H 680 x 867 x 1995 mmsite
Gross / net weight 145 / 120 kgsite
Gross weight 145 kgcatalogue
Height 1995 mmsite
Internal (W×D×H) 560 × 680 × 1384 mmcatalogue
Internal W × D × H 560 x 680 x 1384 mmsite
Packed (W×D×H) 720 × 870 × 2050 mmcatalogue
Packed W × D × H 720 x 870 x 2050 mmsite
Width 680 mmsite

Capacity3

Doors 1catalogue
Gross volume 565 litrescatalogue
Shelves 3catalogue

Performance10

Climate class 4site
Controller Electronicsite
Cooling type Ventilatedsite
Defrost type Automaticsite
Max ambient 30 °Ccatalogue
Maximum ambient +30°C, 55% RHsite
Refrigerant R290site
Refrigerant charge 90 gsite
Temperature range -24 to -18site
Thermometer Yessite

Power & energy6

Annual energy consumption 2128 kWh/yearsite
Energy consumption 5.83 kWh/24hsite
Energy efficiency index 64.4 %site
Input power 565 Wsite
Noise level 45 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Castors 4 wheels, 2 with brakesite
Exterior finish Stainless steelsite
Interior light Nosite
Max load per shelf 110site
Shelf dimensions GN1/1site

Other stated facts1

Energy class Dcatalogue
THE WORKING VIEW

Why this single door commercial upright freezer earns its place

The GUF70 is a single-door upright freezer built for professional kitchens that need dependable frozen storage in a standard cabinet footprint. Stainless steel inside and out, it holds 565 litres gross and 528 litres net across three wire shelves, taking gastronorm stock without wasting height. The hinged self-closing solid door keeps the cabinet sealed through a busy service and returns the seal without staff having to think about it.

It holds a frozen band of -24 to -18 °C under electronic control, with ventilated cooling circulating air across the load for even temperatures front to back. Rated to climate class 4, it is built to hold temperature in warm back-of-house conditions, and it runs at 45 dB. On energy class D at 2127.9 kWh a year, running cost works out at about £532 a year at 25p/kWh.

External dimensions are 680 × 845 × 2000 mm, so at 680 mm wide the cabinet clears most standard doorways; packed it measures 720 × 870 × 2050 mm, worth checking against the full delivery route. It weighs 120 kg net, runs from a standard 13 A supply on 220-240 V, 50 Hz, and uses 90 g of R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

565 litres gross and 528 litres net, across three wire shelves. It is sized to take gastronorm stock in a single-door upright cabinet.

The cabinet is 680 mm wide and 845 mm deep, which clears most standard doorways. Packed it measures 720 × 870 × 2050 mm, so check the full delivery route first.

On energy class D at 2127.9 kWh a year, that is about £532 a year at 25p/kWh. Actual cost depends on your tariff and how hard the cabinet works.

It runs a frozen band of -24 to -18 °C under electronic control, with ventilated cooling for even temperatures across the load.

No. It runs from a standard 13 A supply on 220-240 V, 50 Hz, and draws 565 W of input power.

It uses R290, a natural hydrocarbon refrigerant, with a 90 g charge. For servicing or spares, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 560 x 680 x 1384 mm
External Dimension (WxDxH): 680 x 867 x 1995 mm
Packed Dimension (WxDxH): 720 x 870 x 2050 mm

Cooling and Functions

Type of Controller: Electronic
Type of Cooling: Ventilated
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 90 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 5.83 kWh/24h
Temperature Range: -24 to -18 °C
Annual Energy Consumption: 2128 kWh/year m³
EEI: 64.4 %
Input Power: 565 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 45 dB(A)

Measures and Content

Temperature Range: -24 to -18 °C
Climate Class: 4
Gross / Net Weight: 145 / 120 kg
Gross / Net Volume: 565 / 528 l
Max Ambient: +30°C, 55% RH

Design and Material

Door Reversible: Yes
Shelf Color: White
Shelf Dimensions: GN2/1
Max load on Shelves: 110 kg/m²
Castors: 4 wheels, 2 with brake
Exterior Finish: Stainless steel
Interior Finish: Stainless steel
Interior Light: No
Lock: Yes
If you have any questions about the G-Line by TEFCOLD GUF70 Gastronorm Upright Freezer then please get in touch.
