Ecofrost Single Door White Freezer 600L 7063.0100

+vat

Brand:

SKU: 7063.01

Product summary

Product description

Downloads

SPECIFICATION 34 facts · tap for all External W × D × H775 x 744 x 1900Width775 mmDepth744 mmHeight1900 mmGross / net weight90 kgVoltage / frequency230 volts / 50 hz

Identity4

Brand CombiSteelcatalogue
GTIN / EAN 6017440386360site
Product code 7063.0100site
Type Single Door Commercial Upright Freezerscatalogue

Size & weight8

Depth 744 mmsite
External (W×D×H) 775 × 744 × 1900 mmcatalogue
External W × D × H 775 x 744 x 1900site
Gross / net weight 90 kgsite
Height 1900 mmsite
Internal (W×D×H) 643 × 558 × 1644 mmcatalogue
Internal W × D × H 643x558x1644site
Width 775 mmsite

Capacity3

Capacity 534 Ltrcatalogue
Gross volume 534 litrescatalogue

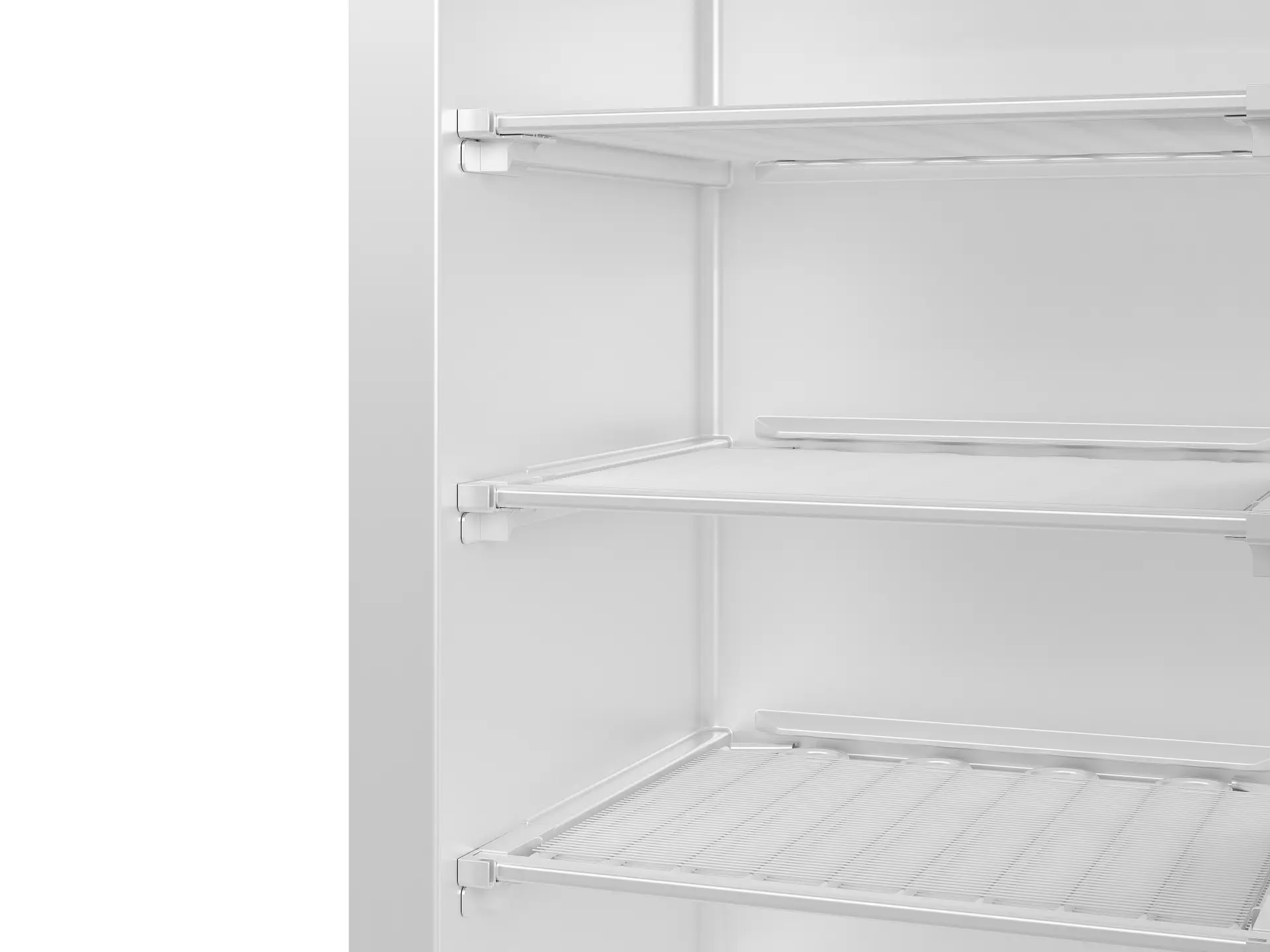

Shelves 6catalogue

Performance7

Controller Digitalcatalogue
Cooling Staticcatalogue
Defrost Manualcatalogue
Interior light Nocatalogue
Max ambient 38 °Ccatalogue
Refrigerant R 290catalogue
Temperature range 38site

Power & energy5

Frequency 50 Hzcatalogue
Rated input 350 Wcatalogue
Rated power 35 kWcatalogue
Voltage 230V / 50Hzcatalogue
Voltage / frequency 230 volts / 50 hzsite

Build & fittings6

Colour Whitecatalogue
Doors 1site
Exterior finish Powder coated steelsite
Insulation 66 mmcatalogue
Lock YesYessite
Temperature display Yes, digitalcatalogue

Other stated facts1

Noise level 45 dB(A)catalogue
THE WORKING VIEW

Why this single door commercial upright freezer earns its place

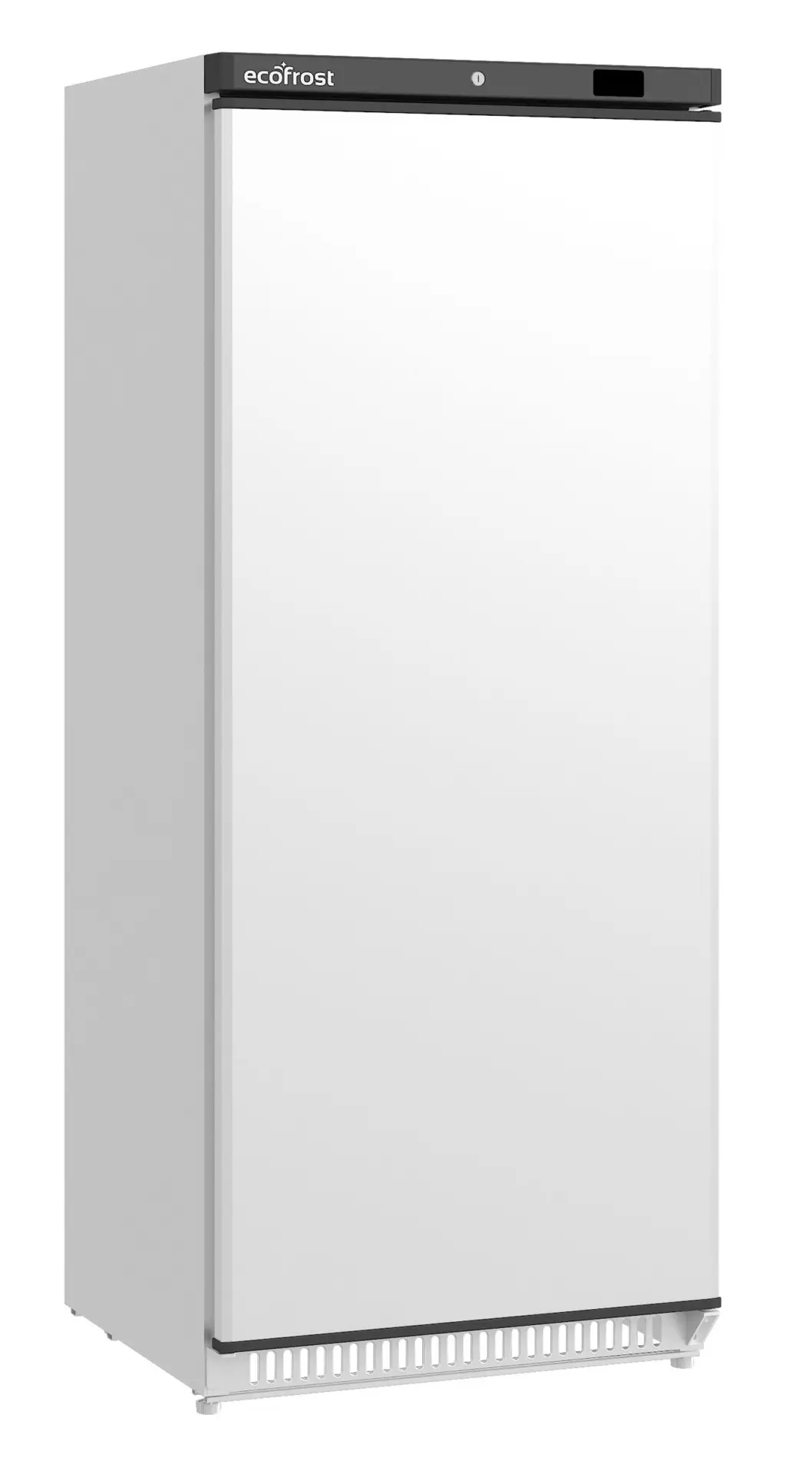

The 7063.0100 is a single-door upright freezer built to be the frozen workhorse of a commercial kitchen or store. It holds 534 litres of bulk frozen stock — proteins, batch-cooked portions, frozen vegetables and back-up ingredients — in one full-height footprint behind a single door, reaching -18 to -23°C. This is the freezer that carries a kitchen's main frozen hold or the overflow from a walk-in, keeping stock organised in a vertical column rather than piled in a chest. At 775 × 744 × 1900 mm external and 90 kg, it's a substantial piece that rewards careful siting.

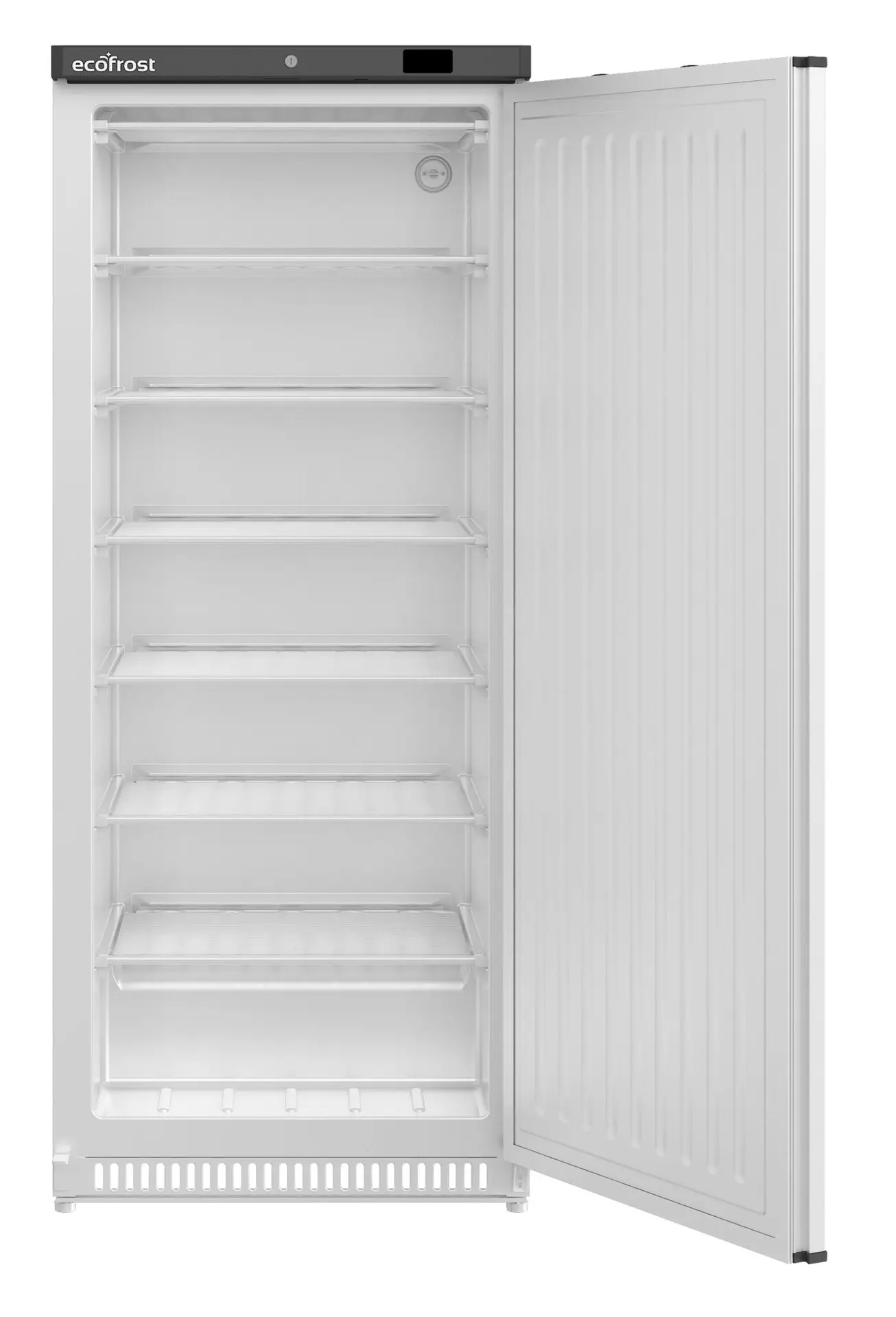

In day-to-day use the single full-height door opens onto an upright cabinet with a digital controller managing temperature, so frozen stock is stored and reached standing up rather than lifted out from above. The white coated exterior suits a back-of-house or store-room setting where the freezer is a working piece of kit, not a customer-facing display. It is built to keep a full column of frozen stock accessible during a shift, running quietly at 45 dB(A).

Being a full-height upright standing 1900 mm tall, the first thing to plan is access: measure your doorway, lift and delivery route against these dimensions before it arrives, because uprights are tall and this one needs clear headroom. Once sited, it needs air around the condenser to shed heat, so leave ventilation clearance at the back and top and keep it away from other heat sources. The 66 mm insulation holds temperature steadily through a busy service.

BEFORE YOU BUY

Questions, answered straight

It is a single-door upright freezer with a full-height cabinet, so frozen stock is stored in a vertical column accessed from one door rather than lifted out of a chest. That suits organised back-of-house storage.

Bulk frozen stock for a commercial kitchen or store — proteins, batch-cooked portions, frozen vegetables and back-up ingredients kept in one full-height footprint.

It is a full-height upright, so measure your doorway, lift and delivery route against the unit's external dimensions in the specification before it arrives. Uprights are tall, and access is the thing worth checking first.

The white coated exterior suits a back-of-house or store-room setting. The finish is about a practical storage environment rather than a customer-facing display.

Like any upright freezer it needs air around the condenser to shed heat, so leave ventilation space at the back and top and keep it clear of other heat sources. The unit is designed for operation up to 38°C ambient, so ensure adequate airflow to cool the condenser in warm kitchens.

Yes, Craven Cooling services the freezers it supplies — call 01792 732702 to book a visit or arrange a maintenance schedule.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Ecofrost Single Door White Freezer 600L 7063.0100 Product Data

Brand CombiSteel
Dimensions (W×D×H) 775 × 744 × 1900 mm
Interior Dimensions 643x558x1644
Capacity 534 Ltr
Material Powder coated steel
Colour / Finish White
Temperature Range -18/-23
Max. Ambient Temp. 38
Refrigerant R 290
Cooling Static
Defrost Manual
Number of Doors 1
Number of Grids/Shelves 6
Electrical Power 0.35 kW
Voltage 230V / 50Hz
Installation Freestanding
Mobile No
Lockable Yes
Noise Level 45 dB
Insulation 66 mm
Weight 90 kg
If you have any questions about the Ecofrost Single Door White Freezer 600L 7063.0100 then please get in touch.
