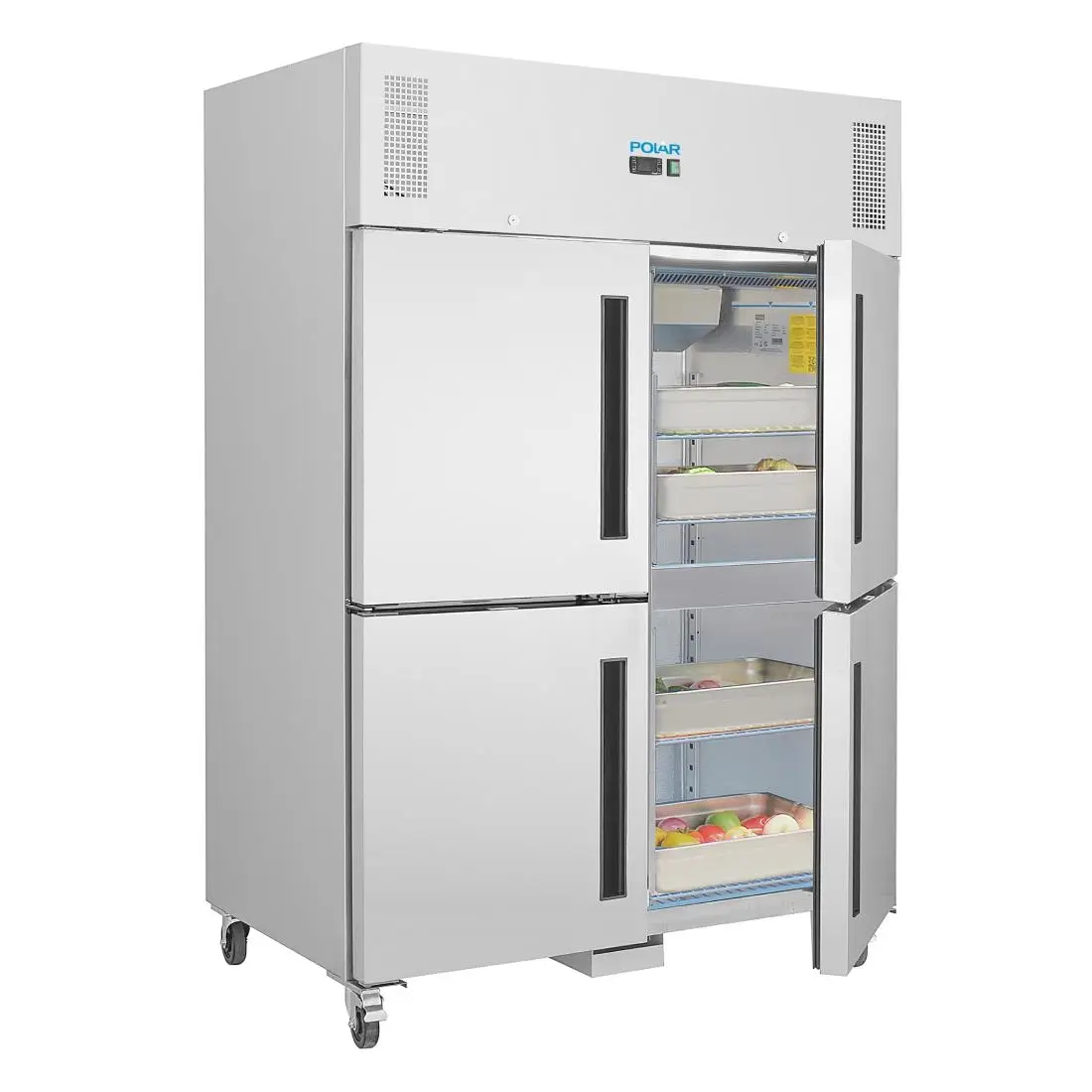

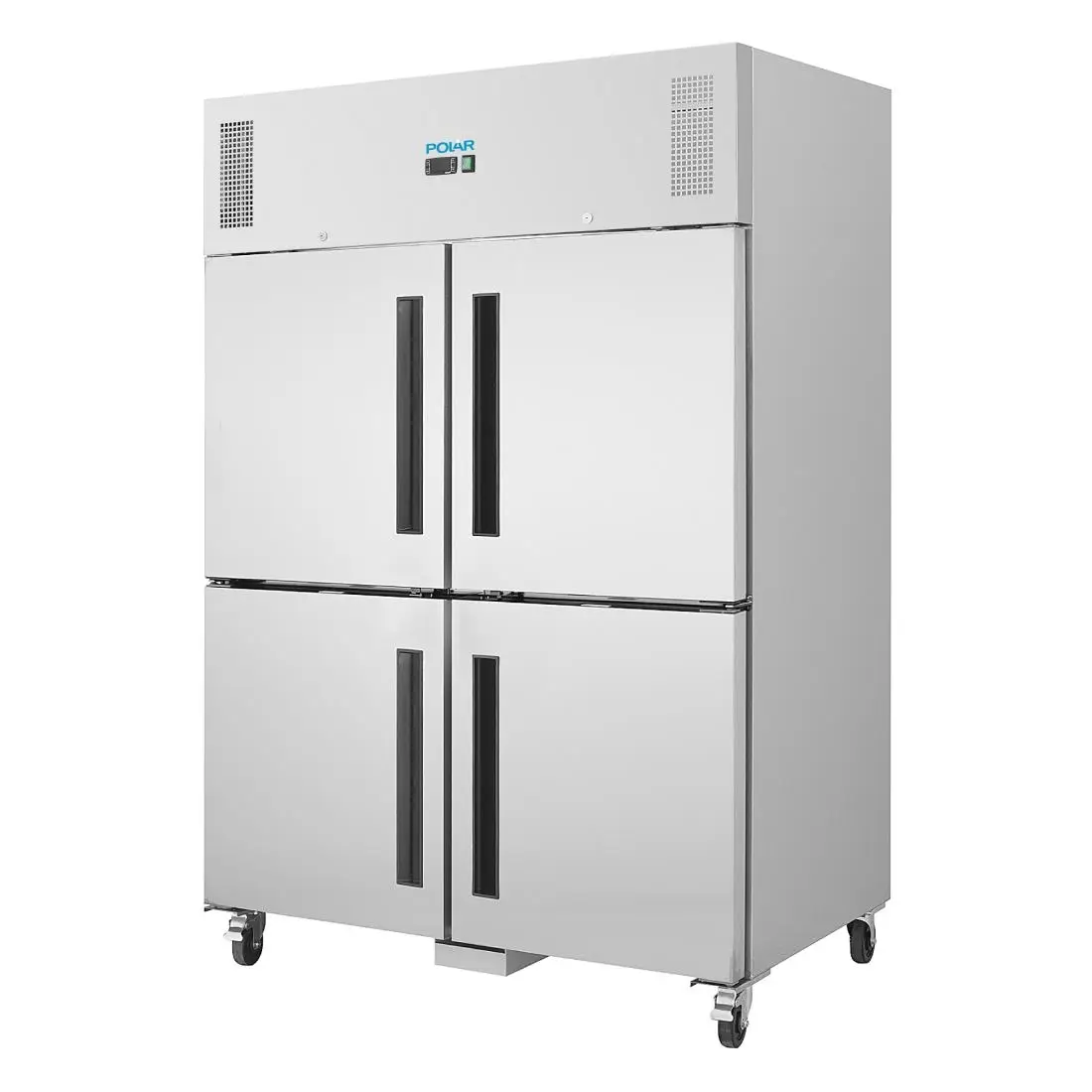

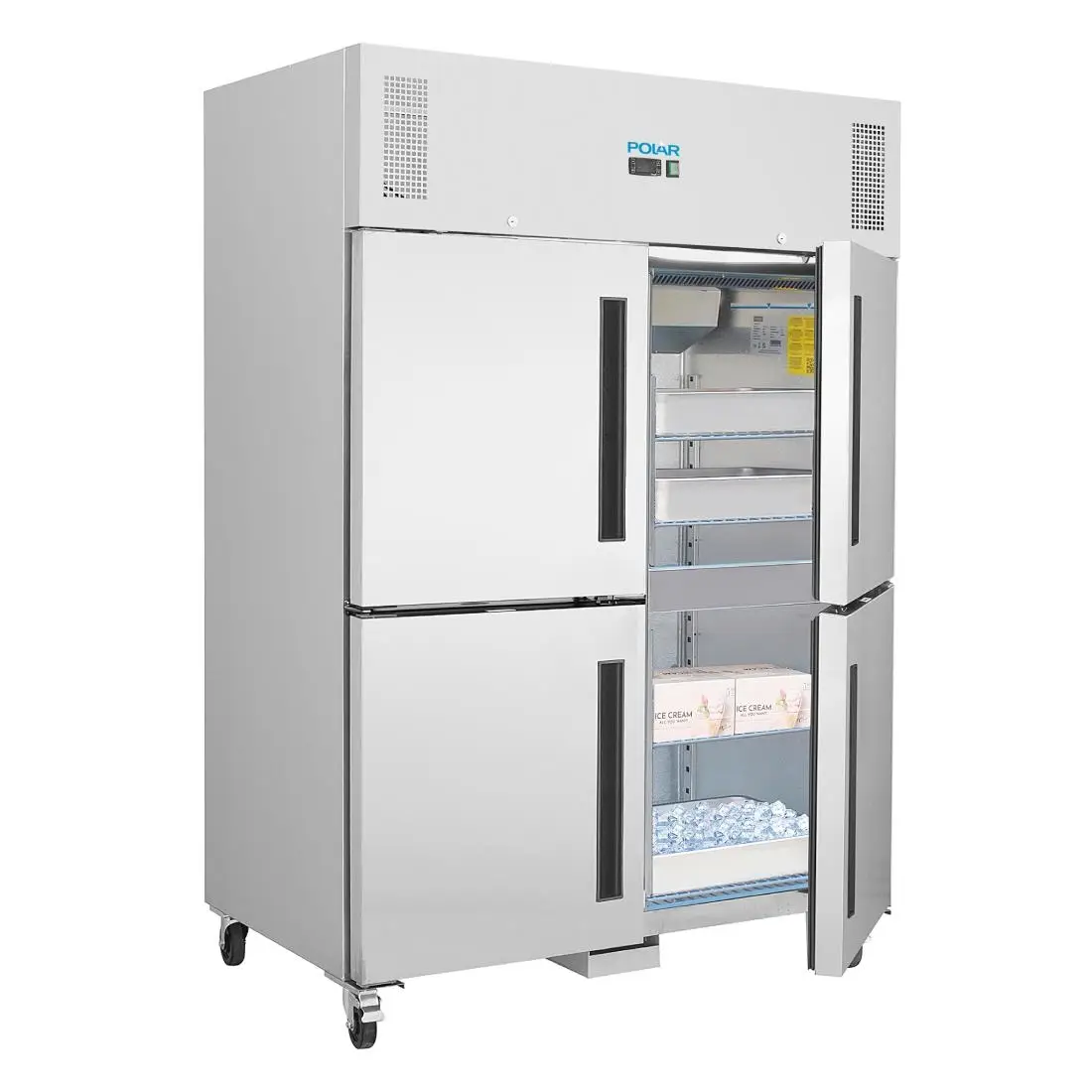

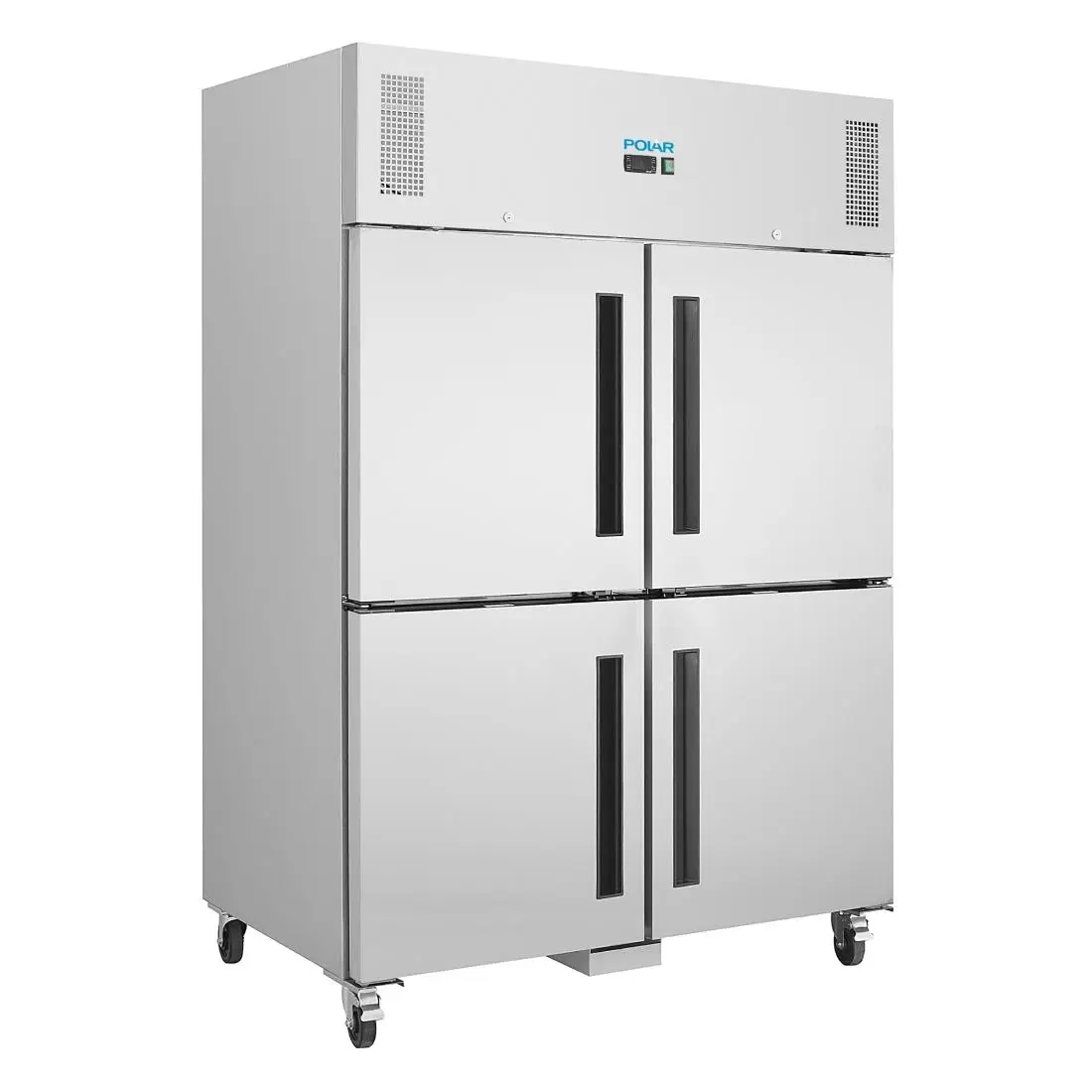

Polar G-Series Upright Double Stable Door Gastro Freezer 1200Ltr CW196

£1,629.53

+vat

Availability: 12 in stock

- +

Brand:

SKU: CW196

Product summary

700W. Total usable capacity: 770 Ltr. R290

Product description

Cabinets with 50/50 split stable doors. By placing more regularly used items at the top and only opening half of the door cold air will fall to the bottom of the unit and be recirculated when the door is shut thus helping the unit return to set temperature quicker and more efficiently – saving you money. Lockable with up to 20 gastronorm 2/1 100mm deep pans. For light to medium duty commercial kitchen and catering environments. Fullt automatic controller with constant digital display. Lockable castors. Refrigerator features off cycle defrost.

6 sturdy adjustable shelves & 2 floor protector shelves maximise capacity
Sturdy lockable castors allow easy positioning

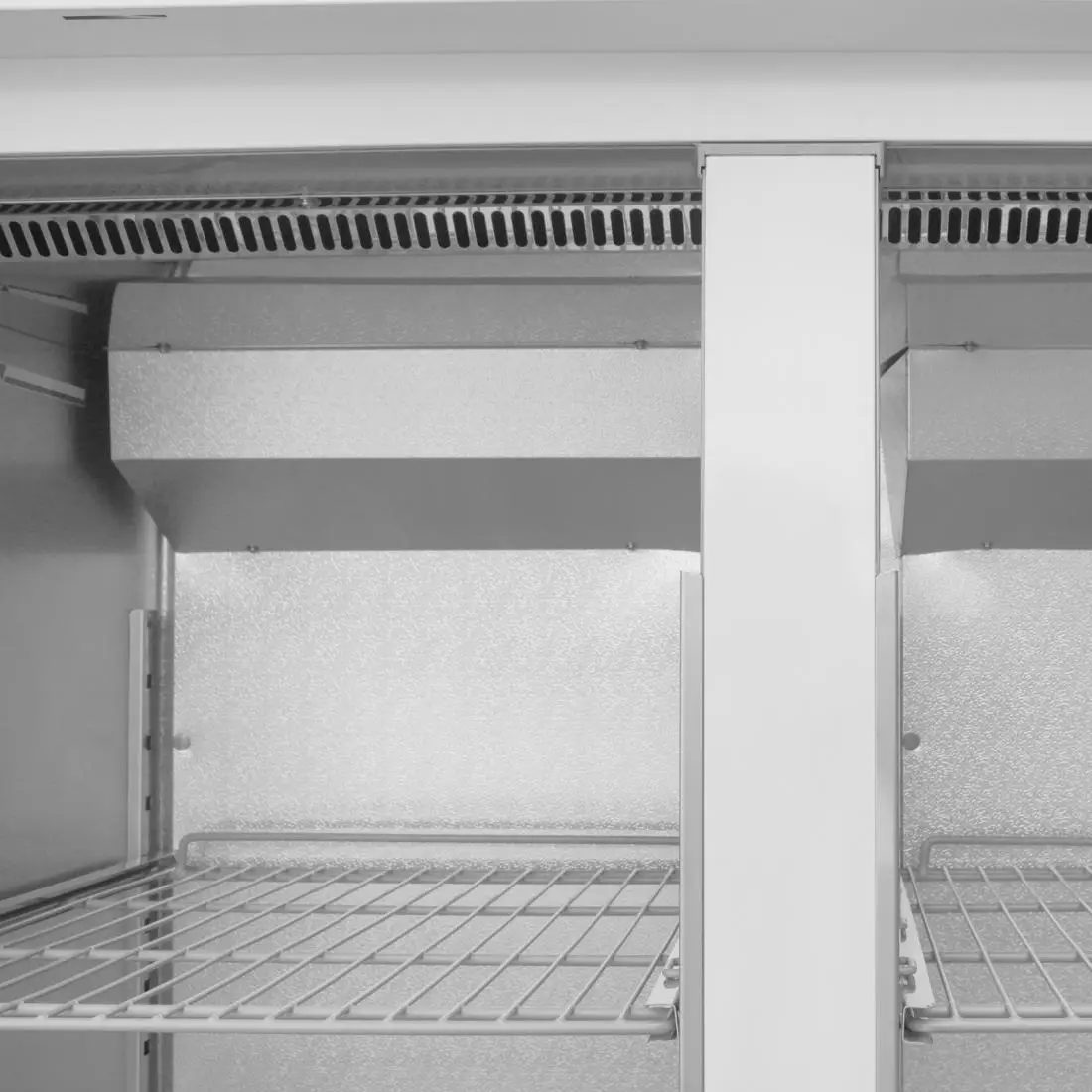

Fan assisted cooling ensures rapid temperature recovery
60mm insulation reduces running costs and improves efficiency
Net Usable Capacity: 770 Ltr
Ambient temperature range: 5°C to 32°C
Time-saving easy-clean construction
User-friendly digital temperature controls and display
Secure self-closing lockable stable doors improves operational efficiency

Downloads

SPECIFICATION 38 facts · tap for all Width1340 mmDepth800 mmHeight2010 mmGross weight195 kgVoltage230VTemperature range-20 to -10 °C

Identity8

Brand Polarsite
GTIN / EAN 5.05098E+12catalogue
Model ref CW196-02catalogue
Product code CW196site
Range / series G Seriescatalogue
Seo name Polar Stable Door Gastro Freezercatalogue
Type Upright Freezerscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight6

Depth 800 mmcatalogue
External (W×D×H) 2010 × 1340 × 800 mmcatalogue
Gross weight 195 kgcatalogue
Height 2010 mmcatalogue
Packed (W×D×H) 2070 × 1370 × 840 mmcatalogue
Width 1340 mmsite

Capacity8

Capacity 20 x 2/1GN (100mm deep)catalogue
Door type Hingedcatalogue
Doors 2catalogue
Gastronorm size 2/1 GN doublecatalogue
Gross volume 1200 litrescatalogue
Net volume 854 litrescatalogue
Product capacity 1200catalogue
Shelves 6catalogue

Performance4

Climate class 4catalogue
Cooling Fan Assist & Staticcatalogue
Refrigerant R290 / GWP 3catalogue
Temperature range -20 to -10 °Ccatalogue

Power & energy3

Fuel type Plugcatalogue
Rated input 700 Wcatalogue
Voltage 230Vcatalogue

Build & fittings3

Colour Silvercatalogue
Finish (interior) Aluminiumcatalogue
Material Stainless Steelcatalogue

Other stated facts6

EEI 63.3 %catalogue
Energy (24h) 9.85 kWh/24hcatalogue
Energy class Dcatalogue
Energy consumption 3595 kWh/yearcatalogue
Mobility Castorscatalogue
Plug notice Yescatalogue
THE WORKING VIEW

Why this upright freezer earns its place

The CW196 is Polar's G-Series double stable-door upright gastronorm freezer — a full-height stainless steel cabinet that holds 854 litres net of frozen stock across six shelves, each sized for 20 x 2/1 gastronorm pans (100 mm deep). Built to sit at the back of a working kitchen at -20 to -10°C, it keeps prepped batches, portioned proteins and bought-in frozen goods to a consistent modular layout so rotation and stock-taking stay simple.

Each side runs on a split stable door rather than a full swing door, so a chef opening just the top half keeps the cabinet mostly sealed through a busy service. That half-door discipline means less warm air pulled into the unit and faster temperature recovery between uses — the manufacturer design centres on that efficiency. Interior shelving carries the stock at working height rather than buried in a chest, and the upright format makes stock-taking and rotation quicker across a varied menu.

It is a full-height back-of-house unit standing 2010 mm tall, 1340 mm wide and 800 mm deep. Plan the run from delivery bay to final position and check every doorway and corner for clearance before it arrives. Running cost sits around 3595 kWh per year depending on your tariff — check those figures in the spec panel and run them through the energy label decoder. Polar backs it with a 2-year parts and labour warranty. Site it with room to swing both doors fully for loading and servicing.

BEFORE YOU BUY

Questions, answered straight

It is a double-door upright built around gastronorm shelving, so capacity is best matched to your menu rather than a single headline figure. The capacity calculator turns covers and menu into the litres you need, and the net volume is listed in the spec panel.

A stable door splits top and bottom, so staff open only the half they are reaching into and the rest of the cabinet stays shut. On a busy line that means fewer full-height openings and less warm air pulled in through service.

It is a full-height floor-standing cabinet, so measure your delivery route — doorways, corners and lift access — against the external dimensions in the spec panel before ordering. Leave clearance to swing both doors where it will finally stand.

Running cost depends on the unit's energy use and your tariff. Drop the figures from the spec panel into the energy label decoder to see pounds per year on your own rate rather than a generic estimate.

Yes. Craven Cooling handles installation and servicing across the range — call the team on 01792 732702 to arrange a visit or talk through a fault. Warranty terms are listed in the spec panel.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Polar G-Series Upright Double Stable Door Gastro Freezer 1200Ltr CW196 Product Data

Brand Polar
Type Upright Freezers
Range G Series
Dimensions 2010(H) x 1340(W) x 800(D)mm
Capacity 20 x 2/1GN (100mm deep)
Material Stainless Steel
Colour / Finish Silver
Temperature Range -20°C to -10°C
Refrigerant R290 / GWP 3
Cooling Fan Assist & Static
Number of Doors 2
Number of Shelves 6
Energy Rating D
Annual Energy Use 3595kWh/annum
Power 700W
Voltage 230V
Fuel / Supply Plug
Warranty 2 Years Parts & Labour
Weight 180kg
Manufacturer Ref G-ECS1200BTM
If you have any questions about the Polar G-Series Upright Double Stable Door Gastro Freezer 1200Ltr CW196 then please get in touch.
