TEFCOLD CRPF1827 Chiller Room

£4,349.00

+vat

Brand:

SKU: 66817

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Easy assembly
  • Anti-slip floor in SS304 stainless steel
  • 80 mm panel insulation
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Cost-effective, easy and efficient storage through cold rooms

The CRPF range of cold rooms can be used in restaurants, delis, cafes or similar environments. They offer the perfect way to create an optimised and efficient cooling space to make days easier and save on energy costs, all at a great price. Cold rooms create the ideal environment for easy access and food and beverage storage, it’s great for dairy products too.

The TEFCOLD CRPF1827 is a modular walk-in chiller room with a 1640 × 2540 × 2040 mm internal footprint (W×D×H), holding stock at 0 to +8 °C on R290 refrigerant with automatic hot-gas defrost and an electronic controller.

SPECIFICATION 37 facts · tap for all External W × D × H1800 x 2700 x 2200 mmWidth1800 mmDepth2700 mmGross / net weight520 / 490 kgGross weight520 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750473site
Product code 66817site
Sub title Chiller Roomcatalogue
Type Walk-in Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 2700 mmsite
External (W×D×H) 1800 × 2700 × 2200 mmcatalogue
External W × D × H 1800 x 2700 x 2200 mmsite
Gross / net weight 520 / 490 kgsite
Gross weight 520 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 1640 × 2540 × 2040 mmcatalogue
Internal W × D × H 1640 x 2540 x 2040 mmsite
Packed (W×D×H) 2200 × 1900 × 2400 mmcatalogue
Packed W × D × H 2200 x 1900 x 2400 mmsite
Width 1800 mmsite

Capacity2

Doors 1catalogue
Internal volume 8.5site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range 0 to +8site
Thermometer Yessite

Power & energy5

Annual energy consumption 7709 kWh/yearsite
Energy consumption 21.12 kWh/24hsite
Input power 905 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 1500 kg/m²site
Wall thickness 80site
THE WORKING VIEW

Why this walk-in fridge earns its place

The TEFCOLD CRPF1827 is a walk-in chiller room that gives a working kitchen a dedicated cold store instead of a wall of upright fridges. Its 1640 × 2540 × 2040 mm internal footprint (W×D×H) takes deliveries, prepped stock and bulk ingredients behind a single door, keeping the main line clear and putting the whole day's cold storage in one place. Interior and exterior are white throughout, so panels wipe down for back-of-house hygiene.

Day to day it holds a 0 to +8 °C band under an electronic controller, with automatic hot-gas defrost clearing the evaporator so there are no manual shutdowns to schedule. It runs on R290 refrigerant with a 150 g charge and a rated sound level of 60 dB. Energy use is rated at 7709 kWh a year — about £1927 a year at 25p/kWh — so it is a fixed line on the utility budget worth sizing against actual stock volume.

The single hinged solid door measures 700 mm wide by 1845 mm high, the access dimension to plan your delivery route and doorway clearances around. The room weighs 490 kg net and 520 kg gross, and runs on a standard 220-240 V/50 Hz supply. Cooling is by a pre-fitted straddle unit, so once the panels are assembled the room is ready to power up.

BEFORE YOU BUY

Questions, answered straight

It holds a 0 to +8 °C chilled band, governed by an electronic controller. That covers general chilled storage for deliveries, prepped stock and bulk ingredients.

Defrost is automatic, using hot gas to clear the evaporator. There is no manual defrost cycle to schedule, so the room stays in service without staff intervention.

The room ships as flat panels for cam-lock assembly on site, and the internal footprint is 1640 × 2540 × 2040 mm (W×D×H). Plan the delivery route for the packed panels and confirm your install space before ordering.

Rated energy use is 7709 kWh a year, which works out at about £1927 a year at 25p/kWh. Actual cost depends on your tariff, ambient temperature and how often the door is opened.

It uses R290, a natural hydrocarbon refrigerant, with a 150 g charge. The cooling unit is pre-fitted as a straddle unit over the room.

Yes. Our service team handles commercial refrigeration maintenance and breakdowns — call 01792 732702 to arrange a visit or discuss a service plan.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

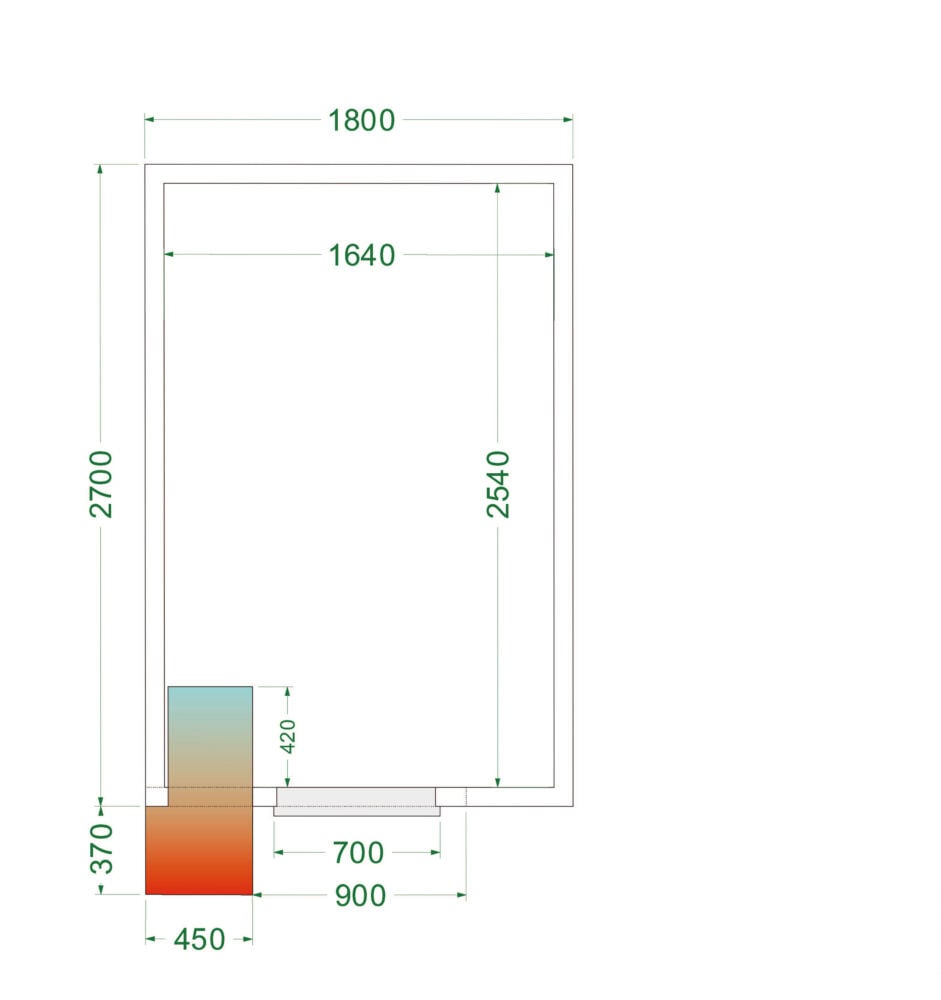

Dimensions

Internal Dimension (WxDxH): 1640 x 2540 x 2040 mm
External Dimension (WxDxH): 1800 x 2700 x 2200 mm
Packed Dimension (WxDxH): 2200 x 1900 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 21.12 kWh/24h
Temperature Range: 0 to +8 °C
Annual Energy Consumption: 7709 kWh/year m³
Input Power: 905 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 8.5 m³
Wall Thickness: 80 mm
Temperature Range: 0 to +8 °C
Gross / Net Weight: 520 / 490 kg
Max Load on Floor: 1500 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRPF1827 Chiller Room then please get in touch.
