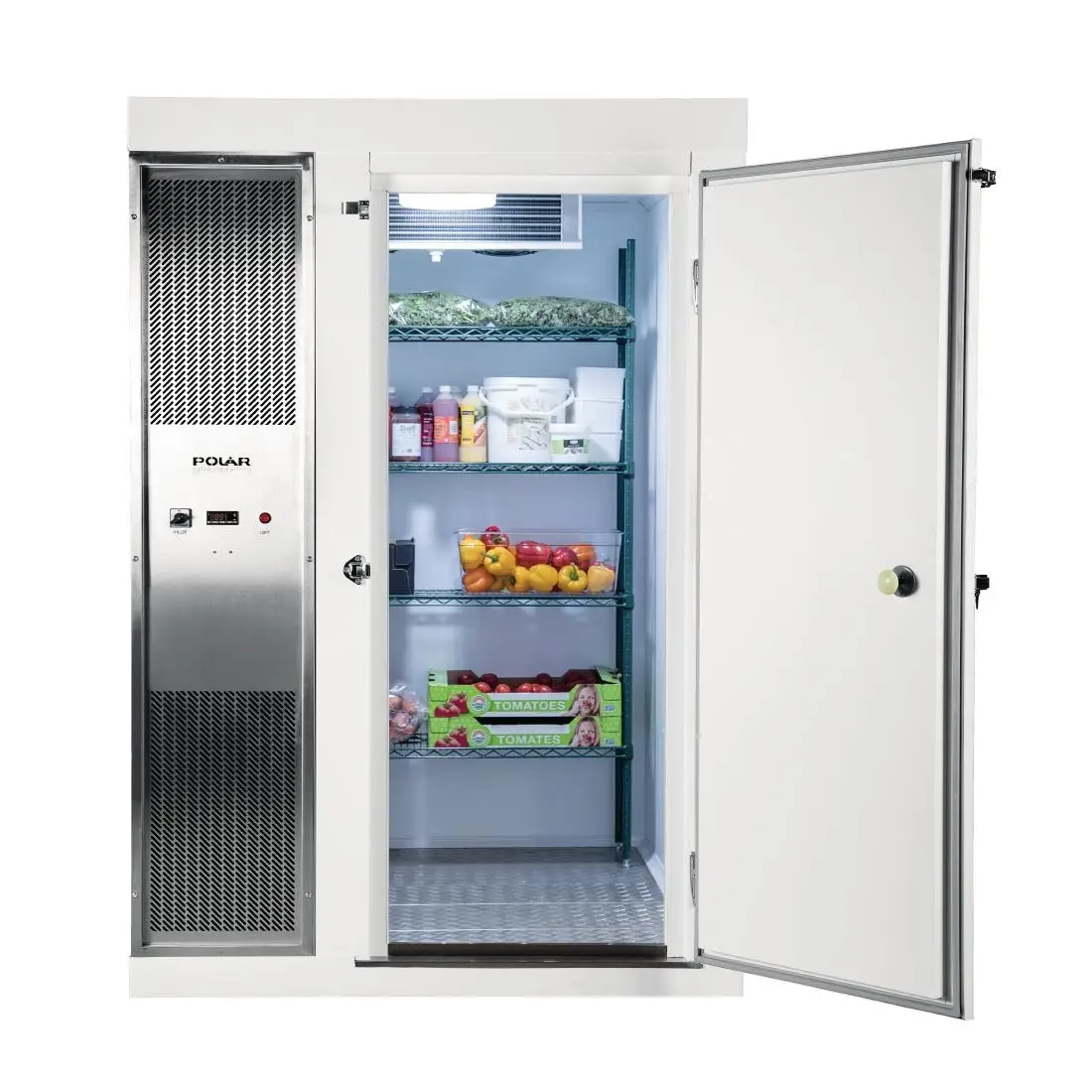

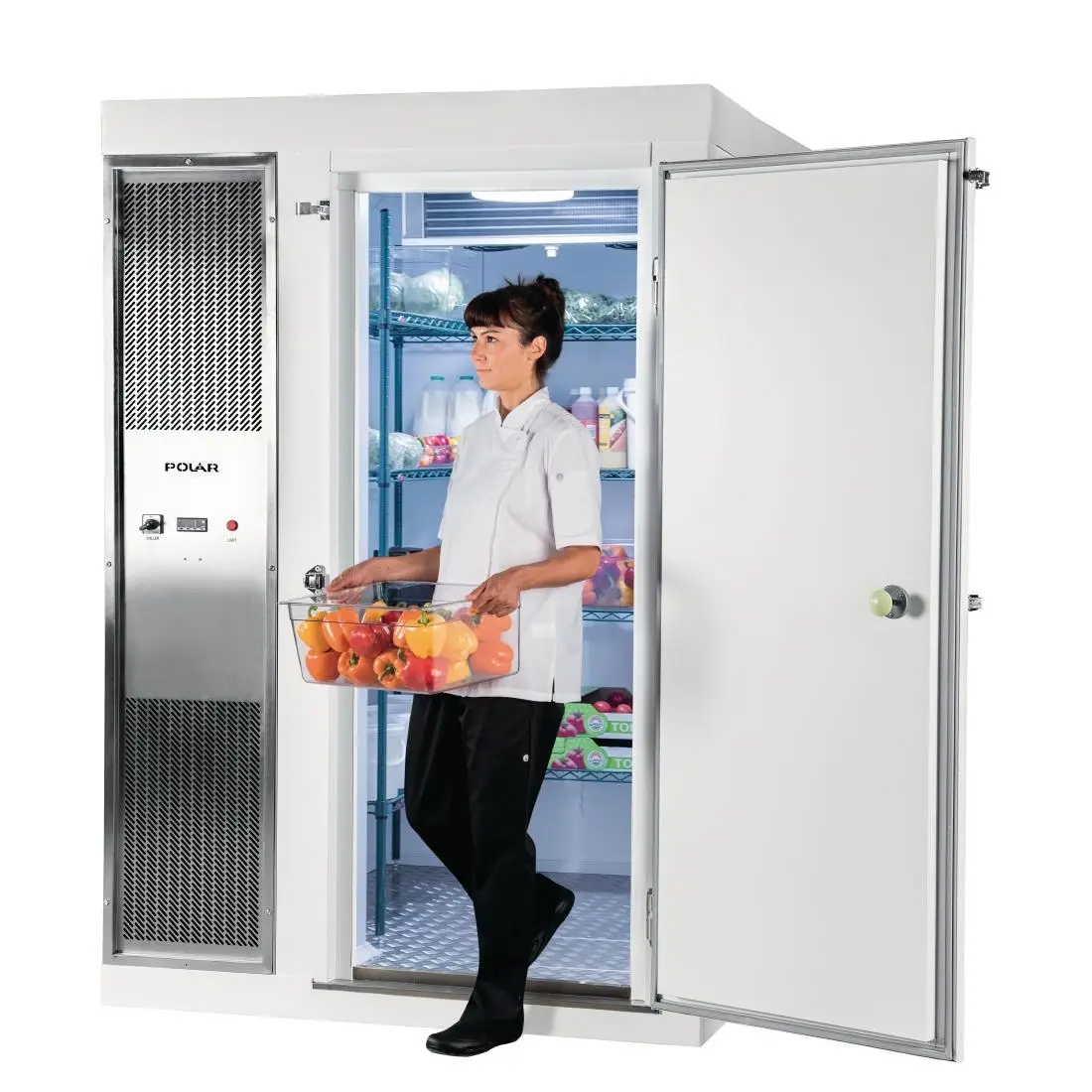

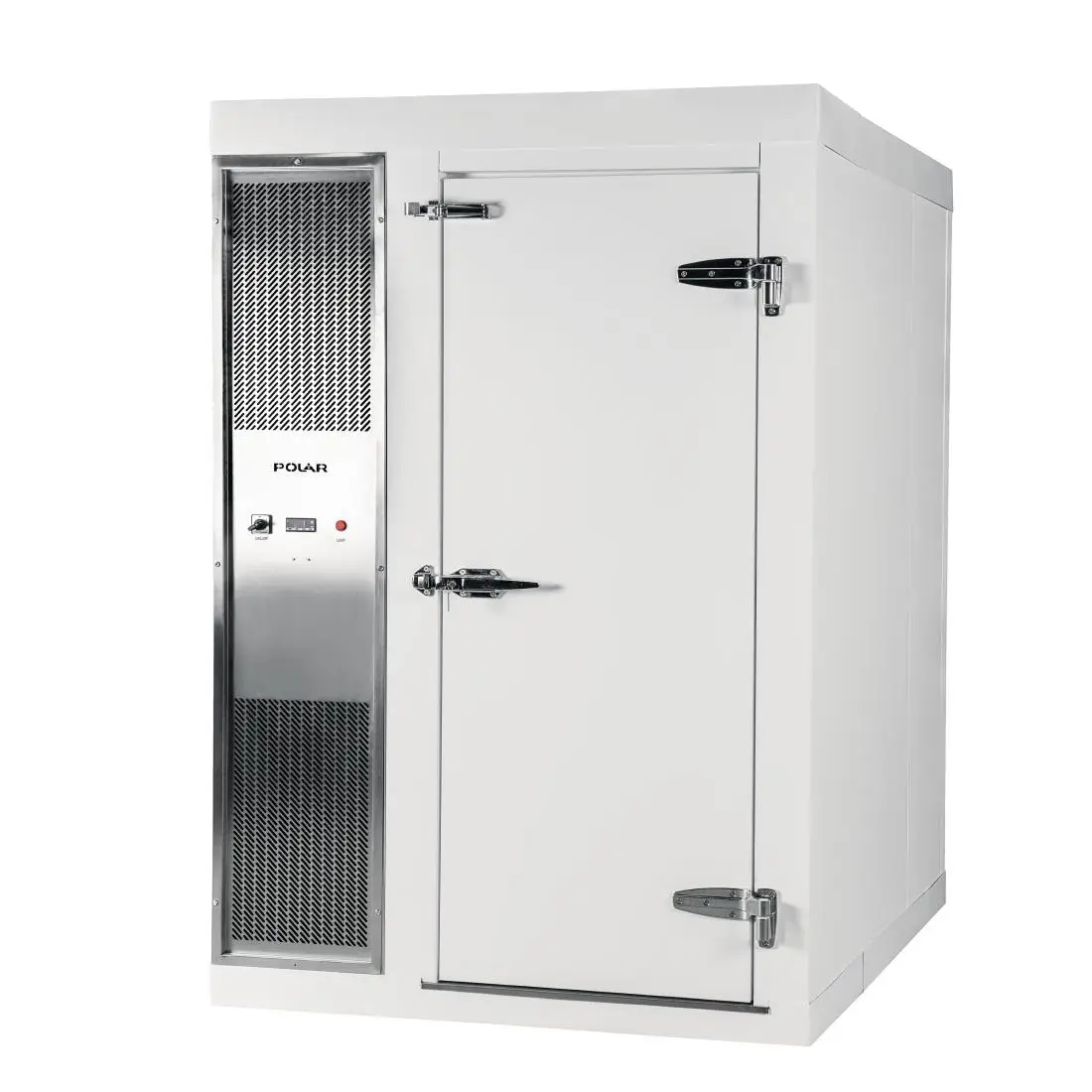

Polar U-Series 1.5 x 1.2m Integral Walk In Cold Room White DS481-CWH

£5,390.62

+vat

Availability: 999 in stock

- +

Brand:

SKU: DS481-CWH

Product summary

1.5 x 1.2m. Capacity: 2843 Ltr. Chiller

Product description

Integral Walk In Room designed to work in 43°C. Internal light & 13amp Plug. 2 Year Full Warranty, 5 Year Panel guarantee.

Operates effectively at high ambient temperatures up to 43°C
Easy clean internal coving and wall panels
Internal light with 18W sealed light fitting
Intuitive digital temperature control and display
Non-slip aluminium floor
High/low temperature alarm
Easy-clean door seal/gasket
Wall panels constructed from 0.6mm thick galvanised steel finished with 200 microns of food safe white plastic
Weather and humidity resistant front control panel
Highly efficient 80mm panel insulation with dovetail joints to prevent air leakage
Lockable self closing door shuts flush against door panels for security and efficiency
7 day warranty cover

Downloads

SPECIFICATION 29 facts · tap for all Width1500 mmDepth1200 mmHeight2200 mmGross weight350 kgVoltage230VTemperature range+2 to +5 °C

Identity7

Brand Polarsite
GTIN / EAN 5.05098E+12catalogue
Product code DS481-CWHsite
Range / series U Seriescatalogue
Seo name Polar Integral Walk In Cold Room Whitecatalogue
Type Fridge Roomscatalogue
Warranty 2 Years Parts & Labourcatalogue

Size & weight6

Depth 1200 mmcatalogue
External (W×D×H) 2200 × 1500 × 1200 mmcatalogue
Gross weight 350 kgcatalogue
Height 2200 mmcatalogue
Internal (W×D×H) 2037 × 1280 × 980 mmcatalogue
Width 1500 mmsite

Capacity5

Capacity 2843Ltrcatalogue
Door type Hingedcatalogue
Doors 1catalogue
Gross volume 2843 litrescatalogue
Product capacity 2843catalogue

Performance3

Cooling Fan Assistcatalogue
Refrigerant R449A / 1500gcatalogue
Temperature range +2 to +5 °Ccatalogue

Power & energy3

Fuel type Single Phasecatalogue
Rated input 1800 Wcatalogue
Voltage 230Vcatalogue

Build & fittings4

Colour Whitecatalogue
Doorocation Frontcatalogue
Insulation 80 mmcatalogue
Material Galvanised Steel/ Aluminium & Plasticcatalogue

Other stated facts1

Plug notice Yescatalogue
THE WORKING VIEW

Why this fridge room earns its place

The DS481-CWH is a walk-in cold room from Polar's U-Series, built to give a busy kitchen a dedicated space for chilled stock at +2 to +5°C instead of a row of upright fridges taking up prep space. At 1.5 × 1.2m footprint with 2,843 litres capacity, it suits back-of-house corners, cellars and prep areas where floor space is tight but chilled capacity has to grow with the operation. Internal working space is 2,037 × 1,280 × 980mm—room enough for trolleys, shelving and date-rotation work.

Because it is an integral unit, the R449A cooling with 80mm insulation is built into the room itself—there is no separate condensing unit to site elsewhere. It arrives as a single, self-contained cold-storage solution you power up and load. The integral design keeps installation footprint and complexity down. Walk-in access lets staff wheel in trolleys, rotate stock by date and pick orders without unstacking, which keeps a chilled section organised through service.

Plan the install around the 1.5 × 1.2m footprint and the route to the room's final position. The room weighs 350kg empty and needs a level floor able to take that weight, plus clearance around the plant for airflow and provision for defrost drainage. It is finished in white and built from modular insulated panels on site. The room comes with a 2-year parts and labour warranty plus a 5-year panel guarantee. Our team can advise on final electrical, siting and commissioning before delivery.

BEFORE YOU BUY

Questions, answered straight

No. This is an integral room, so the R449A cooling is built in with 80mm insulation. There is no remote plant to site and no external pipework to run. It arrives as one self-contained unit on 230V that you power up and load.

The rated capacity is 2,843 litres, holding a working temperature of +2 to +5°C. The internal working space is 2,037 × 1,280 × 980mm, so there is room for shelving, trolleys and proper stock rotation. Our cold room sizing calculator helps match it to your menu volume.

Plan around the 1.5 × 1.2m footprint—the room weighs 350kg empty and is built from modular panels on site. Measure doorways, corridors and the final siting position before delivery so panels can reach their destination. Our team can talk access through with you if the route is tight.

It depends on your volume and floor space. A walk-in gives you one organised chilled room held at a steady +2 to +5°C rather than several separate cabinets at varying temperatures. Our cold room vs uprights comparator weighs the two for your actual numbers.

Running cost depends on ambient temperature, door use and how hard the room works. The room runs on 230V. Our finance calculator shows the monthly and weekly cost of the unit over a five-year term to help you budget, and the energy decoder converts the specs to pounds per year on your tariff.

It carries a 2-year parts and labour warranty plus a 5-year panel guarantee. Our service team can advise on installation, planned servicing and breakdown cover. Call 01792 732702 to arrange support before or after you order.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Polar U-Series 1.5 x 1.2m Integral Walk In Cold Room White DS481-CWH Product Data

Brand Polar
Type Fridge Rooms
Range U Series
Dimensions 2200(H) x 1500(W) x 1200(D)mm
Capacity 2843Ltr
Material Galvanised Steel/ Aluminium & Plastic
Colour / Finish White
Temperature Range 2°C to 5°C
Refrigerant R449A / 1500g
Cooling Fan Assist
Number of Doors 1
Power 13A Plug Fitted – Single Phase
Voltage 230V
Fuel / Supply Single Phase
Warranty 2 Years Parts & Labour
Weight 350kg
If you have any questions about the Polar U-Series 1.5 x 1.2m Integral Walk In Cold Room White DS481-CWH then please get in touch.
