TEFCOLD CRNF2430 Freezer Room

£7,192.00

+vat

Brand:

SKU: 66851

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Freezing unit
  • Easy assembly
  • 120 mm panel insulation
  • Anti-slip floor in SS304 stainless steel
  • Alarm kit as accessory
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Ideal, cost-effective, efficient storage with the freezer rooms range

The CRNF freezer room range is ideal for a variety of settings including restaurants, cafes, delis and retail stores. They’re the perfect solution for creating an efficient, optimised freezing space and are highly cost-effective. The modular panel rooms provide easy assembly, simplifying the set-up process significantly. Choose from a variety of sizes to get the perfect fit for your business. These are also available in a cool room version too.

The TEFCOLD CRNF2430 is a modular walk-in freezer room with a 2160 × 2760 mm internal footprint, holding -20 to -10 °C on natural R290 refrigerant with automatic hot-gas defrost and electronic control.

SPECIFICATION 37 facts · tap for all External W × D × H2400 x 3000 x 2200 mmWidth2400 mmDepth3000 mmGross / net weight825 / 795 kgGross weight825 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750817site
Product code 66851site
Sub title Freezer Roomcatalogue
Type Walk-in Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 3000 mmsite
External (W×D×H) 2400 × 3000 × 2200 mmcatalogue
External W × D × H 2400 x 3000 x 2200 mmsite
Gross / net weight 825 / 795 kgsite
Gross weight 825 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 2160 × 2760 × 1960 mmcatalogue
Internal W × D × H 2160 x 2760 x 1960 mmsite
Packed (W×D×H) 2500 × 1600 × 2400 mmcatalogue
Packed W × D × H 2500 x 1600 x 2400 mmsite
Width 2400 mmsite

Capacity2

Doors 1catalogue
Internal volume 11.68site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 200 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy5

Annual energy consumption 11598 kWh/yearsite
Energy consumption 31.78 kWh/24hsite
Input power 1630 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 2000 kg/m²site
Wall thickness 120site
THE WORKING VIEW

Why this walk-in freezer earns its place

The CRNF2430 is a modular walk-in freezer room for bulk frozen storage. The internal space measures 2160 × 2760 × 1960 mm (W×D×H) — a proper walk-in floor for boxed stock, trolleys and volume that would swamp a bank of uprights. Panels are white inside and out, and access is through a single hinged solid door measuring 700 mm wide by 1765 mm high.

In use it holds a frozen band of -20 to -10 °C, managed by an electronic controller with automatic hot-gas defrost that keeps the evaporator clear without a manual routine. It is rated at 60 dB. At 11599.7 kWh a year, running cost works out at about £2900 a year at 25p/kWh, on natural R290 refrigerant with a 200 g charge.

For installation it needs a 220-240 V/50 Hz, 13 A supply, drawing 1630 W input power. The assembled room weighs 825 kg gross (795 kg net), so plan the delivery route, lifting and floor loading in advance, and check the 700 mm door aperture against how you load stock in and out.

BEFORE YOU BUY

Questions, answered straight

Internal dimensions are 2160 × 2760 × 1960 mm (W×D×H). Access is through a single door with a 700 mm wide by 1765 mm high aperture.

It holds -20 to -10 °C, managed by an electronic controller with automatic hot-gas defrost. Panels are white inside and out.

A 220-240 V/50 Hz, 13 A supply. Input power is 1630 W and it runs on natural R290 refrigerant with a 200 g charge.

It is rated at 11599.7 kWh a year — about £2900 a year at 25p/kWh.

The assembled room weighs 825 kg gross, 795 kg net. Plan the delivery route, lifting and floor loading accordingly.

Yes — our engineers install and maintain Tefcold cold and freezer rooms. Call 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

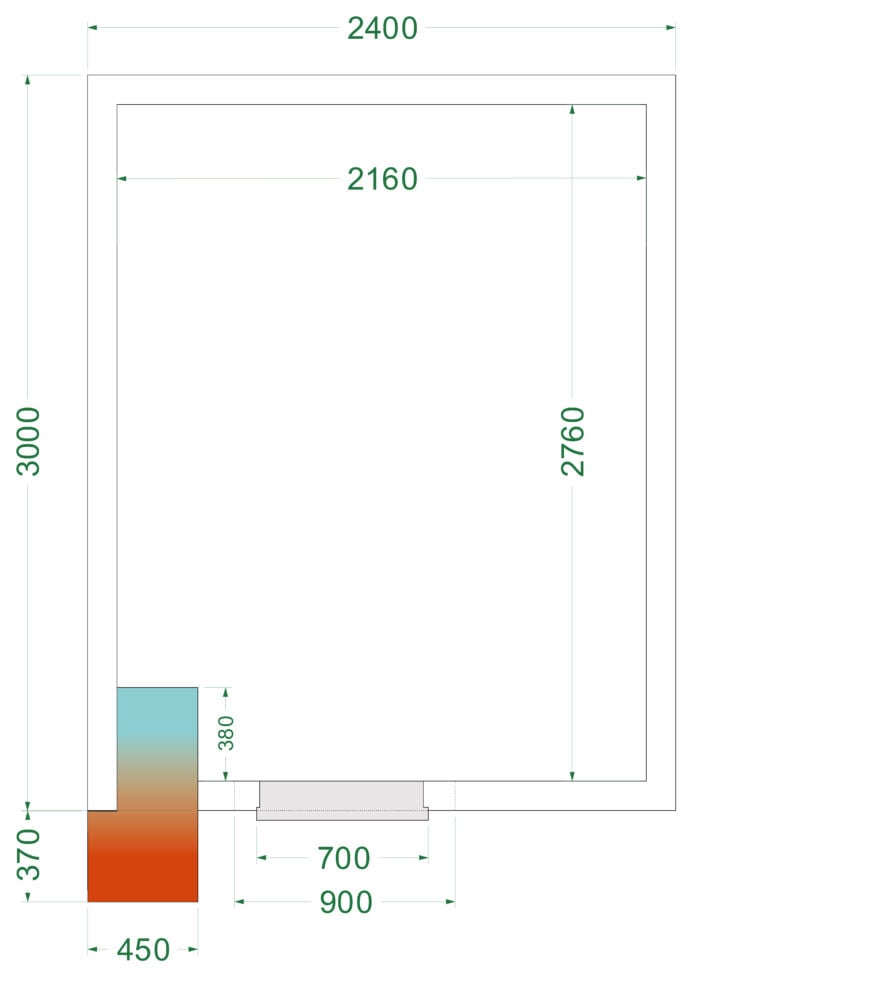

Dimensions

Internal Dimension (WxDxH): 2160 x 2760 x 1960 mm
External Dimension (WxDxH): 2400 x 3000 x 2200 mm
Packed Dimension (WxDxH): 2500 x 1600 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 200 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 31.78 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 11598 kWh/year m³
Input Power: 1630 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 11.68 m³
Wall Thickness: 120 mm
Temperature Range: -20 to -10 °C
Gross / Net Weight: 825 / 795 kg
Max Load on Floor: 2000 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRNF2430 Freezer Room then please get in touch.
