TEFCOLD CRNF2427 Freezer Room

£7,002.00

+vat

Brand:

SKU: 66850

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Freezing unit
  • Easy assembly
  • 120 mm panel insulation
  • Anti-slip floor in SS304 stainless steel
  • Alarm kit as accessory

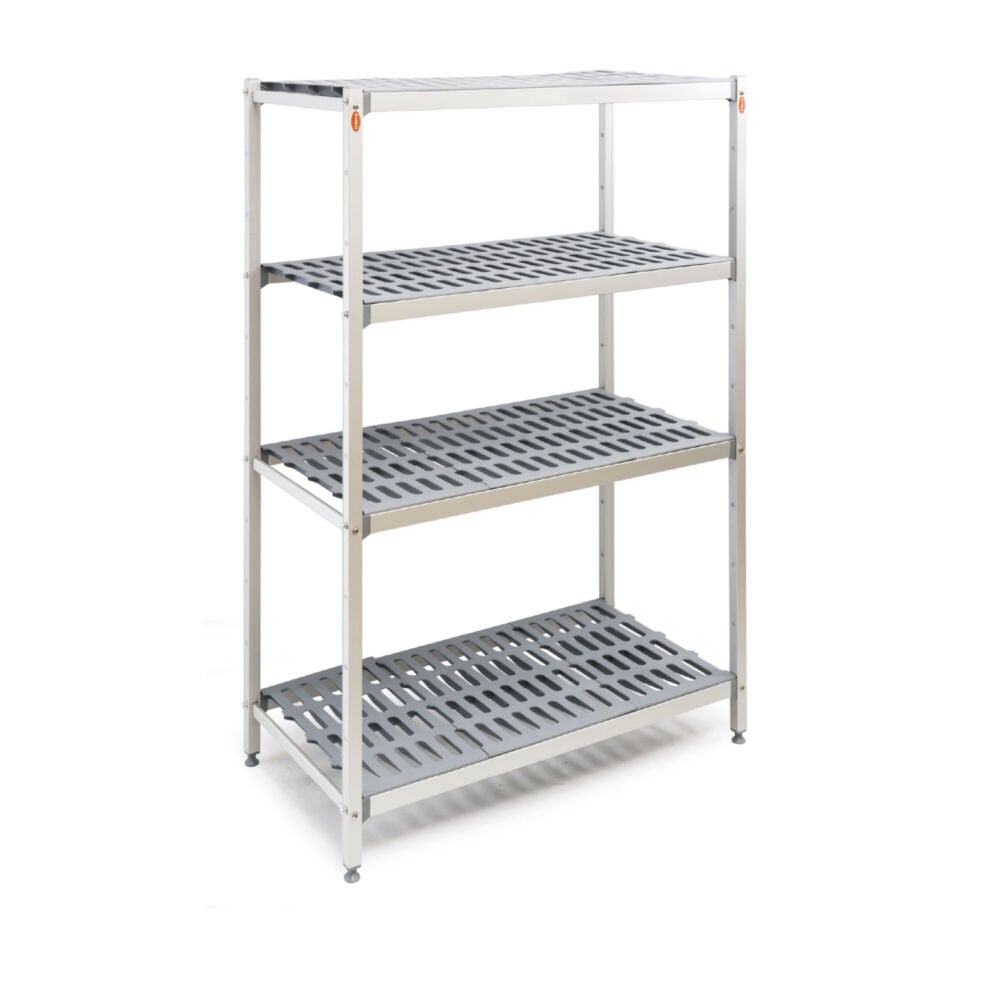

  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Ideal, cost-effective, efficient storage with the freezer rooms range

The CRNF freezer room range is ideal for a variety of settings including restaurants, cafes, delis and retail stores. They’re the perfect solution for creating an efficient, optimised freezing space and are highly cost-effective. The modular panel rooms provide easy assembly, simplifying the set-up process significantly. Choose from a variety of sizes to get the perfect fit for your business. These are also available in a cool room version too.

The TEFCOLD CRNF2427 is a large walk-in freezer room that holds a -20 to -10 °C band across a 2160 × 2460 × 1960 mm internal chamber, running R290 refrigerant with automatic hot-gas defrost and an electronic controller off a 13-amp supply.

SPECIFICATION 37 facts · tap for all External W × D × H2400 x 2700 x 2200 mmWidth2400 mmDepth2700 mmGross / net weight800 / 770 kgGross weight800 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750800site
Product code 66850site
Sub title Freezer Roomcatalogue
Type Walk-in Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 2700 mmsite
External (W×D×H) 2400 × 2700 × 2200 mmcatalogue
External W × D × H 2400 x 2700 x 2200 mmsite
Gross / net weight 800 / 770 kgsite
Gross weight 800 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 2160 × 2460 × 1960 mmcatalogue
Internal W × D × H 2160 x 2460 x 1960 mmsite
Packed (W×D×H) 2500 × 1900 × 2400 mmcatalogue
Packed W × D × H 2500 x 1900 x 2400 mmsite
Width 2400 mmsite

Capacity2

Doors 1catalogue
Internal volume 10.41site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 200 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy5

Annual energy consumption 11598 kWh/yearsite
Energy consumption 31.78 kWh/24hsite
Input power 1630 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 2000 kg/m²site
Wall thickness 120site
THE WORKING VIEW

Why this walk-in freezer earns its place

The TEFCOLD CRNF2427 is a large self-contained walk-in freezer room for high-volume frozen storage. Its 2160 × 2460 × 1960 mm internal chamber gives more than five square metres of floor to shelve and stack bulk frozen stock, deliveries and portioned prep, taking the pressure off upright freezers in a busy operation. The single hinged solid door opens to a 700 mm wide by 1765 mm high aperture for trolley loading.

Day to day it runs on an electronic controller with automatic hot-gas defrost, so the evaporator clears without a manual routine and the chamber holds its frozen band. Cooling uses R290 refrigerant with a 200 g charge, draws 1630 W and is rated at 60 dB. Against a verified 11599.7 kWh a year, running cost works out at about £2900 a year at 25p/kWh.

For install, the internal chamber is 2160 × 2460 × 1960 mm, so allow for the wall build-out and the standing footprint. This is a heavy unit at 800 kg gross and 770 kg net, so plan delivery access, floor loading and lifting carefully. Electrical supply is a 13-amp, 220-240 V/50 Hz single-phase connection.

BEFORE YOU BUY

Questions, answered straight

It runs a -20 to -10 °C band on an electronic controller. Automatic hot-gas defrost keeps the evaporator clear without a manual defrost routine.

Verified energy use is 11599.7 kWh a year, which is about £2900 a year at 25p/kWh. Actual cost depends on your tariff, door traffic and ambient conditions.

A 13-amp, 220-240 V/50 Hz single-phase supply. The cooling system draws 1630 W and runs on R290 refrigerant with a 200 g charge.

The internal chamber measures 2160 × 2460 × 1960 mm — more than five square metres of floor. The door aperture is 700 mm wide and 1765 mm high for trolley loading.

It weighs 800 kg gross and 770 kg net, so plan delivery access, floor loading and lifting before it arrives.

As with any commercial refrigeration, the R290 system should be serviced periodically to keep it performing. Craven Cooling can arrange this on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2160 x 2460 x 1960 mm
External Dimension (WxDxH): 2400 x 2700 x 2200 mm
Packed Dimension (WxDxH): 2500 x 1900 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 200 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 31.78 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 11598 kWh/year m³
Input Power: 1630 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 10.41 m³
Wall Thickness: 120 mm
Temperature Range: -20 to -10 °C
Gross / Net Weight: 800 / 770 kg
Max Load on Floor: 2000 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED

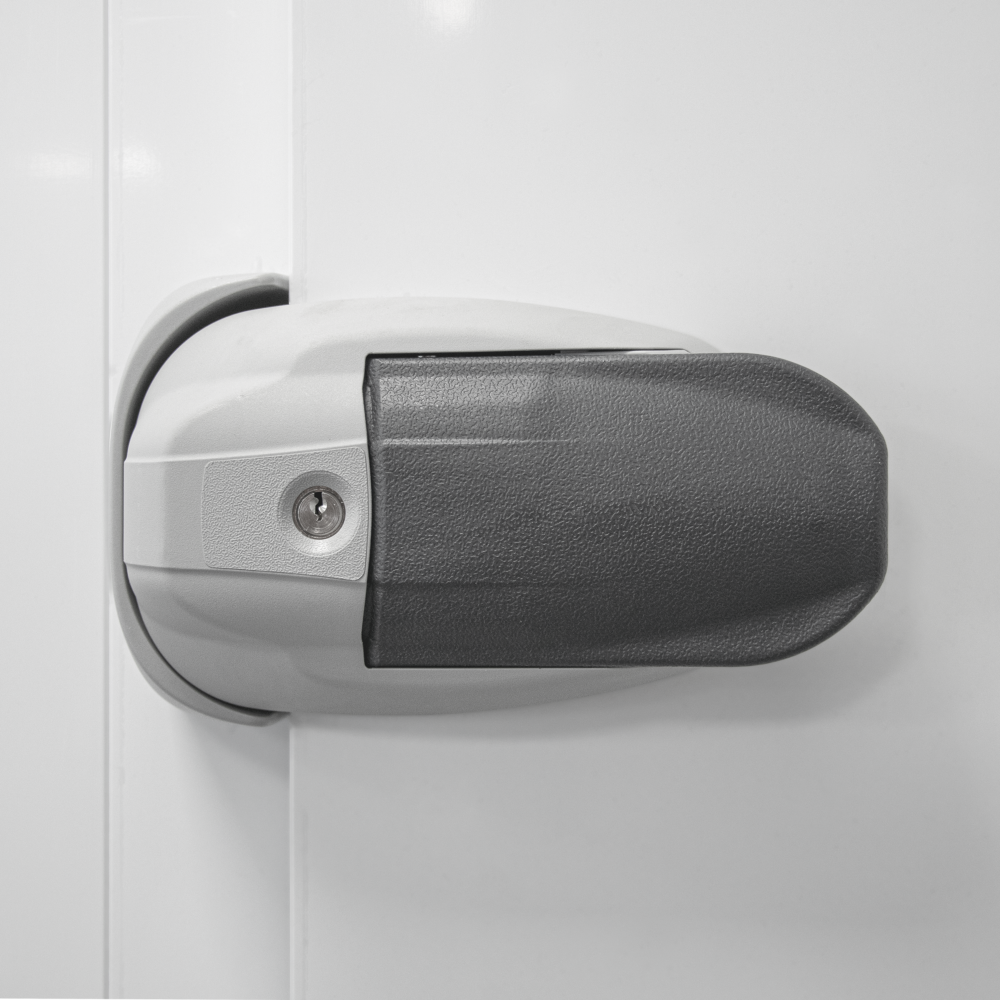

Lock: Yes
If you have any questions about the TEFCOLD CRNF2427 Freezer Room then please get in touch.
