TEFCOLD CRNF2424 Freezer Room

£6,618.00

+vat

Brand:

SKU: 66849

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Freezing unit
  • Easy assembly
  • 120 mm panel insulation
  • Anti-slip floor in SS304 stainless steel
  • Alarm kit as accessory
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Ideal, cost-effective, efficient storage with the freezer rooms range

The CRNF freezer room range is ideal for a variety of settings including restaurants, cafes, delis and retail stores. They’re the perfect solution for creating an efficient, optimised freezing space and are highly cost-effective. The modular panel rooms provide easy assembly, simplifying the set-up process significantly. Choose from a variety of sizes to get the perfect fit for your business. These are also available in a cool room version too.

The Tefcold CRNF2424 is a walk-in freezer room with a 2160 × 2160 × 1960 mm internal footprint that holds bulk stock at -20 to -10 °C on R290 refrigerant, running automatic hot-gas defrost under electronic control and drawing about £2,694 a year at 25p/kWh.

SPECIFICATION 36 facts · tap for all External W × D × H2400 x 2400 x 2200 mmWidth2400 mmGross / net weight785 / 755 kgGross weight785 kgVoltage / frequency220-240/50 V/HzInput power1394.73 W

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750794site
Product code 66849site
Sub title Freezer Roomcatalogue
Type Walk-in Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

External (W×D×H) 2400 × 2400 × 2200 mmcatalogue
External W × D × H 2400 x 2400 x 2200 mmsite
Gross / net weight 785 / 755 kgsite
Gross weight 785 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 2160 × 2160 × 1960 mmcatalogue
Internal W × D × H 2160 x 2160 x 1960 mmsite
Packed (W×D×H) 2200 × 1900 × 2400 mmcatalogue
Packed W × D × H 2200 x 1900 x 2400 mmsite
Width 2400 mmsite

Capacity2

Doors 1catalogue
Internal volume 9.14site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 200 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy5

Annual energy consumption 10775 kWh/yearsite
Energy consumption 29.52 kWh/24hsite
Input power 1394.73 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 2000 kg/m²site
Wall thickness 120site
THE WORKING VIEW

Why this walk-in freezer earns its place

The Tefcold CRNF2424 is a walk-in freezer room built for kitchens and food businesses that have outgrown upright freezers and need to hold pallet-scale frozen stock in one controlled space. With a 2160 × 2160 × 1960 mm internal footprint, it gives you a room you can walk into and shelve out, rather than a bank of cabinets to manage door by door. It arrives as a modular kit with the motor unit, panels and shelving to assemble on site.

Day to day it holds frozen product across a -20 to -10 °C band under an electronic controller, so temperatures stay set-and-forget rather than dialled by hand. Defrost is automatic and hot-gas, clearing the evaporator on its own cycle without a manual shutdown. The condensing unit runs on R290 hydrocarbon refrigerant with a 200 g charge, and sits at a measured 60 dB in use.

The room draws a 13 A supply on 220-240 V / 50 Hz with a 1,394.73 W input, so it fits a standard commercial single-phase circuit. Access is through one hinged solid door measuring 700 mm wide by 1,765 mm high — worth checking against your delivery and installation route, since the assembled room weighs 785 kg gross. Both the internal and external finish are white throughout.

BEFORE YOU BUY

Questions, answered straight

It runs as a freezer room across a -20 to -10 °C band, managed by an electronic controller. That covers standard frozen storage for meat, prepared batches and bulk stock.

The internal footprint is 2160 × 2160 × 1960 mm (W × D × H), giving you a room to walk into and shelve out. Access is through a single hinged solid door 700 mm wide and 1,765 mm high.

Rated energy use is 10,774.8 kWh a year, which is about £2,694 a year at 25p/kWh. Actual figures depend on your tariff, ambient conditions and how often the door is opened.

It runs on a 13 A supply at 220-240 V / 50 Hz with a 1,394.73 W input, so it connects to a standard commercial single-phase circuit rather than needing three-phase.

It ships as a modular kit — motor unit, panels and shelving — for assembly on site. The finished room weighs 785 kg gross, so plan your delivery access and installation route before it arrives.

It uses R290 hydrocarbon refrigerant with a 200 g charge, and runs at a measured 60 dB. For servicing or an install survey, call the Craven Cooling team on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

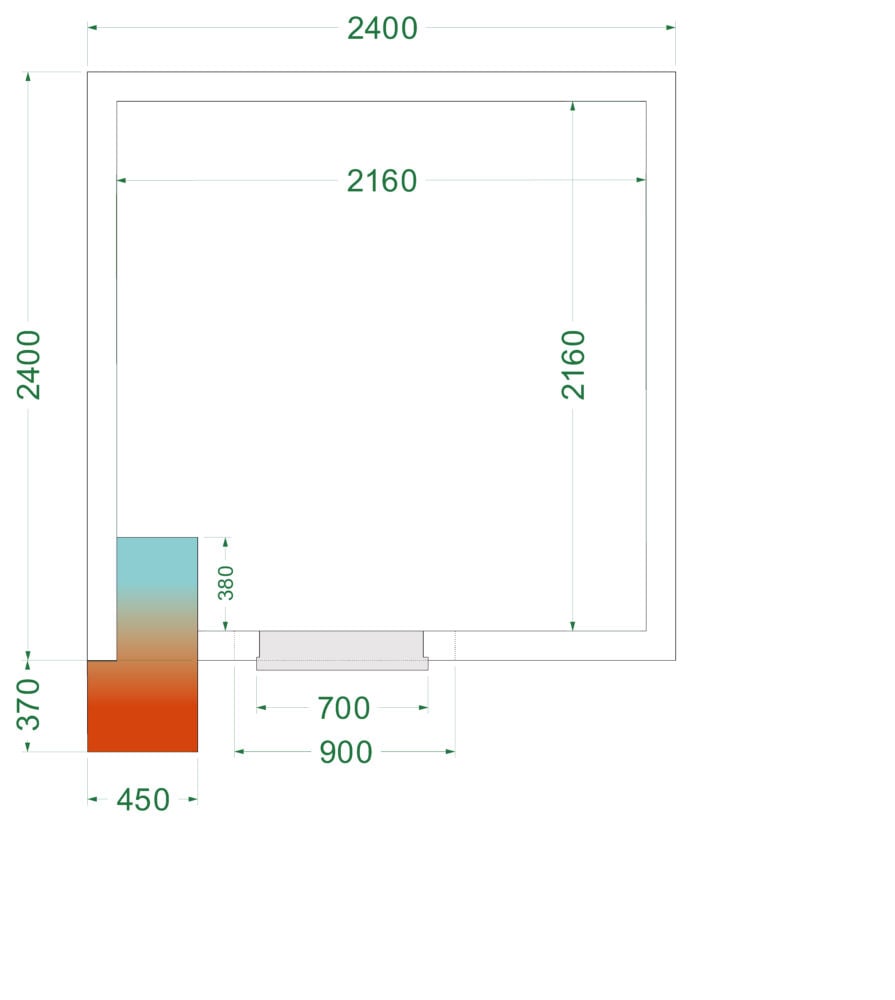

Dimensions

Internal Dimension (WxDxH): 2160 x 2160 x 1960 mm
External Dimension (WxDxH): 2400 x 2400 x 2200 mm
Packed Dimension (WxDxH): 2200 x 1900 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 200 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 29.52 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 10775 kWh/year m³
Input Power: 1394.73 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 9.14 m³
Wall Thickness: 120 mm
Temperature Range: -20 to -10 °C
Gross / Net Weight: 785 / 755 kg
Max Load on Floor: 2000 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRNF2424 Freezer Room then please get in touch.
