TEFCOLD CRNF2124 Freezer Room

£6,070.00

+vat

Brand:

SKU: 66846

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Freezing unit
  • Easy assembly
  • 120 mm panel insulation
  • Anti-slip floor in SS304 stainless steel
  • Alarm kit as accessory
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Ideal, cost-effective, efficient storage with the freezer rooms range

The CRNF freezer room range is ideal for a variety of settings including restaurants, cafes, delis and retail stores. They’re the perfect solution for creating an efficient, optimised freezing space and are highly cost-effective. The modular panel rooms provide easy assembly, simplifying the set-up process significantly. Choose from a variety of sizes to get the perfect fit for your business. These are also available in a cool room version too.

The TEFCOLD CRNF2124 is a walk-in freezer room that turns floor space into bulk frozen storage, holding -20 to -10 °C across 1860 × 2160 × 1960 mm of internal space, running from a standard 13 A supply.

SPECIFICATION 37 facts · tap for all External W × D × H2100 x 2400 x 2200 mmWidth2100 mmDepth2400 mmGross / net weight725 / 695 kgGross weight725 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750763site
Product code 66846site
Sub title Freezer Roomcatalogue
Type Walk-in Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 2400 mmsite
External (W×D×H) 2100 × 2400 × 2200 mmcatalogue
External W × D × H 2100 x 2400 x 2200 mmsite
Gross / net weight 725 / 695 kgsite
Gross weight 725 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 1860 × 2160 × 1960 mmcatalogue
Internal W × D × H 1860 x 2160 x 1960 mmsite
Packed (W×D×H) 2200 × 1900 × 2400 mmcatalogue
Packed W × D × H 2200 x 1900 x 2400 mmsite
Width 2100 mmsite

Capacity2

Doors 1catalogue
Internal volume 7.87site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 200 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy5

Annual energy consumption 10775 kWh/yearsite
Energy consumption 29.52 kWh/24hsite
Input power 1394.73 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 2000 kg/m²site
Wall thickness 120site
THE WORKING VIEW

Why this walk-in freezer earns its place

The TEFCOLD CRNF2124 is a walk-in freezer room that turns floor space into bulk frozen storage. It holds an internal temperature of -20 to -10 °C across 1860 × 2160 × 1960 mm (W × D × H), giving a working freezer big enough to store pallets, trolleys and stacked stock that would otherwise fill a bank of upright freezers. The white internal and external finish wipes down easily and suits a back-of-house or production environment.

Day to day, an electronic controller holds the set temperature and an automatic hot-gas defrost clears the evaporator without you having to shut the room down and empty it. The room runs at 60 dB and draws 1394.73 W of input power, working out to roughly £2694 a year in electricity at 25p/kWh. The single hinged solid door, 700 mm wide and 1765 mm high, gives a clear entry for trolleys and full trays.

The refrigeration uses R290 with a 200 g charge, a low-GWP hydrocarbon refrigerant. The room needs a 13 A supply on 220-240 V/50 Hz, so it runs from a standard commercial socket rather than a three-phase feed. Gross weight is 725 kg (695 kg net); check the spec table for external footprint and delivery dimensions when you plan access and siting. For servicing, spares or install advice, call Craven Cooling on 01792 732702.

BEFORE YOU BUY

Questions, answered straight

It runs at an internal -20 to -10 °C, the standard band for frozen commercial stock. An electronic controller maintains the set point and an automatic hot-gas defrost keeps the evaporator clear during use.

The room uses 10775 kWh a year, which is about £2694 at 25p/kWh. Actual cost depends on your tariff, ambient temperature, door traffic and how full the room is kept.

No. It runs on a 220-240 V/50 Hz single-phase feed and draws 13 A, with 1394.73 W of input power, so a standard commercial socket is enough.

There is one hinged solid door, 700 mm wide and 1765 mm high, giving clear access for trolleys and full trays. Internal working space is 1860 × 2160 × 1960 mm.

It uses R290 with a 200 g charge, a low-GWP hydrocarbon refrigerant. Defrost is automatic and hot-gas, and the room runs at 60 dB.

Call Craven Cooling on 01792 732702 for install advice, spares or servicing. The room weighs 725 kg gross, so plan delivery access and a suitable floor before it arrives.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

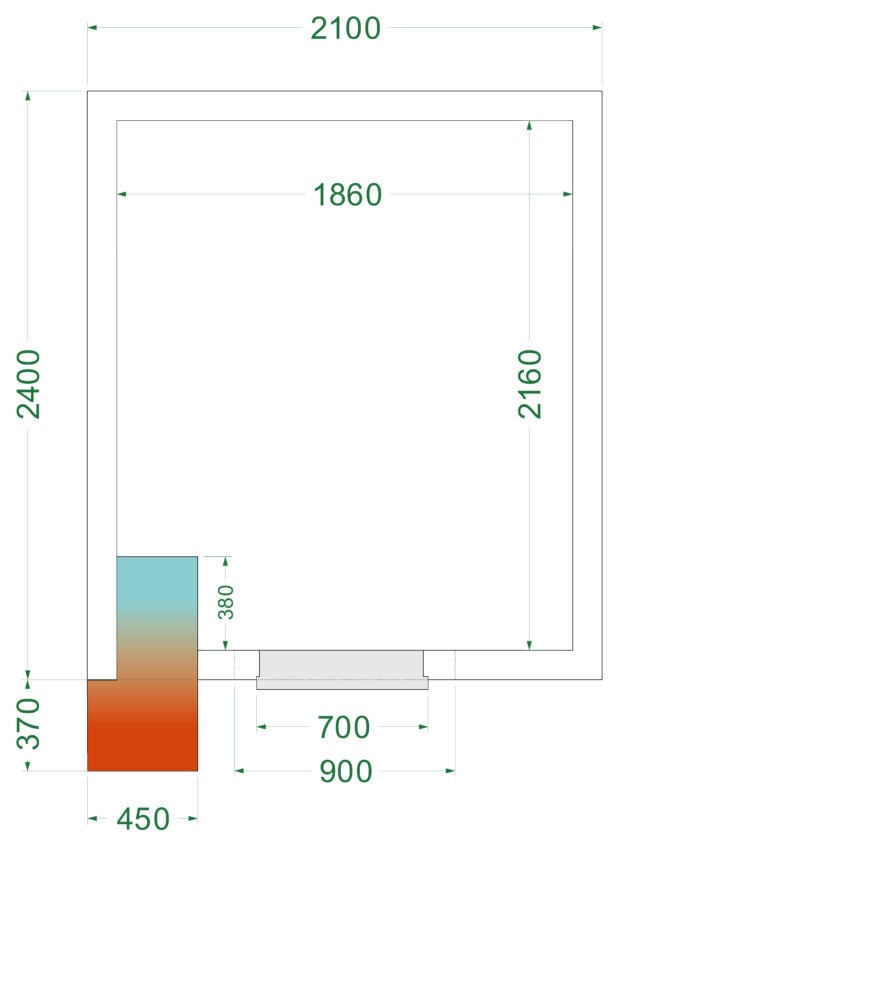

Dimensions

Internal Dimension (WxDxH): 1860 x 2160 x 1960 mm
External Dimension (WxDxH): 2100 x 2400 x 2200 mm
Packed Dimension (WxDxH): 2200 x 1900 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 200 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 29.52 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 10775 kWh/year m³
Input Power: 1394.73 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 7.87 m³
Wall Thickness: 120 mm
Temperature Range: -20 to -10 °C
Gross / Net Weight: 725 / 695 kg
Max Load on Floor: 2000 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRNF2124 Freezer Room then please get in touch.
