TEFCOLD CRNF1518 Freezer Room

£4,252.00

+vat

Brand:

SKU: 66835

Product summary

  • Plug-In – ready after assembly
  • Many customisation possibilities
  • Easy access to products
  • Freezing unit
  • Easy assembly
  • 120 mm panel insulation
  • Anti-slip floor in SS304 stainless steel
  • Alarm kit as accessory
  • Shelves available as accessory
  • Ramp available as accessory for easy access

Product description

Ideal, cost-effective, efficient storage with the freezer rooms range

The CRNF freezer room range is ideal for a variety of settings including restaurants, cafes, delis and retail stores. They’re the perfect solution for creating an efficient, optimised freezing space and are highly cost-effective. The modular panel rooms provide easy assembly, simplifying the set-up process significantly. Choose from a variety of sizes to get the perfect fit for your business. These are also available in a cool room version too.

The Tefcold CRNF1518 is a modular walk-in freezer room holding -20 to -10 °C across a 1260 × 1560 × 1960 mm internal space, running on natural R290 refrigerant from a 13A supply with automatic hot-gas defrost and an electronic controller.

SPECIFICATION 37 facts · tap for all External W × D × H1500 x 1800 x 2200 mmWidth1500 mmDepth1800 mmGross / net weight345 / 315 kgGross weight345 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750657site
Product code 66835site
Sub title Freezer Roomcatalogue
Type Walk-in Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1800 mmsite
External (W×D×H) 1500 × 1800 × 2200 mmcatalogue
External W × D × H 1500 x 1800 x 2200 mmsite
Gross / net weight 345 / 315 kgsite
Gross weight 345 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 1260 × 1560 × 1960 mmcatalogue
Internal W × D × H 1260 x 1560 x 1960 mmsite
Packed (W×D×H) 2200 × 1600 × 2400 mmcatalogue
Packed W × D × H 2200 x 1600 x 2400 mmsite
Width 1500 mmsite

Capacity2

Doors 1catalogue
Internal volume 3.85site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy5

Annual energy consumption 8208 kWh/yearsite
Energy consumption 22.49 kWh/24hsite
Input power 1100 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 2000 kg/m²site
Wall thickness 120site
THE WORKING VIEW

Why this walk-in freezer earns its place

The Tefcold CRNF1518 is a compact walk-in freezer room for kitchens and food businesses that have outgrown upright freezers but do not need a large cold room. It arrives as a modular system with the refrigeration built in, giving 1260 × 1560 × 1960 mm of internal space to hold frozen meat, fish, catering packs and prepped batches in one accessible place. It suits back-of-house operations that need consistent bulk frozen storage.

In use it holds -20 to -10 °C for long-term frozen storage. Defrost is automatic and uses hot gas, clearing ice without manual intervention or a break in the cold chain, and an electronic controller manages the temperature. The system runs on R290, a natural hydrocarbon refrigerant with low environmental impact, and operating noise is rated at 60 dB. At the rated energy use, electricity works out at about £2052 a year at 25p/kWh.

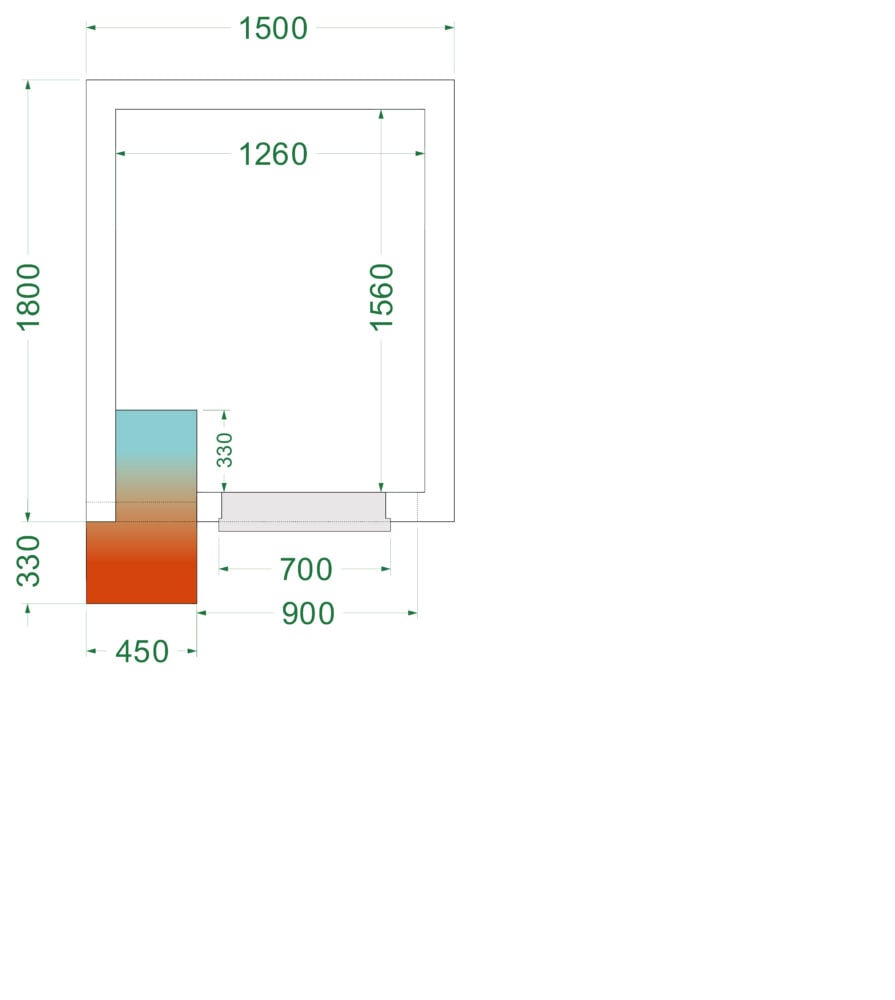

Internally the room measures 1260 × 1560 × 1960 mm (W×D×H), and the single hinged solid door gives a 700 mm wide by 1765 mm high clear opening for loading. It runs from a 13A supply at 220-240V/50Hz and draws 1100W, with a 150g R290 charge — no three-phase connection needed. Gross weight is 345 kg (315 kg net), so delivery access and siting are worth checking before install.

BEFORE YOU BUY

Questions, answered straight

It runs at -20 to -10 °C, suitable for long-term frozen storage. An electronic controller manages the temperature and defrost is automatic using hot gas, so the room clears ice without interrupting the cold chain.

The internal dimensions are 1260 × 1560 × 1960 mm (W×D×H). The single hinged solid door opens to a 700 mm wide by 1765 mm high aperture for loading stock.

It runs from a 13A supply at 220-240V/50Hz and draws 1100W. No three-phase connection is required.

Electricity works out at about £2052 a year at 25p/kWh. Actual figures depend on door use, ambient conditions and your tariff.

It uses R290, a natural hydrocarbon refrigerant with low global warming potential, with a 150g charge. Cooling is managed by an electronic controller.

Yes. Craven Cooling can arrange installation support and ongoing servicing — call the team on 01792 732702 to discuss maintenance for your site.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1260 x 1560 x 1960 mm
External Dimension (WxDxH): 1500 x 1800 x 2200 mm
Packed Dimension (WxDxH): 2200 x 1600 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 22.49 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 8208 kWh/year m³
Input Power: 1100 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 3.85 m³
Wall Thickness: 120 mm
Temperature Range: -20 to -10 °C
Gross / Net Weight: 345 / 315 kg
Max Load on Floor: 2000 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRNF1518 Freezer Room then please get in touch.
