TEFCOLD CRNF1212 Freezer Room

£3,404.00

+vat

- +

Brand:

SKU: 66857

Product summary

  • Plug-In – ready after assembly
  • Easy access to products
  • Freezing unit
  • Easy assembly
  • 120 mm panel insulation
  • Anti-slip floor in SS304 stainless steel
  • Alarm kit as accessory
  • Ramp available as accessory for easy access

Product description

Ideal, cost-effective, efficient storage with the freezer rooms range

The CRNF freezer room range is ideal for a variety of settings including restaurants, cafes, delis and retail stores. They’re the perfect solution for creating an efficient, optimised freezing space and are highly cost-effective. The modular panel rooms provide easy assembly, simplifying the set-up process significantly. Choose from a variety of sizes to get the perfect fit for your business. These are also available in a cool room version too.

SPECIFICATION 36 facts · tap for all External W × D × H1200 x 1200 x 2200 mmWidth1200 mmGross / net weight310 / 280 kgGross weight310 kgVoltage / frequency220-240/50 V/HzInput power1100 W

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181750886site
Product code 66857site
Sub title Freezer Roomcatalogue
Type Walk-in Freezerscatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight10

External (W×D×H) 1200 × 1200 × 2200 mmcatalogue
External W × D × H 1200 x 1200 x 2200 mmsite
Gross / net weight 310 / 280 kgsite
Gross weight 310 kgcatalogue
Height 2200 mmsite
Internal (W×D×H) 960 × 960 × 1960 mmcatalogue
Internal W × D × H 960 x 960 x 1960 mmsite
Packed (W×D×H) 2000 × 1350 × 2400 mmcatalogue
Packed W × D × H 2000 x 1350 x 2400 mmsite
Width 1200 mmsite

Capacity2

Doors 1catalogue
Internal volume 1.81site

Performance6

Controller Electronicsite
Defrost type Automatic, hot gassite
Refrigerant R290site
Refrigerant charge 150 gsite
Temperature range -20 to -10site
Thermometer Yessite

Power & energy5

Annual energy consumption 8208 kWh/yearsite
Energy consumption 22.49 kWh/24hsite
Input power 1100 Wsite
Noise level 60 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Whitesite
Interior light LEDsite
Max floor load 2000 kg/m²site
Wall thickness 120site
THE WORKING VIEW

Why this walk-in freezer earns its place

The CRNF1212 is a self-contained walk-in freezer room for bulk frozen storage. Its 1200 × 1200 mm external footprint gives a 960 × 960 × 1960 mm internal space you can walk into, so frozen stock, trays and stacked cases live in one temperature-controlled room rather than spread across several chest or upright units. It holds -20 to -10 °C, the working band for frozen meat, fish and prepared batches.

Cooling runs on R290, a natural hydrocarbon refrigerant, with a 150 g charge, and defrost is automatic hot-gas so ice is cleared without you scheduling a manual routine. An electronic controller holds the set point and the unit draws 1100 W. It is rated at 8208.8 kWh a year — about £2052 a year at 25p/kWh, before your own tariff, door traffic and ambient are counted. At 60 dB it is a plant-room noise level, so factor its siting into a working area.

The room measures 1200 × 1200 × 2200 mm externally with a single hinged solid door of 580 mm width and 1765 mm height for loading. It weighs 280 kg net (310 kg gross), runs on a 13 A, 220–240 V supply, and is finished white inside and out. Packed for delivery it is 2000 × 1350 × 2400 mm, so check the route in and any doorways against that before it arrives.

BEFORE YOU BUY

Questions, answered straight

It runs -20 to -10 °C, the working band for frozen meat, fish and prepared batches. An electronic controller holds the set point and defrost is automatic hot-gas.

It is rated at 8208.8 kWh a year — about £2052 a year at 25p/kWh. Your actual cost depends on your tariff, how often the door is opened and the ambient temperature.

It runs on a 13 A, 220–240 V supply and draws 1100 W. Cooling is on R290 natural refrigerant with a 150 g charge.

The internal space is 960 × 960 × 1960 mm, entered through a single hinged solid door 580 mm wide and 1765 mm high.

Packed it measures 2000 × 1350 × 2400 mm and weighs 310 kg gross, so check the delivery route and doorways against those figures before it arrives.

It is rated at 60 dB, a plant-room level, so site it accordingly. For servicing or siting advice, call Craven Cooling on 01792 732702.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

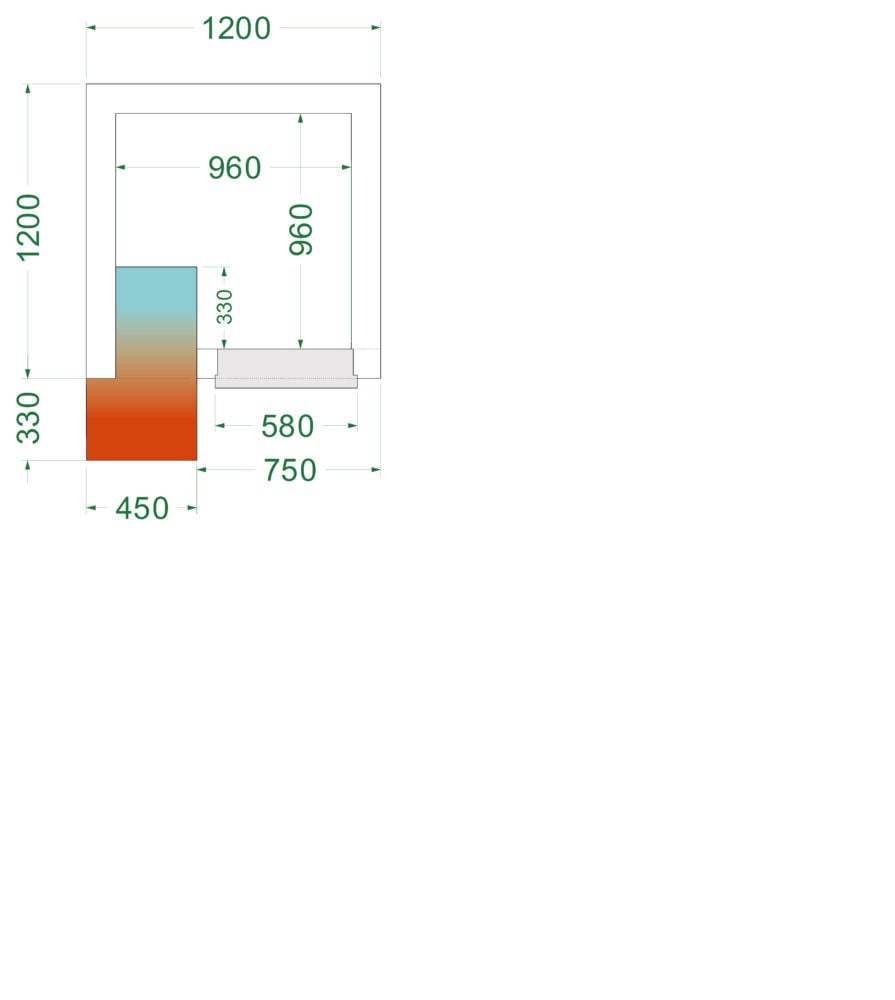

Internal Dimension (WxDxH): 960 x 960 x 1960 mm
External Dimension (WxDxH): 1200 x 1200 x 2200 mm
Packed Dimension (WxDxH): 2000 x 1350 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic, hot gas
Refrigerant: R290
Refrigerant Charge: 150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 22.49 kWh/24h
Temperature Range: -20 to -10 °C
Annual Energy Consumption: 8208 kWh/year m³
Input Power: 1100 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 60 dB(A)

Measures and Content

Internal Volume: 1.81 m³
Wall Thickness: 120 mm
Temperature Range: -20 to -10 °C
Gross / Net Weight: 310 / 280 kg
Max Load on Floor: 2000 kg/m² kg/m²

Design and Material

Door Reversible: Yes
Exterior Finish: White
Interior Finish: White
Interior Light: LED
Lock: Yes
If you have any questions about the TEFCOLD CRNF1212 Freezer Room then please get in touch.
