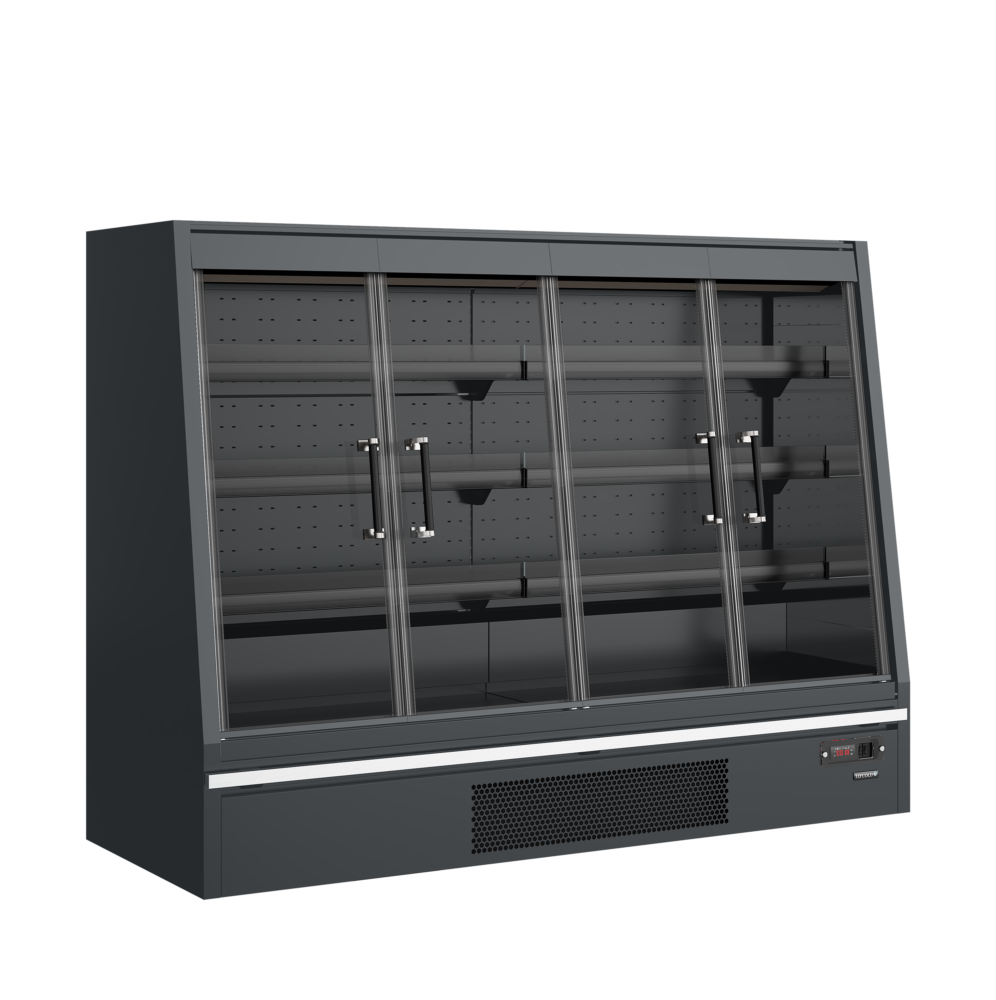

TEFCOLD Galaxy+ GPL20FGD A Low-Height Multideck

£4,012.00

+vat

Brand:

SKU: 71822

Energy Arrow

Product summary

  • Colour is anthracite RAL7016

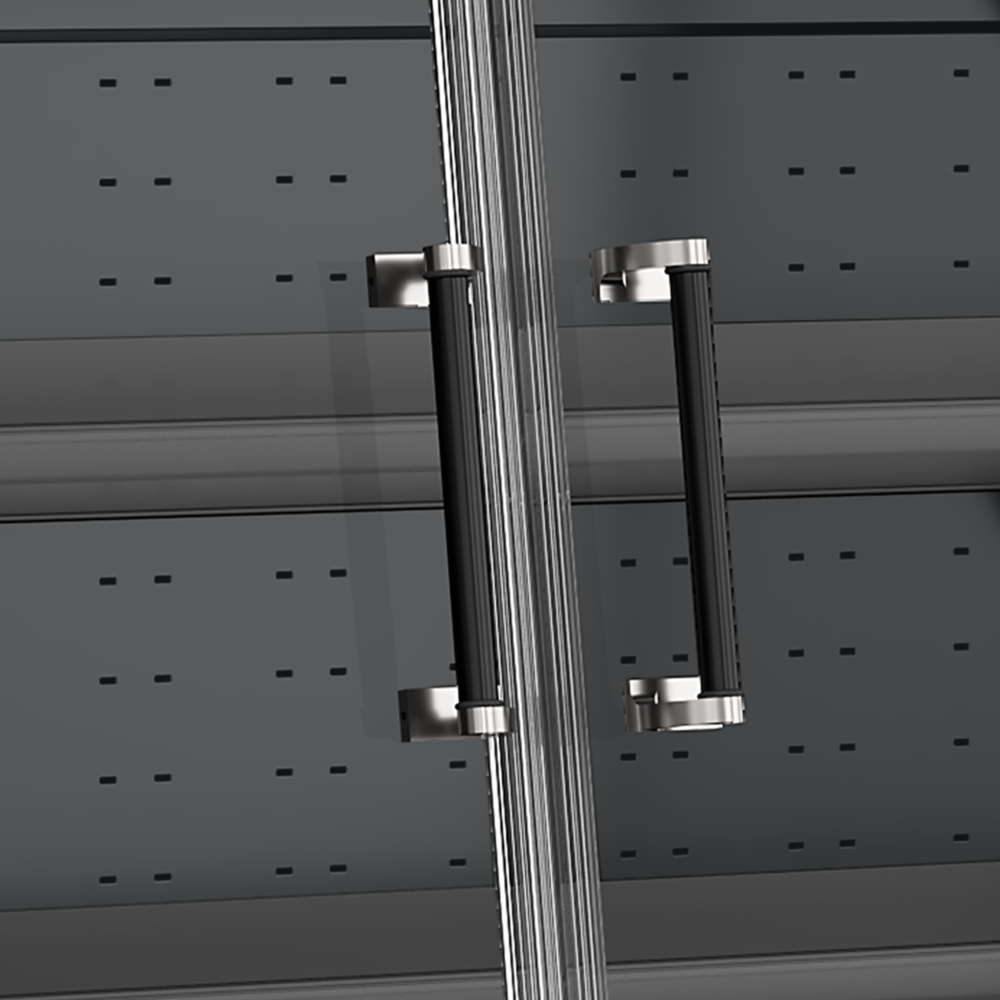

  • Frameless glass doors for great product visibility
  • Excellent energy efficiency
  • Adjustable shelves (can be tilted)
  • Solid 40 mm endwalls with mirrored interior
  • LED interior light
  • Ventilated cooling
  • Can be multiplexed with kit (POA)
  • Ticket strip and acrylic front riser as standard

Product description

Low-height multideck chiller with doors

The Galaxy+ LOW FGD range of low-height multideck chillers in the colour anthracite/RAL7016 comes with frameless glass doors and is available in several sizes. It offers a highly energy efficient cooling system combined with a gorgeous design. The low height of the units allows for creating island installations without blocking the view of the customer. It is a spacious cabinet complete with adjustable shelves and internal LED lighting for optimum product presentation.

The TEFCOLD Galaxy+ GPL20FGD is a low-height multideck display fridge with 1.92 m² of display area and a class B energy rating (EEI 13.7%), drawing about 1,679 kWh a year — roughly £420 at 25p/kWh — to merchandise chilled stock at browsing height.

SPECIFICATION 45 facts · tap for all External W × D × H1955 x 740 x 1500 mmWidth1955 mmDepth740 mmGross / net weight337.6 / 315.6 kgGross weight337.6 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181761684site
Product code 71822site
Sub title Low-Height Multideckcatalogue
Type Low Height Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 740 mmsite
External (W×D×H) 1955 × 740 × 1500 mmcatalogue
External W × D × H 1955 x 740 x 1500 mmsite
Gross / net weight 337.6 / 315.6 kgsite
Gross weight 337.6 kgcatalogue
Height 1500 mmsite
Internal (W×D×H) 1875 × 350 × 1053 mmcatalogue
Internal W × D × H 1875 x 350 x 1053 mmsite
Packed (W×D×H) 2100 × 810 × 2350 mmcatalogue
Packed W × D × H 2100 x 810 x 2350 mmsite
Width 1955 mmsite

Capacity2

Display area 1.92 m²site
Gross volume 1195 litrescatalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 145 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 1679 kWh/yearsite
Energy consumption 4.6 kWh/24hsite
Energy efficiency index 13.7 %site
Input power 386 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Exterior finish Anthracite RAL7016site
Feet / legs 6 adjustable feetsite
Interior light LEDsite
Max load per shelf 160site
Reversible doors Nosite
Shelf dimensions 938×250/300/350mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this low height multideck fridge earns its place

The TEFCOLD Galaxy+ GPL20FGD is a low-height multideck display fridge for merchandising chilled stock where customers can see it and reach it. Its 1.92 m² of display area gives a broad, browsable face for grab-and-go lines — chilled drinks, dairy, sandwiches, snacks — presented across the deck. The low-height build keeps the cabinet under the room's eyeline, so it can run along a back wall or sit within a bank of units without closing off the space behind it.

Day to day, the cabinet carries a class B energy rating with an energy efficiency index of 13.7%. It draws about 1,679 kWh a year, which works out at roughly £420 a year at 25p/kWh — a figure worth setting into your running-cost budget alongside the stock it holds. The energy performance is independently registered, so what the label states is what the cabinet delivers in service.

Because a multideck is a self-contained, plug-in display, siting is mostly about access and airflow: a clear route in and room around the cabinet to breathe. Full external and packed dimensions, weights and electrical details are listed in the spec table below — measure your delivery access and floor space against them before you order. If you want a second opinion on siting or fit, our team can talk it through.

BEFORE YOU BUY

Questions, answered straight

The cabinet draws about 1,679 kWh a year and is rated class B with an energy efficiency index of 13.7%. At 25p/kWh that is roughly £420 a year, before your own tariff is applied.

It has 1.92 m² of display area across the deck. That is the merchandising face you have for arranging chilled stock at browsing height.

It is rated class B with an energy efficiency index of 13.7% — the figures are independently registered, so the label reflects real in-service performance.

The full external and packed dimensions and weights are listed in the spec table below. Measure your delivery route and floor space against those figures before ordering, as clearance for a cabinet this size is worth checking in advance.

Yes — we handle installation and servicing on the cabinets we supply. Call the team on 01792 732702 to arrange it or to talk through siting before delivery.

It is a chilled multideck built for grab-and-go chilled lines such as drinks, dairy, sandwiches and snacks. Check the temperature band on the spec sheet against any specific product before you load it.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1875 x 350 x 1053 mm
External Dimension (WxDxH): 1955 x 740 x 1500 mm
Packed Dimension (WxDxH): 2100 x 810 x 2350 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 145 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 4.6 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 1679 kWh/year m³
EEI: 13.7 %
Input Power: 386 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 337.6 / 315.6 kg
Gross / Net Volume: 1195 / 540 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.92 m² m²

Design and Material

Door Reversible: No
Shelf Color: Anthracite
Shelf Dimensions: 938×250/300/350mm
Max load on Shelves: 160 kg/m²
Feet / Legs: 6 adjustable feet
Exterior Finish: Anthracite RAL7016
Interior Finish: Anthracite RAL7016
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GPL20FGD A Low-Height Multideck then please get in touch.
