TEFCOLD PC2500B Multideck With Doors

£5,288.00 £2,803.00

+vat

- +

Brand:

SKU: 49732

Energy Arrow

Product summary

  • Frameless glass doors for great product visibility
  • Low energy consumption
  • Black interior and exterior
  • Adjustable shelves (can be tilted)
  • LED light under each shelf
  • Ventilated cooling for fast pull-down and even temperature

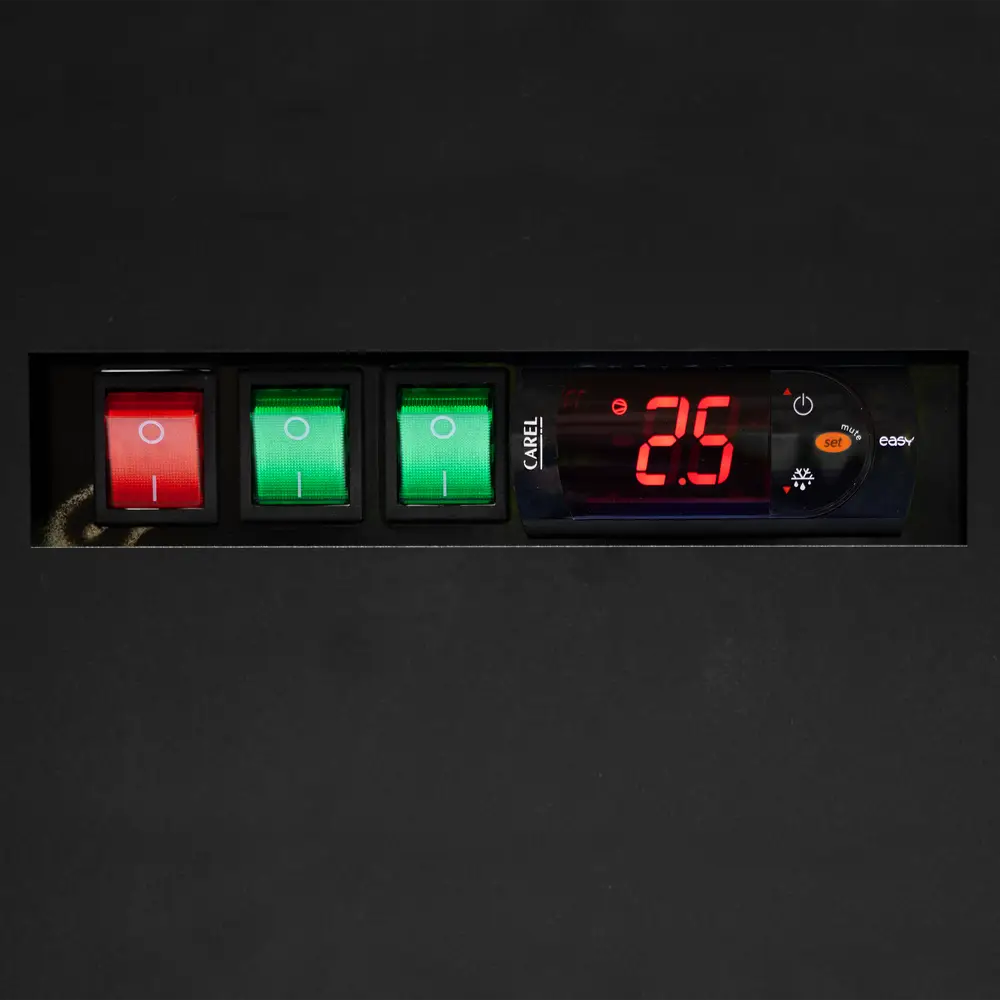

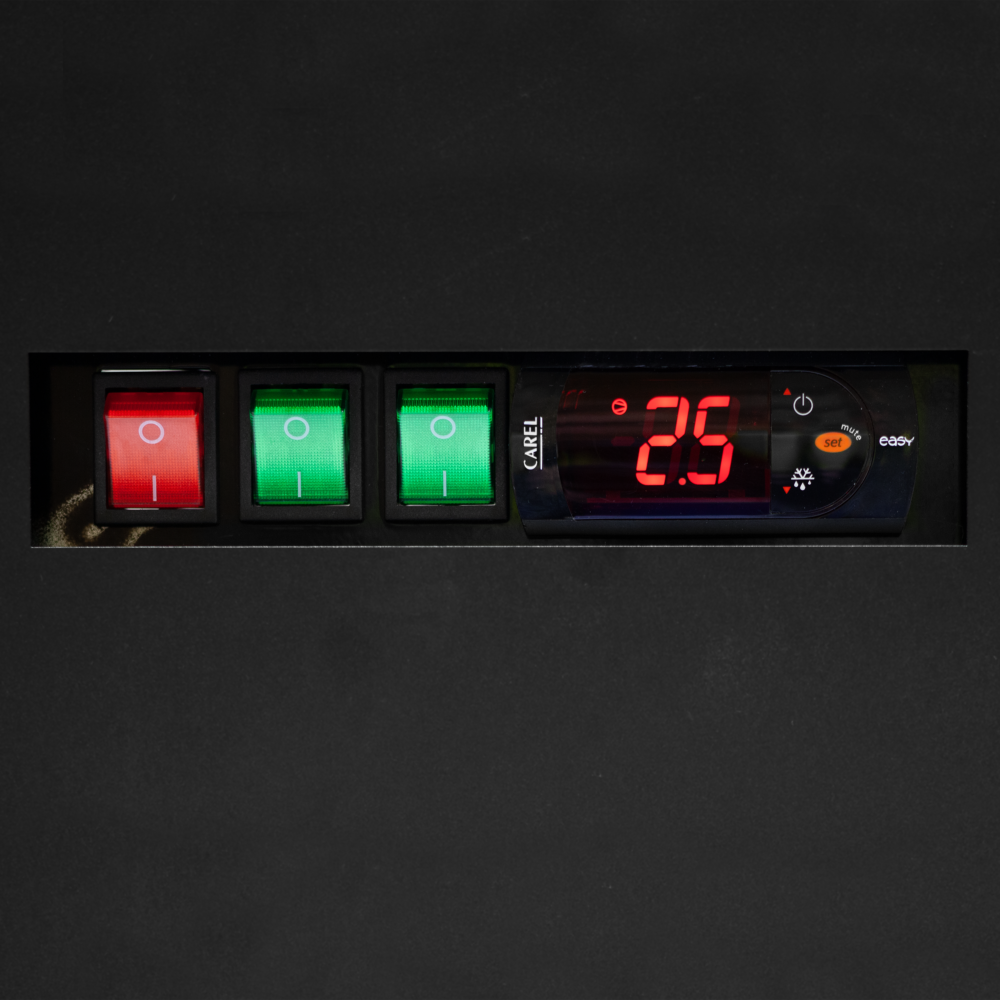

  • Digital controller and temperature display
  • Glass end walls as standard
  • 33 mm ticket strips with shelf risers included
  • Castors and locking feet

Product description

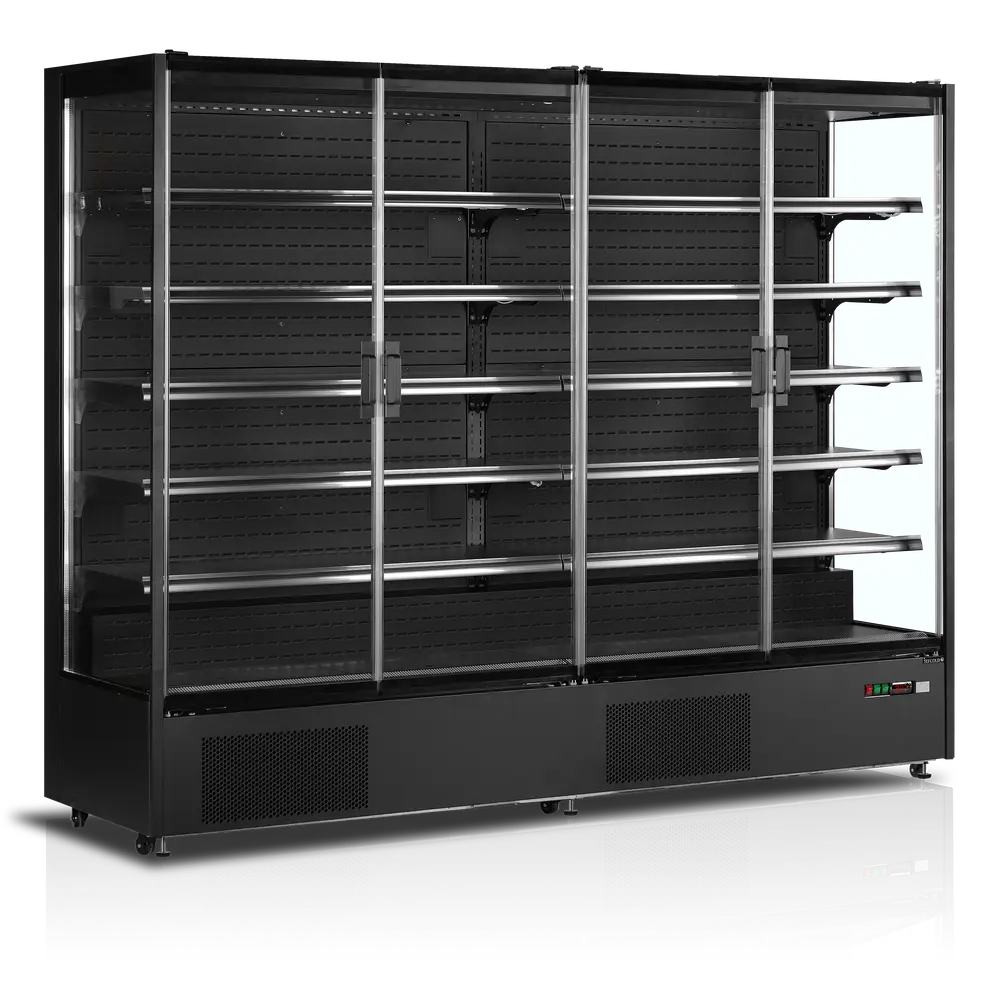

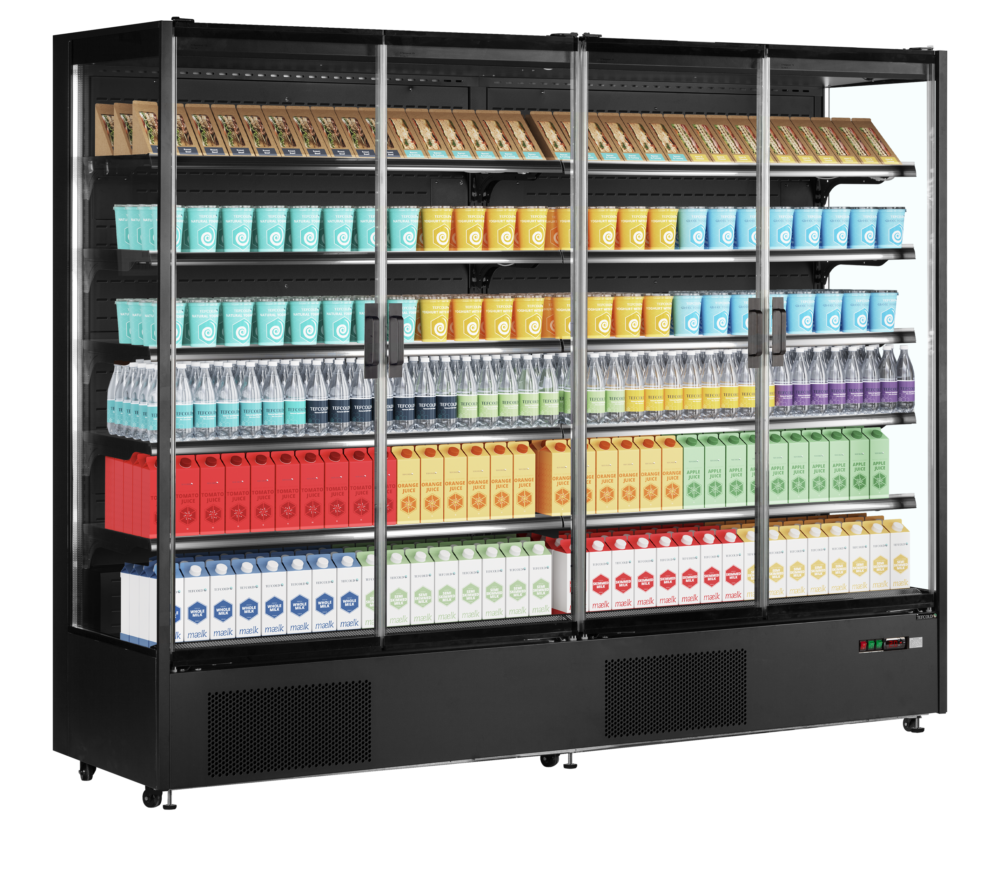

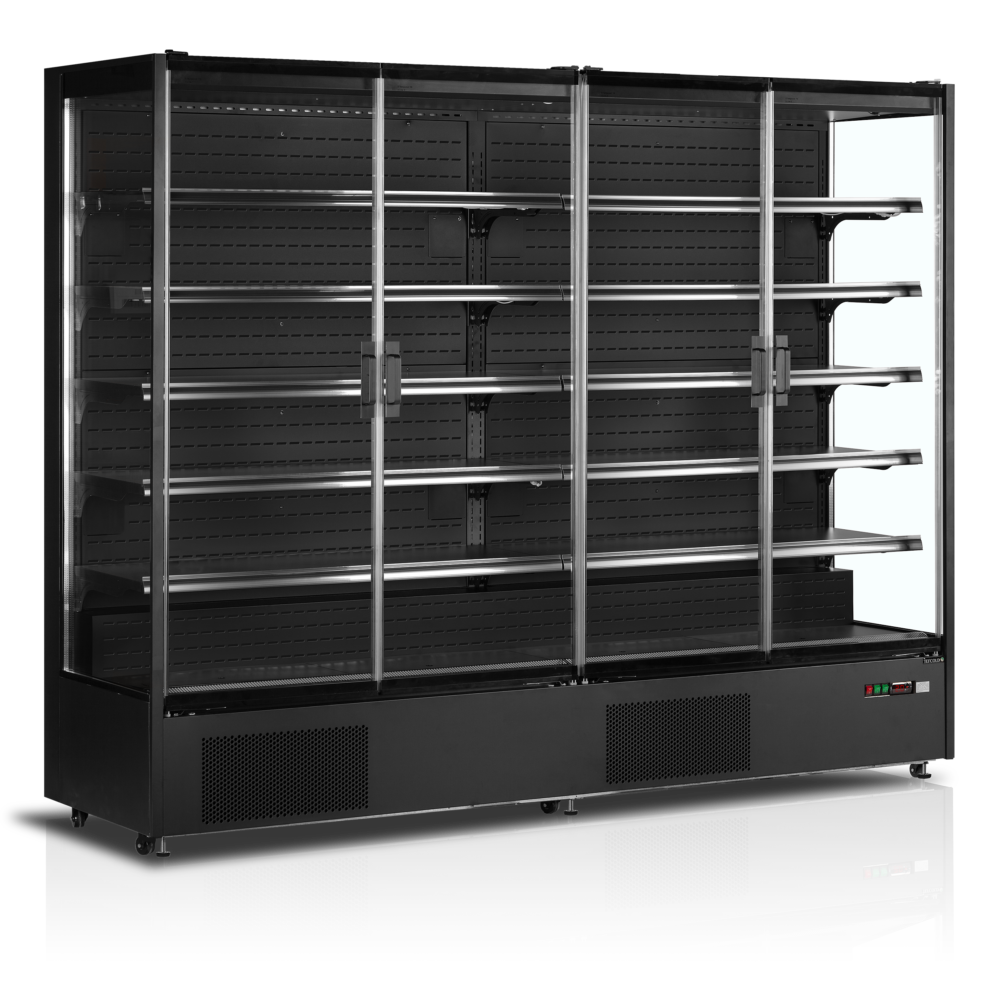

Full Glass Door Multideck

The TEFCOLD PC-B range of multidecks is where efficient cooling meets affordability. Featuring a low base together with 5 adjustable shelves, the unit maximises display space allowing you to offer a wide range of produce. Undershelf LED lighting, together with an LED light in the canopy illuminating the top shelf, ensure food and drink is displayed clearly. Self-closing double-glazed frameless glass doors give the best view of produce and help to maintain the cabinet temperature while minimising energy consumption and running costs. All sizes have an energy rating of B. The cabinet is 3M1 specification so can be set for display of packed fresh meat if required. It is also ideal for use with dairy produce, sandwiches, drinks and more, making the PC range suitable for convenience stores, off-licences, cafes and coffee shops.

Sale!
SPECIFICATION 46 facts · tap for all External W × D × H2560 x 740 x 2050 mmWidth2560 mmDepth740 mmGross / net weight500 / 440 kgGross weight500 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181733148site
Product code 49732site
Sub title Multideck With Doorscatalogue
Type Glass Door Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 740 mmsite
External (W×D×H) 2560 × 740 × 2050 mmcatalogue
External W × D × H 2560 x 740 x 2050 mmsite
Gross / net weight 500 / 440 kgsite
Gross weight 500 kgcatalogue
Height 2050 mmsite
Internal (W×D×H) 2500 × 450 × 1540 mmcatalogue
Internal W × D × H 2500 x 450 x 1540 mmsite
Packed (W×D×H) 2610 × 762 × 2256 mmcatalogue
Packed W × D × H 2610 x 762 x 2256 mmsite
Width 2560 mmsite

Capacity4

Display area 5.13 m²site
Doors 4catalogue
Gross volume 2585 litrescatalogue
Shelves 5catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2 x 149 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 3723 kWh/yearsite
Energy consumption 10.2 kWh/24hsite
Energy efficiency index 14.5 %site
Input power 1060 Wsite
Noise level 65 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings5

Castors 6 castorssite
Exterior finish Black RAL9005site
Feet / legs 6 adjustable feetsite
Interior light LEDsite
Max load per shelf 160site

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this glass door multideck fridge earns its place

The TEFCOLD PC2500B is a large glass-door multideck fridge that merchandises chilled stock across five adjustable shelves and 5.13 m² of display area. Four hinged glass doors front a 1529-litre net cabinet (2585 litres gross), holding temperature while keeping the whole run shoppable for grab-and-go drinks, dairy, sandwiches and packaged food. The black RAL9005 finish reads as a continuous retail chiller wall.

The cabinet holds -1 to +5 °C under an electronic controller with automatic defrost, so there is no manual clear-down. It is rated to climate class 3 and runs at 65 dB. At energy class B it draws 3723 kWh a year — about £931 a year at 25p/kWh — from a 1060-watt input.

At 2560 mm wide, 740 mm deep and 2050 mm tall, and 500 kg gross, it needs a planned delivery route and lift access, so measure door heights and clearances first. Power is a 220–240 V, 50 Hz supply on a standard 13-amp socket, and cooling uses R290 refrigerant.

BEFORE YOU BUY

Questions, answered straight

It is 2560 mm wide, 740 mm deep and 2050 mm tall, and weighs 500 kg gross, so plan the delivery route, lift access and door clearances before it arrives.

It runs at -1 to +5 °C, the chilled band used for pre-packed meat, dairy and drinks, under an electronic controller with automatic defrost. Confirm your product's own storage needs.

At energy class B it uses 3723 kWh a year, about £931 a year at 25p/kWh, from a 1060-watt input.

A 220–240 V, 50 Hz supply on a standard 13-amp socket.

1529 litres net (2585 litres gross) over five adjustable shelves and 5.13 m² of display area, behind four hinged glass doors.

Craven Cooling services TEFCOLD refrigeration — call 01792 732702. The cabinet uses R290 refrigerant.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2500 x 450 x 1540 mm
External Dimension (WxDxH): 2560 x 740 x 2050 mm
Packed Dimension (WxDxH): 2610 x 762 x 2256 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2 x 149 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 10.2 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 3723 kWh/year m³
EEI: 14.5 %
Input Power: 1060 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 65 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 500 / 440 kg
Gross / Net Volume: 2585 / 1529 l
Max Ambient: +25°C, 60% RH
Total Display Area: 5.13 m² m²

Design and Material

Shelf Color: Black
Max load on Shelves: 160 kg/m²
Feet / Legs: 6 adjustable feet
Castors: 6 castors
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD PC2500B Multideck With Doors then please get in touch.
