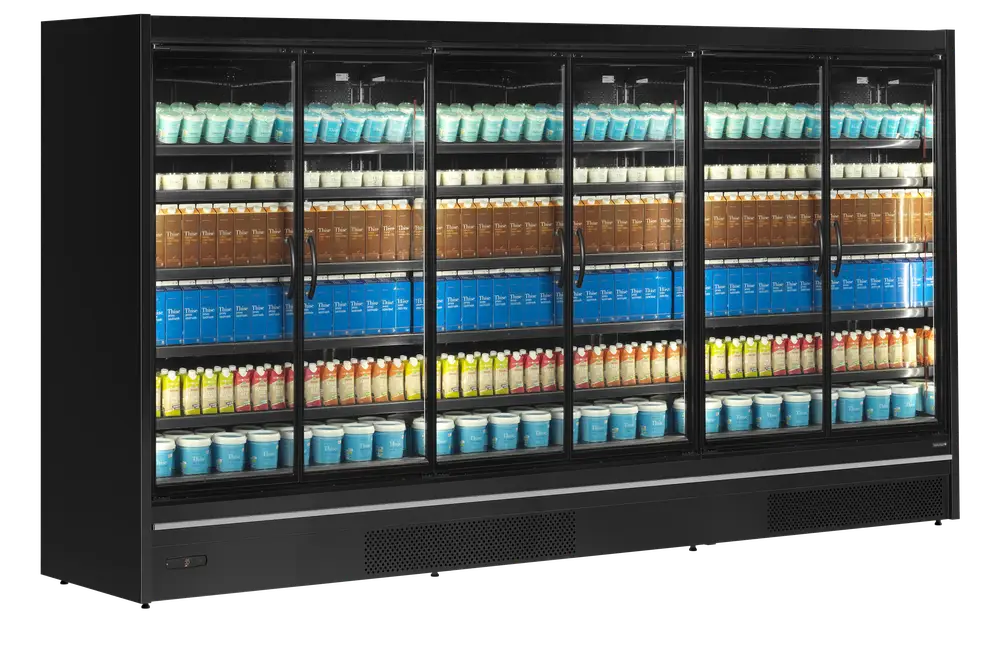

TEFCOLD MDCB3750HB Multideck

£8,175.00

+vat

Brand:

SKU: 71870

Energy Arrow

Product summary

  • Tilting function for better product display
  • Can be multiplexed with kit (POA)
  • Internal vertical and horizontal LED light
  • Stainless steel bumper bars
  • Ticket strip and acrylic front riser as standard
  • Temperature Class 3M1
  • Can be multiplexed – Create uninterrupted continuous line
  • Adjustable extra deep shelves to maximise capacity
  • Energy saving variable speed compressor
  • EU Energy Class B
  • Solid 40 mm endwalls with mirrored interior
  • Controller with Bluetooth and NFC connectivity

Product description

Multideck with deep shelves for maximum capacity

The MDCB range of multideck coolers is designed for retail settings. It has temperature class 3M1, while boasting of a low-energy and low-noise cooling system. It offers great storage and display space with glass doors, adjustable shelves that can be tilted for a better product presentation, as well as vertical and horizontal LED lighting. The MDCB is available in several sizes.

The Tefcold MDCB3750HB is an open-fronted multideck display fridge with 5.4 m² of merchandising area, rated energy class B at 4,237.6 kWh a year — about £1,059 a year at 25p/kWh.

SPECIFICATION 45 facts · tap for all External W × D × H3830 x 1005 x 2100 mmWidth3830 mmDepth1005 mmGross / net weight800 / 760 kgGross weight800 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181762032site
Product code 71870site
Sub title Multideckcatalogue
Type Open Fronted Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 1005 mmsite
External (W×D×H) 3830 × 1005 × 2100 mmcatalogue
External W × D × H 3830 x 1005 x 2100 mmsite
Gross / net weight 800 / 760 kgsite
Gross weight 800 kgcatalogue
Height 2100 mmsite
Internal (W×D×H) 3750 × 650 × 1512 mmcatalogue
Internal W × D × H 3750 x 650 x 1512 mmsite
Packed (W×D×H) 3950 × 1105 × 2400 mmcatalogue
Packed W × D × H 3950 x 1105 x 2400 mmsite
Width 3830 mmsite

Capacity4

Display area 5.4 m²site
Doors 6catalogue
Gross volume 3686 litrescatalogue
Shelves 15catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 120 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 4237.65 kWh/yearsite
Energy consumption 11.61 kWh/24hsite
Energy efficiency index 15.8 %site
Input power 1700 Wsite
Noise level 59 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings4

Exterior finish Black RAL9005site
Feet / legs Adjustable Feetsite
Max load per shelf 120site
Shelf dimensions 1250×600site

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this open fronted multideck fridge earns its place

The MDCB3750HB is an open-fronted multideck display fridge with 5.4 m² of merchandising area, built to carry a full chilled aisle of stock in front of the customer. There is no door to open, so shoppers pick straight from the shelves — the open-front layout that drives impulse and grab-and-go sales across a wide face.

The cabinet is rated energy class B, with a measured consumption of 4,237.6 kWh a year and an energy efficiency index of 15.8%. At 25p/kWh that works out to about £1,059 a year to run, a figure worth weighing against the 5.4 m² of display it puts on the shop floor.

This is a large cabinet, so it needs a planned position with adequate ventilation and a suitable supply. We do not publish unverified dimensions or electrical figures here — for confirmed sizing and the supply it needs before you commit to a site, speak to our team and we will check the current specification.

BEFORE YOU BUY

Questions, answered straight

It offers 5.4 m² of merchandising area across its shelves. As an open-front cabinet there are no doors between the shopper and the stock.

It is rated energy class B with a measured consumption of 4,237.6 kWh a year. At 25p/kWh that is about £1,059 a year, and its energy efficiency index is 15.8%.

Yes — it is an open-fronted multideck, so customers pick straight from the shelves with no door to open. That format suits impulse and grab-and-go sales.

We do not publish unverified figures for this cabinet. For confirmed sizing and the supply it needs, call our team on 01792 732702 and we will check the current specification and arrange servicing if needed.

It is rated energy class B, with an energy efficiency index of 15.8% and a measured 4,237.6 kWh a year. That equates to roughly £1,059 a year at 25p/kWh.

See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 3750 x 650 x 1512 mm
External Dimension (WxDxH): 3830 x 1005 x 2100 mm
Packed Dimension (WxDxH): 3950 x 1105 x 2400 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 120 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 11.61 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 4237.65 kWh/year m³
EEI: 15.8 %
Input Power: 1700 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 59 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 800 / 760 kg
Gross / Net Volume: 3686 / 3285 l
Max Ambient: +25°C, 60% RH
Total Display Area: 5.4 m² m²

Design and Material

Shelf Color: Black
Shelf Dimensions: 1250×600
Max load on Shelves: 120 kg/m²
Feet / Legs: Adjustable Feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: Yes
If you have any questions about the TEFCOLD MDCB3750HB Multideck then please get in touch.
