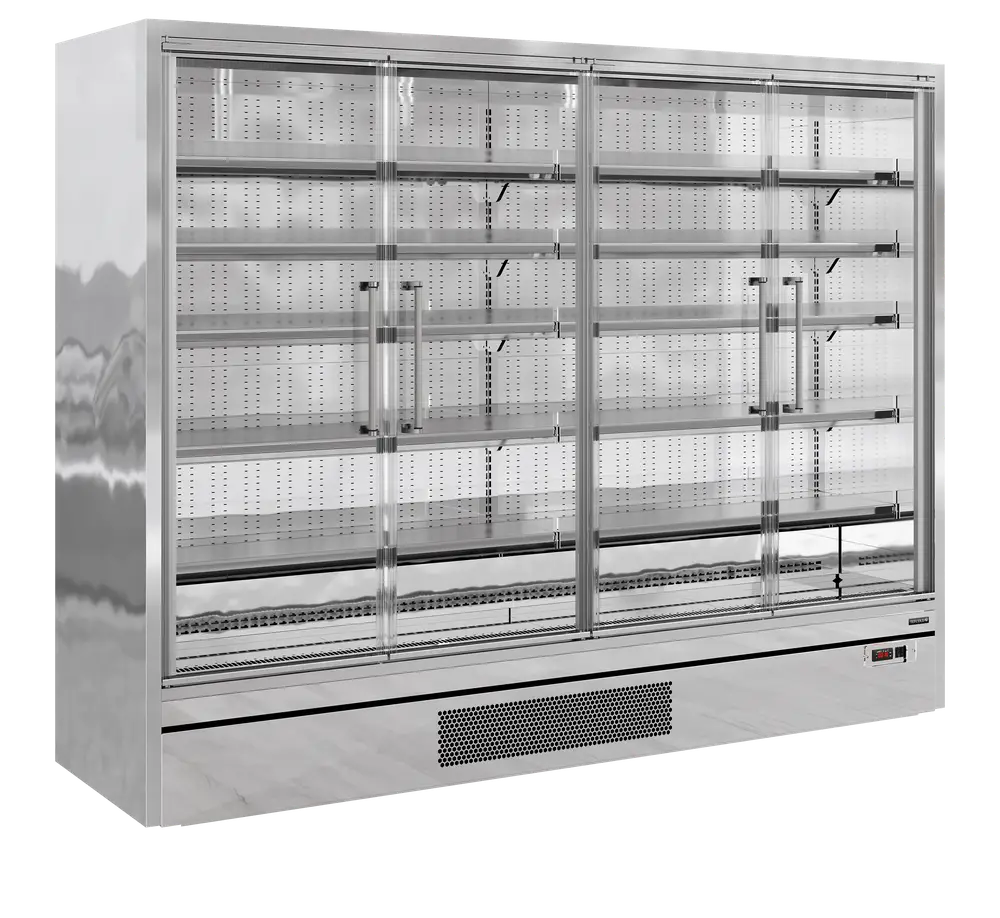

TEFCOLD Galaxy+ GP26FGD SS Multideck With Doors

£6,127.00

+vat

- +

Brand:

SKU: 46468

Energy Arrow

Product summary

  • Fully automatic, fan assisted cooling
  • Internal vertical & horizontal LED light
  • Solid 40 mm endwalls with mirrored interior
  • Frameless hinged double glazed self closing doors
  • 5 Adjustable shelves, max weight 160kg/sq metre
  • Shelves can be flat or angled to 7° or 14°
  • EPOS Ticket strips & shelf risers
  • Suitable for fresh meat
  • Can be multiplexed with kit (POA)
  • Door widths match on G14 & G26 & on G10 & G20
  • Delivered without handles and rear stand-offs attached, will fit through 750mm door

Product description

Mirror Stainless Steel Multideck With Doors

The TEFCOLD Galaxy+ FGD (Full Glass Door) range, finished in mirror stainless steel: part of our popular assortment of plug-in multidecks. We’ve combined an expanded display area and optimised cabinet efficiency with frameless, full-vision glass doors, offering enhanced product visibility that captures customers’ attention. The ultra-low front and slim top canopy provide an extra 100mm of internal height, accommodating up to 5 shelves (plus base) as standard. With a standard depth, the unit fits through most doors for easy installation, yet has deep shelves for maximum stock capacity. Thanks to the carefully designed refrigeration system and optimal airflow throughout the cabinets, all sizes in this range are rated B for energy efficiency. Each unit comes with heavy-duty adjustable shelves that can be tilted if needed, EPOS ticket strips and shelf risers as standard. Optional extras include glass end-walls and multiplexing kits.

SPECIFICATION 47 facts · tap for all External W × D × H2580 x 750 x 2040 mmWidth2580 mmDepth750 mmGross / net weight490 / 459 kgGross weight490 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181726225site
Product code 46468site
Sub title Multideck With Doorscatalogue
Type Glass Door Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 750 mmsite
External (W×D×H) 2580 × 750 × 2040 mmcatalogue
External W × D × H 2580 x 750 x 2040 mmsite
Gross / net weight 490 / 459 kgsite
Gross weight 490 kgcatalogue
Height 2040 mmsite
Internal (W×D×H) 2500 × 544 × 1562 mmcatalogue
Internal W × D × H 2500 x 544 x 1562 mmsite
Packed (W×D×H) 2650 × 770 × 2320 mmcatalogue
Packed W × D × H 2650 x 770 x 2320 mmsite
Width 2580 mmsite

Capacity4

Display area 3.83 m²site
Doors 4catalogue
Gross volume 2887 litrescatalogue
Shelves 5catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 2×150 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 2821 kWh/yearsite
Energy consumption 7.73 kWh/24hsite
Energy efficiency index 15.3 %site
Input power 629 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Exterior finish Mirror Stainless Steelsite
Feet / legs 6 adjustable feetsite
Interior light LEDsite
Max load per shelf 160site
Reversible doors Nosite
Shelf dimensions 1250x400mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this glass door multideck fridge earns its place

The Galaxy+ GP26FGD is a four-door glass-fronted multideck built for high-volume chilled retail. Four hinged glass doors front a 3.83 m² display area across five adjustable shelves, holding stock at eye level while the doors cut the cold loss of an open cabinet. Gross volume is 2887 litres, with 1258 litres of net usable space, finished in mirror stainless steel inside and out.

It holds a -1 to +5 °C band on natural R290 refrigerant, with automatic defrost and an electronic controller for hands-off running. The glass doors help it reach energy class B: at 2821.5 kWh a year that is about £705 a year at 25p/kWh. Rated climate class 3 for a normal shop-floor environment, it runs at 55 dB.

The cabinet measures 2580 × 750 × 2040 mm (W×D×H) and weighs 459 kg unpacked, arriving crated at 2650 × 770 × 2320 mm and 490 kg — plan the delivery route and installation access for a unit of this size and weight. At 2580 mm wide it needs a wide double opening or a clear run-in. It runs on a 220–240 V/50 Hz supply and carries a 150 g R290 charge.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 2580 mm wide, 750 mm deep and 2040 mm tall, and weighs 459 kg unpacked, so it needs a wide opening and a clear run-in. It ships crated at 2650 × 770 × 2320 mm and 490 kg — plan the full delivery route before it arrives.

It is rated energy class B and uses 2821.5 kWh a year, about £705 a year at 25p/kWh. The four glass doors cut cold loss compared with an open front, which helps keep the figure down.

The four hinged glass doors keep the -1 to +5 °C band with less cold loss, which contributes to the energy class B rating and about £705 a year in running cost. Stock stays visible through the glass while the doors hold temperature.

Its temperature range runs from -1 to +5 °C, which covers the chilled band used for fresh meat and deli display. Set the electronic controller to suit your product and food-safety requirements.

It connects to a standard 220–240 V/50 Hz supply. Position it with clear airflow around the cabinet to keep it working within climate class 3.

Craven Cooling services the cabinets it supplies. Call 01792 732702 to arrange installation or ongoing servicing.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 2500 x 544 x 1562 mm
External Dimension (WxDxH): 2580 x 750 x 2040 mm
Packed Dimension (WxDxH): 2650 x 770 x 2320 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 2×150 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 7.73 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 2821 kWh/year m³
EEI: 15.3 %
Input Power: 629 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 490 / 459 kg
Gross / Net Volume: 2887 / 1258 l
Max Ambient: +25°C, 60% RH
Total Display Area: 3.83 m² m²

Design and Material

Door Reversible: No
Shelf Color: Stainless steel
Shelf Dimensions: 1250x400mm
Max load on Shelves: 160 kg/m²
Feet / Legs: 6 adjustable feet
Exterior Finish: Mirror Stainless Steel
Interior Finish: Mirror Stainless Steel
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GP26FGD SS Multideck With Doors then please get in touch.
