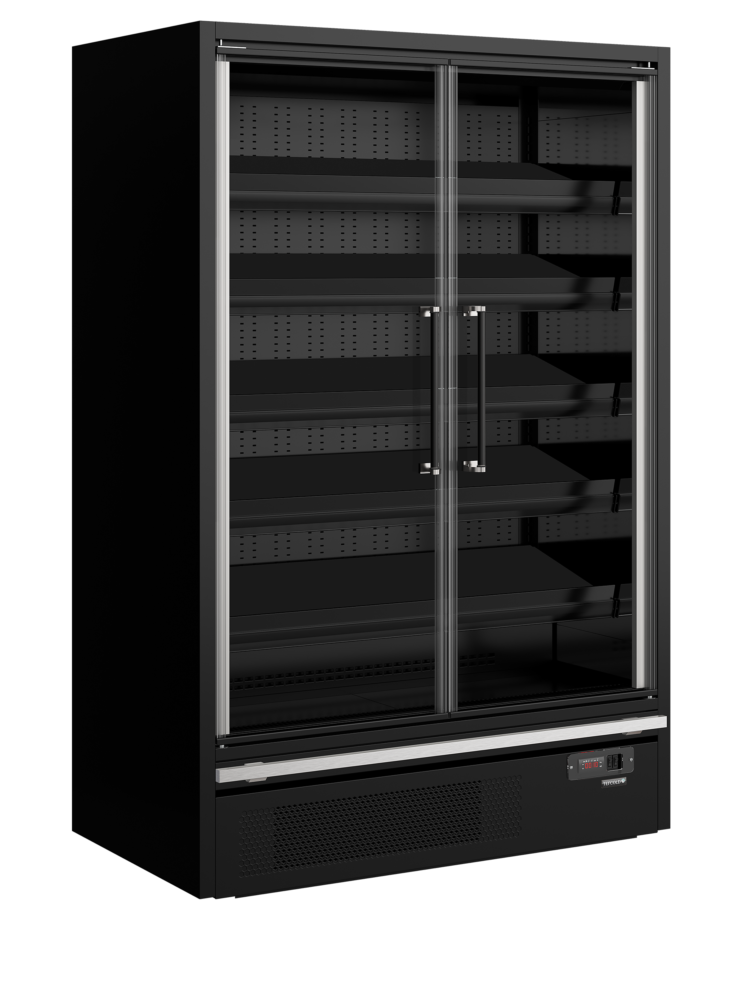

TEFCOLD Galaxy+ GP14FGD Black Multideck With Doors

£3,384.00

+vat

- +

Brand:

SKU: 42275

Energy Arrow

Product summary

  • EU Energy Class B
  • Can be multiplexed – Create uninterrupted continuous line
  • Frameless glass doors for great product visibility
  • Adjustable shelves (can be tilted)
  • Heavy duty shelving with strengthening bar
  • Ticket strip and acrylic front riser as standard
  • Self-closing doors
  • Solid 40 mm endwalls with mirrored interior
  • Internal vertical and horizontal LED light
  • Stainless steel bumper bars

Product description

The TEFCOLD Galaxy+ FGD (Full Glass Door) range are part of our popular range of plug-in multidecks. We’ve combined an expanded display area and optimised cabinet efficiency with frameless, full-vision glass doors, offering enhanced product visibility that captures customers’ attention. The ultra-low front and slim top canopy provide an extra 100mm of internal height, accommodating up to 5 shelves (plus base) as standard. With a standard depth, the unit fits through most doors for easy installation, yet has deep shelves for maximum stock capacity. Thanks to the carefully designed refrigeration system and optimal airflow throughout the cabinets, all sizes in this range are rated B for energy efficiency. Each unit comes with heavy-duty adjustable shelves that can be tilted if needed, as well as EPOS ticket strips and shelf risers as standard. Optional extras include glass end-walls and multiplexing kits.

SPECIFICATION 47 facts · tap for all External W × D × H1330 x 750 x 2005 mmWidth1330 mmDepth750 mmGross / net weight369 / 285 kgGross weight369 kgVoltage / frequency220-240/50 V/Hz

Identity6

Brand TEFCOLDsite
GTIN / EAN 5708181710811site
Product code 42275site
Sub title Multideck With Doorscatalogue
Type Glass Door Multideck Fridgescatalogue
Warranty 2 year parts & 1 year labour warranty. Exclusions apply (see terms and conditions) – addcatalogue

Size & weight11

Depth 750 mmsite
External (W×D×H) 1330 × 750 × 2005 mmcatalogue
External W × D × H 1330 x 750 x 2005 mmsite
Gross / net weight 369 / 285 kgsite
Gross weight 369 kgcatalogue
Height 2005 mmsite
Internal (W×D×H) 1250 × 544 × 1562 mmcatalogue
Internal W × D × H 1250 x 544 x 1562 mmsite
Packed (W×D×H) 1350 × 770 × 2320 mmcatalogue
Packed W × D × H 1350 x 770 x 2320 mmsite
Width 1330 mmsite

Capacity4

Display area 1.91 m²site
Doors 2catalogue
Gross volume 1443 litrescatalogue
Shelves 5catalogue

Performance9

Climate class 3site
Controller Electronicsite
Defrost type Automaticsite
Max ambient 25 °Ccatalogue
Maximum ambient +25°C, 60% RHsite
Refrigerant R290site
Refrigerant charge 140 gsite
Temperature range -1 to +5site
Thermometer Yessite

Power & energy6

Annual energy consumption 1336 kWh/yearsite
Energy consumption 3.66 kWh/24hsite
Energy efficiency index 12 %site
Input power 308 Wsite
Noise level 55 dB(A)site
Voltage / frequency 220-240/50 V/Hzsite

Build & fittings6

Exterior finish Black RAL9005site
Feet / legs 4 adjustable feetsite
Interior light LEDsite
Max load per shelf 160site
Reversible doors Nosite
Shelf dimensions 1250x400mmsite

Other stated facts1

Energy class Bcatalogue
THE WORKING VIEW

Why this glass door multideck fridge earns its place

The TEFCOLD Galaxy+ GP14FGD is a glass-door multideck that merchandises chilled stock like an open front but keeps the cold behind two hinged glass doors. Five adjustable shelves present 1.91 m² of display in an all-black RAL9005 finish, inside and out, so drinks, dairy, packaged meat and prepared food read cleanly against a dark background. The doors let customers see the full range while cutting the energy an open front loses to the aisle.

The cabinet holds -1 to +5 °C, a band suited to chilled retail stock, and clears frost on an automatic defrost cycle managed by an electronic controller. It is rated climate class 3 to hold that band on a warm shop floor. The B energy class and 1335.9 kWh a year work out at about £334 a year at 25p/kWh — a low figure for a cabinet this size, helped by the glass doors — with running noise rated at 55 dB.

The cabinet measures 1330 × 750 × 2040 mm (W×D×H) and runs from a standard 13 A supply on 220-240 V. Net weight is 285 kg (369 kg gross), so plan delivery access and a firm, level floor. For doorway clearance the packed unit is 1350 × 770 × 2320 mm — measure your narrowest opening first. Refrigerant is R290 (140 g charge), a low-GWP hydrocarbon, with 1443 litres gross and 629 litres net capacity.

BEFORE YOU BUY

Questions, answered straight

The cabinet is 1330 mm wide and 2040 mm tall, and the packed unit is 1350 × 770 × 2320 mm. Measure your narrowest doorway and route against the packed height and width, and check ceiling clearance before delivery.

It carries a B energy class and uses 1335.9 kWh a year, about £334 a year at 25p/kWh. The glass doors help keep that figure low; your actual cost moves with your tariff and door traffic.

The two hinged glass doors keep the -1 to +5 °C band behind glass rather than open to the aisle, which cuts the energy an open front loses to the room while still showing the full range across 1.91 m².

The GP14FGD runs from -1 to +5 °C, suited to chilled retail stock such as drinks, dairy, packaged meat and prepared food. An electronic controller and automatic defrost hold the band steady.

Gross volume is 1443 litres and net is 629 litres across five adjustable shelves, with 1.91 m² of display area behind the doors. The shelves adjust to suit tall or short packaged lines.

Yes. Craven Cooling services and repairs the refrigeration we sell — call the team on 01792 732702. The GP14FGD uses R290 refrigerant and an electronic controller, both standard for our engineers.
See it in our Swansea showroom

Compare kit side by side and discuss delivery with the Craven team.

Dimensions

Internal Dimension (WxDxH): 1250 x 544 x 1562 mm
External Dimension (WxDxH): 1330 x 750 x 2005 mm
Packed Dimension (WxDxH): 1350 x 770 x 2320 mm

Cooling and Functions

Type of Controller: Electronic
Type of Defrost: Automatic
Refrigerant: R290
Refrigerant Charge: 140 g
Thermometer: Yes

Power and Consumption

Energy Consumption: 3.66 kWh/24h
Temperature Range: -1 to +5 °C
Annual Energy Consumption: 1336 kWh/year m³
EEI: 12 %
Input Power: 308 W
Voltage / Frequency: 220-240/50 V/Hz
Noise Level: 55 dB(A)

Measures and Content

Temperature Range: -1 to +5 °C
Climate Class: 3
Gross / Net Weight: 369 / 285 kg
Gross / Net Volume: 1443 / 629 l
Max Ambient: +25°C, 60% RH
Total Display Area: 1.91 m² m²

Design and Material

Door Reversible: No
Shelf Color: Black
Shelf Dimensions: 1250x400mm
Max load on Shelves: 160 kg/m²
Feet / Legs: 4 adjustable feet
Exterior Finish: Black RAL9005
Interior Finish: Black RAL9005
Interior Light: LED
If you have any questions about the TEFCOLD Galaxy+ GP14FGD Black Multideck With Doors then please get in touch.
